HPP1602-0 Briggs and Stratton Generator BSQ4500

Model: HPP1602-0

Back To Assemblies

Save Part Not Listed?
product name

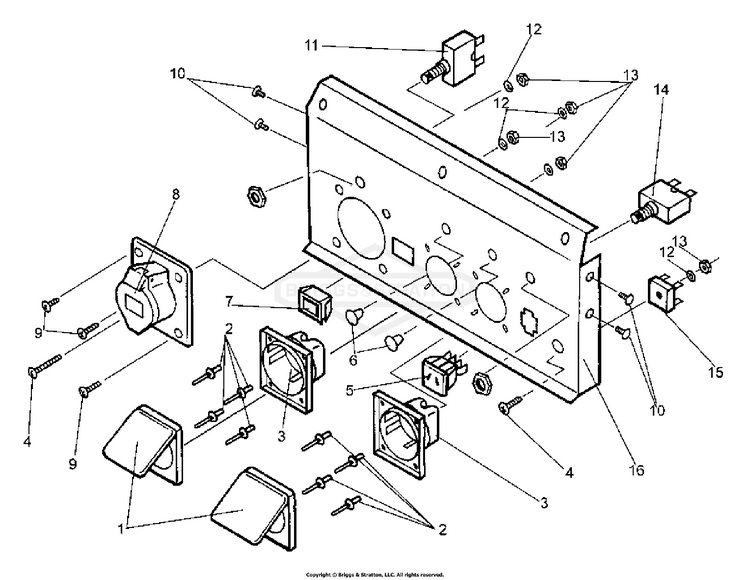

Alternator Outlet Panel

...
...
1
COVER OUTLET HINGED BERKER BS-102107GS
...
2
RIVET POP 4MM * 10MM BS-~NSP
...
3
OUTLET GERMAN DOMESTIC BERKER BS-102106GS
...
4
SCREW MACHINE PPHD M5-0.8*20MM BS-~NSP
...
5
OUTLET 12V DC BS-102112GS
...
6
PLUG BLANKING 12.5MM DIAMETER BS-102122GS
...
7
SWITCH BLANK BS-102190GS
...
8
OUTLET 230V/16A (60*60MM) BS-102119GS
...
9
SCREW MACHINE PPHD M5-0.8*16MM BS-~NSP
...
10
SCREW SELFTAP 5.5*1.8*13MM BS-~NSP
...
11
CIRCUIT BREAKER 15A BS-102133GS
...
12
WASHER SHAKEPROOF M5 EXT BS-~NSP
...
13
NUT FULL M5-0.8MM PLATED BS-~NSP
...
14
CIRCUIT BREAKER 10A BS-102132GS
...
15
BRIDGE RECTIFIER BS-102161GS
...
16
OUTLET PANEL BS-102140GS
