Greenworks PWA119 Pressure Washer

Model: PWA119

Save Part Not Listed?
product name

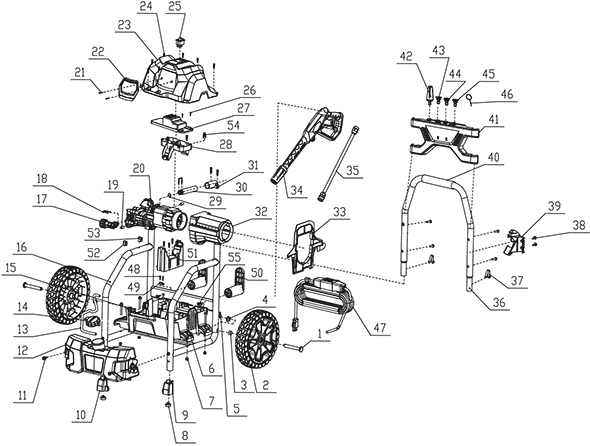

Greenworks PWA119

...
...
1
Axle GWK-33210301A
...
2
Wheel GWK-341301936AE
...
3
Axle Sleeve GWK-33221939
...
4
Flat Washer GWK-32908301A
...
5
Bead Flange GWK-3320643
...
6
Bolt GWK-322021923
...
7
Nut GWK-32222301A
...
8
Foot Pad GWK-341051823
...
9
Right Podotheca GWK-341041823
...
10
Left Podotheca GWK-341031823
...
11
Bolt GWK-341141823
...
12
Detergent Tank GWK-341081823B
...
13
Suction Hose GWK-34900365
...
14
Lid GWK-342011635
...
15
Lower Housing GWK-341021635AB
...
16
Lower Frame GWK-331012584BA
...
17
Water Inlet Connector GWK-311121823
...
18
U Pin GWK-33302365
...
19
Shock Absorbing Sleeve GWK-34203365
...
20
Motor Pump Assy GWK-C1105837-00
...
21
Screw GWK-32216115
...
22
Upper Panel GWK-341022320AB
...
23
Upper Housing GWK-C4103007-00
...
24
Screw GWK-32201368
...
25
Power Switch GWK-364012320
...
26
Screw GWK-32212301
...
27
Switch Box Lid GWK-341032583
...
28
Switch Box Assy GWK-341022583
...
29
O-Ring GWK-34202368
...
30
Water Outlet Connector GWK-332021635
...
31
Valve Plate GWK-341201635AB
...
32
Motor Cover GWK-341082583
...
33
Wind Shield GWK-341052583
...
34
Spray Gun Assy GWK-31140363AB
...
35
Spray Wand Assy GWK-311452302
...
36
Lever GWK-331002584A
...
37
Spring Button GWK-33306847
...
38
Screw GWK-322011635
...
39
Spray Gun Holder GWK-341101936
...
40
Sponge Cover GWK-34902847
...
41
Spray Tip Panel Assy GWK-C1105624-00
...
42
Turbo GWK-C1104816-00
...
43
25 Degree Spray Tip GWK-C1102321-00
...
44
40 Degree Spray Tip GWK-C1102277-00
...
45
Soap Spray Tip GWK-34139319
...
46
Cleaning Tool GWK-33201671
...
47
Power Cord Assy GWK-C6300328-00
...
48
Screw GWK-3320303
...
49
Crimping Board GWK-3410801
...
50
Power Cord Storage Arm GWK-34114847AB
...
51
Motor Bracket GWK-341042583
...
52
Left Support Cushion GWK-341062583
...
53
Right Support Cushion GWK-341072583
...
54
Wiring Cap GWK-36511154
...
55
Screw GWK-32202368
