Greenworks MO40L00 Lawn Mower

Model: MO40L00

Save Part Not Listed?
product name

Greenworks MO40L00

...
...
1
40V Motor Assembly GWK-311161571
...
2
Fan GWK-341191179
...
3
Blade GWK-333011555
...
4
Side Discharge Chute GWK-341011555
...
5
Side Discharge Cover Assembly GWK-311061555
...
6
Decorative Cover GWK-341331179U
...
7
Bumper GWK-341011571
...
8
Screw GWK-3220504
...
9
8" Wheel Assembly GWK-341281179A
...
10
Axle Press Plate GWK-33307470A
...
11
Screw GWK-322081163
...
12
Screw GWK-311041571
...
13
Bolt GWK-332211179
...
14
Screw GWK-3220951D
...
15
Deck GWK-333031555B
...
16
Height Adjustment Link Bar GWK-311111555
...
17
Nut GWK-3220343
...
18
Pad GWK-333021527
...
19
Rear Shield GWK-342011555
...
20
Press Board (Rear Shield) GWK-333061555
...
21
Bolt GWK-32202390
...
22
Mechanical Vertical Switch Assembly GWK-312011571
...
23
Rubber Pad GWK-342031179
...
24
Height Adjustment Bracket (Right) GWK-333101555
...
25
Bolt GWK-3221637
...
26
Nut GWK-32910131
...
27
Clip Washer GWK-3290506
...
28
Rear Cover Axle GWK-332021555
...
29
Rear Cover GWK-341061555
...
30
Torsinal Spring (Rear Cover) GWK-332111179
...
31
Height Adjustment Bracket (Left) GWK-333041555
...
32
Height Adjustment Tension Spring GWK-332011555
...
33
Rear Baffle GWK-341051555
...
34
Grass Catcher Bag Assembly GWK-311151571
...
35
10" Wheel Assembly GWK-341271179A
...
36
Height Adjustment Bar Assembly GWK-333111555
...
37
Rear Wheel Axle GWK-311101555
...
38
Upper Handle GWK-333111179A
...
39
Switch Box Assembly GWK-311171571
...
40
Bail Lever GWK-333061179G
...
41
Sponge GWK-342021179
...
42
Sponge GWK-369011171
...
43
Nut GWK-3220439
...
44
Limit Piece GWK-33323250-1
...
45
Bolt GWK-32208234D
...
46
Knob GWK-341291179
...
47
Isolation Steeve GWK-341031555
...
48
Bolt GWK-322041179
...
49
Lower Handle GWK-333021555
...
50
Spring Pin GWK-332061179
...
51
Knob GWK-341151546
...
52
Washer GWK-32233684
...
53
Bolt GWK-322031179
...
54
Washer GWK-341381179
...
55
Fixed Seat GWK-332081179A
...
56
Compression Spring GWK-332051179
...
57
Limit Column GWK-332071179A
...
58
Nut GWK-32201467
...
59
Pad GWK-332101179A
...
60
Front Panel GWK-341021571
...
61
Mulching Plug GWK-341021555
...
62
Torsinal Spring GWK-33401222
...
63
Cotter Pin GWK-3290135
...
64
Screw GWK-322011555
...
65
Bolt GWK-322011179AC
...
66
Key Assembly GWK-311051479

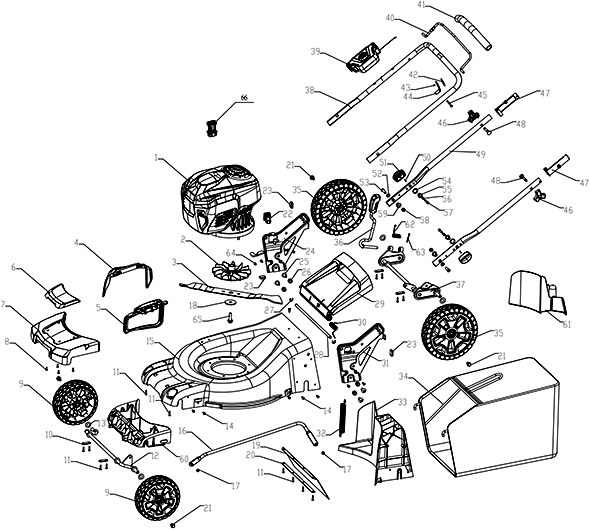

Schematic Image Zoomed
