Greenworks MO09B01 Lawn Mower

Model: MO09B01

Save Part Not Listed?
product name

Greenworks MO09B01

...
...
1
Switch Box Assembly GWK-311052321
...
2
Sponge GWK-34901461A
...
3
Bolt GWK-322021558
...
4
Tention Spring (Rear Cover) GWK-333071559
...
5
Lower Handle GWK-333041558
...
6
Washer GWK-341211558
...
7
Quick Release Lever GWK-34102466-1
...
8
Stud GWK-322011558
...
9
Pin GWK-32901466
...
10
Screw Cap GWK-3410835AB
...
11
Height Adjustment Tension Spring GWK-332031558
...
12
Rear Wheel Axle Bracket GWK-341191558
...
13
7" Wheel GWK-341121558
...
14
Rear Cover GWK-341051558
...
15
Rear Wheel Axle GWK-311121558
...
16
Screw GWK-3220505-1
...
17
Mulching Plug GWK-341091558
...
18
Height Adjustment Link Bar GWK-341081558
...
19
Washer GWK-3331435A
...
20
Axle Sleeve GWK-3320238A-1
...
21
Nut GWK-3221037
...
22
Blade GWK-33304493
...
23
Blade Insulator GWK-3410535
...
24
Wire Hook GWK-3411135-1
...
25
Washer GWK-341201558
...
26
Bolt GWK-322011527
...
27
6" Wheel GWK-341101558
...
28
Screw GWK-322031558
...
29
Clip Reed GWK-322041558
...
30
Height Adjustment Handle GWK-34108494
...
31
Screw GWK-32204113
...
32
Deck GWK-341011561A
...
33
Front Wheel Axle GWK-333011558
...
34
Washer GWK-33310488
...
35
Cotter Pin GWK-3290135
...
36
Block GWK-34106493
...
37
Clump Weight GWK-339031558
...
38
Washer GWK-33310488
...
39
Motor Assembly GWK-31102494
...
40
Screw GWK-32213100
...
41
Cover GWK-341026561A
...
42
Washer GWK-3412211558
...
43
Screw GWK-3220504
...
44
Upper Cover GWK-341031561A
...
45
Blade Holder GWK-34117470
...
46
Handle GWK-341061558
...
47
Screw GWK-322021527
...
48
Grass Catcher Bag Assembly GWK-311061580
...
49
Upper Handle GWK-333012321
...
50
Screw GWK-3220518
...
51
Washer GWK-3290305
...
52
Nut GWK-3221237
...
53
Cord Clip GWK-3330490-1
...
54
Rear Shield GWK-34201493
...
55
Motor Belt GWK-319021161

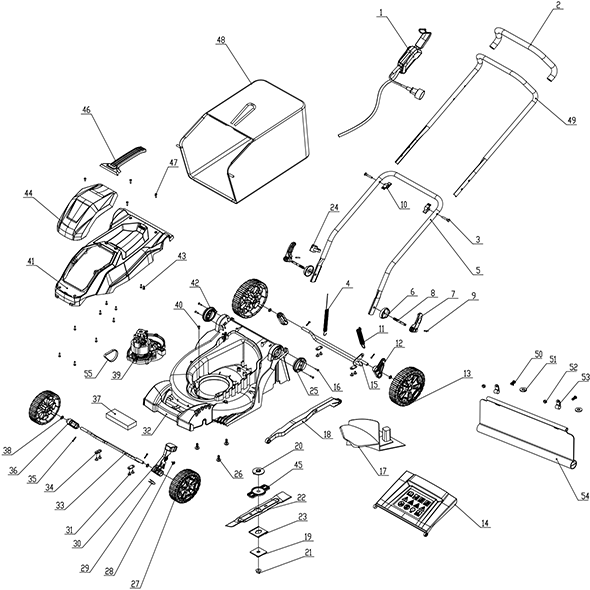

Schematic Image Zoomed
