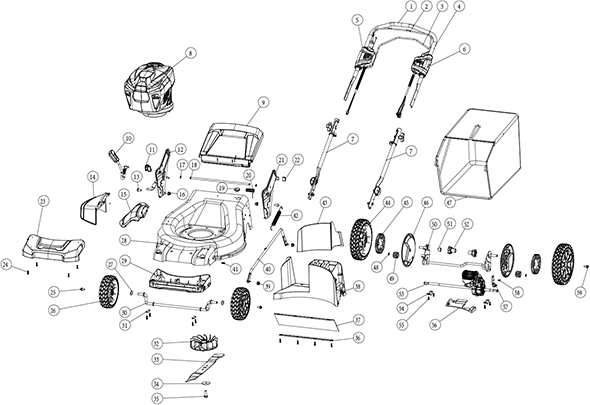

Greenworks LMF414 Lawn Mower

Model: LMF414

Save Part Not Listed?
product name

Greenworks LMF414

...
...
1
Foam Grip GWK-342071179
...
2
Bail Switch GWK-333013455
...
3
Self-Propel Lever GWK-333012382C
...
4
Upper Handle GWK-332151531B
...
5
Switch Box Assembly GWK-311032330A
...
6
Speed Control Switch Assembly GWK-311032338
...
7
Lower Handle GWK-311042339
...
8
Powerhead GWK-311023455
...
9
Rear Cover GWK-341251179A
...
10
Height Adjustment Lever (Bent) GWK-311302338
...
11
Storage Switch Assembly GWK-312011560
...
12
Right Height Adjustment Bracket Welding GWK-333031577BA
...
13
Bolt GWK-3221637
...
14
Side Discharge Chute GWK-341241179C
...
15
Side Discharge Cover Assembly GWK-311201546
...
16
Nut GWK-32910131
...
17
Clip Washer GWK-3290506
...
18
Rear Cover Shaft GWK-332021179
...
19
Rubber Plug GWK-341061577
...
20
Rear Cover Torsion Spring GWK-332111179
...
21
Left Height Adjustment Bracket GWK-333041519D
...
22
Rubber Pad GWK-342031179
...
23
Bumper GWK-311091179M
...
24
Screw GWK-32204113D
...
25
Bolt GWK-32202390A
...
26
8'' Wheel Assembly GWK-341281179A
...
27
Washer GWK-332211179
...
28
Deck GWK-333013431A
...
29
Front Panel GWK-341021179B
...
30
21" Front Axle GWK-311021179
...
31
Axle Compression GWK-33307470
...
32
Fan GWK-341191179-1
...
33
Blade GWK-333041179D
...
34
Pad GWK-333021527
...
35
Bolt GWK-322011179AC
...
36
Rear Guard Press Board GWK-332041179
...
37
Rear Guard GWK-342011179
...
38
Rear Panel GWK-341033431
...
39
Nut GWK-3220343
...
40
Height Adjustment Rod GWK-332081531
...
41
Screw GWK-3220951D
...
42
Height Adjustment Spring GWK-332011179
...
43
Mulch Plug GWK-341043431
...
44
10'' Wheel Assembly GWK-341031531A
...
45
Big Gear GWK-341041531
...
46
Dust Cover GWK-341021531AD
...
47
Grass Catcher Assembly GWK-312011179Q
...
48
Shaft Circlip GWK-32905302A
...
49
Small Gear GWK-332071531
...
50
Rear Axle Welding GWK-311083431
...
51
Bearing GWK-321011531
...
52
Bearing Housing GWK-341221531
...
53
Reducer Assembly GWK-311153455
...
54
Press Board GWK-332131531
...
55
Screw GWK-322051505
...
56
Gear Box Dust Cover GWK-341063431
...
57
Reducer Bracket GWK-333053431
...
58
Screw GWK-322051555
...
59
Bolt GWK-32202390A
