Greenworks LMF320 Lawn Mower

Model: LMF320

Save Part Not Listed?

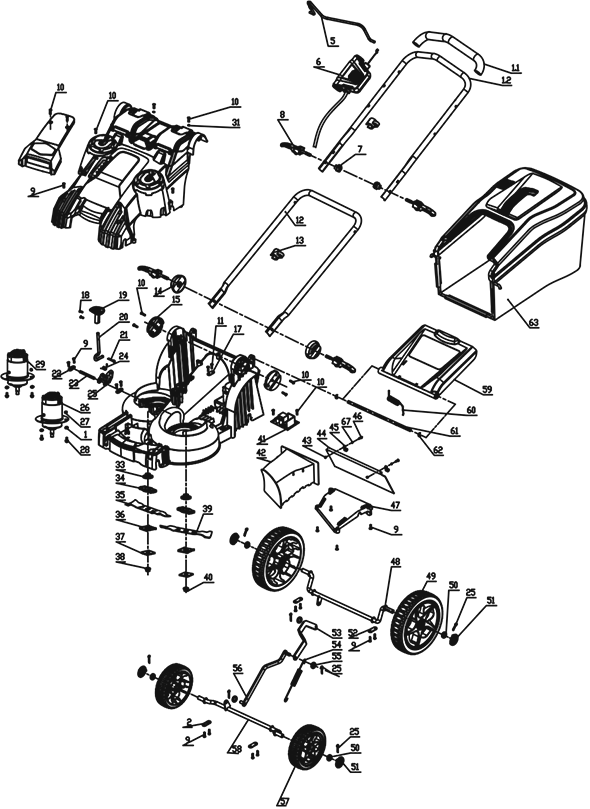

product name

Greenworks LMF320

...
...
1
Upper Handle Assy. GWK-31104488
...
1.1
Foam Grip GWK-34135486
...
1.2
Upper Handle GWK-33310470D
...
5
Motor Bail GWK-33305469BD
...
6
Motor Engagement Box Assy. GWK-311021163-4C
...
7
Knob GWK-34106467-1
...
8
Cam Lock Assy. GWK-31102467-2
...
9
Screw St4.2X20-C GWK-32204113D
...
10
Screw St4.2X14 GWK-32201572
...
11
Screw St4X10 GWK-32202517
...
12
Lower Handle GWK-33315486
...
13
Cord Guide GWK-34135469A
...
14
Cam Lock Cover GWK-34105470-2
...
15
Cam Lock Base GWK-34123486
...
17
Wire Clip GWK-3410403
...
18
Srew M3X8 GWK-32201470
...
19
Height Adjustment Knob GWK-34109470-1
...
20
Height Adjustment Lever GWK-33305486
...
21
Pin 2.5 GWK-3290135
...
22
Height Adjustment Plate GWK-33306470
...
23
Height Adjustment Alxe GWK-33201470
...
24
Height Adjustment Torsion Spring GWK-33901470
...
25
Height Adjustment Bracket GWK-33305470
...
26
Motor, 5335Z-40V/20" GWK-36101486B
...
27
Lock Nut M6 GWK-3220537
...
28
Bolt M6X25 GWK-3220135
...
29
Motor, 5335F-40V/20" GWK-36101486C
...
31
Washer GWK-3290305
...
33
Spindle Guard GWK-33320486
...
34
Blade Holder GWK-34106486
...
35
Reverse Blade GWK-33308486
...
36
Blade Insulator GWK-34107486
...

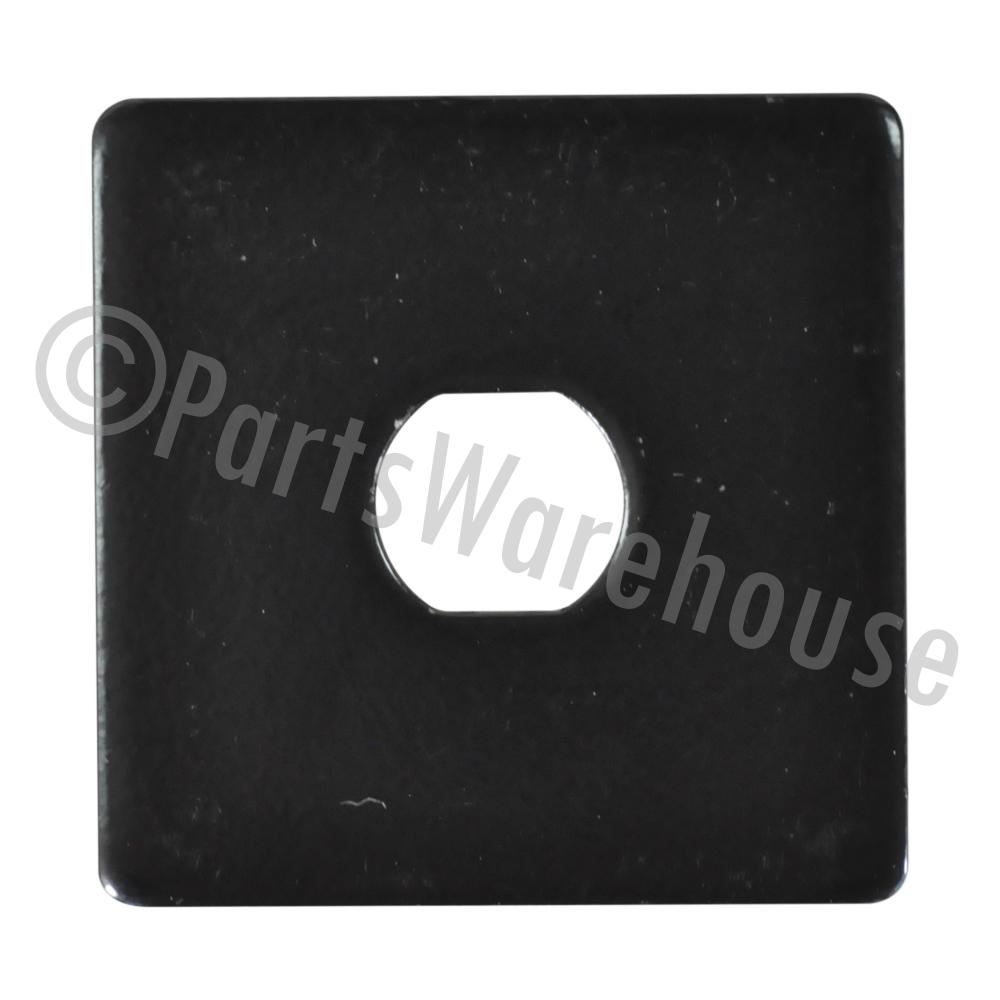

37
Spacer GWK-33309486
...
38
Nut M10X1.25 GWK-3220535A
...
39
Blade GWK-33307486
...
40
Nut M10X1.25 GWK-3221037A
...
41
Power Switch Board GWK-36202486FA
...
42
Mulching Plug GWK-34141486
...
43
Lock Nut M4 GWK-3221237
...
44
Rear Shield GWK-34127486-2
...
45
Wire Clip GWK-3330490-1
...
46
Screw M4X12.5 GWK-3220511D
...
47
Rear Baffle GWK-34128486
...
48
Rear Wheel Axle GWK-33302486
...
49
10" Wheel GWK-34102486
...
50
Washer GWK-3220898
...
51
Wheel Cover GWK-34106488
...
52
Wheel Alxe Washer GWK-33318486
...
53
Link Bar (Rear) GWK-33304486
...
54
Height Adjustment Tension Spring GWK-33306486
...
55
Washer GWK-32904131-1
...
56
Link Bar (Front) GWK-33303486
...
57
7" Wheel GWK-34103486
...
58
Front Wheel Axle GWK-33311486
...
59
Rear Cover GWK-34126486
...
60
Torsion Spring, Rear Cover GWK-33904486
...
61
Rear Cover Rod GWK-33317486
...
62
Retaining Ring 8 GWK-3290506
...
63
Grass Catcher Bag Assy. GWK-31108486
