Greenworks LME457 Lawn Mower

Model: LME457

Save Part Not Listed?
product name

Greenworks LME457

...
...
1
Motor Assembly GWK-311013460
...
2
Pad GWK-333021527
...
3
Fan GWK-341191179-1
...
4
Side Discharge Chute GWK-341241179C
...
5
Bumper Cover GWK-341331179U
...
6
Screw GWK-32205836
...
7
Bumper Main Body GWK-341061179C
...
8
Side Discharge Cover Assembly GWK-311201546
...
9
Blade GWK-333041179
...
10
Bolt GWK-322011179AC
...
11
Screw GWK-3220951D
...
12
Deck GWK-333013431A
...
13
Bolt GWK-32202390A
...
14
Screw GWK-32204113D
...
15
Front Wheel Axle GWK-311021179
...
16
Axle Press Plate GWK-33307470
...
17
Screw GWK-32204113D
...
18
8" Wheel Assembly GWK-341281179A
...
19
Front Panel GWK-341021179B
...
20
Nut GWK-3220343
...
21
Height Adjustment Link Bar GWK-332081531
...
22
Nut GWK-32243563
...
23
Height Adjustment Tension Spring GWK-332011179
...
24
Rear Baffle GWK-341033431
...
25
Screw GWK-3220951D
...
26
Height Adjustment Bracket (Left) GWK-333041519D
...
27
Bolt GWK-3221637
...
28
Rear Cover GWK-341251179A
...
29
Nut GWK-32910131
...
30
Mechanical Vertical Switch Assembly GWK-312011560
...
31
Rubber Plug GWK-342031179
...
32
Height Adjustment Bracket (Right) GWK-333031577
...
33
Clip Washer GWK-3290506
...
34
Rear Cover Axle GWK-332021179
...
35
Torsinal Spring (Rear Cover) GWK-332111179
...
36
Torsinal Spring GWK-33401222
...
37
Cotter Pin GWK-339031546
...
38
Rear Wheel Axle GWK-311083431
...
39
Rear Shield GWK-342011179
...
40
Screw GWK-3220505D
...
41
Press Board GWK-332041179
...
42
10" Wheel Assembly GWK-341602376
...
43
Pin GWK-332061179
...
44
Knob GWK-341151546
...
45
Spring GWK-332051179
...
46
Limit Column GWK-332071179C
...
47
Block GWK-332081179C
...
48
Height Adjustment Bar Assembly GWK-311063459
...
49
Nut GWK-32201467
...
50
Washer GWK-332101179C
...
51
Bolt GWK-322031179
...
52
Lower Handle GWK-333121179A
...
53
Knob GWK-341291179
...
54
Insulation Sleeve GWK-341031555
...
55
Stud GWK-322041179
...
56
Upper Handle GWK-332151531B
...
57
Switch Box Assembly GWK-311053459
...
58
Bail Lever GWK-333013455
...
59
Sponge GWK-342021179
...
60
Grass Catcher Bag Assembly GWK-312011179Q
...
61
Mulching Plug GWK-341043431
...
62
Lower Lever GWK-333012382C
...
63
Self-Propel Speed Controls GWK-311133420
...
64
Screw GWK-3220505D
...
65
Screw GWK-3220404D
...
66
Screw GWK-32204113
...
67
Dust Cover GWK-341021531AD
...
68
Reducer GWK-311153460
...
69
Key Assembly GWK-311051479
...
70
Reducer Bracket GWK-333053431

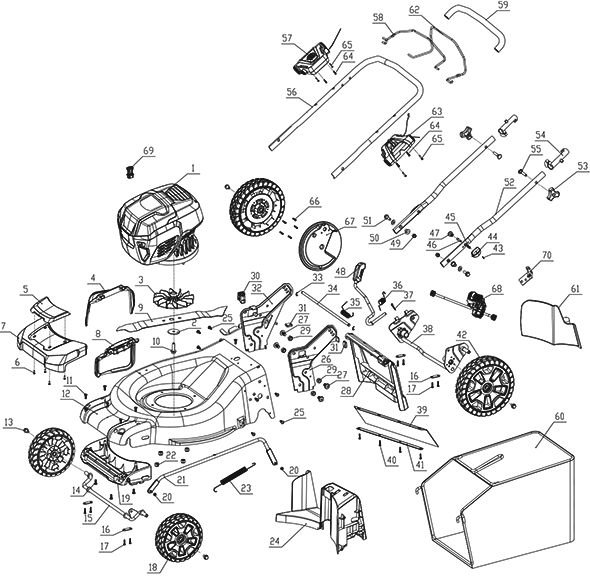

Schematic Image Zoomed
