Greenworks LMA125 Lawn Mower

Model: LMA125

Save Part Not Listed?
product name

Greenworks LMA125

...
...
1
Upper Handle Assy. GWK-31104488B
...
2
Nut M6 GWK-3220537
...
3
Motor Engagement Box GWK-31102489-1
...
4
Lower Handle GWK-33309470A
...
5
Cam Lock Assy. GWK-31102467-2
...
6
Handle Knob GWK-34106467-1
...
7
Cord Guide GWK-3411135
...
8
Motor Cover GWK-34107488
...
9
Screw GWK-32201110
...
10
Height Adjustment Plate GWK-333012470
...
11
Dust Plate GWK-34202470
...
12
Self-Lock Nut M5 GWK-32204100
...
13
Washer GWK-32207115
...
14
40V Handle GWK-34105488
...
15
Motor GWK-36101488
...
16
Cam Lock Cover GWK-34105470-2
...
17
Cam Lock Base GWK-34106470-2
...
18
Bolt M6X25 GWK-3220135
...
19
Wheel Cover GWK-34106488AD
...
20
Washer GWK-3290506
...
21
6" Wheel GWK-31101488B
...
22
Front Wheel Axle GWK-33301470-4
...
23
Clip GWK-33307470
...
24
Spindle Bushing GWK-3320238A-1
...
25
Fan GWK-34108488
...
26
16" Blade GWK-33303488
...
27
Blade Insulator GWK-3410535
...
28
Spacer GWK-3331435
...
29
Nut M10X1.25 GWK-3221037
...
30
Pin GWK-3290135
...
31
C-Clip GWK-3290650
...
32
Front Link Bar GWK-33303470
...
33
Height Adjustment Spring GWK-33902470
...
34
Height Adjustment Axle GWK-33201470
...
35
Height Adjustment Bracket GWK-33305470
...
36
Height Adjustment Torsional Spring GWK-33901470
...
37
Height Adjustment Lever GWK-33313470
...
38
Clip GWK-33306470
...
39
Rear Link Bar GWK-33304470
...
40
Height Adjustment Handle GWK-34109470-1
...
41
Screw GWK-32201470
...
42
7" Wheel GWK-31102488B
...
43
Rear Wheel Axle GWK-33302470-4
...
44
Rear Cover Rod GWK-33202470
...
45
C-Clip GWK-3290506
...
46
Rear Cover Spring GWK-33903470
...
47
Rear Cover GWK-34102470
...
48
Mulching Plug GWK-34104470
...
49
Screw GWK-3220518
...
50
Washer GWK-3290750
...
51
Wire Clip GWK-3330490-1
...
52
Self-Lock Nut M4 GWK-3221237
...
53
Rear Shield GWK-34201470
...
54
Rear Baffle GWK-34103470
...
55
Screw GWK-3220404
...
56
Catcher Bag GWK-34901470-2
...
57
Resistance GWK-36901227
...
58
Radiator Rectifier GWK-33301475
...
59
Rectifier GWK-3690135
...
60
Screw GWK-3220375
...
61
Screw GWK-32204113

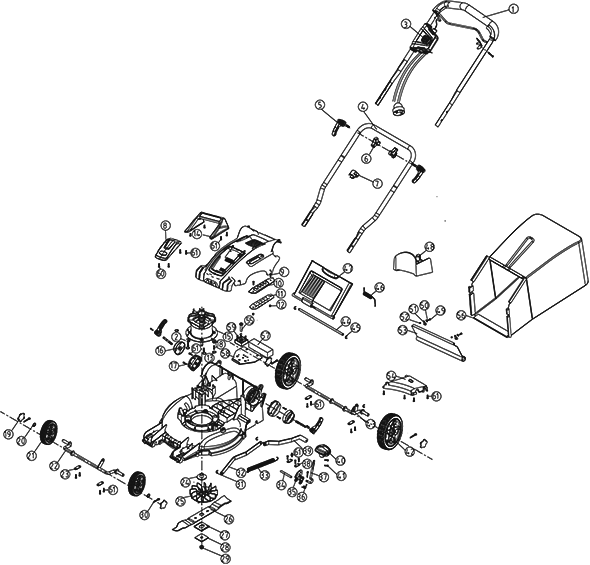

Schematic Image Zoomed
