Greenworks 27032 Lawn Mower

Model: 27032

Save Part Not Listed?
product name

Greenworks 27032

...
...
1
Bolt GWK-3221037
...
2
Board GWK-3330418A
...
3
Blade GWK-33301261
...
4
Bolt GWK-3220351
...
5
Blade Cover GWK-34103263-1
...
6
Seal Rimg GWK-34908261
...
7
Bolt GWK-3220811
...
8
F Lat Washer GWK-3290305
...
9
Washer GWK-3290675
...
10
Transmission Cover GWK-33103261
...
11
Bearing GWK-32109261
...
12
F Ix Shaft GWK-33208261
...
13
F Lat Key GWK-32902261
...
14
Gear Wheel GWK-33508261
...
15
Washer GWK-3290448
...
16
Bearing GWK-32108261
...
17
Motor GWK-36101263-1
...
18
Nut GWK-32208261
...
19
Washer GWK-3220898
...
20
Nut GWK-32907152
...
21
Adjust Bar GWK-33303263
...
22
3" Front Wheel GWK-34119263-1
...
23
Pillar GWK-33203263
...
24
Wheel Cover GWK-3411799C
...
25
Torsion GWK-33401263
...
26
Right Housing GWK-34102263-1
...
27
Bolt GWK-3220505
...
28
Guard GWK-34105263
...
29
Left Housing GWK-34101263-1
...
30
Lock Turn Cap GWK-34110263
...
31
O Utlet Cover GWK-34104263-1
...
32
Washer For Shaft GWK-33304261
...
33
6" Wheel Assembly GWK-3411799-4
...
34
Bolt GWK-3220552
...
35
Lower Collar GWK-34113263
...
36
Cord Clip GWK-3410302
...
37
Screw GWK-3220905
...
38
Rear Wheel Shaft GWK-33202263
...
39
Pin GWK-32988261
...
40
Nut GWK-32204100
...
41
6" Left Wheel Assembly GWK-3411799-3
...
42
Lower Tube GWK-33301263-1
...
43
Middle Tube GWK-33302262-1
...
44
Auxiliary Handle Assembly GWK-3110182-6
...
45
Lock Tube For Auxiliary Handle GWK-34101266
...
46
Turn Cap For Auxiliary Handle GWK-3110282-6
...
47
Nut GWK-3290205
...
48
Upper Tube GWK-33301262-1
...
49
Connector Cap GWK-36511154
...
50
Wire GWK-36901263
...
51
U Pper Collar GWK-34115263
...
52
Left Handle GWK-34106263-1
...
53
Right Handle GWK-34107263-1
...
54
Switch GWK-36301263-1
...
55
Retainer GWK-3420102-1
...
56
Power Cord GWK-36401263
...
57
Sponge GWK-34901263
...
58
Turn Cap GWK-3410835-6
...
59
Bolt For Handle GWK-3220436
...
60
Inner Tube GWK-34120263
...
61
Inner Tube GWK-34120263

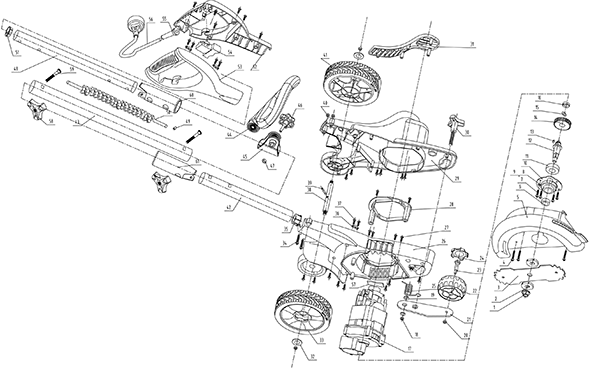

Schematic Image Zoomed
