Greenworks 25282 Lawn Mower

Model: 25282

Save Part Not Listed?
product name

Greenworks 25282

...
...
1
Upper Handle Assy. GWK-31104488
...
1.1
Foam Grip GWK-34135486
...
1.2
Upper Handle GWK-33310470-2
...
2
Washer GWK-32207115
...
3
Stop Sheet GWK-33323250-1
...
4
Lock Nut M5 GWK-3220439
...
5
Screw M5X30 GWK-32208234A
...
6
Motor Engagement Box Assy. GWK-31107486-1
...
6.1
Start Button GWK-34136486
...
6.1
Slide Block GWK-33317250
...
6.11
Torsion Spring GWK-33316250
...
6.12
Spring GWK-33315250
...
6.13
Nut M3 GWK-3221305
...
6.14
Start Cable (Long) GWK-31901486
...
6.15
Lower Cover, Motor Engagement Box GWK-34121486
...
6.16
Screw St4.2X20-C GWK-32204113D
...
6.2
Spring GWK-33401229
...
6.3
Upper Cover, Motor Engagement Box GWK-34122486
...
6.4
Compressor GWK-34140486
...
6.5
Screw St3X8-C GWK-3220735N
...
6.6
Start Cable (Short) GWK-31901250
...
6.7
Tension Spring GWK-33318250
...
6.8
Block GWK-34118250
...
6.9
Screw GWK-32204250
...
7
Motor Bail GWK-33305469-3
...
8
Knob GWK-34106467-1
...
9
Cam Lock Assy. GWK-31102467-2
...
11
Spring GWK-33332250
...
12
Screw St4.2X20-C GWK-32204113D
...
13
Upper Cover, Switch Box GWK-34119486
...
14
Slide Block, Switch Box GWK-34114250
...
15
Switch GWK-36301289
...
16
Screw St4.2X14 GWK-32201572
...
17
Screw St4X10 GWK-32202517
...
18
Switch Box Bracket GWK-33314486
...
19
Lower Handle GWK-33315486
...
20
Cord Guide GWK-34135469A
...
21
40V 4Ah Battery Pack GWK-31102975
...
23
Key GWK-31201470
...
24
Knit GWK-34903250
...
25
Height Adjustment Knob GWK-34109470-1
...
26
Srew M3X8 GWK-32201470
...
27
Cam Lock Cover GWK-34105470-2
...
28
Cam Lock Base GWK-34123486
...
29
Deck GWK-34105486
...
30
Height Adjustment Plate GWK-33306470
...
31
Height Adjustment Alxe GWK-33201470
...
32
Height Adjustment Lever GWK-33305486
...
33
Pin 2.5 GWK-3290135
...
34
Height Adjustment Torsion Spring GWK-33901470
...
35
Height Adjustment Bracket GWK-33305470
...
36
Motor, 5335F-40V/20" GWK-36101486A
...
37
Motor, 5335Z-40V/20" GWK-36101486
...
38
Lock Nut M6 GWK-3220537
...
39
Bolt M6X25 GWK-3220135
...
40
Wire Clip GWK-3410403
...
41
Blade Holder GWK-34106486
...
42
Reverse Blade GWK-33308486
...
43
Blade Insulator GWK-34107486
...
44
Spacer GWK-33309486
...
45
Nut M10X1.25 GWK-3220535A
...
46

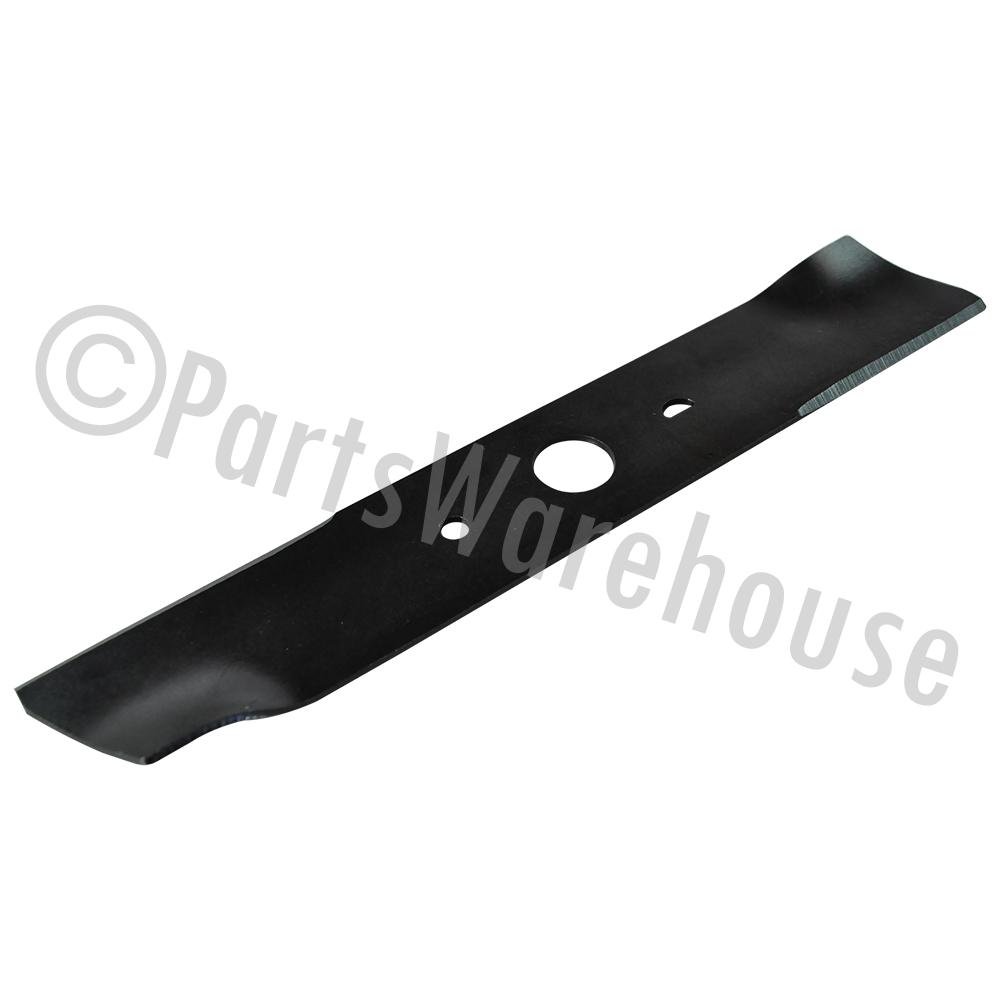

Blade GWK-33307486
...
47
Nut M10X1.25 GWK-3221037A
...
48
Power Switch Board GWK-36202486
...
49
Mulching Plug GWK-34141486
...
50
Lock Nut M4 GWK-3221237
...
51
Rear Shield GWK-34127486-1
...
52
Wire Clip GWK-3330490-1
...
53
Screw M4X12 GWK-3220511D
...
54
Rear Baffle GWK-34128486
...
55
Rear Wheel Axle GWK-33302486
...
56
10" Wheel GWK-34102486
...
57
Washer GWK-3220898
...
58
Wheel Cover GWK-34106488
...
59
Wheel Alxe Washer GWK-33318486
...
60
Link Bar (Rear) GWK-33304486
...
61
Height Adjustment Tension Spring GWK-33306486
...
62
Washer GWK-32904131-1
...
63
Link Bar (Front) GWK-33303486
...
64
7" Wheel GWK-34103486
...
65
Front Wheel Axle GWK-33311486
...
66
Rear Cover GWK-34126486
...
67
Torsion Spring, Rear Cover GWK-33904486
...
68
Rear Cover Rod GWK-33317486
...
69
Retaining Ring 8 GWK-3290506
...
70
Grass Catcher Bag Assy. GWK-31108486
...
70.1
Catcher Bag Handle GWK-34132486
...
70.2
Indicator GWK-34133486
...
70.3
Grass Catcher Bag Cover GWK-34130486
...
70.4
Screw St4.2X14 GWK-32201572
...
70.5
Grass Catcher Bag GWK-34125486
...
70.6
Grass Catcher Frame GWK-33316486
...
70.7
Washer GWK-3290305
...
70.8
Screw M4X12.5 GWK-3220511D
...
71
40 Charger GWK-31102980
...
72
Motor Cover Assy. GWK-31110486
...
73
Upper Cover GWK-34111486
...
74
Washer GWK-3290305
...
75
Spindle Guard GWK-33320486
