Greenworks 20V LITHIUM-ION CORDLESS 8" POLE SAW 20612

Model: 20612

Save Part Not Listed?
product name

Greenworks 20612

...
...
1
Handle Assy. GWK-31302320-2
...
2
Connector GWK-34106177
...
3
Handle Name GWK-34113320
...
4
Switch Trigger GWK-34105320-2
...
5
Spring GWK-33402161
...
6
Micro Switch GWK-36301320
...
7
Self-Lock Handle GWK-34104320-2
...
8
Spring GWK-33214320
...
9
Rubber Ring GWK-34204320
...
10
Handle Pole Assy. GWK-31309320-1
...
11
Bolt M4X8 GWK-3220840-1
...
12
Locking Connector GWK-34108320-2
...
13
Locking Cap GWK-34109320-2
...
14
Nut M6 GWK-32907152
...
15
Middle Pole Assy. GWK-31303320-1
...
16
Rubber Ball Bearing GWK-34201320
...
17
Big Gear GWK-31304320
...
18
Motor Assy. GWK-36101320
...
19
Motor Bracket GWK-33203155
...
20
Oil Tank GWK-31306320
...
21
Oil Tank Cap Assy. GWK-31307320-2
...
22
8" Bar Assy. GWK-31308320-3
...
23
Scabbard GWK-34112320-2
...
24
Outlet Oil Tube GWK-34207152
...
25
Copper Insert GWK-33204320
...
26
Housing Assy. GWK-31301320-2
...
27
Tension Screw GWK-33201320
...
28
Chain Wheel GWK-33902102
...
29
Chain Wheel Washer GWK-33302102
...
30
Side Cover Assy. GWK-31310320-1
...
31
Locked Screw GWK-32904320
...
32
Retaining Ring GWK-3290875
...
33
Clip GWK-33210320
...
34
Tension Block GWK-33202320
...
35
Housing Nameplate GWK-34114320
...
36
Screw M6X30 GWK-32909320
...
37
Screw St3X8-F GWK-32201152
...
38
Inlet Oil Tube GWK-34203152
...
39
Oil Pump Board GWK-34109152-1
...
40
Oil Pump Assy. GWK-34906152
...
41
Upper Pole Assy. GWK-31311320-1
...
42
Screw St4X16-F GWK-3220505
...
43
Screw St4X12-F GWK-3220319

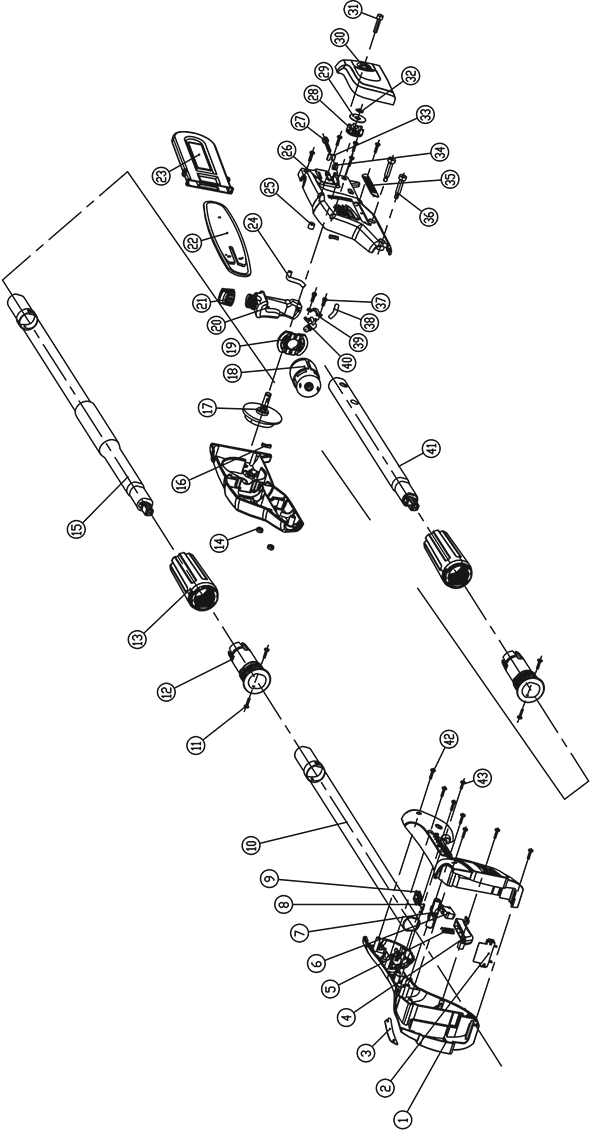

Schematic Image Zoomed
