product name

Greenworks 19" Cordless Hand Push Lawn Mower 25262

Model: 25262

Save Part Not Listed?
product name

Greenworks 25262

...
...
1
Upper Handle Assy. GWK-31104488
...
1.1
Upper Handle GWK-33310470-2
...
1.2
Foam Grip GWK-34135486
...
2
Power Lever GWK-33305469-3
...
3
Cable Box Assy. GWK-31107486
...
3.1
Start Button GWK-34136486
...
3.1
Slide Block GWK-33317250
...
3.11
Torsion Spring GWK-33316250
...
3.12
Spring GWK-33315250
...
3.13
Nut M3 GWK-32201305
...
3.14
Start Cable (Long) GWK-31902469
...
3.15
Cable Box Cover (Lower) GWK-34121486
...
3.16
Screw GWK-32201572
...
3.2
Spring GWK-33401229
...
3.3
Cable Box Cover (Upper) GWK-34122486
...
3.4
Compressor GWK-34123469
...
3.5
Screw St3X8-C GWK-3220735
...
3.6
Start Cable (Short) GWK-31901250
...
3.7
Compressed Spring GWK-33318250
...
3.8
Block GWK-34118250
...
3.9
Bolt GWK-32204250
...
4
Lock Nut M5 GWK-3220439
...
5
Bail Stop GWK-33323250-1
...
6
Bolt M5x30 GWK-32208250
...
7
Lower Handle GWK-33302463-4
...
8
Cam Lock Block GWK-34103466-3
...
9
Cam Lock Assy. GWK-31103487
...
9.1
Dowel Pin 5x26 GWK-32901466
...
9.2
Cam Lock Bolt GWK-33201466
...
9.3
Cam Lock Lever GWK-34102466-3
...
10
Handle Knob M8 GWK-34106467-1
...
11
Cable Clamp GWK-34135469A
...
12
Battery GWK-31102492
...
13
Screw M5x15 GWK-3220435
...
14
Upper Housing GWK-34105492
...
15
Key GWK-31201470
...
16
Key Holder B GWK-34107492
...
17
Key Holder A GWK-34106492
...
18
Connector GWK-36501229
...
19
Retaining Seat GWK-34105462
...
20
Screw St4x14-F GWK-32210131
...
21
Lock Nut M6 GWK-3220537
...
22
Motor GWK-36101487
...
23
Nut M8 GWK-32208261
...
24
Motor Bracket GWK-34105467-1
...
25
Washer 18X6.5X1.8 GWK-32207115
...
26
Bolt M6x25 GWK-3220135
...
27
Bolt GWK-3220406
...
28
Compressed Spring GWK-33332250
...
29
Switch Box Assy. GWK-31106250-3
...
29.1
Upper Cover, Switch Box GWK-34134250-1
...
29.2
Switch Box Slide Block GWK-34114250
...
29.3
Switch GWK-36302470
...
29.4
Lower Cover, Switch Box GWK-34113250
...
29.5
Switch Box Bracket GWK-33325250
...
29.6
Screw St4.2x35-F GWK-32205404
...
30
Side Discharge Chute GWK-34103467-1
...
31
Side Discharge Cover Assy. GWK-31104487
...
31.1
Side Discharge Cover GWK-34102467-1
...
31.2
Side Discharge Axle GWK-33308250
...
31.3
Side Discharge Bracket GWK-34107250
...
31.4
Side Discharge Torsion Spring GWK-33331250
...
32
Bolt M6X8 GWK-3220136
...
33
Deck GWK-31301491
...
34
Wheel Cover GWK-34106488
...
35
Pin 2.5 GWK-3290135
...
36
Washer GWK-3220898
...
37
7" Wheel Assy. GWK-34103486
...
38
Front Wheel Axle GWK-33901234-1
...
39
Screw M5x12 GWK-32206250
...
40
Nut M10X1.25 GWK-3221037
...
41
Square Washer GWK-3331435
...
42
Insulator Washer GWK-3410535
...
43
19" Blade GWK-33301487-1
...
44
Blade Holder GWK-34117470
...
45
Spindle Bushing GWK-3320238
...
46
Rear Baffle GWK-34102238-1
...
47
Screw St6.3X16-F GWK-32205234
...
48
Screw St6.3X12-F GWK-32210234
...
49
Link Bar GWK-33302234-4
...
50
Tension Spring GWK-33312234
...
51
Rear Shield GWK-34101467
...
52
Lock Nut M4 GWK-3221237
...
53
Wire Clip GWK-3330490-1
...
54
Screw M4x12 GWK-3220518
...
55
Rear Wheel Rod GWK-33903487
...
56
10" Wheel GWK-34102486
...
57
Height Adjustment Knob (Upper) GWK-34113227-5
...
58
Height Adjustment Knob (Lower) GWK-34114227-5
...
59
Height Adjustment Lever GWK-31103222
...
60
Torsion Spring GWK-33401222
...
61
Retaining Ring 8 GWK-3290506
...
62
Bolt GWK-32207234
...
63
Torsion Spring (Right) GWK-33313234
...
64
Height Adjustment Plate (Right) GWK-33901487
...
65
Lock Nut M10 GWK-32910131
...
66
Torsion Spring (Left) GWK-33310234
...
67
Height Adjustment Plate (Left) GWK-33905234-1
...
68
Rear Cover Rod GWK-33201234
...
69
Rear Door GWK-34101234-4
...
70
Mulching Plug GWK-34106463-2
...
71
Grass Bag Assy. GWK-31102487
...
71.1
Bag Frame GWK-33907234-5
...
71.2
Grass Bag GWK-34902234-10
...
72
36V Charger GWK-36601492

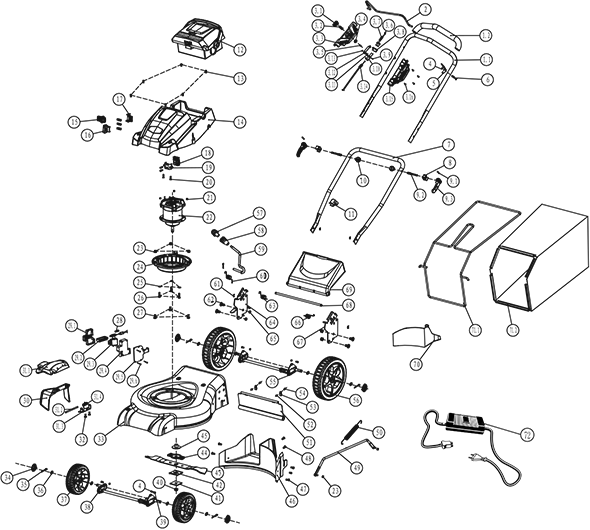

Schematic Image Zoomed
