Grass Handler by MTD 112-818R101 (850-6198/8874) (1992) Push Walk-Behind Mower

Model: 112-818R101 (850-6198/8874) (1992)

Save Part Not Listed?
product name

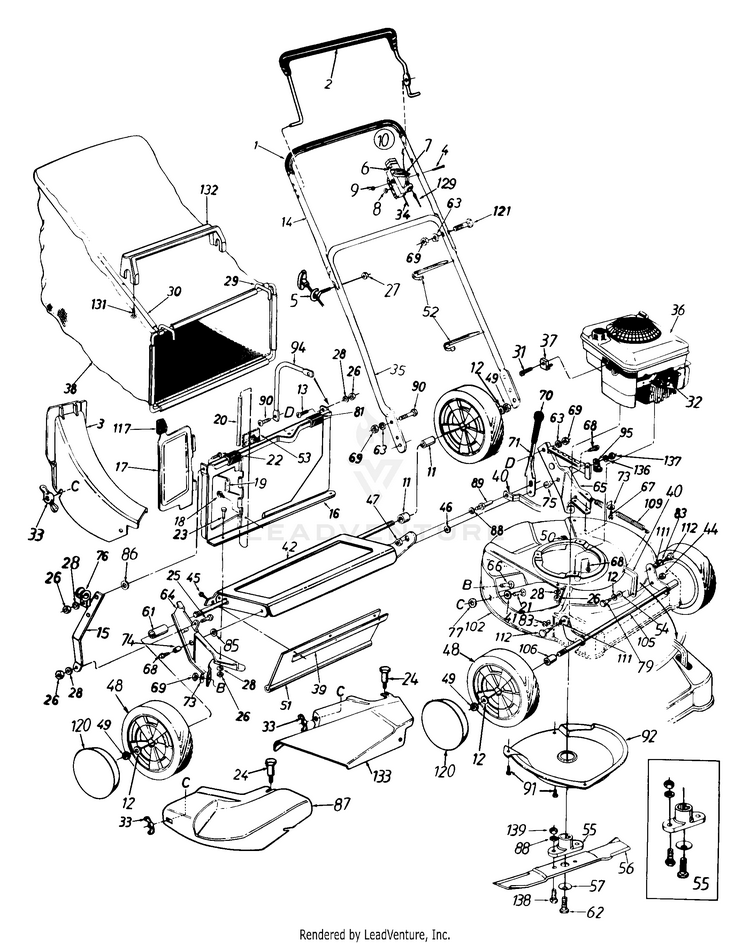

Handle And Engine Assembly

...
...
1
Grip Foam MTD-720-0295
...
2
Std. Control Handle MTD-747-0824B-0637
...
3
CHUTE ASSEMBLY MTD-731-1023
...
4
Oval C-Sunk Scr. MTD-710-0605
...
5
Rope Guide Bolt MTD-710-1205
...
6
Throttle Body MTD-946-0875
...
7
Throttle Lever MTD-946-0876
...
8
Curved Spring Wash. .66" I.D. MTD-936-0501
...
9
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
10
Throttle Box Comp. (Incl. Ref. 4, 6, 7, 8, 9) MTD-811-0185
...
11
SLEEVE MTD-711-0500
...
12
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
13
Truss Mach. Scr. 1/4-20 x .62" MTD-710-0946
...
14
UPPER HANDLE MTD-749-0438D-0637
...
15
BRACKET-PANEL SUP MTD-16129A-0637
...
16
PANEL ASSEMBLY-CATCHER MTD-16862
...
17
DOOR-TOP DISCHARGE MTD-17095A
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
Torsion Spring MTD-732-0483A
...
20
ROD MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x .75" MTD-710-0225
...
23
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
24
Shoulder Bolt .312" Dia. x .18" Lg. Special MTD-738-0704
...
25
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
26
HEX NUT 1/4-20 MTD-912-0287
...
27
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
Front Grass Catcher Frame MTD-747-0705-0637
...
30
Rear Grass Catcher Frame MTD-749-0764A-0637
...
31
Hex Self-Tap Scr. #10-32 x .62" MTD-710-1237
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Wire-58" Lg. MTD-946-0674A
...
35
Lower Handle MTD-749-0907B
...
36
5 H.P. Engine - B&S 126702-3120-01 MTD-NA
...
37
Cable Clamp (B&S) MTD-BS-690798
...
38
GRASS CATCHER BAG MTD-964-0082
...
39
STRIP-RETA MTD-14835
...
40
ARM-HGT ADJ CONNECT MTD-16863
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
AXLE ASSEMBLY- MTD-16131A
...
44
JAM LOCK NUT MTD-712-0266A
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Fl-Wash. .38" I.D. x 1.0" MTD-736-0258
...
47
Hex Jam Nut 3/8-24 Thd. Wheel Ass'y. Comp. MTD-712-0711
...
49
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
48
Wheel Ass'y. Comp. 8 x 1.75 "T" Tread MTD-734-1268
...
xx
Wheel Ass'y. Comp. 8 x 1.75 Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
50
PLUG MTD-731-0564
...
51
FLAP-REAR MTD-731-0671A
...
52
Cable Tie MTD-725-0157
...
53
STR.-FOAM PVC 1.1/ MTD-722-0139
...
54
Bell-Wash. .515" I.D. x 1" O.D. MTD-736-0253
...
55
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
56
21" Blade MTD-942-0621
...
xx
21" Mulching Blade MTD-942-0721
...
57
Bell-Wash. .46" I.D. MTD-736-0463
...
?58
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
?59
SCREW-PAN HEAD TAPP MTD-710-1056
...
?60
L-Wash. 3/8" I.D. MTD-736-0169
...
61
SLEEVE MTD-711-0313
...
62
Hex Nut 3/8-24 Thd. MTD-712-0241
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
BRACKET ASSEMBLY (RH) MTD-16136A
...
65
BRACKET ASSEMBLY (LH) MTD-16137B
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex Wash. Hd. TT-Tap Scr. 3/8-1 6 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0606
...
?72
BELL WASHER MTD-936-0356
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
76
Rope Guide MTD-719-0279
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
?78
Hex Nut 3/8-16 Thd. MTD-712-0798
...
79
Shld. Bolt .5" Dia. x .295" MTD-738-0234
...
81
PANEL BAG CLIP MTD-731-0880
...
?82
Front Spring Lever MTD-94832
...
83
Flanged Nyliner Brg. MTD-741-0491
...
85
Fl-Wash. 3/8" I.D. x 1" O.D. MTD-736-0258
...
86
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
87
MULCH PLUG MTD-731-1343
...
88
L-Wash. 3/8" I.D. MTD-736-0169
...
89
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
90
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
...
91
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
92
MULCHING BAFFLE MTD-731-1342
...
94
ARM-CATCHER SUPPORT MTD-749-0778
...
95
CLAMP MTD-726-0175
...
102
DECK ASSEMBLY-21IN MTD-16858
...
105
FRONT AXLE ASSEMBLY MTD-982-7509-0637
...
106
SLEEVE MTD-711-0313
...
109
EXTENSION SPRING MTD-732-0362
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
SHOULDER SCREW MTD-938-0705
...
117
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
120
HUB CAP MTD-920-0249
...
xx
Hub Cap MTD-731-0981C
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
129
Control Cable MTD-946-0557
...
131
Hex AB-Tap Scr. #12 x 1.0" MTD-710-0969
...
132
BAG HANDLE BLACK MTD-731-0801
...
133
DEFLECTOR-SIDE CHUTE BLACK MTD-731-0884
...
136
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
137
HEX LOCK NUT 3/8-2 MTD-912-0296
...
xx
BALL BEARING MTD-941-0180
...
138
UNKNOWN MTD-NA
...
139
UNKNOWN MTD-NA
