product name

Gladiator GATL302DKW00

Model: GATL302DKW00

Save Part Not Listed?
product name

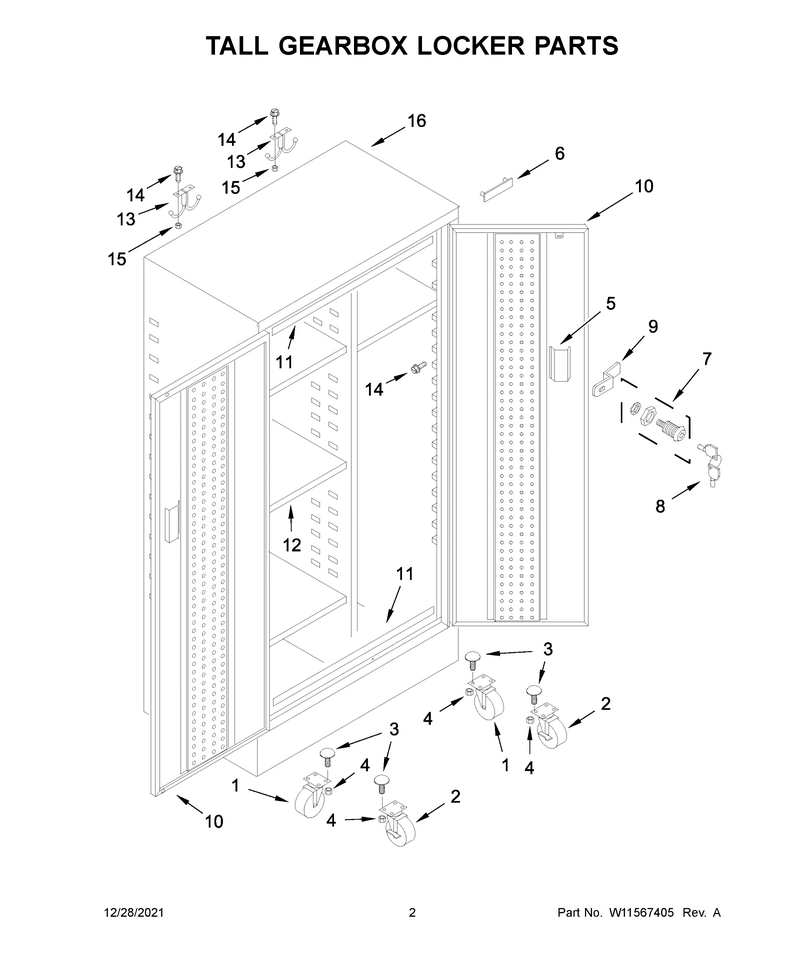

02 - Tall Gearbox Locker Parts

...
...
1
Caster WPL-W11558421
...
2
Caster WPL-W11558422
...
2A
Caster WPL-W11558423
...
3
Bolt WPL-W11558420
...
4
Nut WPL-W11558418
...
5
Hndle-Door WPL-W11549431
...
6
Nameplate WPL-W11679659
...
7
Lock WPL-W11557659
...
8
Keys WPL-W11557661
...
9
Cam WPL-W11538391
...
10
Door (Includes Handle) (Gray Slate, Right Hand) WPL-W11538385
...
10A
Door WPL-W11561474
...
11
Magnet WPL-W11557662
...
12
Shelf, Half WPL-W11538393
...
13
Hook, Double WPL-W11544382
...
14
Screw WPL-W11549435
...
15
Nut WPL-W11561477
...
16
Following Parts Not Illustrated WPL-N/P
