Gladiator GARF30FDGB01

Model: GARF30FDGB01

Save Part Not Listed?
product name

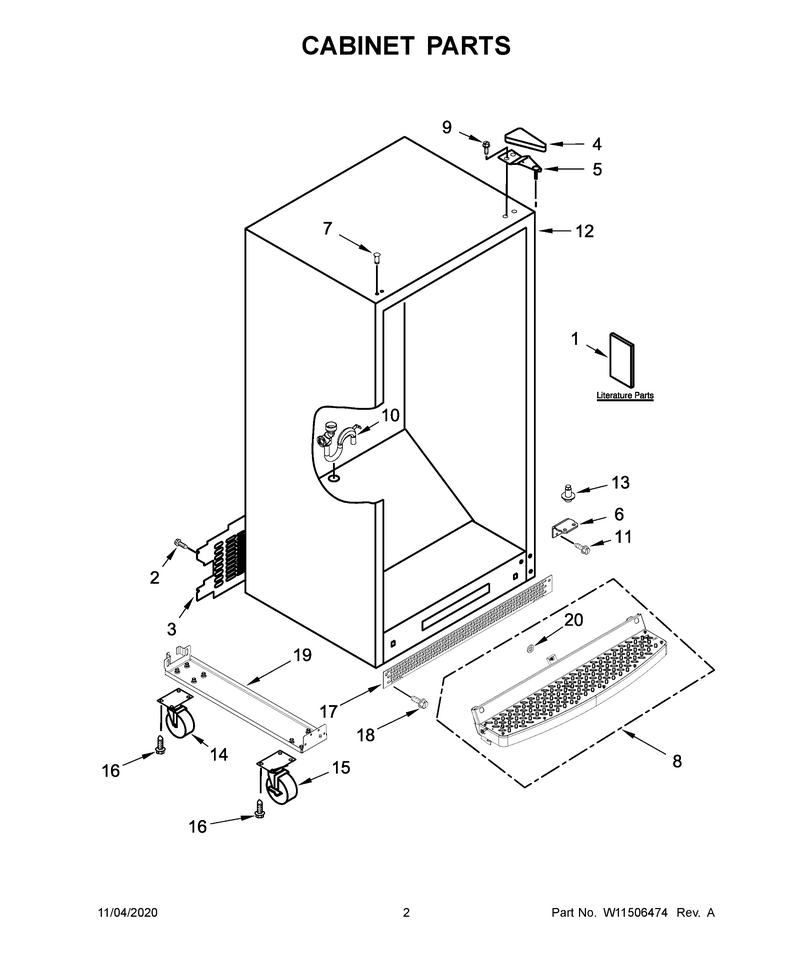

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11320189
...
1B
Tech Sheet WPL-W11408463
...
1A
Energy Guide WPL-W11357362
...
2
Screw WPL-WP489478
...
3
Cover, Unit WPL-W11311062
...
4
Cover WPL-WP2213363
...
5
Hinge-Door WPL-WP2261963
...
6
Plate, Bottom Hinge (Hammer Granite) WPL-W11102844
...
7
Button-Plg WPL-WPW10520305
...
8
Pedal WPL-W11199807
...
9
Screw WPL-WP489497
...
10
Tube-Drain WPL-W11673435
...
11
Screw (8) WPL-67006564
...
12
Following Parts Not Illustrated WPL-N/P
...
13
Hinge-Pin WPL-W11676609
...
14
Caster WPL-WP8204601
...
15
Caster WPL-W10741533
...
15A
Caster, Rigid 5" (With Brake) (Right Hand) WPL-8211250
...
16
Screw WPL-WP3400527
...
17
Grille WPL-W11199697
...
18
Screw WPL-W11505268
...
19
Bracket WPL-W11316673
...
20
Washer WPL-W11316683

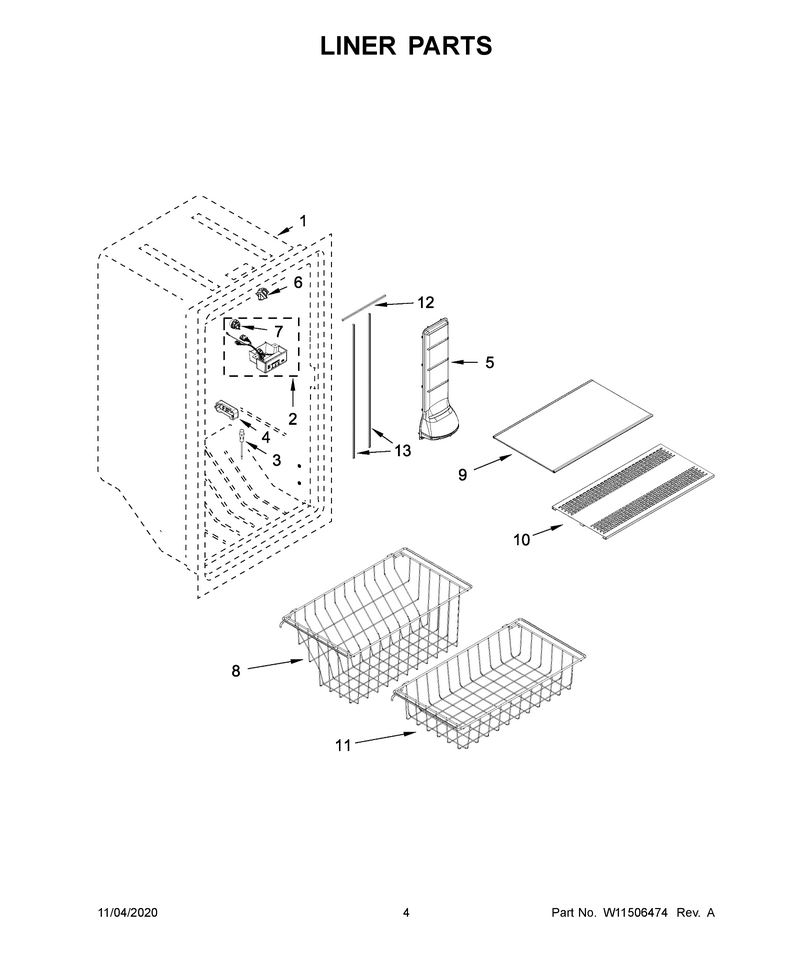

03 - Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Contrl-Box WPL-W11496888
...
3
Thermistor WPL-WPW10384183
...
4
Cover, Thermistor WPL-W10608692
...
5
Tower, Air WPL-W10574583
...
6
Switch, Light WPL-W10755325
...
7
Bulb-Light WPL-W11502762
...
8
Basket, Deep WPL-W10736043
...
9
Shelf-Glas WPL-W11244102
...
10
Metal, Shelf Assembly WPL-W11047286
...
11
Basket, Shallow WPL-W10736055
...
12
Gasket WPL-WPW10574368
...
13
Gasket WPL-WPW10574368

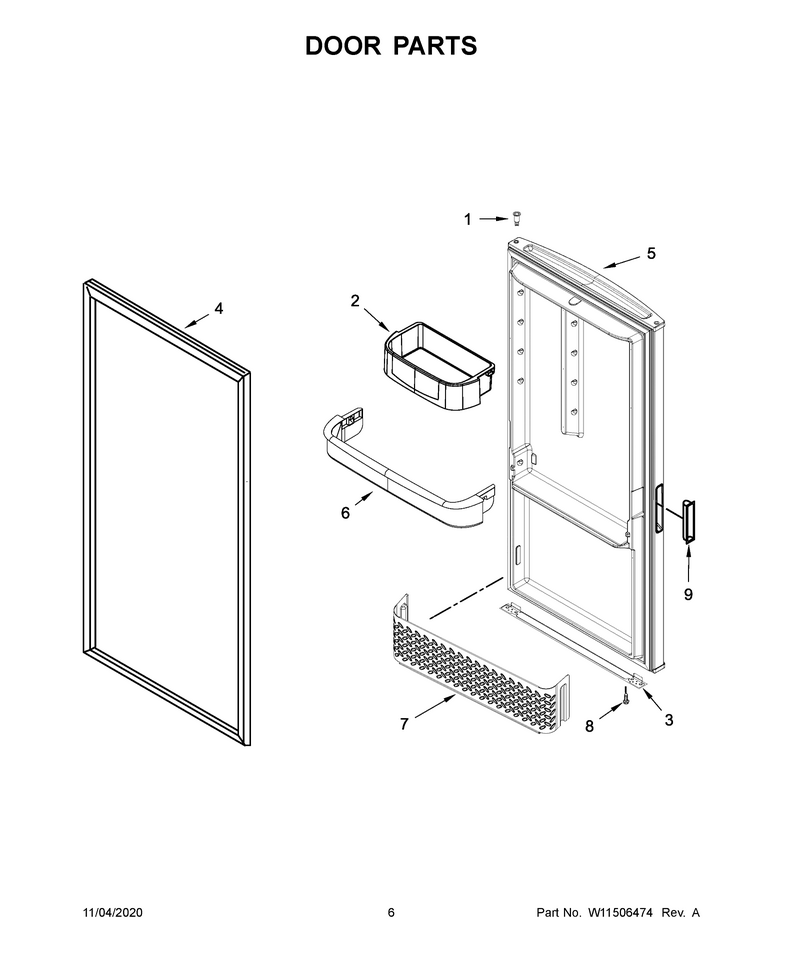

04 - Door Parts

...
...
1
Thimble WPL-WP2314293
...
2
Bin-Cntlvr WPL-W11197063
...
2A
Bin-Cntlvr WPL-W11197067
...
3
Stop, Door WPL-W10891103
...
4
Gasket, Door (Black) WPL-W11102846
...
5
Dor-Fmd WPL-W11233211
...
6
Retainer, Door WPL-67001139
...
7
Door-Shelf WPL-W11309281
...
8
Screw WPL-WP7101P126-60
...
9
Handle WPL-W11507571

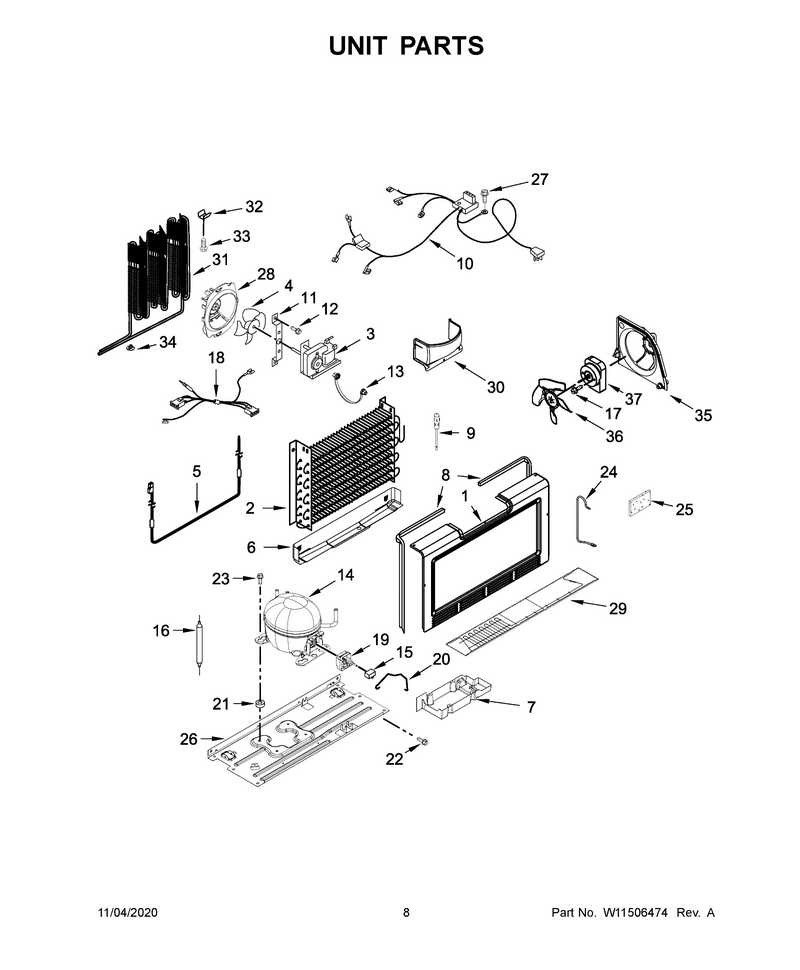

05 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Cover-Evap WPL-W11551256
...
2
Evaporator WPL-W11507067
...
3
Motor-Evap WPL-W11499658
...
4
Blade-Fan WPL-WP2169142
...
5
Heater WPL-WPW10316428
...
6
Shield WPL-WPW10314195
...
7
Pan, Evaporator Drain WPL-W10574291
...
8
Gasket WPL-WPW10574368
...
9
Thermistor WPL-WPW10383615
...
10
Harns-Wire WPL-W11744514
...
11
Clip, Evaporator Motor WPL-13058002
...
12
Screw WPL-W11233072
...
13
Grommet WPL-W11690160
...
14
Compressor WPL-W11125124
...
15
Capacitor WPL-WPW10350564
...
16
Drier-Uv WPL-WPW10143759
...
17
Screw WPL-W11501418
...
18
Harness WPL-W11670030
...
19
Start-Dev WPL-W10873801
...
20
Clip WPL-W11092534
...
21
Grommet WPL-W11661108
...
22
Screw (6) WPL-3400524
...
23
Screw WPL-W11661574
...
24
Tube, Suction WPL-W10861955
...
25
Insulation WPL-W11553819
...
26
Pan, Compressor WPL-W10574278
...
27
Screw, 8-32 X 3/8 WPL-681390
...
28
Shroud, Evaporator Fan WPL-W10574469
...
29
Following Parts Not Illustrated WPL-N/P
...
30
Cover, Evaporator Fan WPL-W10574581
...
31
Condenser WPL-W11507065
...
32
Clip WPL-W10683556
...
33
Screw WPL-W11544659
...
34
Clip, Bottom Cover WPL-W10815861
...
35
Baffle-Air WPL-WP2315541
...
36
Blade-Fan WPL-WPW10139483
...
37
Motor-Cond WPL-W11578915

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
