product name

Gladiator GANF05WFMTS00

Model: GANF05WFMTS00

Save Part Not Listed?
product name

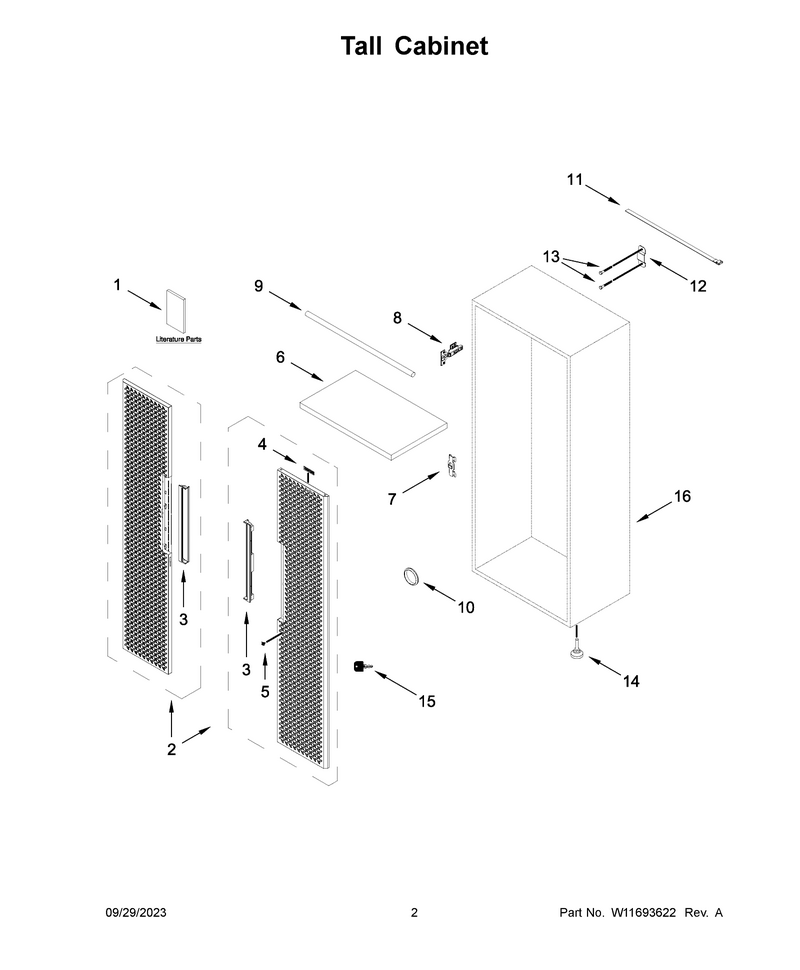

02 - Tall Cabinet

...
...
1
Owner's Manual WPL-W11634360
...
2A
Door WPL-W11645182
...
2
Door WPL-W11644972
...
3
Handle WPL-W11611856
...
4
Nameplate WPL-W11679659
...
5
Lock WPL-W11644060
...
6
Shelf WPL-W11644966
...
7
Support WPL-W11644449
...
8
Hinge, Soft Close WPL-W11618635
...
9
Tube WPL-W11644965
...
10
Grommet WPL-W11644451
...
11
Support WPL-W11644503
...
12
Bracket WPL-W11644504
...
13
Bolt WPL-W11644446
...
14
Levler-Leg WPL-W11644969
...
15
Keys WPL-W11644058
...
16
Cabinet (Not A Serviceable Part) WPL---

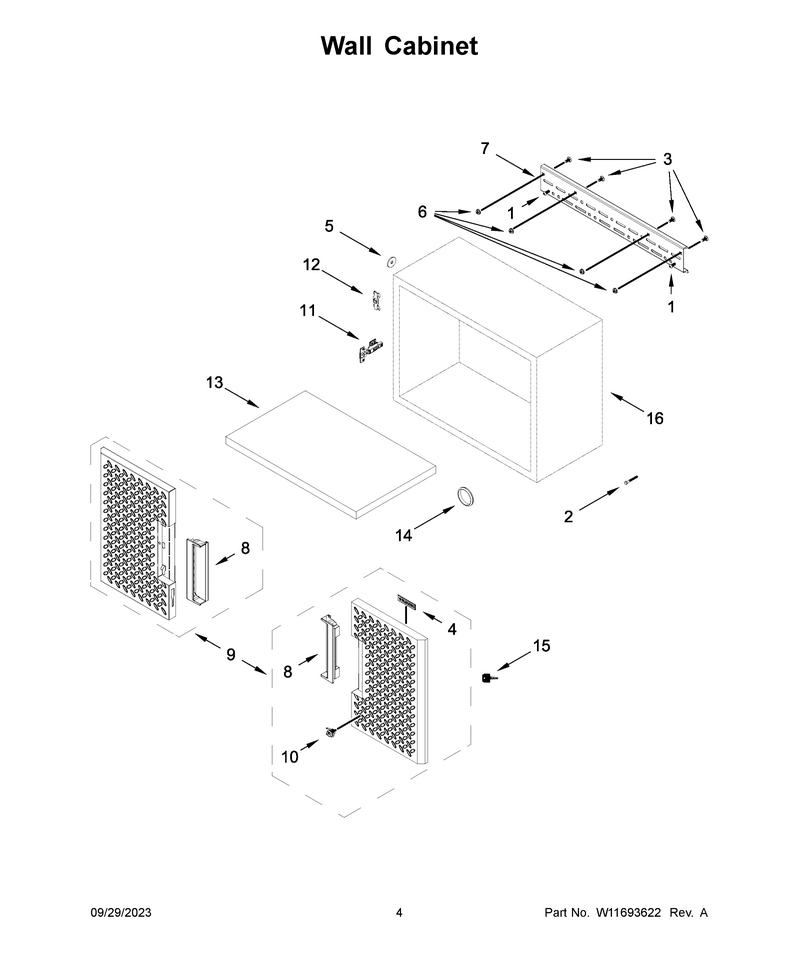

03 - Wall Cabinet

...
...
1
Screw WPL-W11644061
...
2
Bolt WPL-W11644446
...
3
Bolt WPL-W11644452
...
4
Nameplate WPL-W11679659
...
5
Washer WPL-W11644448
...
6
Nut WPL-W11644447
...
7
Bracket, Wall Mounting WPL-W11611861
...
8
Handle WPL-W11611866
...
9A
Door Assembly (Right) WPL-W11612492
...
9
Door Assembly (Left) WPL-W11612493
...
10
Lock WPL-W11644060
...
11
Hinge, Soft Close WPL-W11618635
...
12
Support WPL-W11644449
...
13
Shelf WPL-W11627379
...
14
Grommet WPL-W11644451
...
15
Keys WPL-W11644058
...
16
Cabinet (Not A Serviceable Part) WPL---

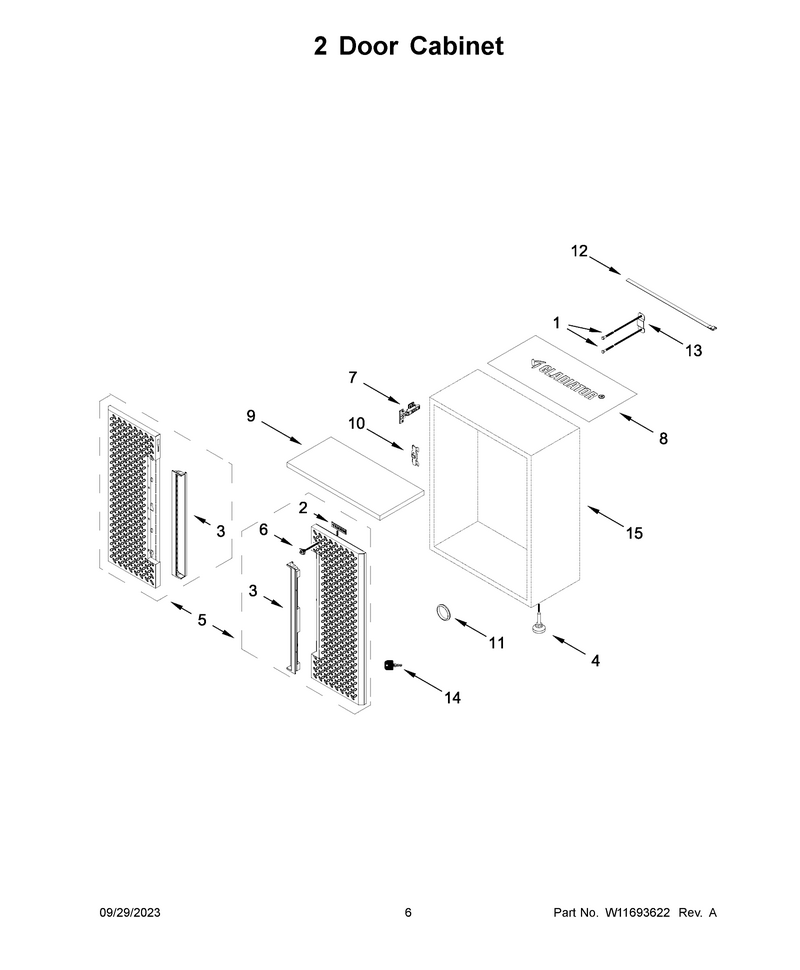

04 - 2 Door Cabinet

...
...
1
Bolt WPL-W11644446
...
2
Nameplate WPL-W11679659
...
3
Handle WPL-W11611856
...
4
Levler-Leg WPL-W11644969
...
5
Door Assembly (Left) WPL-W11612495
...
5A
Door Assembly (Right) WPL-W11612494
...
6
Lock WPL-W11644060
...
7
Hinge, Soft Close WPL-W11618635
...
8
Mat, Top WPL-W11623067
...
9
Shelf WPL-W11626513
...
10
Support WPL-W11644449
...
11
Grommet WPL-W11644451
...
12
Support WPL-W11644503
...
13
Bracket WPL-W11644504
...
14
Keys WPL-W11644058
...
15
Cabinet (Not A Serviceable Part) WPL---
