product name

Gladiator GAMGD027LG0

Model: GAMGD027LG0

Save Part Not Listed?
product name

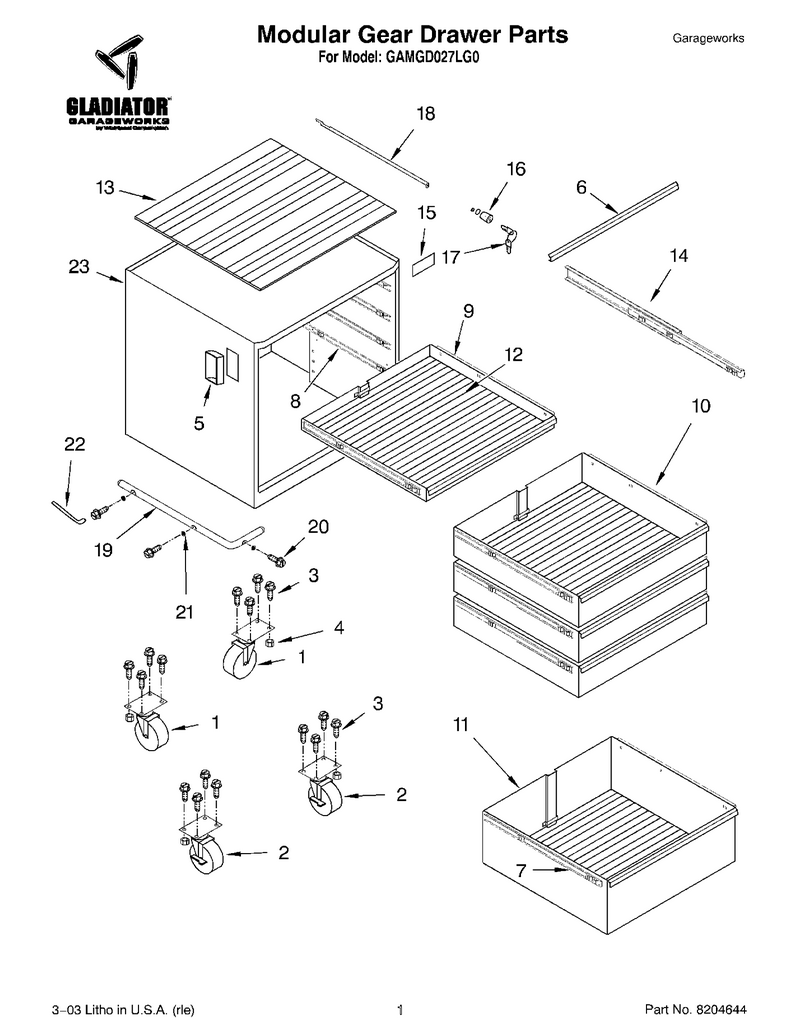

01 - Modular Gear Drawer Parts - Optional Parts (n

...
...
1
Caster WPL-WP8204601
...
2
Caster, Rigid 5`` With Brake (Right Hand) WPL-8211250
...
3
Bolt WPL-WP8204609
...
4
Nut WPL-WP8204610
...
5
Hndle-Door WPL-W10914558
...
6
Trim, Drawer (Not Serviced) WPL---
...
7
Guide, Drawer (Not Serviced) WPL---
...
8
Slide, Cabinet (Not Serviced) WPL---
...
9
Drawer, 2`` W/trim & Guide WPL-8204630
...
10
Drawer, 4`` W/trim & Guide WPL-8204631
...
11
Drawer, 8`` W/trim & Guide WPL-8204632
...
12
Liner WPL-WP8204604
...
13
Mat, Top WPL-8204605
...
14
Slide, Ball Bearing 21`` WPL-8204606
...
15
Nameplate, Gladiator WPL-8204633
...
16
Lock WPL-W11557659
...
17
Keys WPL-W11383363
...
18
Keybar (Not Serviced) WPL---
...
19
Bumper WPL-8204632
...
20
Screw WPL-8204611
...
21
Washer WPL-WP8211254
...
22
Key-Hex WPL-8204613
...
23
Cabinet Assy (Not Serviced) (Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, WPL-8204614
