Gladiator GAGB272DLG00

Model: GAGB272DLG00

Save Part Not Listed?
product name

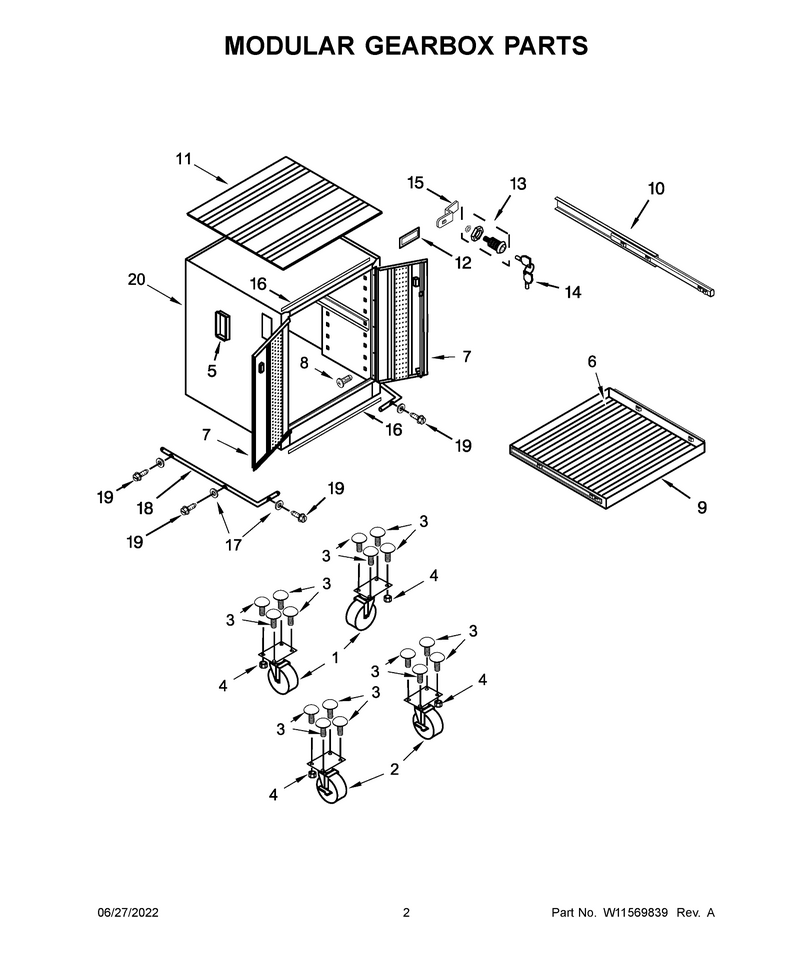

02 - Modular Gearbox Parts

...
...
1
Caster WPL-W11558421
...
2
Caster WPL-W11558423
...
2A
Caster WPL-W11558422
...
3
Bolt WPL-W11558420
...
4
Nut WPL-W11558418
...
5
Hndle-Door WPL-W11549424
...
6
Liner WPL-W11560523
...
7
Door (Includes Handle) (Red Treadplate, Left Hand) WPL-W11540458
...
7A
Door (Includes Handle) (Red Treadplate, Right Hand) WPL-W11540461
...
7B
Door (Includes Handle) (Silver Treadplate, Left Hand) WPL-W11540457
...
7C
Door (Includes Handle) (Silver Treadplate, Right Hand) WPL-W11540460
...
8
Screw WPL-W11549435
...
9
Drawer (Includes Guide) WPL-W11551769
...
10
Slide-Drwr WPL-W11560678
...
11
Mat, Top WPL-W11540466
...
12
Nameplate WPL-W11679659
...
13
Lock WPL-W11557659
...
14
Keys WPL-W11557661
...
15
Cam WPL-W11522080
...
16
Magnet WPL-W11321873
...
17
Washer WPL-W11560683
...
18
Bumper - Gun Metal (Gray) WPL-W11547095
...
19
Screw WPL-W11560680
...
20
Following Parts Not Illustrated WPL-N/P
