Gladiator GACP15XXMG5

Model: GACP15XXMG5

Save Part Not Listed?
product name

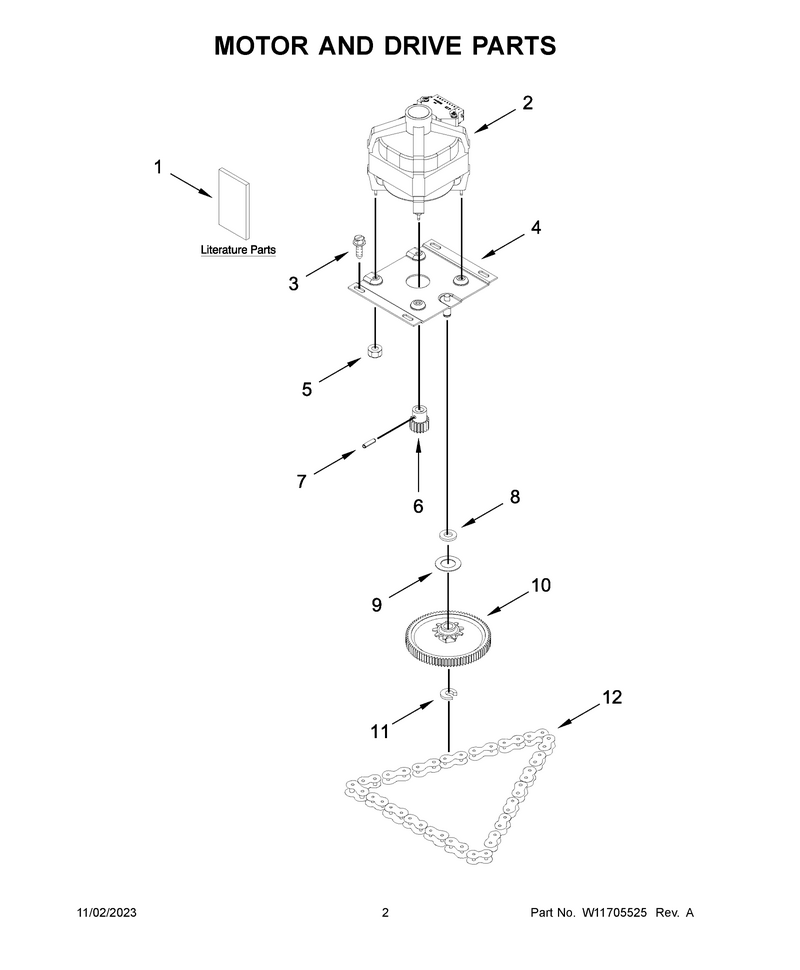

02 - Motor And Drive Parts

...
...
NI
Brackt-Kit WPL-9870118A
...
1
Guide, Use & Care WPL-W11034802
...
1A
Tech Sheet WPL-W10415490
...
1B
Instruction Sheet WPL-W10318872
...
2
Motor-Drv WPL-W10439651
...
3
Bolt WPL-WP8204624
...
4
Plate, Drive Mount WPL-776327
...
5
Nut WPL-WP776338
...
6
Gear-Drive WPL-882699
...
7
Pin-Spring WPL-WP454512
...
8
Washer, Wave WPL-776035
...
9
Washer WPL-W11214485
...
10
Gear-Drive WPL-882699
...
11
Clip WPL-WP776036
...
12
Chain, Drive WPL-780477

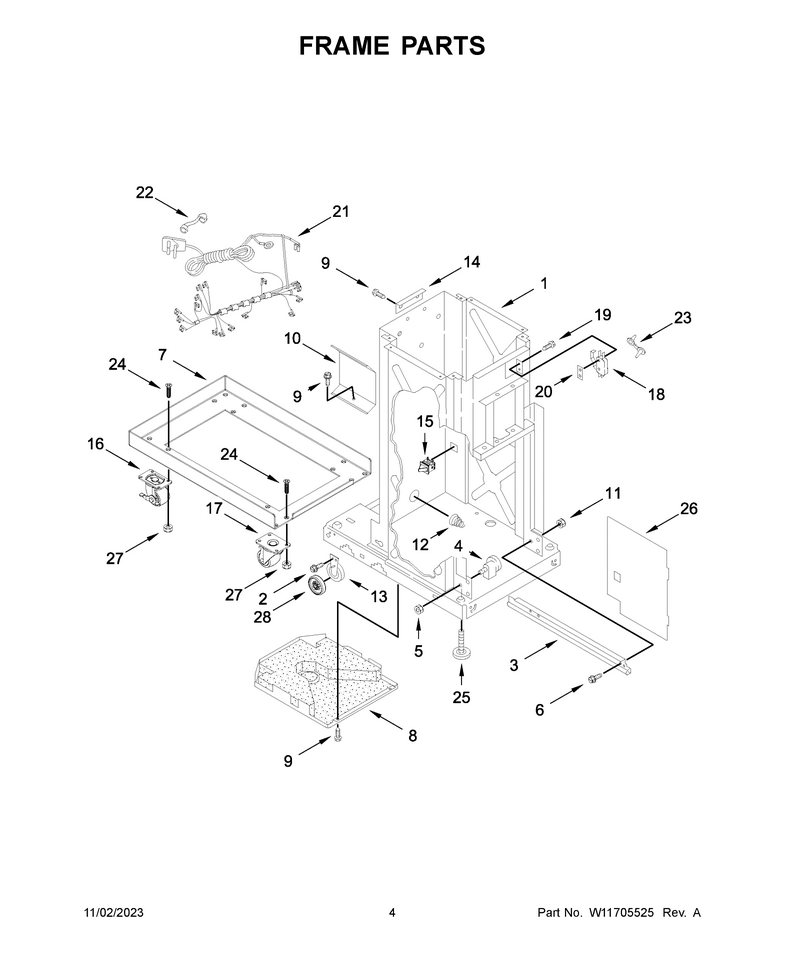

03 - Frame Parts

...
...
1
Frame (Not A Serviceable Part) WPL---
...
2
Screw WPL-WP3351614
...
3
Slide WPL-W11722978
...
3A
Slide WPL-WP9870975
...
4
Bearing WPL-882688
...
5
Nut WPL-WP776356
...
6
Screw WPL-WP486754
...
7
Base WPL-W11729129
...
8
Pan-Bottom WPL-WP780437
...
9
Screw WPL-WP489478
...
10
Shield, Slide Track WPL-9870867
...
11
Nut WPL-W11759042
...
12
Spring WPL-WP777180
...
13
Wheel-Lvlr WPL-W11023674
...
14
Angle, Frame Plate WPL-775668
...
15
Switch-Saf WPL-W11243179
...
16
Caster, Rigid WPL-9871956
...
17
Caster, Swivel WPL-9871957
...
18
Switch-Dir WPL-WP777811
...
19
Screw WPL-777849
...
20
Plate, Nut WPL-777850
...
21
Harns-Wire WPL-W11729130
...
22
Relief, Strain (Power Cord) WPL-9872015
...
23
Clamp WPL-W11705832
...
24
Screw WPL-W11189635
...
25
Feet-Lvlng WPL-WPW10001130
...
26
Panel-Iner WPL-WP9870444
...
27
Nut WPL-WP486692
...
28
Wheel-Lvlr WPL-W11672206

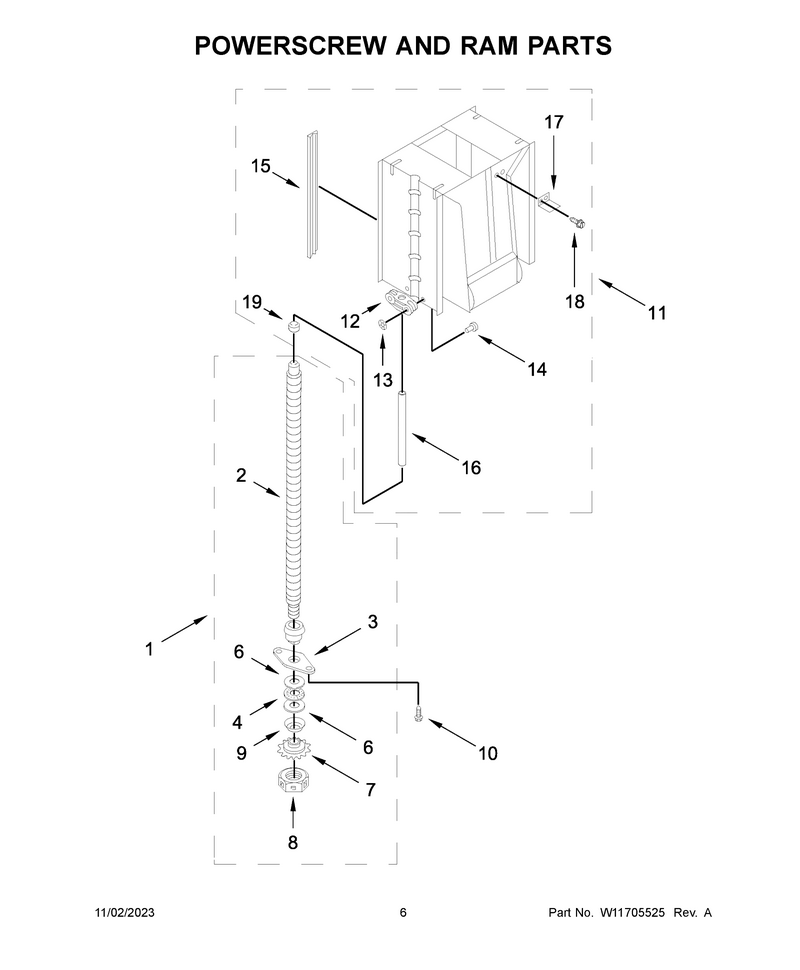

04 - Powerscrew And Ram Parts

...
...
1
Screw-Powr WPL-W11670656
...
2
Screw, Power (Available Only As Complete Assembly) WPL---
...
3
Plate, Bearing WPL-779121
...
4
Bearing WPL-W10917043
...
5
Hub, Power Screw WPL-776941
...
6
Race, Thrust WPL-775481
...
7
Sprocket WPL-W11679164
...
8
Nut, Power Screw WPL-4154842
...
9
Washer WPL-WP777332
...
10
Bolt WPL-WP8204624
...
11
Ram WPL-W11696573
...
12
Nut-Power WPL-WP9870163
...
13
Clip WPL-8534092
...
14
Stud WPL-882694
...
15
Slide-Ram WPL-W10917246
...
16
Stop-Ram WPL-WP9870037
...
17
Bracket WPL-W11684541
...
18
Screw WPL-WP489399
...
19
Cap-Pwrscr WPL-WP9870775

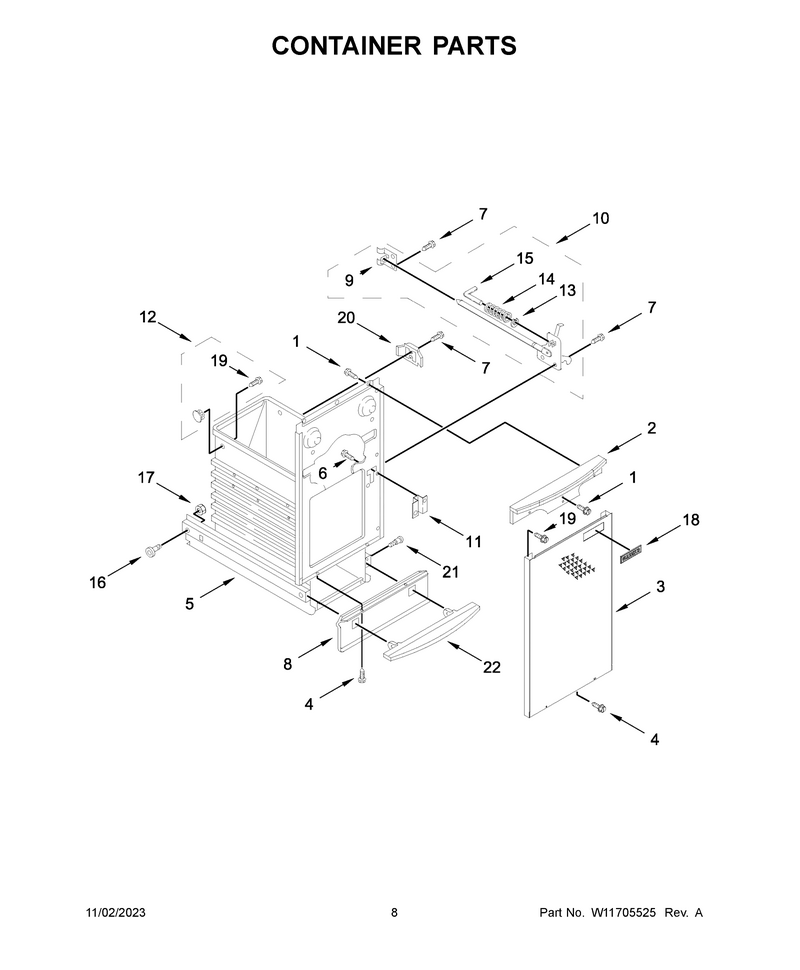

05 - Container Parts

...
...
1
Screw WPL-W11233072
...
2
Handle WPL-WP9871267
...
3
Panel, Container Front (White & Black) WPL-9871955
...
4
Screw WPL-WP3196175
...
5
Container WPL-W11670733
...
6
Screw WPL-WPW10139210
...
7
Screw WPL-WP489478
...
8
Guard WPL-WP777328
...
9
Guide-Ltch WPL-WP776395
...
10
Latch Assembly WPL-675379
...
11
Plate, Latch WPL-775665
...
12
Retainer WPL-W11705833
...
13
Clip WPL-W11679168
...
14
Spring, Latch WPL-775736
...
15
Pin WPL-W11705836
...
16
Bearing WPL-WP9871602
...
17
Nut WPL-WP776356
...
18
Nameplate WPL-2253774
...
19
Screw WPL-WP3196175
...
20
Actuator, Safety Switch WPL-9871125
...
21
Screw WPL-WP780263
...
22
Pedal-Foot WPL-W11679165

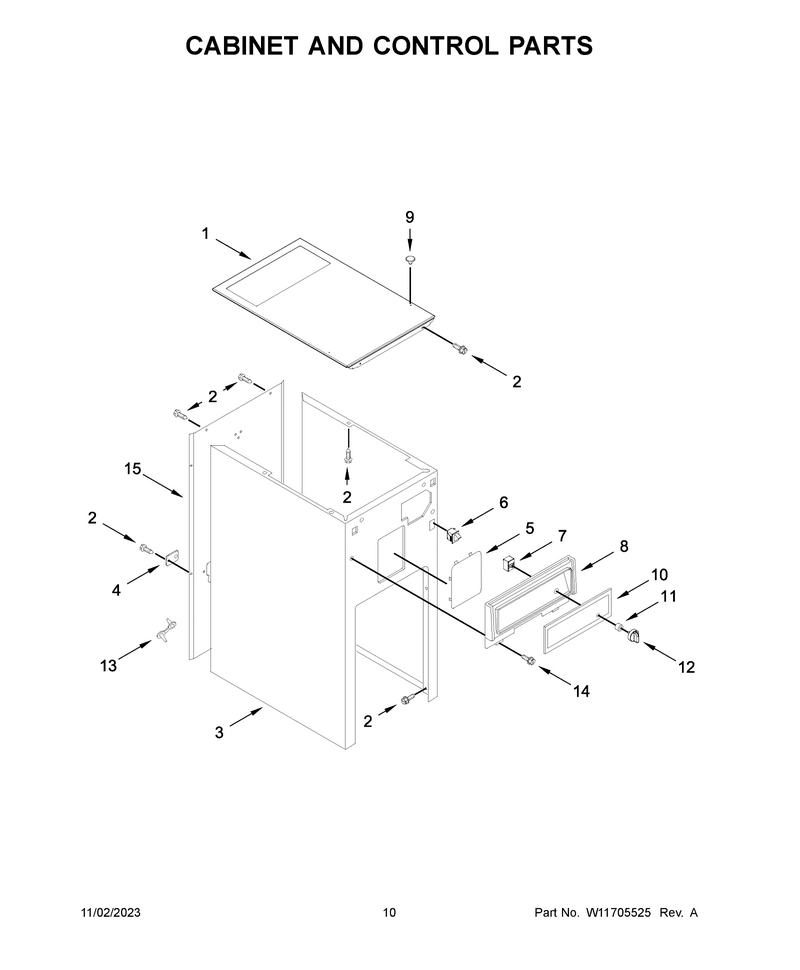

06 - Cabinet And Control Parts

...
...
1
Top (Granite) WPL-W11234068
...
2
Screw WPL-WP489478
...
3
Wrapper, Cabinet (Granite) WPL-W11234067
...
4
Plate, Power Cord WPL-775676
...
5
Plate, Cover WPL-9871160
...
6
Switch, Drawer (Black) WPL-9871829
...
7
Switch-Off WPL-675382
...
8
Escutcheon WPL-WP9871839B
...
9
Button-Plg WPL-W11705838
...
10
Insert, Escutcheon WPL-9871959
...
11
Nut WPL-WP777383
...
12
Knob-Swich WPL-WP9871800
...
13
Clamp WPL-W11705832
...
14
Screw WPL-246131
...
15
Panel, Back WPL-9872013

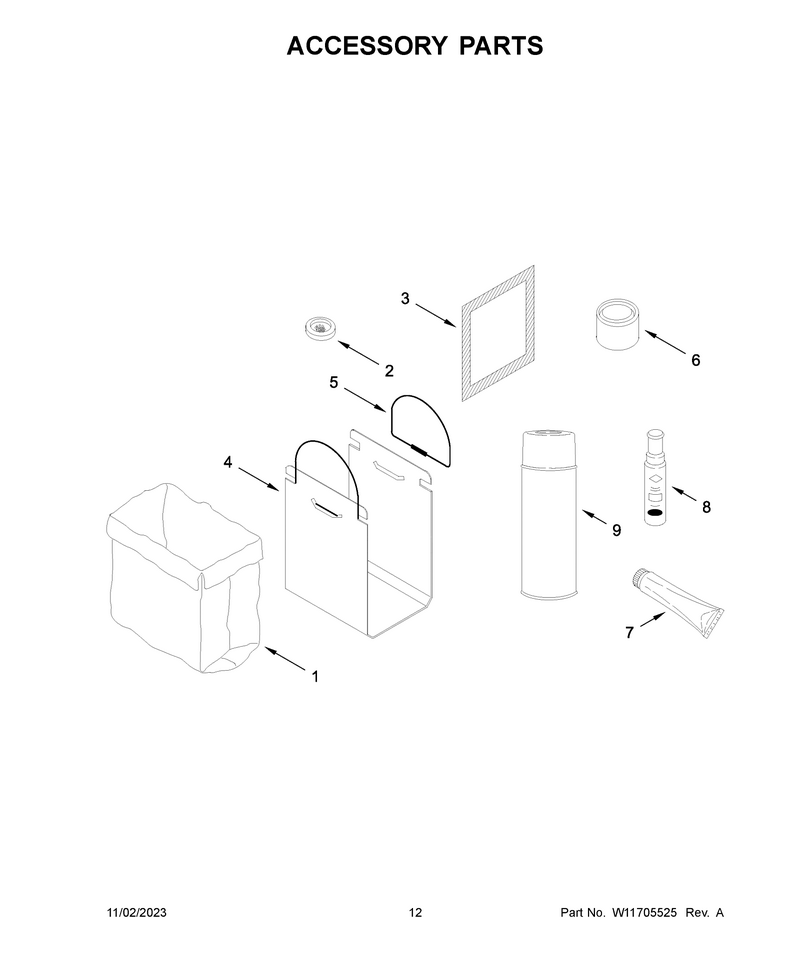

07 - Accessory Parts

...
...
1
Bag 15 Pak WPL-W10165295RP
...
1A
Bag 60 Pak WPL-W10165294RB
...
1B
Bag, Trash (15" Plastic) (12 Boxes Of 15 Pack) WPL-W10165295BU
...
1C
Bag, Trash (15 In Paper) (12 Pack) WPL-675186
...
1D
Bag, Trash (15 In Paper) (48 Pack) WPL-882652
...
2
Deodorizer, Solid Stick Ups (2 Pack) WPL-777635
...
3
Deodorizer Block (Green Apple) WPL-W10540355
...
3A
Deodorizer Block (Lemongrove) WPL-9872166LG
...
3B
Deodorizer Block (Lavender) WPL-9872166L
...
4
Carrier, Bag WPL-13030RP
...
5
Handle-Bag WPL-WP777108
...
6
Grease 4 Oz. (Use On Power Screw And Ram Pressure Pads) WPL-675351
...
7
Adhesive WPL-WP279368
...
8
Paint, Touch-Up (1/2oz. Black) WPL-72032
...
9
Paint, Pressurized Spray (12 Oz. Black) WPL-285006
