Gladiator GABC05FDKG00

Model: GABC05FDKG00

Save Part Not Listed?
product name

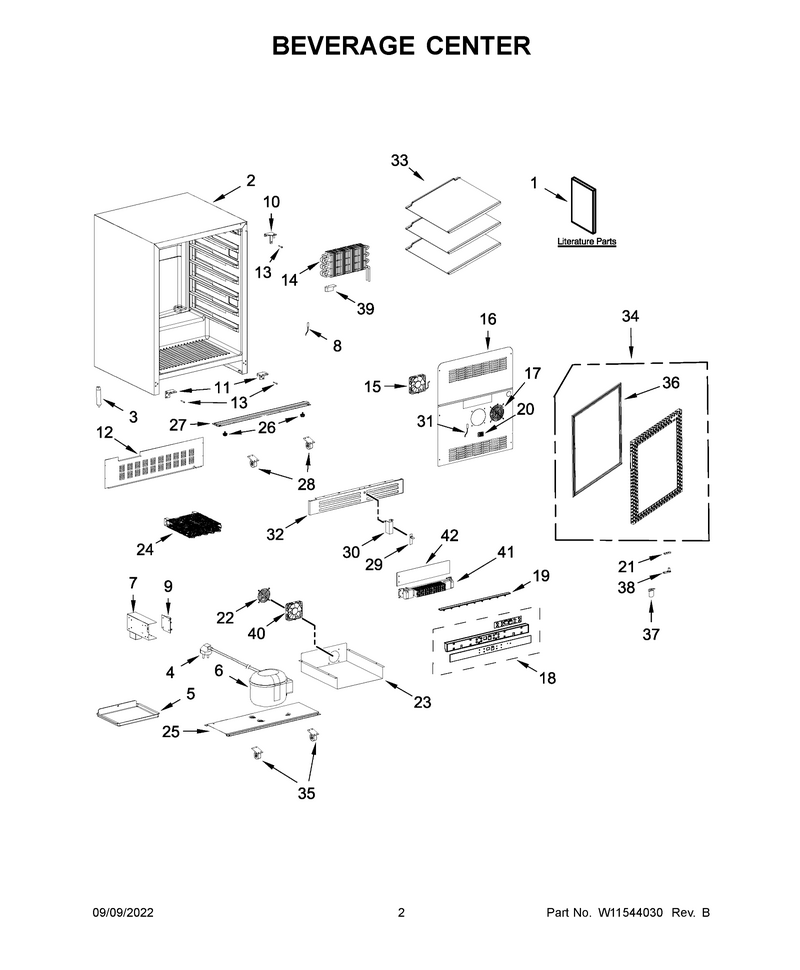

02 - Beverage Center

...
...
NI
Refrigerant Charge 35 Grams (R600a) WPL---
...
1A
Energy Guide WPL-W10792628
...
1
Use & Care Guide WPL-W10739679
...
2
Cabinet (Not A Servicable Part) WPL---
...
3
Drier Filter WPL-W11290639
...
4
Power Cord WPL-W10782176
...
5
Water Tray WPL-W11290643
...
6
Compressor WPL-W11297348
...
7
Cover, Pcb WPL-W11290646
...
8
Sensor (Red Connector) WPL-W11290657
...
9
Cntrl-Elec WPL-W11543701
...
10A
Hinge, Upper Left WPL-W10782260
...
10
Hinge, Upper Right WPL-W10782193
...
11
Hinge, Lower Right WPL-W11255249
...
11A
Hinge, Lower Left WPL-W11255250
...
12
Back Cover WPL-W11535783
...
13
Screw WPL-W10782261
...
14
Evaporator WPL-W10782196
...
15
Fan Assembly, Evaporator WPL-W10792631
...
16
Air Duct Board WPL-W11535779
...
17
Cover, Evaporator Fan WPL-W10782263
...
18
Panel-Ui WPL-W11548211
...
19
Led Light WPL-W10782264
...
20
Cover, Sensor WPL-W10782222
...
21
Stop, Door WPL-W11255595
...
22
Cover, Condenser Fan WPL-W10782255
...
23
Cover, Condenser WPL-W11255160
...
24
Condenser WPL-W10782251
...
25
Control Panel Assembly WPL-W11542683
...
26
Leg WPL-W10782249
...
27
Support, Front Leg WPL-W11535805
...
28
Caster, Front Swivel WPL-W11535807
...
29
Switch WPL-W10782243
...
30
Support, Switch WPL-W10782242
...
31
Sensor (White Connector) WPL-W11296649
...
32
Kick Plate WPL-W11535793
...
33
Assembly, Glass WPL-W11535816
...
34
Door Assembly WPL-W11544596
...
35
Caster, Back Swivel WPL-W11535813
...
36
Gasket, Door WPL-W10782239
...
37
Plate, Switch WPL-W11544616
...
38
Axis, Door WPL-W10782241
...
39
Foam WPL-W11255620
...
40
Fan WPL-W11678274
...
41
Heater WPL-W11535794
...
42
Heater Protector Plate WPL-W11535803
