Generac 10000012270 (GP8000E) Generator

Model: 10000012270

Save Part Not Listed?

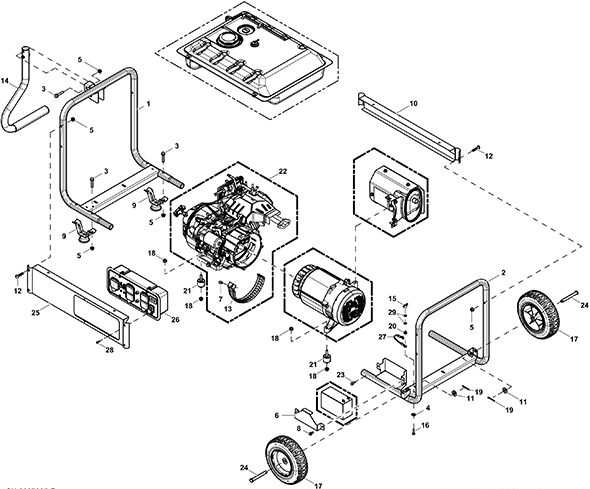

product name

Generac 10000012270

...
...
1
St15 Gp Cradle Engine Half GPS-10000012981
...
2
St15 Gp Cradle Alt Half GPS-10000012939
...
3
Screw Hhfc Mb-1.25 X 45 GPS-0H1779
...
4
Washer Lock Special 1/4" GPS-0A1658
...
5
Nut Hex Fl Whiz Mb-1.25 GPS-0J9125
...
6
Bracket Battery Hold Down GPS-0J6418
...
7
Screw Hhc M5-0.8 X 10 C8.8 GPS-045770
...
8
Screw Hhfcs M6-1 X 16 G8.8 GPS-0G0926
...
9
Foot Assy Gp GPS-0K8933
...
10
Panel Rail Back Gp GPS-0H9749A
...
11
Washer Flat 1/2 Zinc GPS-G022304
...
12
Curved Head Mb-1.25 X 41Mm Lng GPS-0H1780
...
13
Scroll Alternator Gp GPS-0J6460
...
14
Handle Gp7500E GPS-0L1407
...
15
Nut Wing M6-1 0 GPS-G087680
...
16
Screw Hhc M6-1 0 X 25 C8.8 GPS-G045757
...
17
Wheel 9.5" Dia, Plastic GPS-0K6011
...
18
Nut Hex Fl Whiz Mb-1.25 GPS-G067989
...
19
Pin Cotter 1/8 X 1-1/4 Zn Plt GPS-0D4999
...
20
Nut Hex Fl Whiz M6-1 0 GPS-0E8388
...
21
Vib Mount 35 X 12 X Mb-1.25 GPS-0H2043
...
22
Engine 420 Es W/O Mflr Epacarb GPS-0H9838G
...
23
Screw Hhsd Premium 1/4-14X1 Bz GPS-0L2176
...
24
Axle Pin, 1/2"X 4", 3/4" Head GPS-0H0204
...
25
Panel Rail C/Pnl Side Gp GPS-0H9748
...
26
Ctrl Panel Gp7500E W/Gfci GPS-0L1671A
...
27
Ground Wire Brg Car-Lug 4Kw GPS-0742600186
...
28
Screw Ppph M5-0.8 X 16 GPS-0K3130
...
29
Washer Flat M6 GPS-049811

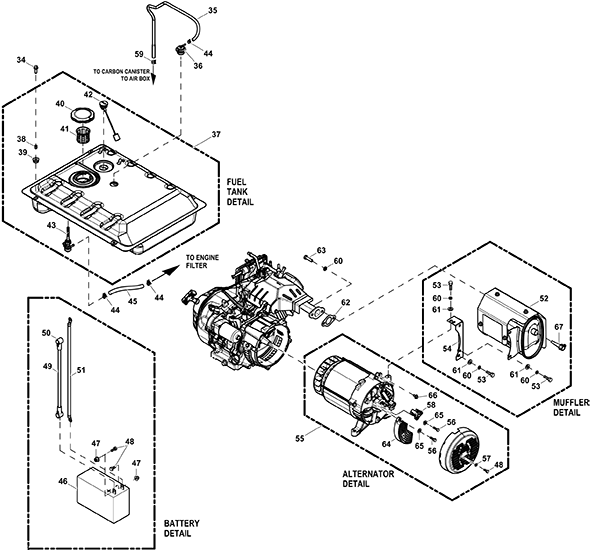

Generac 10000012270

...
...
34
Screw Hhtt Mb-1.25 X 20 GPS-0G5445
...
35
Hose Formed Rov-Airbox 420Cc GPS-0K2925
...
36
Assembly Rov GPS-0J7921
...
37
Fuel Tank Assy 8 Gal Garb GPS-0H7591A
...
38
Anti-Crush 10.Bod 91D 7.8Lg GPS-0H1610
...
39
Rubber Mount, 10.8 Id X 9 Tall GPS-0H1411
...
40
Assy Gas Cap Sealed - Chrome GPS-0H0958
...
41
Filter, Fuel GPS-0H1326
...
42
Fuel Gauge 150Lg GPS-0H9005A
...
43
Valve Fuel Shutoff GPS-0J0974
...
44
Clamp Hose Band .41 GPS-048031G
...
45
Fuel Hose 4 Id X 8 Od X 250Mm GPS-0G9757E
...
46
Battery 12V10Ah Sealed GPS-0G9449
...
47
Nut Flange M5-0.8 Nylock GPS-0H3535
...
48
Screw Hhc M5-0.8 X 12 C8.8 GPS-052618
...
49
Wire Assy 8Ga 11" Red GPS-0742600198
...
50
Boot, Vinyl Starter-Solenoid GPS-0G6392
...
51
Wire Assy 8Ga 17" Black GPS-0742600199
...
52
Assy Mufflr Gp 7.5Kw GPS-0H9763B
...
53
Screw Hhc Mb-1.25 X 20 C8.8 GPS-G039253
...
54
Bracket, Muffler 389Cc GPS-0G8542
...
55
Alt 7500W Aluminum Brush Type GPS-0K0755
...
56
Screw Hhc M5-0.8 X 16 G8.8 GPS-G049815
...
57
Washer Lock M5 GPS-G049226
...
58
Assembl Y,Brush Vision GPS-0H0919
...
59
Clamp Hose Band .50 GPS-048031C
...
60
Washer Lock Mb-5/16 GPS-G022129
...
61
Washer Flat 5/16-Mb Zinc GPS-G022145
...
62
Gasket, Exhaust, 389Cc GPS-0G9028
...
63
Screw Hhc Mb-1.25 X 30 Cb.8 GPS-G042909
...
64
Avr 5.5-7.5Kw Alt GPS-0H2579B
...
65
Washer Flat M5 GPS-G051713
...
66
Screw Hhfcs M6-1 X 12 G8.8 GPS-0G0919
...
67
Spark Arrestor Assy Usfs GPS-0K3857

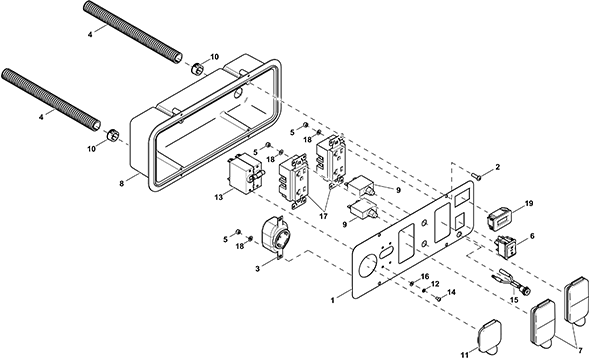

Generac 10000012270

...
...
1
Wldmnt Face Plate Gp7500E Csa GPS-0K8861
...
2
Screw Ppph M5-0.8 X 16 Bzc GPS-0K3130
...
3
Outlet 30A 120/250V Spcgr GPS-0G8758
...
4
Conduit Flex 1/2" GPS-077043U
...
5
Nut Hex Lock M4-0.7 Ny Ins GPS-0E6480
...
6
Sw Start-Run-Stop Gp GPS-0J0251
...
7
Cover, 20A 120V Gfcl/Duplex GPS-0G9392
...
8
Recptacle Panel Storm-Gen Es GPS-0G9756A
...
9
Cb 20A 1P Cul/Csa GPS-0H0265C
...
10
Snap Bushing.75 Open GPS-0A5489
...
11
Cover, 30A 120/240V GPS-0G9391
...
12
Washer Lock 6 Ss GPS-81797
...
13
Cb 0030A 2P 240V C Aa2 Qt GPS-0G9023C
...
14
Screw Pphm 6-32 X 1/4 GPS-36900
...
15
Assy 12Vdc Charger Input Gp GPS-0J4959
...
16
Washer Flat M3.5 Black GPS-0F5883A
...
17
Outlet 20A 120V Gfci Gf20Bk GPS-0D4966
...
18
Washer Flat M4 GPS-43180
...
19
Hour Meter W/Alerts Ac/ Dc GPS-0G8321
