GE ZISB480DKC Refrigerator

Model: ZISB480DKC

Back To Assemblies

Save Part Not Listed?

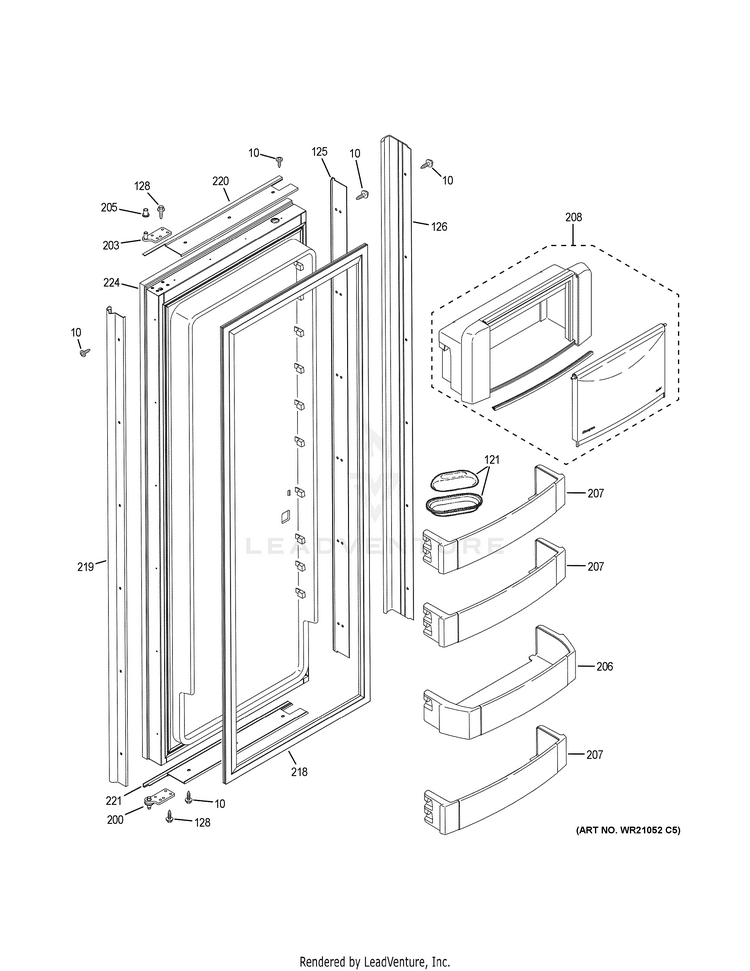

product name

FRESH FOOD DOOR

...
...
10
SCR 8- 18 BA OVT 5/8 SS GEH-WR01X24363
...
121
BUTTER DISH AND COVER GEH-WR19X10005
...
125
HANDLE TRIM GEH-WR38X10271
...
126
HANDLE GEH-WR12X10526
...
128
SCREW, 1/4-20 TT BHT .87 GEH-WR01X21024
...
200
HINGE DOOR BTM GEH-WR13X10657
...
203
HINGE ASM DOOR TOP RH GEH-WR13X25052
...
205
BUSHING HINGE TOP GEH-WR02X10954
...
206
BIN ASM GALLON 48 GEH-WR71X25588
...
207
BIN DOOR ASM 48 GEH-WR71X25602
...
208
DAIRY BIN DOOR ASM 48 GEH-WR71X26789
...
218
GASKET DOOR GEH-WR24X10206
...
219
DOOR TRIM FF SIDE GEH-WR38X10272
...
220
DOOR TRIM FF TOP GEH-WR38X10334
...
221
DOOR TRIM FF BOTTOM GEH-WR38X10335
...
224
DOOR FOAMED ASM FF SXS GEH-WR78X12145
