GE ZISB42EMC Refrigerator

Model: ZISB42EMC

Save Part Not Listed?
product name

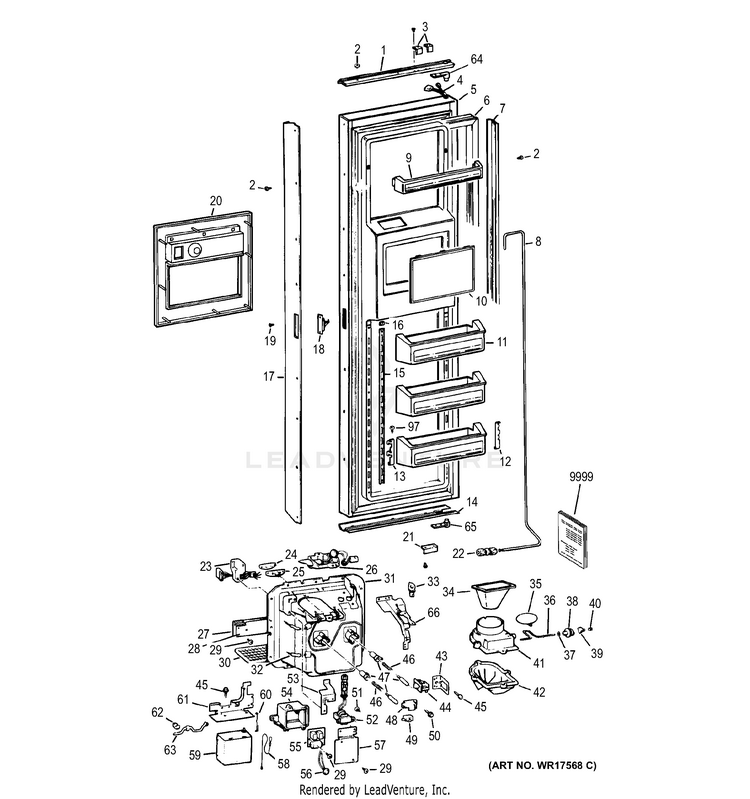

FREEZER DOOR

...
...
1
TRIM-TOP GEH-WR17X6333
...
2
SCREW GEH-WR01X5621
...
3
RISER-TOP GEH-WR02X7879
...
3
ACTIVATOR-SWITCH GEH-WR02X7541
...
3
SCREW-ACTIVATOR GEH-WR01X5622
...
4
HARNESS- O DOOR RECESS GEH-WR49X0301
...
5
OUTER DOOR ASSY-FZ GEH-WR78X8054
...
6
WR24X492 GEH-WR24X5252
...
7
DOOR TRIM-FZ GEH-WR17X6228
...
8
WR17X10206 GEH-WR17X6334
...
9
DOOR SHELF FRONT GEH-WR17X6335
...
10
SPEED CLIP GEH-WR01X5689
...
10
WR17X2920 GEH-WR17X6336
...
11
DOOR SHELF ASSY GEH-WR17X6337
...
12
HOOK R/S GEH-WR02X7544
...
13
HOOK L/S GEH-WR02X7543
...
14
5B6382-02 GEH-WR17X6338
...
15
TRACK GEH-WR17X6339
...
16
CAP-TRACK TOP & BOTTOM GEH-WR02X7542
...
17
DOOR HANDLE GEH-WR12X5187
...
18
SENSOR DOOR FF & FZ GEH-WR23X0310
...
19
SCREW-SENSOR GEH-WR01X5687
...
20
WR38X2248 GEH-WR38X5414
...
20
FASTENER TUBULAR GEH-WR02X3757
...
20
TRIM-RECESS GEH-WR38X5413
...
21
SCREW-STOP GEH-WR01X5686
...
21
DOOR STOP GEH-WR02X7880
...
22
NUT & UNION ASM GEH-WR02X7223
...
23
HARNESS & HOUSING-RECESS GEH-WR23X0306
...
24
PAD GEH-WR02X7887
...
24
PAD GEH-WR02X7888
...
25
CRADLE GEH-WR02X7889
...
26
HOUSING & SOCKET AS DISP GEH-WR02X7243
...
26
INSULATOR HOUSING GEH-WR02X4570
...
27
CONTROL PANEL ASM GEH-WR55X0020
...
28
PLUG SWITCH GEH-WR02X7313
...
28
CLIP-PLASTIC GEH-WR02X7314
...
28
BOARD ASM LOGIC GEH-WR55X0016
...
29
SCR 6-20 AB PH 3/8 S GEH-WZ02X0561
...
30
GRILLE RECESS GEH-WR02X7891
...
31
RECESS DISP GEH-WR17X2588
...
32
HEATER RECESS & DUCT ASM GEH-WR51X0313
...
33
GROMMET WATER FILL RECES GEH-WR02X4571
...
34
ICE CHUTE GEH-WR17X6341
...
35
DUCT DOOR W/O LEVER GEH-WR17X1586
...
36
CRANK DOOR DUCT DISP GEH-WR02X4814
...
37
WASHER GEH-WR01X1385
...
38
PULLEY TIME DELAY GEH-WR17X1457
...
39
ARM TIME DELAY DISPLAY GEH-WR17X1045
...
40
RING COMPRESSION GEH-WR02X4595
...
41
GASKET DUCT-R. SIDE GEH-WR14X0246
...
41
DUCT RECESS GEH-WR17X1257
...
41
GASKET DUCT-L. SIDE GEH-WR14X0247
...
42
SHIELD FUNNEL ASSY DISPL GEH-WR17X6342
...
43
PLATE WATER SW RECESS GEH-WR02X4771
...
44
SWITCH-CRADLE-WATER SIDE GEH-WR23X0192
...
45
SCREW GEH-WZ04X0364
...
46
SPRING-RECESS DUCT GEH-WR02X3951
...
47
PLUNGER SCW & SLEEVE GEH-WR02X4822
...
48
SUPPORT SW. GEH-WR02X7068
...
49
SWITCH SELECT-CUBES DISP GEH-WR23X0144
...
49
PLATE MTG-DISP SWITCH GEH-WR02X7237
...
50
SCR 6-18 SPEC HXW 9/16 S GEH-WR01X1464
...
51
SCREW GEH-WZ04X0390
...
52
TRANSFORMER ASM GEH-WR62X0039
...
53
SUPPORT SELECTOR SWITCH GEH-WR02X7245
...
54
HOUSING POWER MODULE GEH-WR02X7349
...
55
BOARD ASM POWER SUPPLY GEH-WR55X0013
...
56
THERMISTOR & CONN ASM GEH-WR52X0024
...
57
COVER HOUSING-MODULE GEH-WR02X7350
...
58
LANYARD DISP GEH-WR02X4237
...
59
TIME DELAY ASM DISP GEH-WR09X0268
...
60
SPLICE TIME DELAY DISP GEH-WR02X4248
...
61
PLATE BEARING DISP GEH-WR02X4235
...
62
BEARING-CRANK GEH-WR02X4234
...
63
CRANK & RIVET ASSY DISPL GEH-WR17X1048
...
64
SCREW-RISER GEH-WR01X5626
...
65
RISER-BTM GEH-WR02X7878
...
66
SUPPORT RECESS SWITCHES GEH-WR02X7244
...
97
SCREW GEH-WR01X5623
...
9999
USE & CARE ZISW42EM, ZIS GEH-49-6606

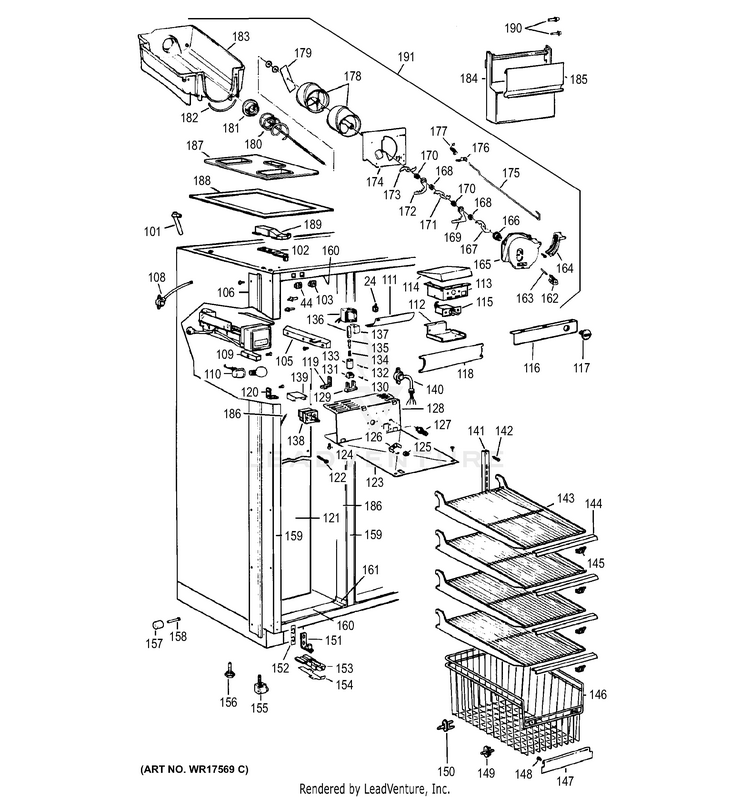

FREEZER SECTION

...
...
24
PAD GEH-WR02X7888
...
24
PAD GEH-WR02X7887
...
44
SWITCH-CRADLE-WATER SIDE GEH-WR23X0192
...
101
TUBE & GROMMET GEH-WR17X6332
...
102
SHIM GEH-WR02X7881
...
102
TOP HINGE GEH-WR13X5221
...
103
SWITCH LIGHT WH GEH-WR23X0193
...
105
DEFLECTOR GEH-WR17X6343
...
106
TRIM GEH-WR17X6250
...
108
5D7058-03 GEH-WR23X5165
...
109
GUIDE-BUCKET GEH-WR02X7902
...
110
SOCKET & TERMINAL ASM GEH-WR02X9391
...
111
AIR DEFLECTOR GEH-WR17X6401
...
112
BTM-HOUSING GEH-WR02X8079
...
112
6-32 X 3/8 PHIL S/S TYPE GEH-WR01X5684
...
113
COMPRESSOR BUSHING GEH-WR02X8080
...
114
BAFFLE-CONTROL GEH-WR02X8083
...
115
CONTROL GEH-WR09X0452
...
115
SCREW-CONTROL GEH-WR01X5644
...
116
CONTROL PANEL GEH-WR17X6346
...
117
KNOB-CONTROL GEH-WR02X7895
...
118
LIGHT SHIELD GEH-WR17X6347
...
119
SUPPORT-SHLF BUCKT RF&LR GEH-WR02X7896
...
120
SUPPORT-SHLF BUCKT LF&RR GEH-WR02X7897
...
121
COVER-LINER GEH-WR17X6402
...
121
10 X 3/8 SMS PH PHIL GEH-WR02X8081
...
122
SCREW-COVER GEH-WR01X5710
...
123
PROTECTOR SHELF GEH-WR02X4566
...
123
SHELF BUCKET BTM DISPLAY GEH-WR71X1729
...
124
TRIM SCREW S/S GEH-WR01X5688
...
125
NUT J GEH-WR01X1547
...
126
DRIVE AUGER DISPENSER GEH-WR02X4854
...
127
SUPP0RT TWIST GEH-WR02X7310
...
128
COVER MOTOR & SOLENOID GEH-WR17X2051
...
129
SADDLE SOLENOID GEH-WR02X7309
...
130
PIN SPIRAL GEH-WR02X4259
...
131
STIRRUP SOLENOID DISPLAY GEH-WR17X1066
...
132
PIN SPIRAL GEH-WR02X4257
...
133
COLLAR SOLENOID DISPLAY GEH-WR17X1065
...
134
SPRING SOLENOID LINKAGE GEH-WR02X4258
...
135
PLUNGER SOLENOID GEH-WR17X1064
...
136
SOLENOID & ARM ASM GEH-WR62X0058
...
137
SHROUD SOLENOID GEH-WR17X1063
...
138
MOTOR AUGER DISP GEH-WR60X0111
...
139
WR17X2946 GEH-WR17X1440
...
140
HARNESS MOTOR DISP GEH-WR23X0194
...
141
TRACK SHELF FF GEH-WR17X6325
...
142
SCREW GEH-WR01X5635
...
143
SHELF GEH-WR71X6076
...
144
TRIM GEH-WR17X6349
...
145
CLIP SHELF TRIM GEH-WR02X5008
...
146
BASKET GEH-WR21X5116
...
147
HANDLE GEH-WR12X5188
...
148
SCREW GEH-WR01X5690
...
149
SUPPORT-FRONT GEH-WR02X7898
...
150
SUPPORT-REAR GEH-WR02X7899
...
151
HINGE-BOTTOM GEH-WR13X5223
...
152
SHIM GEH-WR02X7886
...
153
HINGE COVER GEH-WR02X7900
...
154
CAP COVER GEH-WR02X7901
...
155
WHEEL ASM FRT GEH-WR02X4858
...
156
LEVELING LEG GEH-WR02X7560
...
157
WHEEL MOBILITY GEH-WR02X3594
...
158
COTTER PIN GEH-WR02X3598
...
158
AXLE GEH-WR02X3595
...
159
BREAKER STRIP-SIDES GEH-WR40X5574
...
160
BREAKER STRIP-TOP GEH-WR40X5578
...
160
BREAKER STRIP-BOTTOM GEH-WR40X5577
...
161
CORNERS-BREAKER GEH-WR40X5575
...
162
BLADE REST DISP GEH-WR02X4140
...
163
PIN SPIRAL GEH-WR02X4141
...
164
SCREW GEH-WZ05X0194
...
164
PIN DEFLECTOR DISP GEH-WR02X4143
...
164
DEFLECTOR ICE DISPLAY GEH-WR17X2059
...
164
SPRING ICE DEFLECTOR GEH-WR02X4561
...
165
HOUSING CRUSHER DISPLAY GEH-WR17X2061
...
165
SCR 8-15 A PA 3/8 SS GEH-WZ04X0230
...
166
RETAINER RING E GEH-WR01X1367
...
166
WASHER GEH-WR01X1366
...
166
NUT AUGER GEH-WR01X1585
...
167
BLADES MOVING DISPLAY GEH-WR17X1361
...
168
SPACER CRUSHER MIDDLE GEH-WR02X4139
...
169
BLADE STATIONARY DISPLAY GEH-WR17X1009
...
170
SPACER CRUSHER STATIONAR GEH-WR02X4138
...
171
BLADES MOVING DISPLAY GEH-WR17X1362
...
172
BLADE STATIONARY DISPLAY GEH-WR17X2058
...
173
BLADES MOVING DISPLAY GEH-WR17X1363
...
174
PLATE FRONT DISPLAY GEH-WR17X2062
...
175
WIRE ACTUATOR DISPLAY GEH-WR17X2060
...
176
RETAINER ACTUATOR WIRE GEH-WR02X4251
...
177
SPRING GEH-WR02X4145
...
178
HELIX FRONT-DISPLAY GEH-WR17X2057
...
178
HELIX REAR-DISPLAY GEH-WR17X2056
...
179
BLADE IN DISP GEH-WR02X7351
...
180
WR17X2740 GEH-WR17X2054
...
181
CUP DRIVE DISPENSER GEH-WR02X4550
...
182
SEAL-BUCKET GEH-WR02X4149
...
183
BUCKET ICE DISP GEH-WR30X0256
...
184
COVER & INSERT GEH-WR17X6456
...
185
TRIM DOOR GEH-WR38X1157
...
185
WR17X6456 GEH-WR17X6461
...
186
MULLION HEATER GEH-WR51X5215
...
187
TOP SEAL GEH-WR17X6368
...
188
GASKET GEH-WR14X5166
...
189
HINGE COVER GEH-WR13X5234
...
189
SCREW-COVER GEH-WR01X5748
...
190
SUPPORTS GEH-WR02X8271
...
191
BUCKET AUGER ASSY DISPLA GEH-WR17X4312

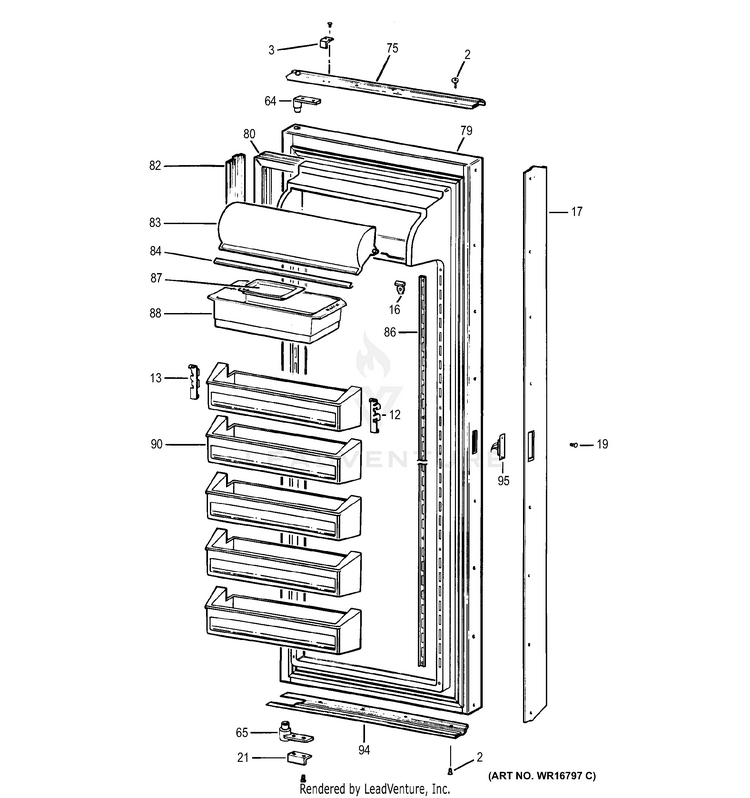

FRESH FOOD DOOR

...
...
2
SCREW GEH-WR01X5621
...
3
RISER-TOP GEH-WR02X7879
...
3
ACTIVATOR-SWITCH GEH-WR02X7541
...
3
SCREW-ACTIVATOR GEH-WR01X5622
...
12
HOOK R/S GEH-WR02X7544
...
13
HOOK L/S GEH-WR02X7543
...
16
CAP-TRACK TOP & BOTTOM GEH-WR02X7542
...
17
DOOR HANDLE GEH-WR12X5187
...
19
SCREW-SENSOR GEH-WR01X5687
...
21
DOOR STOP GEH-WR02X7880
...
21
SCREW-STOP GEH-WR01X5686
...
64
SCREW-RISER GEH-WR01X5626
...
65
RISER-BTM GEH-WR02X7878
...
75
TRIM-TOP GEH-WR17X6315
...
79
OUTER DOOR ASSY-FF GEH-WR78X8053
...
80
WR24X493 GEH-WR24X5251
...
82
TRIM DOOR GEH-WR17X6316
...
83
5D6049-02 GEH-WR22X5084
...
84
TRIM-DOOR GEH-WR38X5412
...
86
TRACK GEH-WR17X6317
...
87
DISH BUTTER GEH-WR19X5003
...
88
WR32X897 GEH-WR32X5192
...
90
DOOR SHELF ASSY GEH-WR17X6318
...
94
TRIM BTM GEH-WR17X6319
...
95
MAGNET DOOR SENSOR GEH-WR02X7315

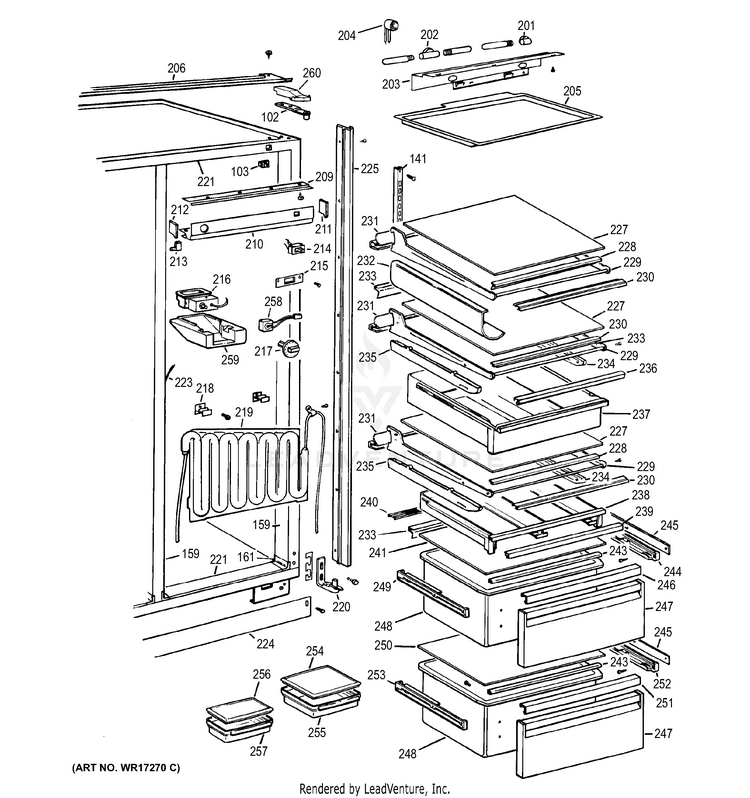

FRESH FOOD SECTION

...
...
102
TOP HINGE GEH-WR13X5221
...
102
SHIM GEH-WR02X7881
...
103
SWITCH LIGHT WH GEH-WR23X0193
...
141
TRACK SHELF FF GEH-WR17X6325
...
159
BREAKER STRIP-SIDES GEH-WR40X5574
...
161
CORNERS-BREAKER GEH-WR40X5575
...
201
SOCKET LIGHT GEH-WR23X5156
...
202
SOCKET LIGHT GEH-WR23X5164
...
203
REFLECTOR GEH-WR17X6320
...
204
THEMODISC GEH-WR50X0108
...
205
LIGHT SHIELD GEH-WR17X6321
...
206
TOP TRIM GEH-WR17X6322
...
209
RETAINER GEH-WR17X6323
...
210
CONTROL PANEL GEH-WR17X6324
...
211
GASKET R/S GEH-WR14X5162
...
212
GASKET L/S GEH-WR14X5163
...
213
SUPPORT GEH-WR02X7882
...
214
SWITCH POWER SAVER GEH-WR23X0309
...
215
PLATE-SWITCH GEH-WR02X7883
...
215
SCREW PLATE GEH-WR01X5632
...
216
CONTROL ASSEMBLY GEH-WR09X0445
...
217
KNOB-CONTROL GEH-WR02X7884
...
218
BRACKET-TANK GEH-WR02X7885
...
219
WATER TANK GEH-WR17X1482
...
220
HINGE R/S GEH-WR13X5222
...
220
SCREW-HINGE GEH-WR01X5653
...
221
BREAKER STRIP-BTM GEH-WR40X5576
...
221
BREAKER STRIP-TOP GEH-WR40X5573
...
223
MULLION HEATER GEH-WR51X5214
...
224
KICKPLATE GEH-WR79X5174
...
224
SCREW-PLATE GEH-WR01X5643
...
225
SIDE TRIM-CABINET GEH-WR17X6249
...
227
GLASS SHELF GEH-WR32X5311
...
228
RETAINER GEH-WR02X7549
...
229
SHELF GEH-WR71X6075
...
230
TRIM-SHELF GEH-WR17X6326
...
231
REFLECTOR GEH-WR17X6327
...
232
WR17X3364 GEH-WR17X6235
...
233
GASKET REAR GEH-WR14X5155
...
233
GASKET FRONT GEH-WR14X5157
...
234
SLIDE R/S GEH-WR72X5059
...
234
NO ITEM DESCRIPTION GEH-WR01X5657
...
235
SLIDE L/S GEH-WR72X5060
...
236
HANDLE-PAN GEH-WR17X6237
...
237
SNACK PAN GEH-WR32X5312
...
238
RACK GEH-WR17X6236
...
239
HANDLE RACK GEH-WR17X6328
...
240
LOUVER-GLASS COVER GEH-WR17X6329
...
241
VEG PAN COVER (GLASS) GEH-WR32X5313
...
243
WR2X8965 GEH-WR14X5159
...
244
WR72X5061 GEH-WR72X5054
...
244
SCREW SLIDE GEH-WR01X5636
...
245
SHIM GEH-WR02X7552
...
246
HANDLE PAN GEH-WR17X6330
...
247
PAN FRONT GEH-WR17X6239
...
247
SCREW-FRONT GEH-WZ04X0244
...
248
VEG PAN GEH-WR32X5330
...
249
WR72X5062 GEH-WR72X5055
...
250
PAN COVER (GLASS) GEH-WR32X5331
...
251
HANDLE PAN GEH-WR17X6331
...
252
SLIDE R/S GEH-WR72X5061
...
253
SLIDE L/S GEH-WR72X5062
...
254
DISH COVER (LGE) GEH-WR02X7555
...
255
WR17X4008 GEH-WR17X6242
...
256
DISH COVER (SM) GEH-WR02X7554
...
257
WR17X4009 GEH-WR17X6241
...
258
HEATER GEH-WR51X5218
...
258
CLIP GEH-WR01X5709
...
259
DUCT GEH-WR02X8082
...
260
HINGE COVER GEH-WR13X5235

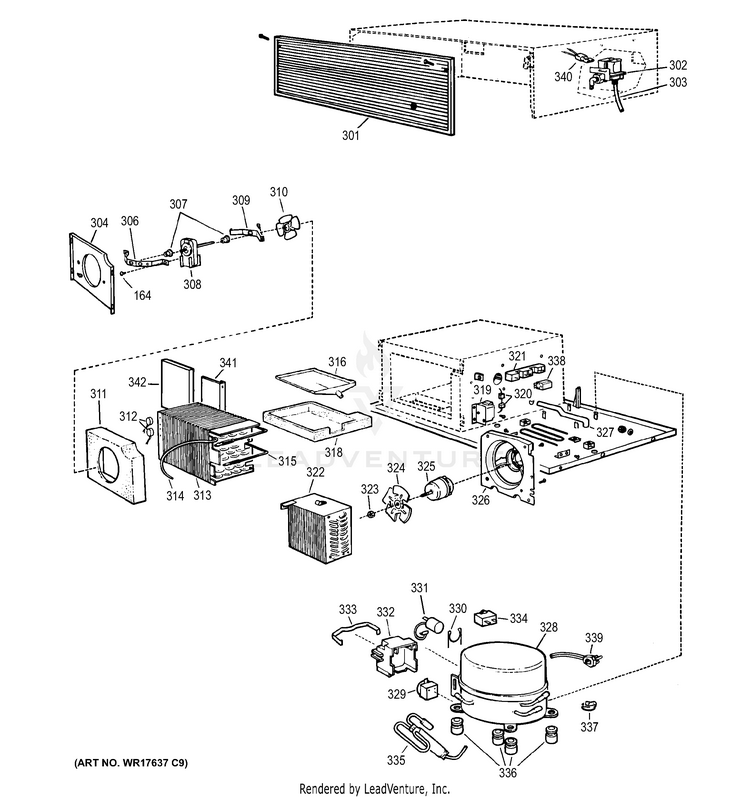

MACHINE COMPARTMENT

...
...
164
PIN DEFLECTOR DISP GEH-WR02X4143
...
164
SPRING ICE DEFLECTOR GEH-WR02X4561
...
164
SCREW GEH-WZ05X0194
...
164
DEFLECTOR ICE DISPLAY GEH-WR17X2059
...
301
MEDALLION GEH-WR03X5133
...
301
SCREW-GRILLE TO GRILLE GEH-WR01X5685
...
301
5C0384-03 GEH-WR79X5173
...
302
WATER VALVE ASM GEH-WR57X0092
...
303
WR17X2107 GEH-WR17X2049
...
304
FAN ORIFICE GEH-WR17X6351
...
306
BRACKET EVAP FAN GEH-WR02X4792
...
307
GROMMET GEH-WR02X2945
...
308
MOTOR EVAP FAN GEH-WR60X0182
...
309
BRACKET EVAP FAN GEH-WR02X7137
...
309
SCREW GEH-WR01X1483
...
310
FAN BLADE EVAP MOTOR GEH-WR60X0123
...
311
FOAM BLOCK GEH-WR17X6311
...
312
DEFROST THERMOSTAT GEH-WR50X0109
...
313
EVAPORATOR GEH-WR85X0223
...
314
SUCTION & CAPILLARY TUBE GEH-WR86X0089
...
315
DEFROST HEATER GEH-WR51X0322
...
316
WR17X10687 GEH-WR17X6312
...
318
BASE-PAN GEH-WR17X6313
...
319
DEFROST CONTROL GEH-WR09X0413
...
320
CURRENT SENSOR GEH-WR23X0319
...
321
5B7325-00 GEH-WR23X5163
...
322
CONDENSER GEH-WR84X0137
...
323
NUT LOCKING GEH-WR01X1515
...
324
BLADE COND FAN GEH-WR60X0167
...
325
MOTOR COND FAN GEH-WR60X0179
...
326
FAN ORIFICE GEH-WR17X3047
...
327
NO ITEM DESCRIPTION GEH-WR87X6314
...
328
P/S KIT-MATSUSHITA HI-SI GEH-WR87X0238
...
329
RELAY (PTCR) GEH-WR07X0190
...
330
CLIP GUARDETTE GEH-WR02X7227
...
331
GUARDETTE GEH-WR08X0101
...
332
COVER GEH-WR02X7834
...
333
CLAMP COVER GEH-WR02X7226
...
334
CAPACITOR GEH-WR62X0049
...
335
MONGRAM SERIES P/S GEH-WR86X0086
...
336
STEEL COLLAR GEH-WR01X5648
...
336
GROMMET COMP MTG GEH-WR02X7238
...
337
CLIP COMP MTG GEH-WR02X7228
...
338
RELAY GEH-WR07X0193
...
339
WR23X420 GEH-WR23X5177
...
340
HARNESS-VALVE GEH-WR23X5176
...
341
BAFFLE GEH-WR17X6462
...
342
INSULATION GEH-WR82X5056
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
