GE ZIS42CMB Refrigerator

Model: ZIS42CMB

Save Part Not Listed?
product name

Popular Parts

Popular Parts

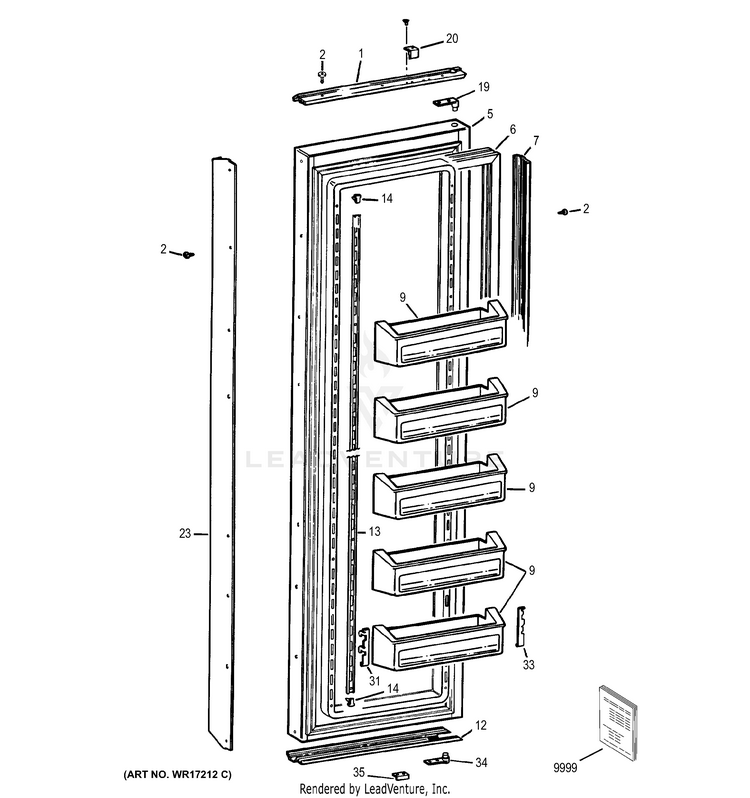

FREEZER DOOR

...
...
1
TRIM-TOP GEH-WR17X6333
...
2
SCREW GEH-WR01X5621
...
5
DOOR OUTER ASSY GEH-WR78X8155
...
6
WR24X492 GEH-WR24X5252
...
7
DOOR TRIM-FZ GEH-WR17X6228
...
9
DOOR SHELF ASSY GEH-WR17X6337
...
12
TRIM-BTM GEH-WR17X6364
...
13
SCREW GEH-WR01X5623
...
13
TRACK GEH-WR72X5063
...
14
CAP-TRACK TOP & BOTTOM GEH-WR02X7542
...
19
SCREW-RISER GEH-WR01X5626
...
19
RISER-TOP GEH-WR02X7879
...
20
SCREW-ACTIVATOR GEH-WR01X5622
...
20
ACTIVATOR-SWITCH GEH-WR02X7541
...
23
DOOR HANDLE GEH-WR12X5183
...
31
HOOK L/S GEH-WR02X7543
...
33
HOOK R/S GEH-WR02X7544
...
34
SCREW-STOP GEH-WR01X5686
...
34
RISER-BTM GEH-WR02X7878
...
35
DOOR STOP GEH-WR02X7880
...
9999
INSTALLATION ZIS42CM GEH-49-6438
...
9999
USE & CARE ZIS42CM GEH-49-6607

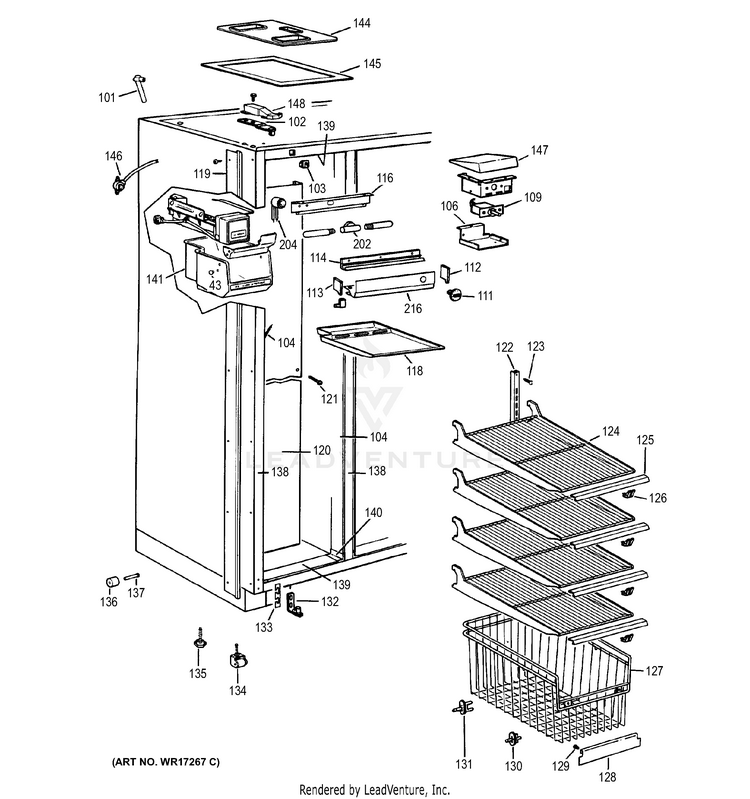

FREEZER SECTION

...
...
101
TUBE & GROMMET GEH-WR17X6371
...
102
TOP HINGE GEH-WR13X5221
...
103
WR23X193 GEH-WR23X5155
...
104
MULLION HEATER GEH-WR51X5215
...
106
BTM-HOUSING GEH-WR02X8079
...
109
SCREW-CONTROL GEH-WR01X5644
...
109
CONTROL GEH-WR09X0437
...
111
KNOB-CONTROL GEH-WR02X7895
...
112
GASKET R/S GEH-WR14X5167
...
113
GASKET L/S GEH-WR14X5163
...
114
RETAINER GEH-WR17X6398
...
116
REFLECTOR GEH-WR17X6399
...
118
SHIELD LIGHT GEH-WR17X6369
...
119
TRIM GEH-WR17X6250
...
120
10 X 3/8 SMS PH PHIL GEH-WR02X8081
...
120
COVER LINER GEH-WR17X6400
...
121
SCREW-COVER GEH-WR01X5710
...
122
TRACK SHELF FF GEH-WR17X6325
...
123
SCREW GEH-WR01X5635
...
124
SHELF GEH-WR71X6076
...
125
TRIM GEH-WR17X6349
...
126
CLIP SHELF TRIM GEH-WR02X5008
...
127
BASKET GEH-WR21X5116
...
128
HANDLE GEH-WR12X5188
...
129
SCREW GEH-WR01X5690
...
130
SUPPORT-FRONT GEH-WR02X7898
...
131
SUPPORT-REAR GEH-WR02X7899
...
132
SCREW-HINGE GEH-WR01X5653
...
132
HINGE-BOTTOM GEH-WR13X5223
...
133
SHIM GEH-WR02X7881
...
134
WHEEL ASM FRT GEH-WR02X4858
...
135
LEVELING LEG GEH-WR02X7560
...
136
WHEEL MOBILITY GEH-WR02X3594
...
137
AXLE GEH-WR02X3595
...
137
COTTER PIN GEH-WR02X3598
...
138
BREAKER STRIP-SIDES GEH-WR40X5574
...
139
BREAKER STRIP-BOTTOM GEH-WR40X5577
...
139
BREAKER STRIP-TOP GEH-WR40X5578
...
140
CORNERS-BREAKER GEH-WR40X5575
...
141
WR30X291 GEH-WR30X5112
...
144
TOP SEAL GEH-WR17X6368
...
145
GASKET GEH-WR14X5166
...
146
5D7058-03 GEH-WR23X5165
...
147
BAFFLE-CONTROL GEH-WR02X8083
...
148
SCREW-COVER GEH-WR01X5748
...
148
HINGE COVER GEH-WR13X5234
...
202
SOCKET LIGHT GEH-WR23X5164
...
204
THEMODISC GEH-WR50X0108
...
216
CONTROL ASSEMBLY GEH-WR09X0445

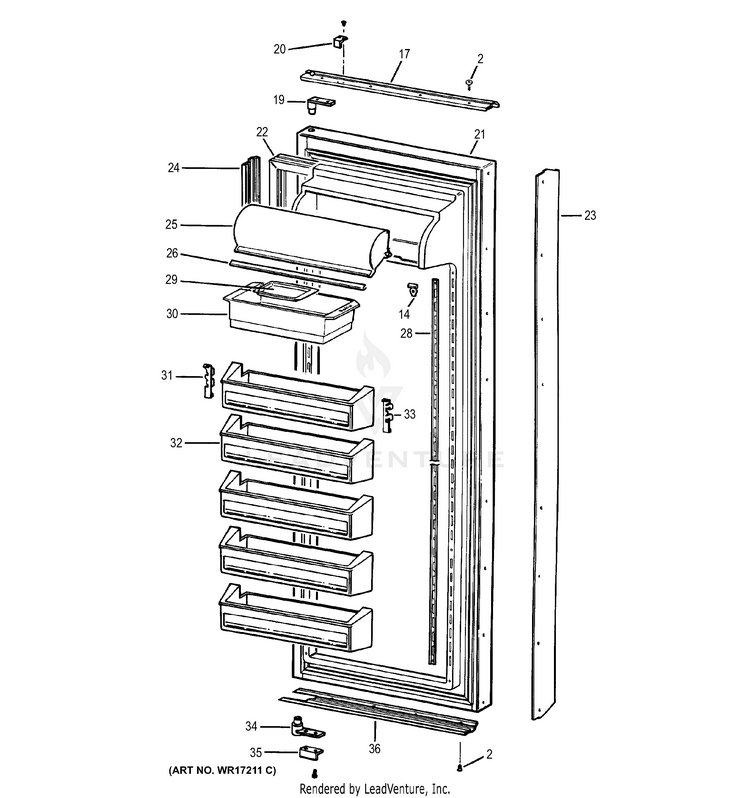

FRESH FOOD DOOR

...
...
2
SCREW GEH-WR01X5621
...
14
CAP-TRACK TOP & BOTTOM GEH-WR02X7542
...
17
TRIM-TOP GEH-WR17X6315
...
19
SCREW-RISER GEH-WR01X5626
...
19
RISER-TOP GEH-WR02X7879
...
20
SCREW-ACTIVATOR GEH-WR01X5622
...
20
ACTIVATOR-SWITCH GEH-WR02X7541
...
21
DOOR OUTER ASSY-F F GEH-WR78X8154
...
22
WR24X493 GEH-WR24X5251
...
23
DOOR HANDLE GEH-WR12X5183
...
24
TRIM DOOR GEH-WR17X6316
...
25
5D6049-02 GEH-WR22X5084
...
26
TRIM-DOOR GEH-WR38X5412
...
28
TRACK GEH-WR17X6317
...
29
DISH BUTTER GEH-WR19X5003
...
30
WR32X897 GEH-WR32X5192
...
31
HOOK L/S GEH-WR02X7543
...
32
DOOR SHELF ASSY GEH-WR17X6318
...
33
HOOK R/S GEH-WR02X7544
...
34
SCREW-STOP GEH-WR01X5686
...
34
RISER-BTM GEH-WR02X7878
...
35
DOOR STOP GEH-WR02X7880
...
36
TRIM BTM GEH-WR17X6319

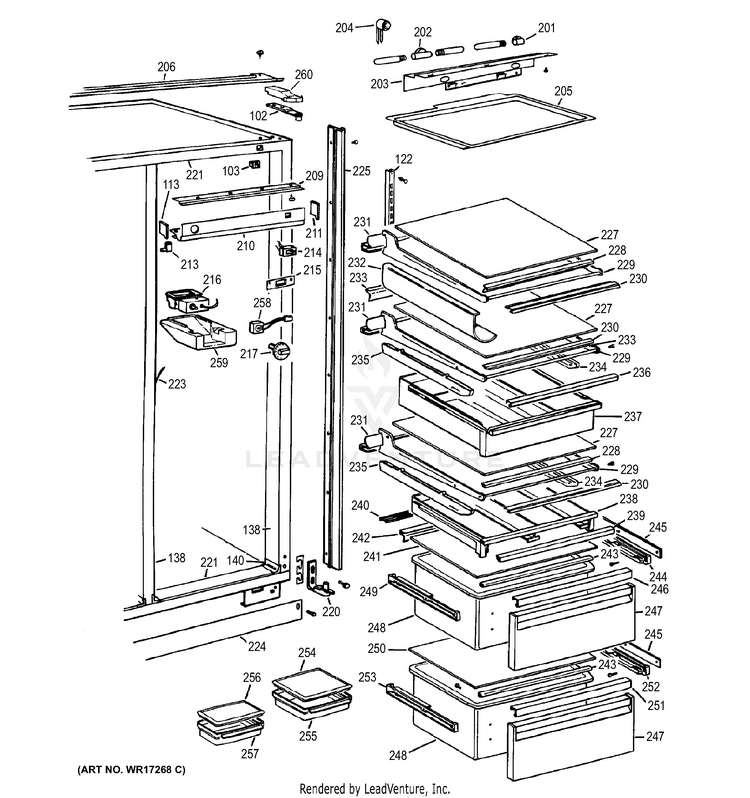

FRESH FOOD SECTION

...
...
102
TOP HINGE GEH-WR13X5221
...
103
WR23X193 GEH-WR23X5155
...
113
GASKET L/S GEH-WR14X5163
...
122
TRACK SHELF FF GEH-WR17X6325
...
138
BREAKER STRIP-SIDES GEH-WR40X5574
...
140
CORNERS-BREAKER GEH-WR40X5575
...
201
SOCKET LIGHT GEH-WR23X5156
...
202
SOCKET LIGHT GEH-WR23X5164
...
203
REFLECTOR GEH-WR17X6320
...
204
THEMODISC GEH-WR50X0108
...
205
LIGHT SHIELD GEH-WR17X6321
...
206
TOP TRIM GEH-WR17X6322
...
209
RETAINER GEH-WR17X6323
...
210
CONTROL PANEL GEH-WR17X6324
...
211
GASKET R/S GEH-WR14X5162
...
213
SUPPORT GEH-WR02X7882
...
214
SWITCH POWER SAVER GEH-WR23X0309
...
215
SCREW PLATE GEH-WR01X5632
...
215
PLATE-SWITCH GEH-WR02X7883
...
216
CONTROL ASSEMBLY GEH-WR09X0445
...
217
KNOB-CONTROL GEH-WR02X7884
...
220
SHIM GEH-WR02X7886
...
220
HINGE R/S GEH-WR13X5222
...
221
BREAKER STRIP-TOP GEH-WR40X5573
...
221
BREAKER STRIP-BTM GEH-WR40X5576
...
223
MULLION HEATER GEH-WR51X5214
...
224
KICKPLATE GEH-WR79X5174
...
224
SCREW-PLATE GEH-WR01X5643
...
225
SIDE TRIM-CABINET GEH-WR17X6249
...
227
GLASS SHELF GEH-WR32X5311
...
228
RETAINER GEH-WR02X7549
...
229
SHELF GEH-WR71X6075
...
230
TRIM-SHELF GEH-WR17X6326
...
231
REFLECTOR GEH-WR17X6327
...
232
WR17X3364 GEH-WR17X6235
...
233
GASKET REAR GEH-WR14X5155
...
233
GASKET FRONT GEH-WR14X5157
...
234
NO ITEM DESCRIPTION GEH-WR01X5657
...
234
SLIDE R/S GEH-WR72X5059
...
235
SLIDE L/S GEH-WR72X5060
...
236
HANDLE-PAN GEH-WR17X6237
...
237
SNACK PAN GEH-WR32X5312
...
238
RACK GEH-WR17X6236
...
239
HANDLE RACK GEH-WR17X6328
...
240
LOUVER-GLASS COVER GEH-WR17X6329
...
241
VEG PAN COVER (GLASS) GEH-WR32X5313
...
242
WR14X5157 GEH-WR14X5165
...
243
WR2X8965 GEH-WR14X5159
...
244
SCREW SLIDE GEH-WR01X5636
...
244
WR72X5061 GEH-WR72X5054
...
245
SHIM GEH-WR02X7552
...
246
HANDLE PAN GEH-WR17X6330
...
247
PAN FRONT GEH-WR17X6239
...
247
SCREW-FRONT GEH-WZ04X0244
...
248
VEG PAN GEH-WR32X5330
...
249
WR72X5062 GEH-WR72X5055
...
250
PAN COVER (GLASS) GEH-WR32X5331
...
251
HANDLE PAN GEH-WR17X6331
...
252
SLIDE R/S GEH-WR72X5061
...
253
SLIDE L/S GEH-WR72X5062
...
254
DISH COVER (LGE) GEH-WR02X7555
...
255
WR17X4008 GEH-WR17X6242
...
256
DISH COVER (SM) GEH-WR02X7554
...
257
WR17X4009 GEH-WR17X6241
...
258
CLIP GEH-WR01X5709
...
258
HEATER GEH-WR51X5218
...
259
DUCT GEH-WR02X8082
...
260
HINGE COVER GEH-WR13X5235

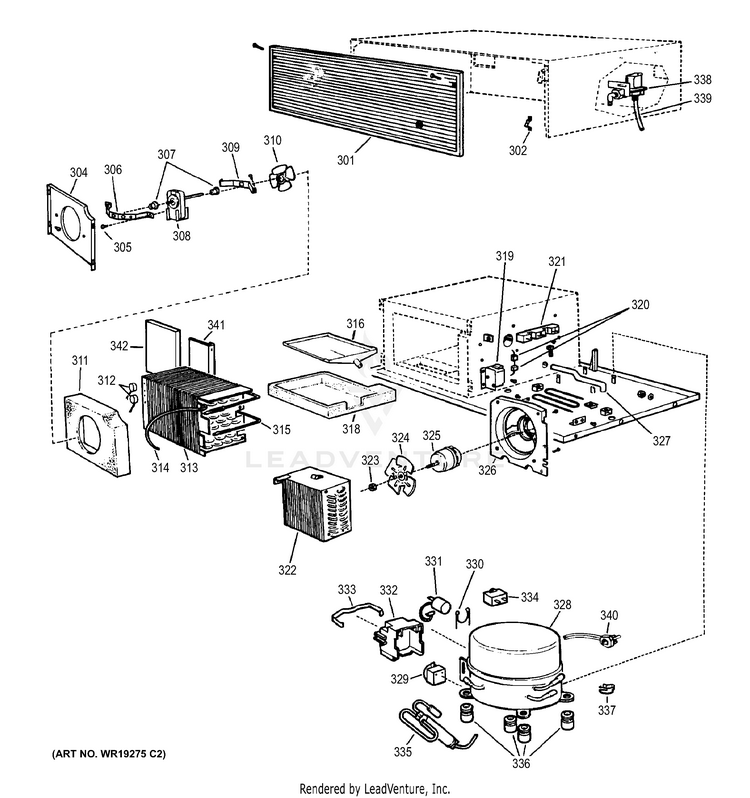

MACHINE COMPARTMENT

...
...
301
6-32 X 3/8 PHIL S/S TYPE GEH-WR01X5684
...
301
SCREW-GRILLE TO GRILLE GEH-WR01X5685
...
301
MEDALLION GEH-WR03X5133
...
301
5C0384-03 GEH-WR79X5173
...
302
MTG BRKT KIT GEH-WR49X5122
...
304
FAN ORIFICE GEH-WR17X6351
...
305
SCREW GEH-WZ05X0194
...
306
BRACKET EVAP FAN GEH-WR02X4792
...
307
GROMMET GEH-WR02X2945
...
308
MOTOR EVAP FAN GEH-WR60X0182
...
309
BRACKET EVAP FAN GEH-WR02X7137
...
309
SCREW GEH-WR01X1483
...
310
FAN BLADE EVAP MOTOR GEH-WR60X0123
...
311
FOAM BLOCK GEH-WR17X6311
...
312
DEFROST THERMOSTAT GEH-WR50X0109
...
313
EVAPORATOR GEH-WR85X0223
...
314
SUCTION & CAPILLARY TUBE GEH-WR86X0089
...
315
DEFROST HEATER GEH-WR51X0322
...
316
WR17X10687 GEH-WR17X6312
...
318
BASE-PAN GEH-WR17X6313
...
319
DEFROST CONTROL GEH-WR09X0413
...
320
CURRENT SENSOR GEH-WR23X0319
...
321
5B7325-00 GEH-WR23X5163
...
322
CONDENSER GEH-WR84X0136
...
323
NUT LOCKING GEH-WR01X1515
...
324
BLADE COND FAN GEH-WR60X0167
...
325
MOTOR COND.FAN GEH-WR60X0173
...
325
WASHER GEH-WR01X1710
...
326
FAN ORIFICE GEH-WR17X3047
...
327
DRAIN TUBE GEH-WR17X6314
...
328
P/S KIT-MATSUSHITA HI-SI GEH-WR87X0238
...
329
RELAY (PTCR) GEH-WR07X0190
...
330
CLIP GUARDETTE GEH-WR02X7227
...
331
GUARDETTE GEH-WR08X0101
...
332
COVER GEH-WR02X7834
...
333
CLAMP COVER GEH-WR02X7226
...
334
CAPACITOR GEH-WR62X0049
...
335
MONGRAM SERIES P/S GEH-WR86X0086
...
336
GROMMET COMP MTG GEH-WR02X7238
...
337
STEEL COLLAR GEH-WR01X5648
...
337
CLIP COMP MTG GEH-WR02X7228
...
338
COIL-ICE GEH-WR62X0044
...
338
VALVE & FITTING ASM GEH-WR57X0090
...
339
WR17X2107 GEH-WR17X2049
...
340
WR23X420 GEH-WR23X5177
...
341
BAFFLE GEH-WR17X6462
...
342
INSULATION-BAFFLE GEH-WR82X5057
