GE ZIPS360NHA Bottom Mount Refrigerator

Model: ZIPS360NHA

Save Part Not Listed?
product name

CONTROLS & COMPONENTS

...
...
8
STANDOFF LED BOARD GEH-WR02X23950
...
9
HARNESS LED BM FD GEH-WR55X23951
...
11
STRIKER TOP MULLION GEH-WR02X23952
...
25
GRILL VENT GEH-WR02X23990
...
234
GRILLE SENSOR GEH-WR02X10647
...
359
BRACKET BLOWER REAR GEH-WR17X12998
...
360
DAMPER BLOWER GEH-WR17X12999
...
361
BLOWER FAN DUCT GEH-WR60X10330
...
362
GASKET FAN BRACKET GEH-WR14X26551
...
363
BRACKET BLOWER FRONT GEH-WR17X13001
...
364
BOOT FF FAN GEH-WR14X26550
...
365
BOARD LED LIGHT ASM GEH-WR55X11088
...
366
LENS LED COVER GEH-WR02X23939
...
599
RING COMPRESSION GEH-WR02X12149
...
610
MOTOR EVAP DC GEH-WR60X10185
...
612
BRACKET EVAP FAN FRT GEH-WR17X12269
...
614
BUMPER GEH-WR02X10540
...
615
GROMMET EVAP FAN GEH-WR02X12008
...
752
BRACKET EVAP FAN REAR GEH-WR17X12270
...
1548
EVAP COVER ASM GEH-WR74X23940
...
1549
FZ FAN COVER ASM FD GEH-WR17X23949
...
1550
BRACKET DAMPER MTG GEH-WR17X11009
...
2060
DRAIN FAN ASM SD GEH-WR60X23405
...
3568
BLADE EVAP FAN ASM GEH-WR60X10208
...
5000
EVAPORATOR BM DEFROST AS GEH-WR87X23941
...
5001
HEATER DEFROST GEH-WR51X23942
...
5117
DAMPER MOTORIZED GEH-WR09X10065
...
5197
BAFFLE EVAP LH GEH-WR02X10145
...
7500
TOD EVAP GEH-WR50X10105
...
7516
SHIELD LIGHT SNAP IN GEH-WR17X23973
...
7525
PANEL PLASTIC TEMP CONT GEH-WR17X11026
...
7539
COND BOTTOM FD GEH-WR84X23938
...
7545
DRAIN PAN GEH-WR17X11016
...
7588
HMI ASM FD GEH-WR55X23943

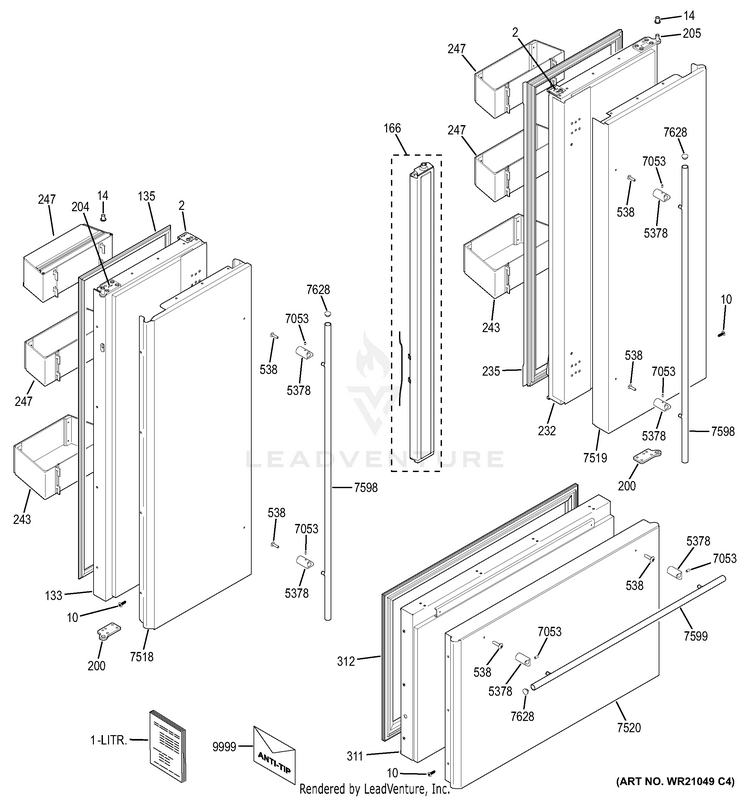

DOORS

...
...
1
INSTALLATION INSTRUCTION GEH-31-49074
...
1
PM MINI MANUAL FDBM GEH-31-51903
...
2
BRACKET & BUMPER ASM GEH-WR02X23864
...
10
SCREW 10-32 GXTT FLP 595 GEH-WR01X10065
...
14
BUSHING DOOR GEH-WR02X25053
...
133
DOOR FOAMED BM FF LH GEH-WR78X23847
...
135
GASKET DOOR BM FD GEH-WR14X20923
...
166
MULLION ARTICULATING ASM GEH-WR17X23935
...
200
HINGE DOOR BTM GEH-WR13X10657
...
204
TOP SXS FZ DOOR HINGE AS GEH-WR13X10238
...
205
HINGE ASM DOOR TOP GEH-WR13X10580
...
232
DOOR FOAMED BM FF RH GEH-WR78X23846
...
235
GASKET DOOR BM FD GEH-WR14X20924
...
243
BIN ASM GALLON EXTRUSION GEH-WR71X23856
...
247
BIN ASM STND EXTRUSION GEH-WR71X23857
...
311
BTM MT FZ FOAMED DR GEH-WR78X10889
...
312
BM FZ DRAWER GASKET GEH-WR78X20985
...
538
SCREW #10-32X3/4 CR TR H GEH-WR01X10057
...
5378
STAND-OFF SS GEH-WR02X10165
...
7053
SCREW SET 10-32 GEH-WR01X10026
...
7518
WRAP FF LH EURO GEH-WR78X23957
...
7519
WRAP FF RH EURO GEH-WR78X23956
...
7520
WRAP FZ BM GEH-WR78X23430
...
7598
TUBULAR SS FF HANDLE ASM GEH-WR12X10970
...
7599
TUBULAR SS FZ HANDLE ASM GEH-WR12X10969
...
7628
CAP HANDLE END GEH-WR02X13781
...
9999
ANTI-TIP HARDWARE ASM GEH-WR49X21844

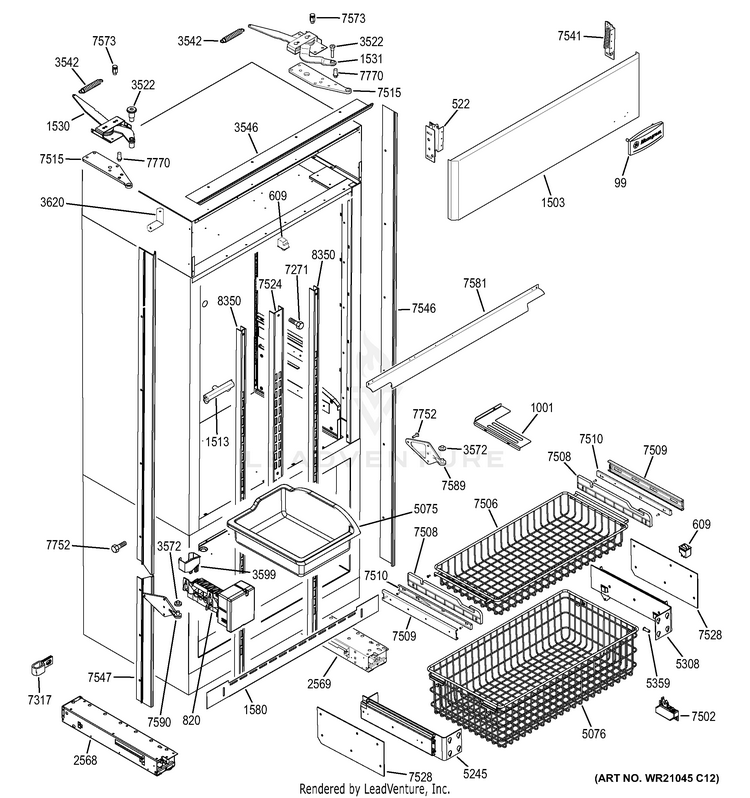

FREEZER SECTION, TRIM & COMPONENTS

...
...
99
MONOGRAM BADGE GEH-WB02K10295
...
522
HINGE GRILL GEH-WR13X10911
...
609
SWITCH LIGHT GEH-WR23X10143
...
820
ICEMAKER ASM GEH-WR29X20949
...
1001
SHIELD ICE GEH-WR29X10107
...
1503
GRILL ASM EURO GEH-WR74X23955
...
1513
FF THERMISTOR HOLDER GEH-WR02X10942
...
1530
LINK ACTUATOR LH GEH-WR02X10979
...
1531
ACTUATOR ARM FF DOOR GEH-WR02X10948
...
1580
TOE KICK GEH-WR74X23484
...
2568
BASE CHANNEL ASM LH GEH-WR13X23954
...
2569
BASE CHANNEL ASM RH GEH-WR13X23953
...
3522
BOLT, SHOULDER GEH-WR01X10752
...
3542
SPRING CLOSURE GEH-WR02X12948
...
3546
BM TRIM TOP CASE GEH-WR17X12978
...
3572
BUSHING HINGE BOTTOM GEH-WR02X10953
...
3599
CUP FILL IM GEH-WR29X20863
...
3620
TRIM CORNER KEY GEH-WR02X11335
...
5075
BUCKET ICE GEH-WR29X23876
...
5076
BASKET LOWER BM GEH-WR32X20909
...
5245
SLIDE DRAWER ASM LH GEH-WR72X23882
...
5308
DRAWER SLIDE ASM GEH-WR72X10396
...
5359
SCREW TRUSS HD 1/4-20 X GEH-WR01X10049
...
7271
10-24X1" PHIL P-HD TAP GEH-WR01X10051
...
7317
1/4 CLAMP NYLON GEH-WR02X12487
...
7502
ASM CLOSURE GEH-WR02X13480
...
7506
BASKET WIRE SMALL GEH-WR32X20908
...
7508
SUPPORT BASKET UPPER FZ GEH-WR72X10080
...
7509
SLIDE LINER UPPER FZ GEH-WR72X10081
...
7510
SLIDE BASKET UPPER FZ GEH-WR72X10082
...
7515
HINGE CASE FF UPPER GEH-WR13X23350
...
7524
TRACK SHELF CENTER ASM GEH-WR72X23860
...
7528
FREEZER SLIDE SHIM GEH-WR72X10085
...
7541
HINGE GRILL GEH-WR13X10910
...
7546
TRIM CASE BM RH GEH-WR17X23886
...
7547
TRIM CASE BM LH GEH-WR17X23885
...
7573
STUD SPRING FF DOOR GEH-WR01X10258
...
7581
EYEBROW FD FI GEH-WR02X23858
...
7589
HINGE ASM CASE BTM RH GEH-WR13X23937
...
7590
HINGE ASM CASE BTM LH GEH-WR13X23349
...
7752
SCREW 12-24 .7 WH GEH-WR01X2138
...
7770
SHEAR PIN GEH-WR13X10478
...
8350
TRACK SHELF FF ASM GEH-WR72X23861

FRESH FOOD SHELVES

...
...
3
VEG PAN SLIDE RH GEH-WR72X23868
...
4
VEG PAN SLIDE LH GEH-WR72X23867
...
5
NUT SLIDE GEH-WR01X23869
...
6
SLIDE DELI PAN LH GEH-WR72X23874
...
7
SLIDE DELI PAN RH GEH-WR72X23875
...
815
PAN DELI ASM GEH-WR32X23873
...
823
COVER ASM DELI PAN GEH-WR32X23872
...
890
COVER ASM VEG PAN GEH-WR32X23871
...
5065
SHELF ASM FF GEH-WR71X23859
...
5412
PAN VEG ASM GEH-WR71X23866

MACHINE COMPARTMENT

...
...
12
MUFFLER SUCTION GEH-WR87X25050
...
13
MUFFLER DISCHARGE GEH-WR87X25049
...
300
MWF MANIFOLD & TUBES ASM GEH-WR17X20859
...
301
CAP FILTER BYPASS GEH-WR02X11705
...
303
WATER FILTER CANISTER GEH-MWFP
...
614
BUMPER GEH-WR02X10540
...
617
GROMMET FAN MOTOR GEH-WR02X10520
...
702
COVER MOTHERBOARD BM GEH-WR02X23863
...
703
BOARD ASM MAIN CONTROL GEH-WR55X24412
...
704
MAIN BOARD STAND OFFS GEH-WR01X10301
...
706
DRYER BIFURCATED HX9 GEH-WR86X10030
...
707
STUD MTG COMPR GEH-WR01X1779
...
713
INVERTER COMPRESSOR GEH-WR87X20921
...
719
GROMMET GEH-WR02X10099
...
723
BRACKET COND FAN (REAR) GEH-WR02X10593
...
725
MOTOR DC COND FAN GEH-WR60X10216
...
727
BLADE COND FAN ASM GEH-WR60X10206
...
729
SHROUD CONDENSER GEH-WR17X11252
...
735
POWER CORD GEH-WR23X10300
...
737
CLIP COMPRESSOR MOUNT GEH-WR02X8203
...
740
CONDENSER & BRACKET ASM GEH-WR84X10090
...
741
SCR 8-32 CA HXW 1/2 GEH-WR01X10317
...
753
BRACKET COND FAN (MTG) GEH-WR02X11863
...
795
BRACKET AND VALVE ASM GEH-WR57X10084
...
903
INVERTER GEH-WR55X23123
