GE ZIK30GNHAII Bottom Mount Refrigerator

Model: ZIK30GNHAII

Save Part Not Listed?
product name

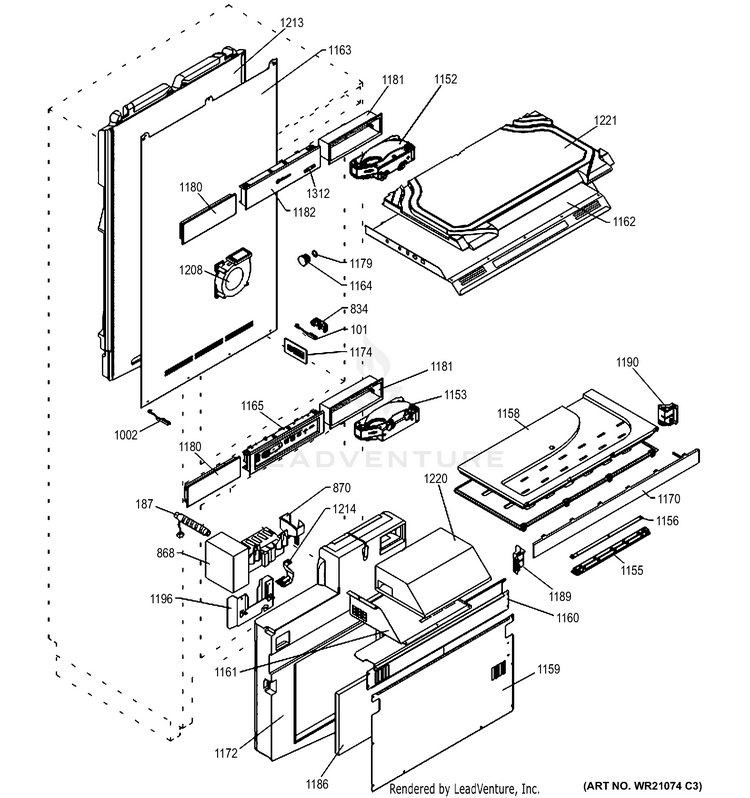

CABINET

...
...
101
TEMP SENSOR GEH-WR55X10409
...
187
FILL TUBE HTR GEH-WR02X13456
...
834
TEMP.CONTROL BULB COVER GEH-WR02X11816
...
868
ICE MAKER GEH-WR30X10152
...
870
ICE FILL CUP GEH-WR29X10108
...
1002
REED SWITCH GEH-WR23X10378
...
1152
DOOR HINGE UPPER GEH-WR13X10913
...
1153
DOOR HINGE LOWER GEH-WR13X10914
...
1155
ILLUMINATION COVER LED 6 GEH-WR02X13458
...
1156
LIGHTING LED6 GEH-WR02X13471
...
1158
PARTITION WALL AIR DUCT GEH-WR17X12958
...
1159
COVER-BACK PANEL ASM - F GEH-WR17X12966
...
1160
AIR DUCT-BACK GEH-WR17X12967
...
1161
AIR DUCT - FZ GEH-WR17X12968
...
1162
AIR DUCT- FF GEH-WR17X12969
...
1163
AIR DUCT-BACK PANEL GEH-WR17X12971
...
1164
ILLUMINATION COVER LED GEH-WR02X13469
...
1165
CONTROL UNIT GEH-WR09X10198
...
1170
MULLION FACE GEH-WR17X12959
...
1172
AIR DUCT-BACK PANEL FZ GEH-WR17X12965
...
1174
SENSOR COVER GEH-WR13X10918
...
1179
LIGHTING LED1 GEH-WR02X13472
...
1180
HINGE COVER GEH-WR13X10917
...
1181
HINGE HOLDER GEH-WR13X10916
...
1182
PROFILE COVER HEAT.75A S GEH-WR13X21585
...
1186
VACUUM INSULATION PANEL GEH-WR82X10123
...
1189
MULLION SEAL - L GEH-WR02X13459
...
1190
MULLION SEAL - R GEH-WR02X13460
...
1196
ICEMAKER SUPPORT IM GEH-WR29X10102
...
1208
FAN ASM GEH-WR60X10329
...
1213
AIR DUCT-BACK PANEL-FF GEH-WR17X12972
...
1214
BRACKET, REED SW GEH-WR02X13465
...
1220
AIR DUCT-CEILING-FZ GEH-WR02X13464
...
1221
AIR DUCT-CEILING-FF GEH-WR17X12970
...
1312
SPRING CONTACT 2P TARGET GEH-WR02X21584

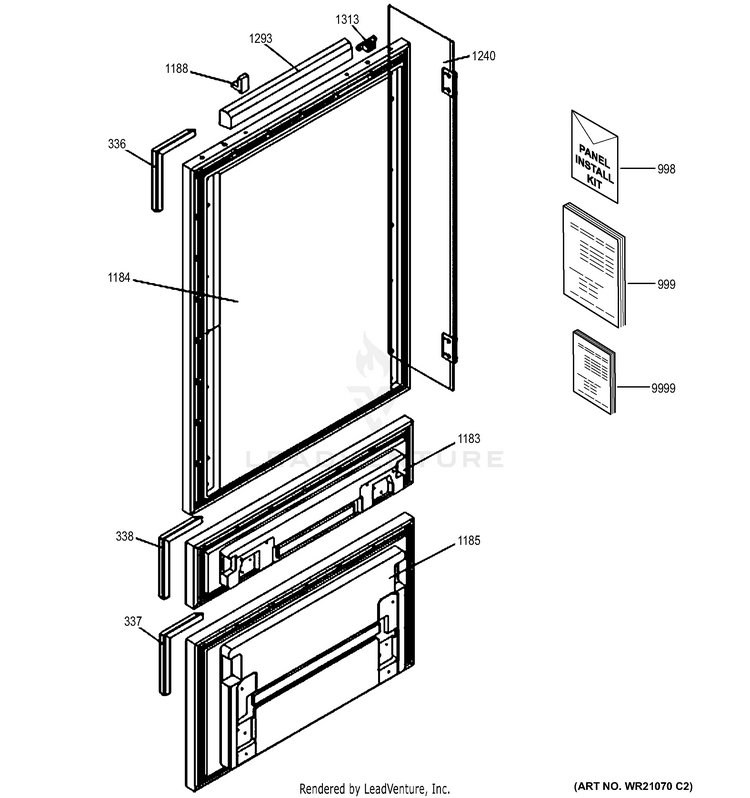

DOORS

...
...
336
MAGNETIC GASKET-FF GEH-WR24X10270
...
337
MAGNETIC GASKET-FZ GEH-WR24X10271
...
338
MAGNETIC GASKET ICE GEH-WR24X10272
...
998
PANEL INSTALLATION KIT GEH-WR49X10264
...
999
PM GUIDE OWNERS GEH-49-60615-2
...
999
PM MINI MANUAL WIRING GEH-31-51860
...
1183
ICE DRAWER ASM GEH-WR78X12717
...
1184
GLASS DOOR S 75A W.HEATE GEH-WR78X21603
...
1185
FZ DOOR ASM GEH-WR78X12716
...
1188
DOOR MAGNET HOLDER GEH-WR11X10028
...
1240
FINGER SHIELD ASM GEH-WR02X21587
...
1293
PANEL HOLDER COVER HAT.U GEH-WR02X21604
...
1313
SPRING CONTACT 2 POLE PI GEH-WR02X21586
...
9999
KIT ASM SERVICE R600A GEH-WR86X10074
...
9999
KIT SERVICE R600A GEH-WR86X10072

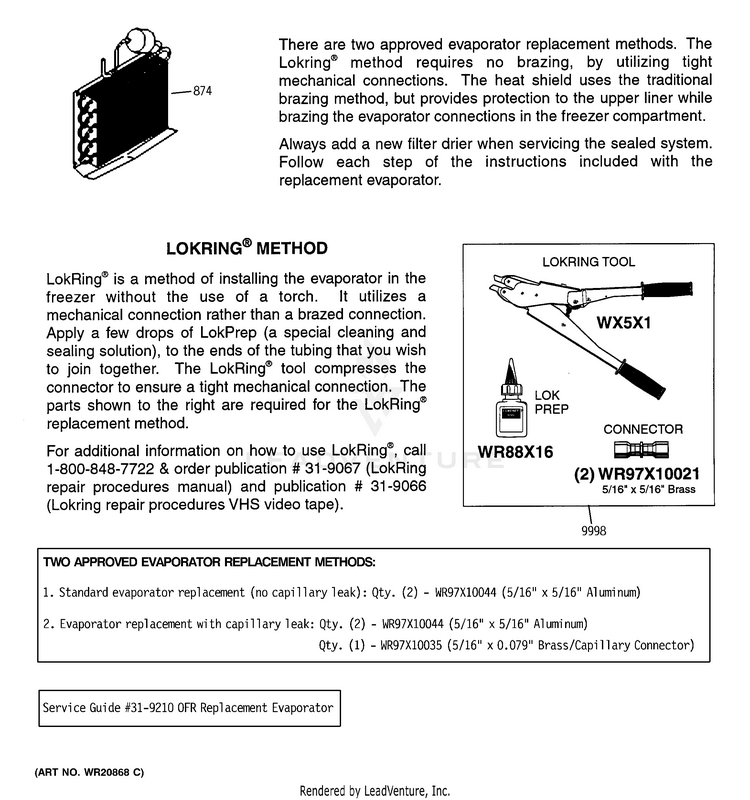

EVAPORATOR INSTRUCTIONS

...
...
874
EVAPORATOR ASM - FF GEH-WR85X10138
...
9998
CPLG. 5/16"- .079" GEH-WR97X10035
...
9998
CPLG ALUM 5/16" GEH-WR97X10044

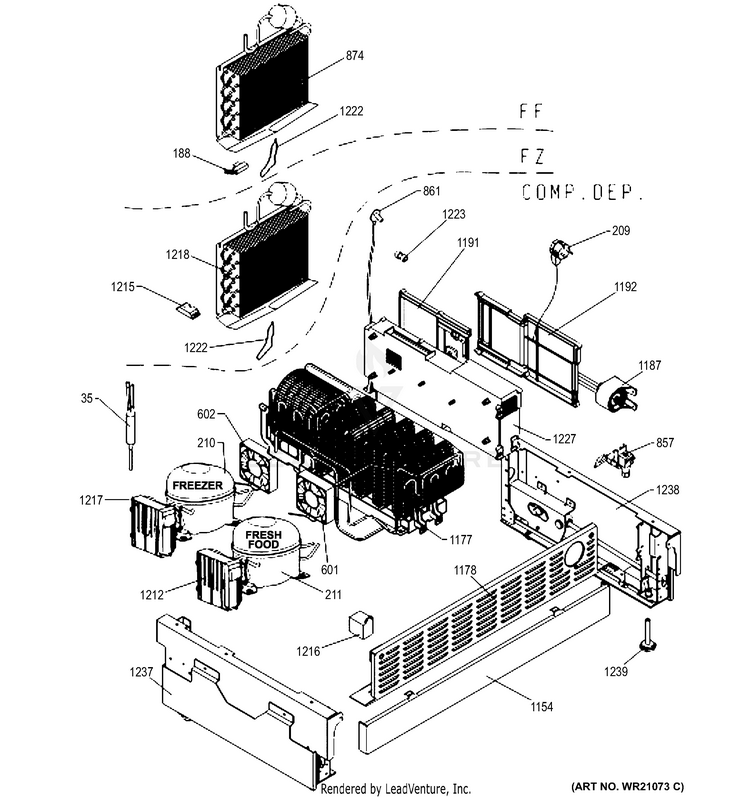

MACHINE COMPARTMENT

...
...
35
FILTER DRYER GEH-WR86X10083
...
188
THERMAL FUSE GEH-WR23X10704
...
209
SUPPLY CORD GEH-WR23X10727
...
210
COMPRESSOR FZ GEH-WR87X10228
...
211
COMPRESSOR FF GEH-WR87X10227
...
601
CONDENSER FAN FF GEH-WR60X10328
...
602
CONDENSER FAN FZ GEH-WR60X10338
...
857
WATER VALVE GEH-WR57X10097
...
861
FILL TUBE ASM GEH-WR02X13457
...
874
EVAPORATOR ASM - FF GEH-WR85X10138
...
1154
KICK PLATE GEH-WR79X10063
...
1177
CONDENSER ASM GEH-WR84X10101
...
1178
COMPRESSOR COMP.COVER FR GEH-WR13X10912
...
1187
WATER FILTER HEAD ASM GEH-WR17X12956
...
1191
ELECTRONICS COVER RH GEH-WR32X10841
...
1192
ELECTRONICS COVER LH GEH-WR32X10842
...
1212
INVERTER-FF GEH-WR55X11160
...
1215
AIRBLOCK RH GEH-WR02X13463
...
1216
FILTER GEH-WR02X13600
...
1217
INVERTER-FZ GEH-WR55X11161
...
1218
EVAPORATOR ASM - FZ GEH-WR85X10139
...
1222
HEATER, DRAIN DEFROST" GEH-WR02X13470
...
1223
CONNECTOR, FILL TUBE" GEH-WR02X13473
...
1227
MAIN CONTROL BOARD GEH-WR55X11162
...
1237
BASE CHANNEL ASM LEFT GEH-WR02X13598
...
1238
BASE CHANNEL ASM RIGHT GEH-WR02X13599
...
1239
LEVELLING SCREW GEH-WR01X10994

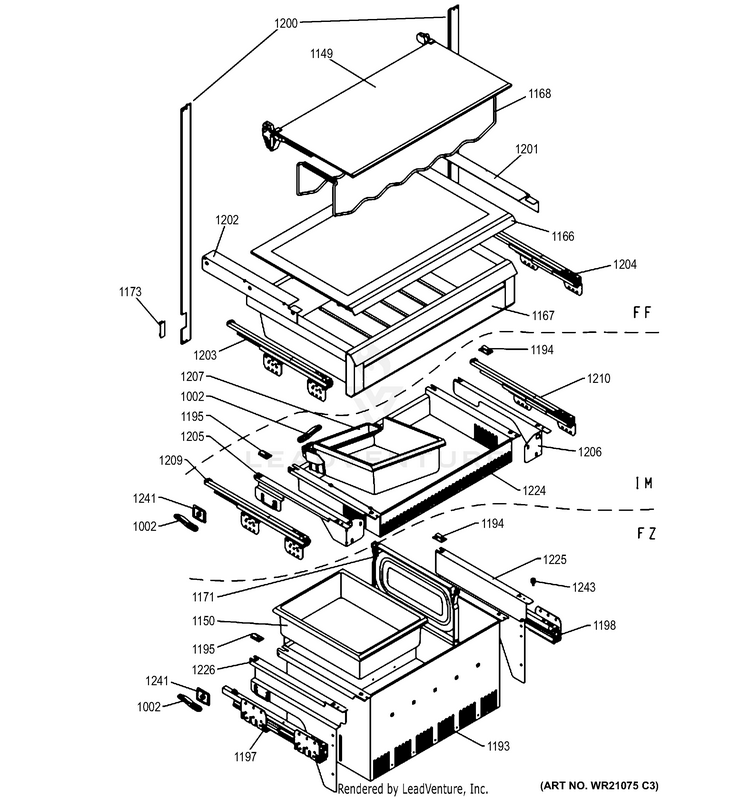

SHELVES

...
...
1002
REED SWITCH GEH-WR23X10378
...
1149
GLASS SHELF ASM GEH-WR71X11025
...
1150
SLIDING TRAY GEH-WR30X10153
...
1166
VEGETABLES SHELF ASM GEH-WR71X10999
...
1167
CRISPER PAN ASM GEH-WR32X10843
...
1168
BOTTLE HOLDER ASM GEH-WR17X12975
...
1171
DRAWER PARTITION WALL GEH-WR17X12964
...
1173
COVER-SHELF TRACK INSERT GEH-WR02X13468
...
1193
BOTTOM DRAWER ASM GEH-WR17X12963
...
1194
DRAWER LOCK - LH GEH-WR02X13461
...
1195
DRAWER LOCK - RH GEH-WR02X13462
...
1197
BOTTOM DRAWER SLIDE -LH GEH-WR72X10390
...
1198
BOTTOM DRAWER SLIDE -RH GEH-WR72X10391
...
1200
SHELF BRACKET HOLDER 75A GEH-WR02X25415
...
1201
VEG SHELF HOLDER RH GEH-WR38X10455
...
1202
VEG SHELF HOLDER LH GEH-WR38X10454
...
1203
SLIDE LH GEH-WR72X10393
...
1204
SLIDE RH GEH-WR72X10392
...
1205
ICE DRAWER HOLDER LH GEH-WR17X12974
...
1206
ICE DRAWER HOLDER RH GEH-WR17X12973
...
1207
ICE TRAY ASM GEH-WR31X10076
...
1209
ICE DRAWER SLIDE LH GEH-WR72X10395
...
1210
ICE DRAWER SLIDE RH GEH-WR72X10394
...
1224
ICE DRAWER GEH-WR31X10075
...
1225
DRAWER DOOR HOLDER FZ RH GEH-WR17X12962
...
1226
DRAWER DOOR HOLDER FZ LH GEH-WR17X12961
...
1241
REED SWITCH HOLDER GEH-WR23X10726
...
1243
THUMB SCREW GEH-WR01X10995
