GE ZIFS240HASS Refrigerator

Model: ZIFS240HASS

Save Part Not Listed?
product name

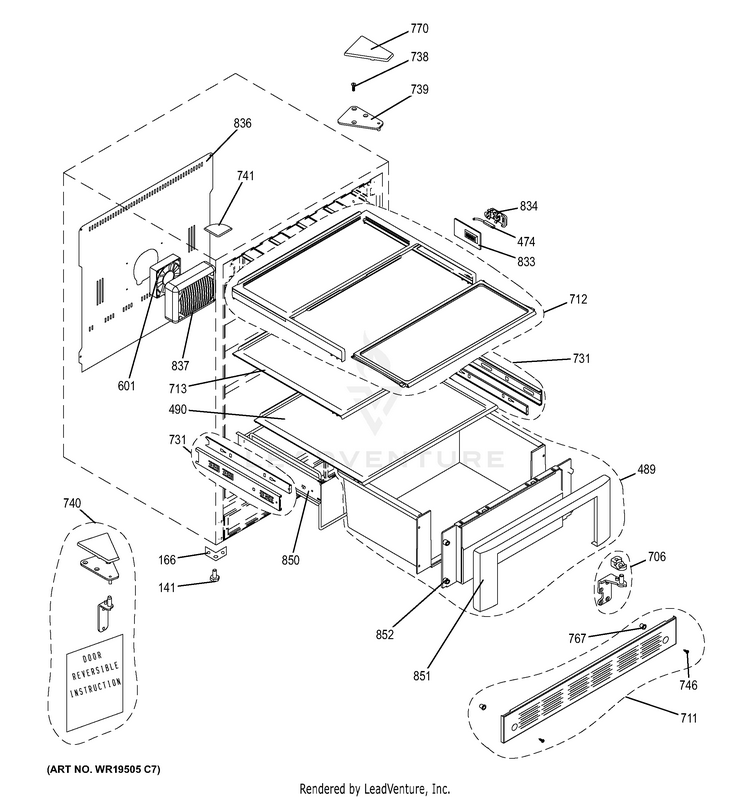

CABINET & SHELVES

...
...
141
LEVELLING LEG GEH-WR01X10456
...
166
LEVELLING LEG SUPPORT GEH-WR02X11844
...
474
TEMP SENSOR GEH-WR55X10409
...
489
VEG PAN GEH-WR32X10486
...
490
GLASS SHELF GEH-WR71X10587
...
601
EVAP. FAN GEH-WR60X10165
...
706
HINGE SUPPORT-LOWER RGHT GEH-WR13X10341
...
711
KICK PLATE ASM GEH-WR74X23881
...
712
GLASS SHELF GEH-WR71X10588
...
713
GLASS SHELF GEH-WR71X10470
...
731
SHORT SLIDE ASM GEH-WR72X10158
...
738
UPPER HINGE SCREW GEH-WR01X10491
...
739
UPPER HINGE - RIGHT GEH-WR13X10353
...
740
LH HINGE & DOOR STOP KIT GEH-WR13X25150
...
741
HINGE COVER GEH-WR13X23839
...
746
KICK PLATE SCREW - BLACK GEH-WR01X10457
...
767
KICK PLATE SPACER GEH-WR02X11485
...
770
HINGE COVER RH GEH-WR02X12145
...
833
TEMP.CONTROL BULB COVER GEH-WR02X11813
...
834
TEMP.CONTROL BULB COVER GEH-WR02X11816
...
836
EVAPORATOR COVER GEH-WR17X11806
...
837
EVAP FAN COVER GEH-WR02X11814
...
850
VEG PAN FRAME GEH-WR17X11677
...
851
VEG PAN FRONT HANDLE GEH-WR12X10690
...
852
VEG PAN FRONT WINDOW GEH-WR17X11678

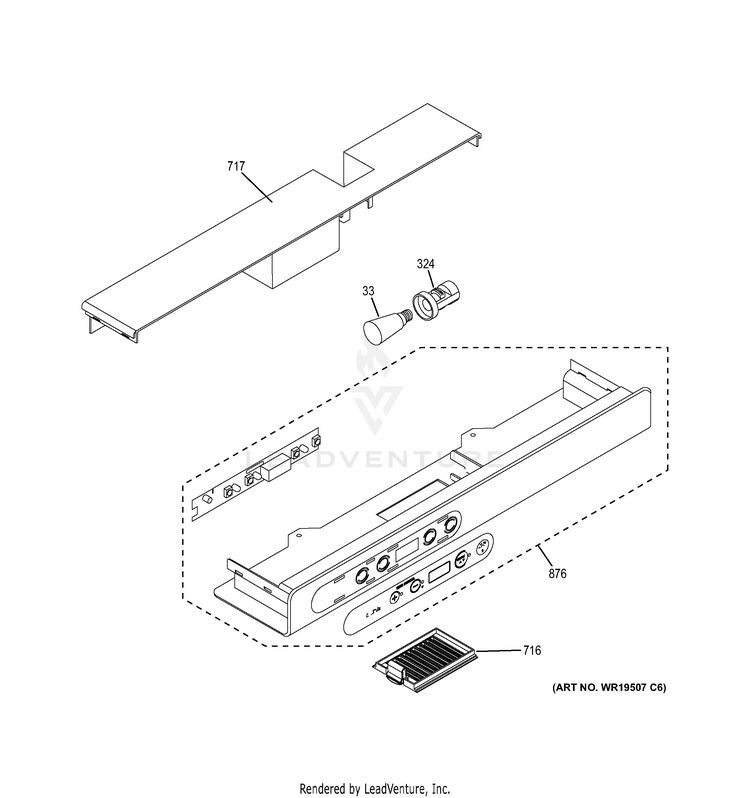

CLIMATE CONTROLS

...
...
33
BULB LED 120V GEH-WR23X23840
...
324
SOCKET LAMP GEH-WR23X10376
...
716
BULB SHIELD GEH-WR02X11415
...
717
CONTROL HOUSING COVER GEH-WR17X11674
...
876
CONTROL BOARD ASM GEH-WR55X23870

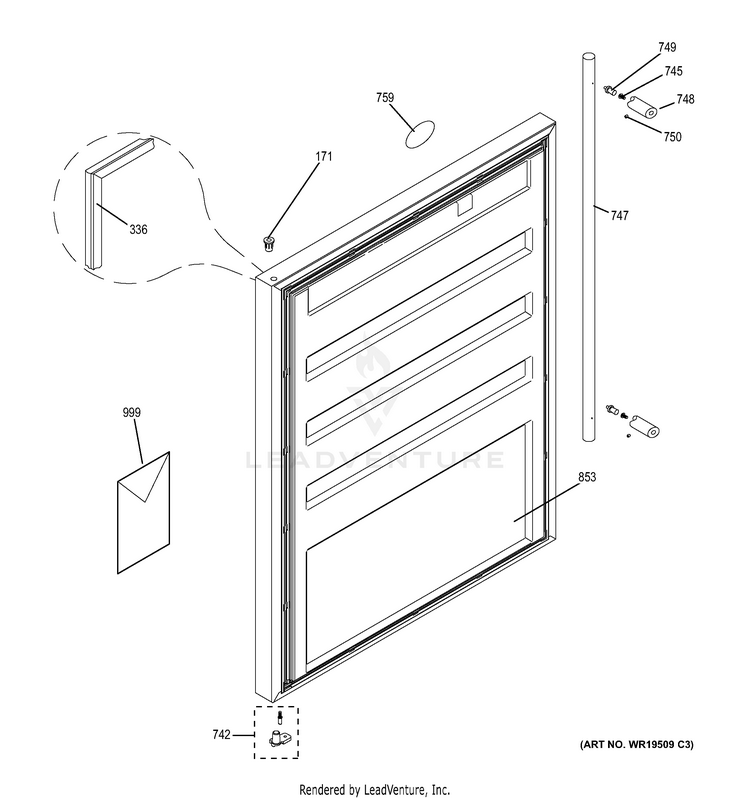

DOOR

...
...
171
HINGE FILL PLUG GEH-WR02X11411
...
336
MAGNETIC GASKET GEH-WR24X10159
...
742
DOOR HINGE ASM GEH-WR13X10340
...
745
SCREW (HANDLE TO DOOR) GEH-WR01X10454
...
747
HANDLE TUBE GEH-WR12X10692
...
748
HANDLE STANDOFF GEH-WR02X11836
...
749
HANDLE STANDOFF SCREW GEH-WR01X10360
...
750
SET SCREW GEH-WR01X10357
...
759
GE MONOGRAM BADGE GEH-WR02X23884
...
853
DOOR ASM GEH-WR78X23880
...
999
PM MINI MANUAL GEH-31-51543-2

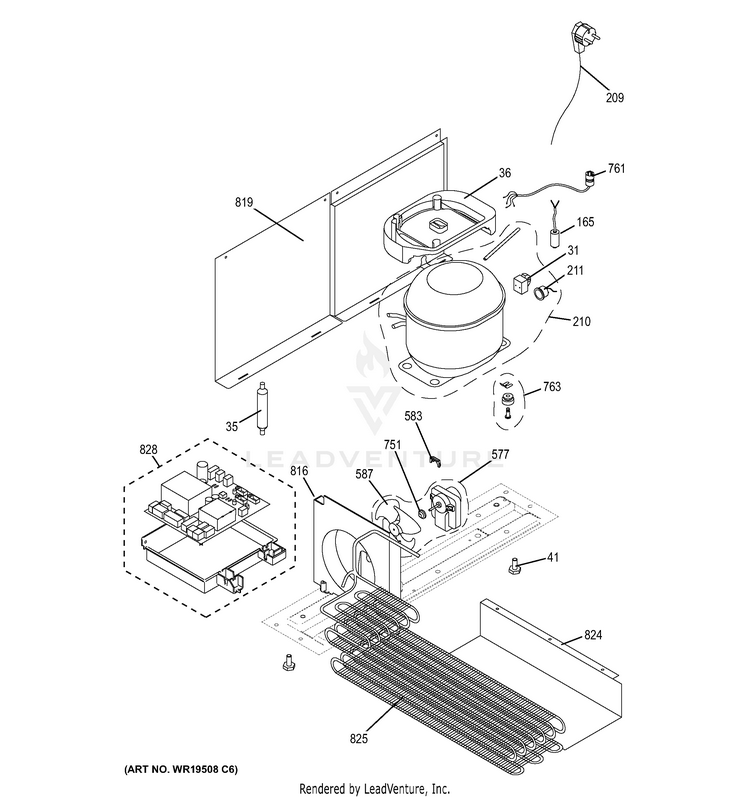

MACHINE COMPARTMENT

...
...
31
RELAY START GEH-WR07X10072
...
35
DRYER GEH-WR87X23836
...
36
DRAIN PAN GEH-WR17X11673
...
41
LEVELING LEG REAR GEH-WR01X10384
...
165
CAPACITOR, COMPRESSOR GEH-WR62X10033
...
209
POWER CORD GEH-WR23X10373
...
210
COMPRESSOR REPL KIT GEH-WR87X10112
...
211
OVERLOAD GEH-WR08X10062
...
577
FAN COND MOTOR GEH-WR60X23878
...
583
CONDENSER FAN SPRING PIN GEH-WR01X23838
...
587
FAN PROPELLER GEH-WR60X10164
...
751
FAN RUBBER GEH-WR01X10350
...
761
HARNESS ASM.COMP GEH-WR23X10374
...
763
COMPRESSOR MOUNTING KIT GEH-WR01X10452
...
816
CONDENSER FAN HOUSING GEH-WR17X11675
...
819
REAR ACCESS COVER GEH-WR82X10096
...
824
CONDENSER CANAL GEH-WR17X11679
...
825
CONDENSER RPLCMT KIT GEH-WR87X23879
...
828
POWER SUPPLY BOARD ASM GEH-WR55X10430
