GE ZIC360NHALH Bottom Mount Refrigerator

Model: ZIC360NHALH

Save Part Not Listed?
product name

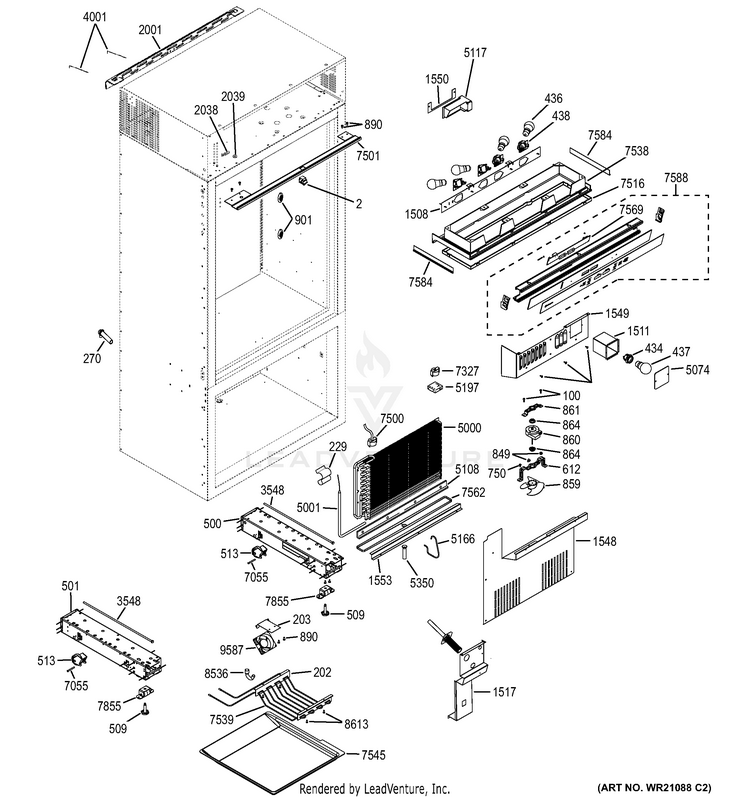

CONTROLS & COMPONENTS

...
...
2
SWITCH LIGHT GEH-WR23X23883
...
100
SCREW, 10-24 X 1/2 TYPE GEH-WR01X23106
...
202
BRACKET COND SUPPORT BM GEH-WR02X12572
...
203
BRACKET FAN MTG GEH-WR02X12566
...
229
CLIP EVAP THERMISTOR GEH-WR02X10552
...
270
GROMMET WATER FILL GEH-WR02X13037
...
434
LIGHT SOCKET FF/FZ GEH-WR02X11626
...
436
40WATT 15AMP GEH-40A15
...
437
60A - 2BULBS GEH-60A
...
438
SOCKET & TERMINAL GEH-WR02X10591
...
500
BASE CHANNEL RH GEH-WR13X10965
...
501
BASE CHANNEL LH GEH-WR13X10966
...
509
LEVELING LEG GEH-WR02X10479
...
513
WHEEL ASM. GEH-WR2X8377
...
612
BRACKET ORIFICE FAN GEH-WR02X10653
...
750
#8-18 TYPE AB X 3/8 PH P GEH-WR01X1826
...
849
BUMPER GEH-WR02X10540
...
859
BLADE FAN MOTOR GEH-WR60X10050
...
860
MOTOR EVAP DC GEH-WR60X10185
...
861
BRACKET EVAP FAN BTM GEH-WR02X11622
...
864
GROMMET EVAP FAN GEH-WR02X10519
...
890
#10X1\2 PH SMS GEH-WD02X0295
...
901
FF AIR DIFFUSER GEH-WR71X10325
...
1508
FIXTURE LIGHTING GEH-WR02X11023
...
1511
BRACKET LIGHT SOCKET FZ GEH-WR74X10085
...
1517
COVER FILL TUBE GEH-WR02X13607
...
1548
COVER EVAP GEH-WR74X23406
...
1549
COVER EVAP FAN GEH-WR74X10344
...
1550
BRACKET DAMPER MTG GEH-WR17X11009
...
1553
CATCH TROUGH EVAP GEH-WR17X23352
...
2001
BRACKET WALL MOUNTING GEH-WR02X21845
...
2038
HAIRPIN COTTER GEH-WR02X13216
...
2039
WASHER 3/8 GEH-WR01X10906
...
3548
BASE SHAFT GEH-WR01X10256
...
4001
ROD GEH-WR74X10326
...
5000
EVAPORATOR BM ASM GEH-WR87X20947
...
5001
HEATER DEFROST GEH-WR51X10125
...
5074
LIGHT SHIELD FZ GEH-WR17X10347
...
5108
DRAIN BAFFLE GEH-WR17X10349
...
5117
DAMPER MOTORIZED GEH-WR09X10065
...
5166
WIRE RET EVAP HEATER GEH-WR01X10045
...
5197
BAFFLE EVAP LH GEH-WR02X10145
...
5350
DRAIN TUBE GEH-WR17X10655
...
7055
AXLE WHEEL GEH-WR02X10478
...
7327
THERMODISC, DEFROST FF GEH-WR50X10045
...
7500
TOD EVAP GEH-WR50X10105
...
7501
SWITCH PLATE LH GEH-WR17X11561
...
7516
LIGHT SHIELD FF GEH-WR17X11014
...
7538
TRIM LIGHTING FF GEH-WR17X11015
...
7539
COND BOTTOM BM GEH-WR84X23357
...
7545
DRAIN PAN GEH-WR17X11016
...
7562
EVAPORATOR TROUGH GEH-WR17X11098
...
7569
BOARD ASM TEMP-CONTROL GEH-WR55X23353
...
7584
GASKET FF LIGHT TRIM GEH-WR38X10255
...
7588
HMI CONTROL ASM GEH-WR55X23503
...
7855
FRONT ROLLER ASM GEH-WR02X11210
...
8536
DRAIN TUBE TRAP GEH-WR17X10355
...
8613
SCREW, #8-15 X 1/2 CR PA GEH-WR01X2129
...
9587
DRAIN FAN ASM SD GEH-WR60X23405

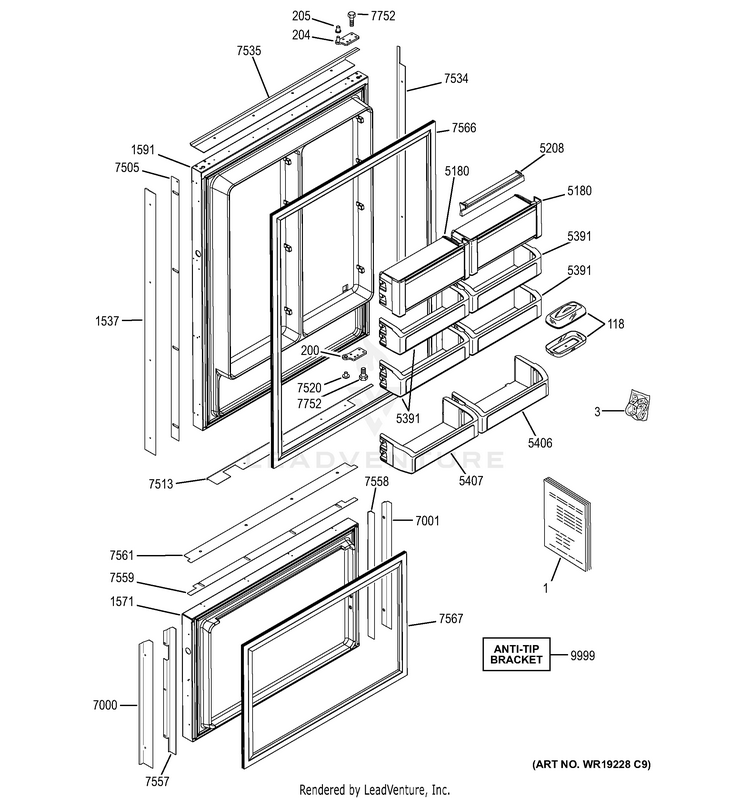

DOORS

...
...
1
PM MINI MANUAL GEH-31-51886
...
1
PM INSTALL INSTRUCTIONS GEH-31-49063
...
1
PM OWNERS MANUAL GEH-49-60721
...
3
PACK BM LH FI BRKTS GEH-WR01X24882
...
118
BUTTER DISH AND COVER GEH-WR19X10005
...
200
HINGE DOOR BTM GEH-WR13X10657
...
204
HINGE DOOR TOP FF LH GEH-WR13X10210
...
205
BUSHING HINGE TOP GEH-WR02X10954
...
1537
TRIM HANDLE COVER GEH-WR02X23968
...
1571
BM DRAWER FOAM DOOR GEH-WR78X23356
...
1591
PS BM FF DOOR ASM GEH-WR55X24000
...
5180
ASSY DAIRY COMP GEH-WR71X10142
...
5208
SEAL DAIRY ASSY GEH-WR22X10007
...
5391
BIN FF DOOR W/WINDOW GEH-WR71X10138
...
5406
BIN DOOR FF DEEP RH GEH-WR71X10139
...
5407
BIN DOOR FF DEEP LH GEH-WR71X10140
...
7000
TRIM FZ DRAWER RH GEH-WR02X23960
...
7001
TRIM FZ DRAWER LH GEH-WR02X23961
...
7505
TRIM HANDLE VISOR GEH-WR02X24003
...
7513
TRIM TOP GEH-WR02X24002
...
7520
PIN BTM LOWER HINGE GEH-WR01X10257
...
7534
TRIM HINGE GEH-WR02X24004
...
7535
TRIM TOP GEH-WR02X23808
...
7557
TRIM BRKT DRAWER FZ RH GEH-WR02X23962
...
7558
TRIM BRKT DRAWER FZ LH GEH-WR02X23963
...
7559
TRIM HANDLE VISOR GEH-WR02X23959
...
7561
TRIM HANDLE COVER GEH-WR02X23958
...
7566
GASKET DOOR GEH-WR24X10207
...
7567
BM FZ DRAWER GASKET GEH-WR78X20985
...
7752
SCREW, 1/4-20 TT BHT .87 GEH-WR01X21024
...
9999
ANTI-TIP HARDWARE ASM GEH-WR49X21844

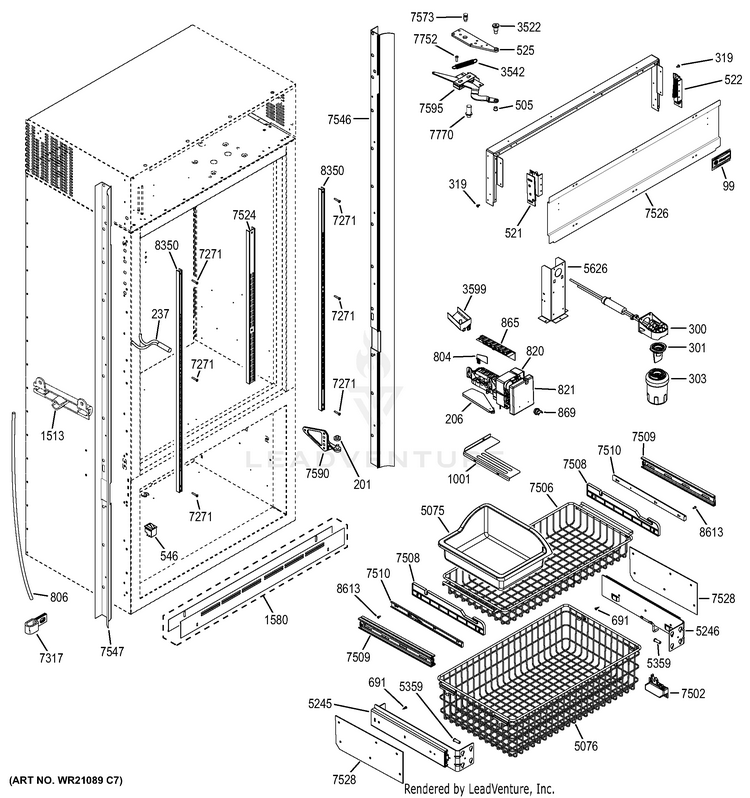

FREEZER SECTION, TRIM & COMPONENTS

...
...
99
MG LOGO LARGE ADHESIVE GEH-WB02X10831
...
201
BUSHING HINGE BOTTOM GEH-WR02X10953
...
206
ARM FEELER IM GEH-WR29X10113
...
237
SENSOR TEMP FZ GEH-WR55X10026
...
300
MWF MANIFOLD & TUBES ASM GEH-WR17X20859
...
301
CAP FILTER BYPASS GEH-WR02X11705
...
303
WATER FILTER CANISTER GEH-MWFP
...
319
SCREW TRIM (SELF DRILLIN GEH-WR01X10188
...
505
BHNG ARM NYLON FF DR CL GEH-WR02X10951
...
521
GRILL HINGE LEFT GEH-WR13X10730
...
522
HINGE ASSY GRILLE RIGHT GEH-WR13X10204
...
525
HINGE CASE FF UPPER GEH-WR13X23350
...
546
SWITCH LIGHT GEH-WR23X21444
...
691
SCREW 12-24 .7 WH GEH-WR01X2138
...
804
IM GUARDRAIL GEH-WR29X10054
...
806
WATER LINEVALVE ICEMAKER GEH-WR17X12313
...
820
ICEMAKER ASM GEH-WR29X20949
...
821
COVER ICEMAKER GEH-WR29X10082
...
865
STRIPPER IM GEH-WR29X10083
...
869
THERMOSTAT GEH-WR29X0157
...
1001
SHIELD ICE GEH-WR29X10107
...
1513
FF THERMISTOR HOLDER GEH-WR02X10942
...
1580
TOE KICK PANEL GEH-WR74X23996
...
3522
BOLT, SHOULDER GEH-WR01X10752
...
3542
SPRING CLOSURE GEH-WR01X10856
...
3599
CUP FILL IM GEH-WR29X20863
...
5075
ICE BUCKET GEH-WR32X10075
...
5076
FZ BASKET LG GEH-WR21X10007
...
5245
FZ SLIDE/SUPPORT ASM LH GEH-WR72X10124
...
5246
DRAWER SLIDE ASM GEH-WR72X10396
...
5359
SCREW TRUSS HD 1/4-20 X GEH-WR01X10049
...
5626
BRACKET WATER FILTER GEH-WR02X13014
...
7271
10-24X1" PHIL P-HD TAP GEH-WR01X10051
...
7317
1/4 CLAMP NYLON GEH-WR02X12487
...
7502
ASM CLOSURE GEH-WR02X13480
...
7506
BASKET UPPER FRZ GEH-WR21X10043
...
7508
SUPPORT BASKET UPPER FZ GEH-WR72X10080
...
7509
SLIDE LINER UPPER FZ GEH-WR72X10081
...
7510
SLIDE BASKET UPPER FZ GEH-WR72X10082
...
7524
TRACK SHELF CENTER GEH-WR17X20774
...
7526
HOOD PANEL GRILL GEH-WR74X24001
...
7528
FREEZER SLIDE SHIM GEH-WR72X10085
...
7546
CASE TRIM FI RH GEH-WR17X23997
...
7547
CASE TRIM FI LH GEH-WR17X23998
...
7573
STUD SPRING FF DOOR GEH-WR01X10258
...
7590
HINGE ASM CASE BTM LH GEH-WR13X23349
...
7595
LINK ACTUATOR LH GEH-WR02X10979
...
7752
SCREW, 1/4-20 TT BHT .87 GEH-WR01X21024
...
7770
SHEAR PIN GEH-WR13X10478
...
8350
TRACK SHELF FF GEH-WR17X20773
...
8613
SCREW, #8-15 X 1/2 CR PA GEH-WR01X2129

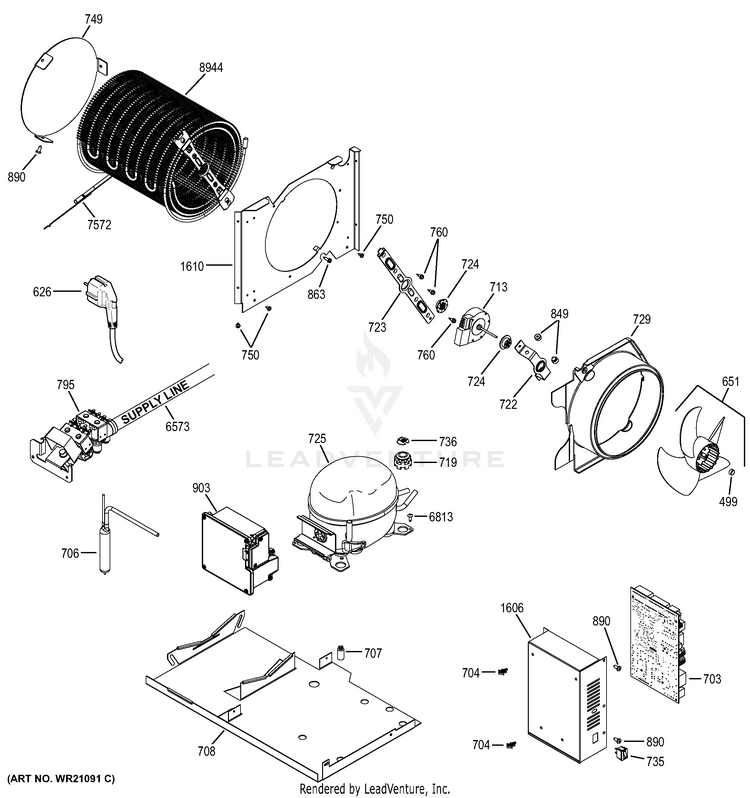

MACHINE COMPARTMENT

...
...
499
RING COMPRESSION GEH-WR02X12149
...
626
POWER CORD GEH-WR23X10300
...
651
BLADE COND FAN ASM GEH-WR60X10206
...
703
BOARD ASM MAIN CONTROL GEH-WR55X23354
...
704
MAIN BOARD STAND OFFS GEH-WR01X10301
...
706
DRYER GEH-WR74X10125
...
707
STUD MTG COMPR GEH-WR01X1779
...
708
SYSTEM PAN GEH-WR17X23625
...
713
MOTOR DC COND FAN GEH-WR60X10216
...
719
GROMMET GEH-WR02X10099
...
722
BRACKET COND FAN (MTG) GEH-WR02X11863
...
723
BRACKET COND FAN (REAR) GEH-WR02X10593
...
724
GROMMET FAN MOTOR GEH-WR02X10520
...
725
INVERTER COMPRESSOR GEH-WR87X20921
...
729
SHROUD CONDENSER GEH-WR17X11252
...
735
MASTER LIGHT SWITCH GEH-WR23X10571
...
736
CLIP COMPRESSOR MOUNT GEH-WR02X8203
...
749
BAFFLE COND AIR GEH-WR17X10694
...
750
#8-18 TYPE AB X 3/8 PH P GEH-WR01X1826
...
760
SCR 8-32 CA HXW 1/2 GEH-WR01X10317
...
795
BRACKET AND VALVE ASM GEH-WR57X10084
...
849
BUMPER GEH-WR02X10540
...
863
SCR 8-18 AB IHW 5/8 S GEH-WR01X10652
...
890
#10X1\2 PH SMS GEH-WD02X0295
...
903
INVERTER GEH-WR55X23123
...
1606
COVER MOTHERBOARD GEH-WR02X12570
...
1610
COND BAFFLE GEH-WR17X12350
...
6573
TUBE ASM WATER VALVE GEH-WR02X13015
...
6813
8-32 X 5/8" PH SS TCS GEH-WR01X10484
...
7572
TUBE SUCTION & CAP ASM GEH-WR86X23359
...
8944
CONDENSER & BRACKET ASM GEH-WR84X10090

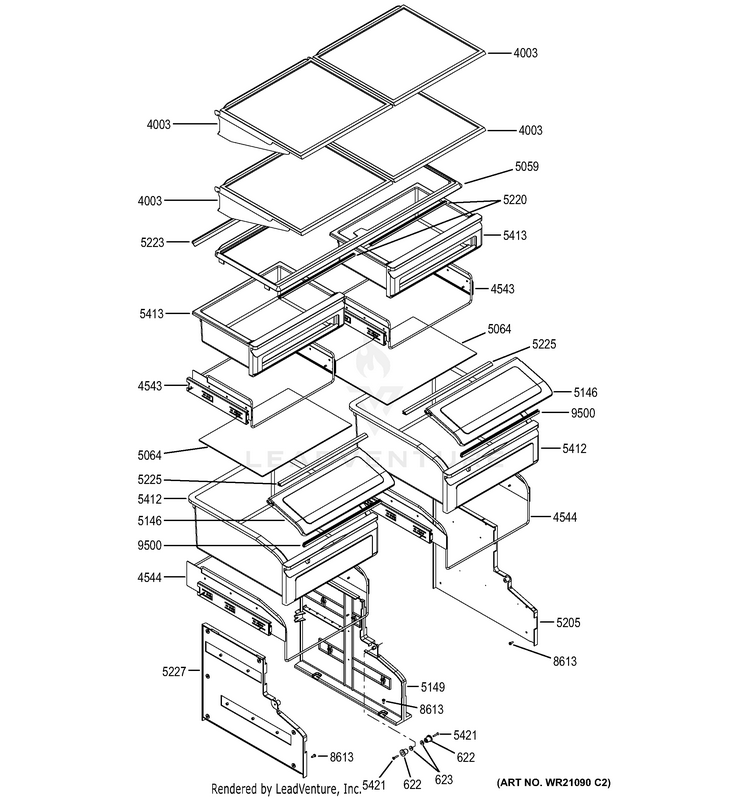

SHELVES & DRAWERS

...
...
622
BUSHING SHOWCASE PIVOT GEH-WR01X10048
...
623
WASHER SHOWCASE PIVOT GEH-WR01X10046
...
4003
ENCAP SHELF ASSY GEH-WR32X10074
...
4543
SNACK PAN WIRE SUPPORT GEH-WR02X12484
...
4544
VEG PAN WIRE SUPPORT GEH-WR02X12483
...
5059
SNACK PAN COVER GEH-WR32X10072
...
5064
VEG PAN COVER GEH-WR32X10073
...
5146
LID SHOW CASE FF GEH-WR32X10730
...
5149
KIT DIVIDER ASM GEH-WR72X10011
...
5205
SUPPORT SLIDE RH GEH-WR72X10012
...
5220
SEAL FRONT SNACK PAN GEH-WR14X10009
...
5223
SEAL RR SNACK PAN GEH-WR14X10011
...
5225
SEAL FRT VEG PAN GLASS GEH-WR14X10012
...
5227
SUPPORT SLIDE LH GEH-WR72X10013
...
5412
VEG PAN ASM GEH-WR32X10077
...
5413
SNACK PAN ASM GEH-WR32X10731
...
5421
SCREW #8 18 X 3/4 GEH-WR01X10050
...
8613
SCREW, #8-15 X 1/2 CR PA GEH-WR01X2129
...
9500
SEAL FRONT SHOWCASE LID GEH-WR14X10040
