GE ZIBI240PBII Refrigerator

Model: ZIBI240PBII

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

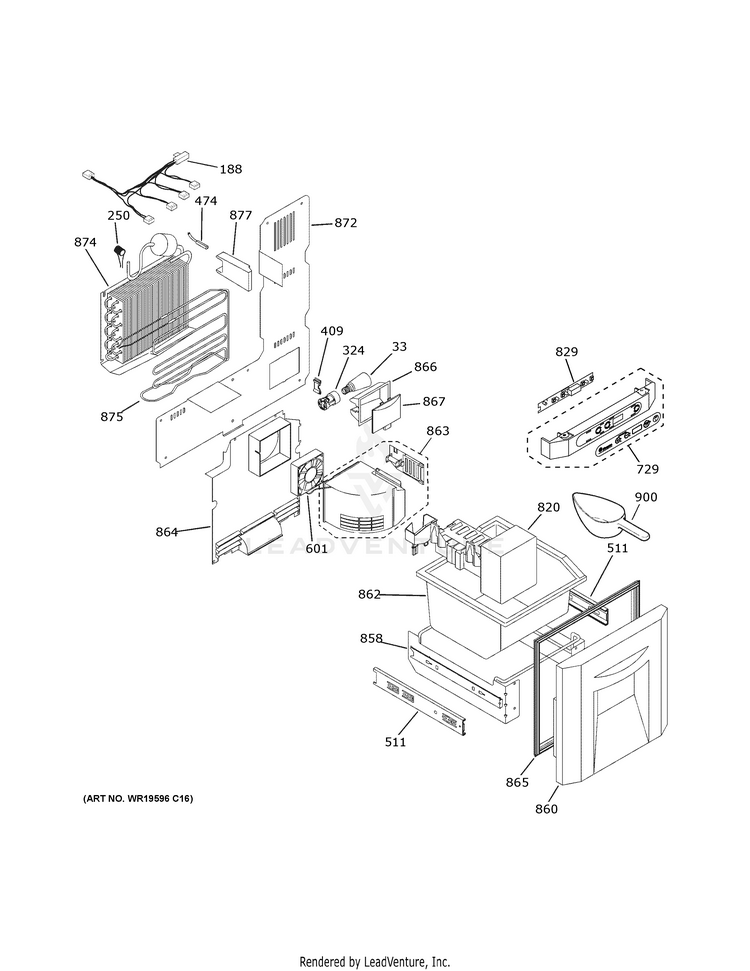

FREEZER CONTROLS & COMPONENTS

...
...
33
BULB 120V 15W GEH-WR23X10375
...
188
HARNESS- HEATER JUMPER GEH-WR23X10517
...
250
ICEMAKER TUBE HEATER GEH-WR50X10064
...
324
SOCKET LAMP GEH-WR23X10376
...
409
SOCKET INSERT GEH-WR23X10408
...
474
TEMP. SENSOR GEH-WR55X10457
...
511
INNER LINER GUIDE ICEMAK GEH-WR17X11809
...
601
FAN GEH-WR60X10234
...
729
CONTROL BOARD ASM GEH-WR55X23898
...
820
PK PACK IMKITWR30X10061 GEH-WR30X10061
...
829
CONTROL BOARD GEH-WR55X10408
...
858
DRAWER SUPPORT GEH-WR02X11969
...
860
ICEMAKER DRAWER FRONT GEH-WR02X11952
...
862
ICEMAKER PAN GEH-WR17X11814
...
863
EVAP FAN CVR & DAMPER AS GEH-WR13X10424
...
864
EVAP COVER GEH-WR17X11822
...
865
GASKET GEH-WR14X10190
...
866
SOCKET SUPPORT GEH-WR02X11954
...
867
LAMP SHIELD GEH-WR02X11955
...
872
AIR FLOW COVER GEH-WR17X11823
...
874
EVOPORATOR GEH-WR85X10066
...
875
EVAPORATOR HEATER GEH-WR51X10084
...
877
FAN COVER ISOLATION GEH-WR02X11956
...
900
ICE SCOOP GEH-WR29X10069
