GE ZGU385NSM5SS Gas Range

Model: ZGU385NSM5SS

Save Part Not Listed?
product name

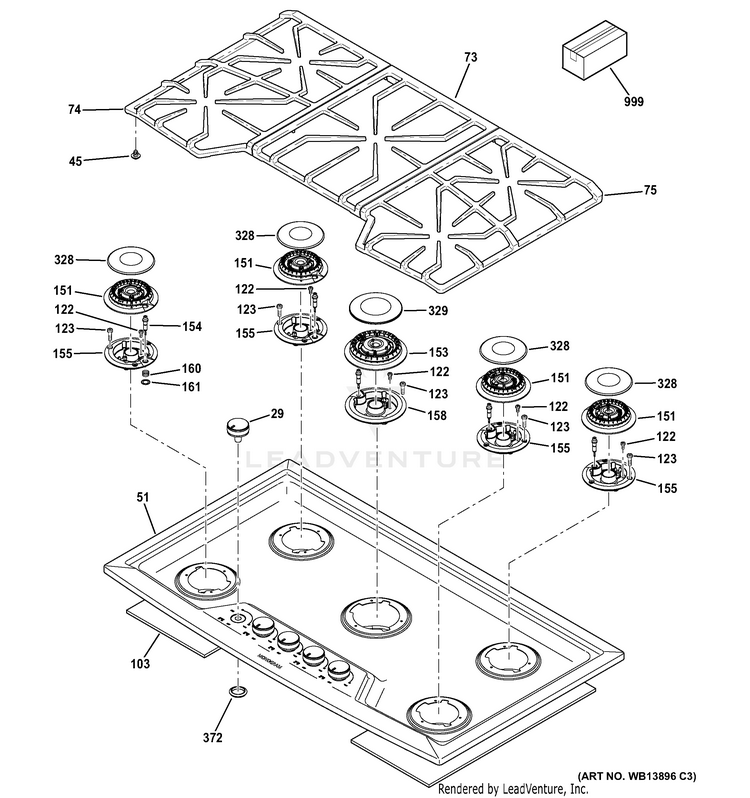

CONTROL PANEL & COOKTOP

...
...
29
KNOB ASM GEH-WB03X24360
...
45
GRATE FOOT GEH-WB02T10461
...
51
MAINTOP GRAPHICS ASM 36 GEH-WB62X25792
...
73
GRATE ASM CENTER GEH-WB31T10130
...
74
GRATE ASM LT GEH-WB31T10129
...
75
GRATE ASM RT GEH-WB31T10128
...
103
INSULATION TOP GEH-WB35T10146
...
122
SCREW SIMMER MAIN HD GEH-WB01T10092
...
123
SCR 8-32 CA PNT15 1/2 S GEH-WB01T10116
...
151
HEAD BURNER ASM 12K GEH-WB16T10042
...
153
BURNER HEAD ASM (18K) GEH-WB16X26480
...
154
IGNITER GEH-WB13T10077
...
155
BASE BURNER GEH-WB16T10044
...
158
BASE BURNER 18K-SIMMER GEH-WB16T10047
...
160
SPRING IGNITER GEH-WB09T10011
...
161
WASHER IGNITER GEH-WB02T10323
...
328
CAP BURNER GEH-WB29T10131
...
329
CAP BURNER GEH-WB13T10067
...
372
SEAL CONTROL GEH-WB04T10064
...
999
MANUAL MINI & WD ASM GEH-31-14441
...
999
INSTRUCTION HIGH ALT GEH-31-10650
...
999
INSTRUCTION INSTALL GEH-31-10715
...
999
PM INSTALL INSTRUCTIONS GEH-31-10863
...
999
HIGH ALT COVERSION KIT GEH-WB28T10185
...
999
CLEANER-SS GEH-WB02T10111
...
999
KIT, CONVERSION (BUTANE) GEH-WB28T10237
...
999
PM OWNERS MANUAL GEH-49-80658

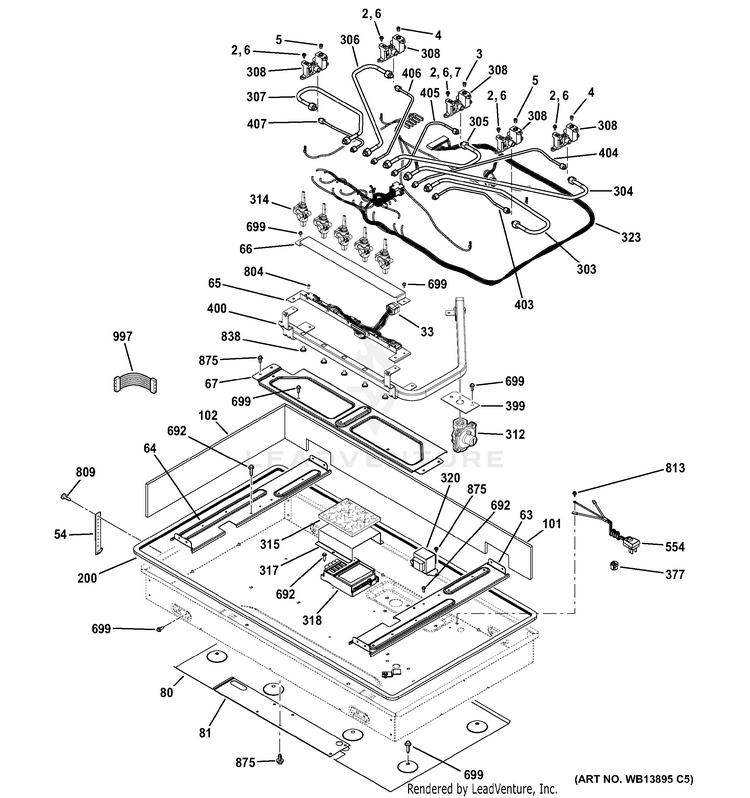

GAS & BURNER PARTS

...
...
2
LABEL WIRE DIAG GEH-229C5530P001
...
2
ORIFICE SPUD (NG SIMMER) GEH-WB28T10159
...
2
HIGH ALT ORIFICE LP SIM GEH-WB28T10148
...
2
ORIFICE SPUD LP MAIN GEH-WB28T10118
...
3
HIGH ALT ORIFICE LP MAIN GEH-WB28T10147
...
3
ORIFICE SPUD (NG MAIN) GEH-WB28T10155
...
3
HIGH ALT ORIFICE NG GEH-WB28T10160
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10158
...
4
ORIFICE SPUD LP MAIN GEH-WB28T10117
...
4
HIGH ALT ORIFICE NG MAIN GEH-WB28T10157
...
4
HIGH ALT ORIFICE NG GEH-WB28T10161
...
4
HIGH ALT ORIFICE LP MAIN GEH-WB28T10162
...
5
ORIFICE SPUD (NG MAIN) GEH-WB28T10156
...
6
HIGH ALT SIM ORIFICE NG GEH-WB28T10164
...
7
HI ALT SIM ORIFICE NG GEH-WB28T10163
...
33
HARNESS W/LED ASM GEH-WB18T10411
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
63
BRACKET BURNER SUPT RT GEH-WB02T10313
...
64
BRACKET BURNER SUPT LT GEH-WB02T10314
...
65
BRACKET LIGHT GEH-WB02T10325
...
66
COVER LIGHT GEH-WB02T10326
...
67
BRACKET BURNER SUPPORT GEH-WB02T10312
...
80
SHIELD BURN BOX BTM GEH-WB35T10141
...
81
COVER ACCESS GEH-WB02T10316
...
101
INSULATION FRONT GEH-WB35T10154
...
101
INSULATION FRT & REAR GEH-WB35T10139
...
102
INSULATION SIDE GEH-WB35T10140
...
200
GASKET BURNER BOX GEH-WB04T10063
...
303
TUBE & NUT ASM RF GEH-WB28T10166
...
304
TUBE & NUT ASM GEH-WB28X23964
...
305
TUBE & NUT ASM GEH-WB28X23960
...
306
TUBE & NUT ASM LR GEH-WB28T10169
...
307
TUBE & NUT ASM LF GEH-WB28T10170
...
308
INJET BURNER 18K GEH-WB28T10114
...
312
REGULATOR CONVERT PRESS GEH-WB19T10076
...
314
VALVE GAS GEH-WB19T10083
...
315
INSULATION SPARK MODULE GEH-WB35T10142
...
317
COVER SPARK MODULE GEH-WB02T10317
...
318
MODULE SPARK GEH-WB13T10076
...
320
TRANSFORMER GEH-WB26X24409
...
323
HARNESS WIRE SWITCH GEH-WB18X23942
...
377
GROMMET STRAIN RELIEF GEH-WB02T10315
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
SEAL MANIFOLD GEH-WB04T10065
...
400
PIPE MANIFOLD ASM 36" GEH-WB28T10165
...
403
TUBE & NUT ASM SIM RF GEH-WB28T10171
...
404
TUBE & NUT ASM SIM RR GEH-WB28T10172
...
405
TUBE & NUT ASM GEH-WB28X23961
...
406
TUBE & NUT ASM SIM LR GEH-WB28T10174
...
407
TUBE & NUT ASM SIM LF GEH-WB28T10175
...
554
CORD RANGE GEH-WB18X25912
...
692
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
804
SCREW GEH-WB01X1127
...
809
SCREW GEH-WB01X1137
...
813
SCREW GROUND GEH-WB01X1261
...
838
SCREW GEH-WB01X1121
...
875
WZ4X245D GEH-WB01T10046
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
997
LEAD WIRE 14 INCH GEH-WB18T10432
...
997
LEAD WIRE GEH-WB18T10431
...
997
LEAD WIRE 26 INCH GEH-WB18T10433
...
997
LEAD WIRE GEH-WB18T10430
...
997
LEAD WIRE GEH-WB18T10429
