GE ZET1FH1SS Electric Range

Model: ZET1FH1SS

Save Part Not Listed?
product name

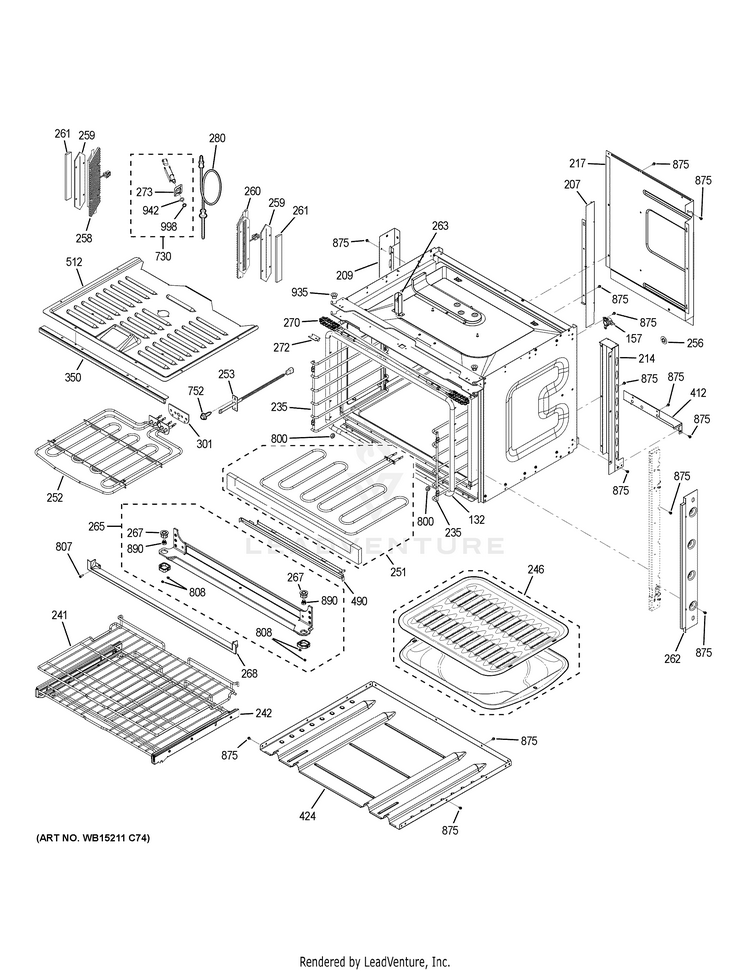

BODY PARTS

...
...
132
GASKET OVEN DOOR GEH-WB04T10091
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
207
DIVIDER AIR CENTER GEH-WB34T10134
...
209
CHANNEL REAR LT GEH-WB34X21910
...
214
CHANNEL REAR GEH-WB55X10971
...
217
COVER - UPPER REAR DUCT GEH-WB34T10136
...
235
GUIDE OVN RACK LT GEH-WB48X21766
...
235
GUIDE OVN RACK RT GEH-WB48X21765
...
241
RACK FLAT GEH-WB48X23857
...
242
RACK OVN SLIDE ASM GEH-WB48X23580
...
246
BROILER PAN & RACK XL GEH-WB48X10057
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21667
...
252
ELEMENT BROIL ASM GEH-WB44X23640
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
258
BOARD LED ASM RT GEH-WB27X23582
...
259
INSULATION LED GEH-WB35X23584
...
260
BOARD LED ASM LT GEH-WB27X23581
...
261
GLASS LED GEH-WB34X23583
...
262
TRIM VERTICAL SIDE SS GEH-WB07T10772
...
263
SPRING ROLLER ASM GEH-WB10X23764
...
265
SUPPORT AND RECEIVER ASM GEH-WB07X23763
...
267
RECEIVER PIVOT ASM GEH-WB01X23770
...
268
TRIM BTM ASM GEH-WB07X23779
...
270
CHAIN ASM GEH-WB10X23777
...
272
BRACKET BUSHING GEH-WB34X23769
...
273
PR0BE COVER GEH-WB34K5140
...
280
PROBE THERMISTOR GEH-WB20T10025
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
350
TRIM BROIL ELEMENT (BK) GEH-WB07T10787
...
412
COVER LOWER RT AIR DUCT GEH-WB34T10151
...
424
COVER BOTTOM AIR DUCT GEH-WB34T10158
...
490
COVER HIDDEN BAKE GEH-WB55T10197
...
512
PLATE - TOP OVEN GEH-WB37T10024
...
730
MEAT PROBE AND HARNESS GEH-WB18X23585
...
752
SCREW GEH-WB01K5200
...
800
RACK GUIDE NUT GEH-WB01X21270
...
807
SCREW-NICKLE GEH-WB01X1174
...
808
SCREW 1/4 X 32 RECESS A1 GEH-WB01X23771
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
890
ADJUSTMENT SCREW GEH-WB01X23900
...
935
BEARING BRONZE GEH-WB01X23762
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572

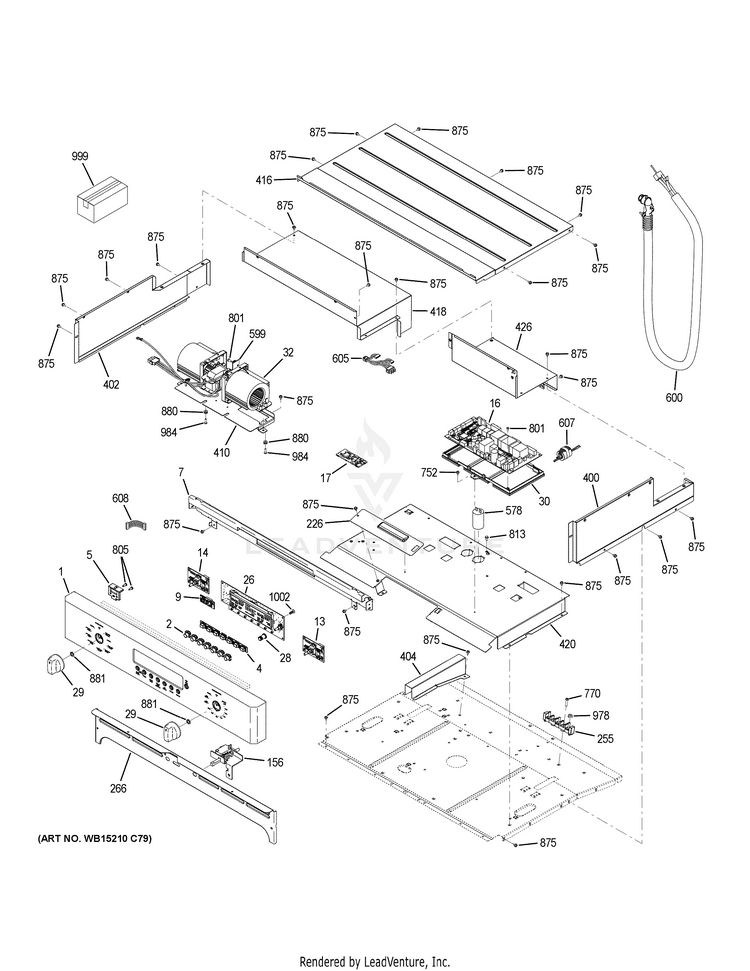

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6152P005
...
1
CONTROL PANEL ASM GEH-WB56X23758
...
2
BUTTON CNTL PNL GEH-WB03X23553
...
4
KEY PAD GEH-WB03X23555
...
5
CONTROL PANEL SUPPORT BRACKET GEH-WB34X29268
...
7
CONTROL PANEL MOUNTING B GEH-WB34X23759
...
9
BOARD WIFI CAT MODULE GEH-WB27X22560
...
13
BOARD UI KNOB GEH-WB27X23551
...
14
BOARD UI KNOB GEH-WB27X23550
...
16
BOARD MACHINE CONTROL GEH-WB27X23757
...
17
BOARD LED POWER SUPPLY GEH-WB27X23562
...
26
BOARD UI DISPLAY GEH-WB27X23856
...
28
KNOB TIMER ASM MGM GEH-WB03X23556
...
29
KNOB ASM GEH-WB03X29546
...
30
FRAME BOARD RELAY GEH-WB02X23564
...
32
COOLING FAN GEH-WB26X23477
...
156
SWITCH PLATE ASM GEH-WB24X23760
...
226
COVER LATCH ACCESS GEH-WB34T10161
...
255
BLOCK TERMINAL GEH-WB17T10024
...
266
TRIM VENT UPR GEH-WB07X23772
...
400
COVER TOP RIGHT EDGE GEH-WB34T10164
...
402
COVER TOP LEFT EDGE GEH-WB44T10126
...
404
CHANNEL UPPER AIR VENT GEH-WB34T10150
...
410
BRACKET UPPER FAN MOUNT GEH-WB37T10026
...
416
COVER HOUSING FRT GEH-WB34T10165
...
418
COVER TOP REAR GEH-WB34T10157
...
420
DIVIDER AIR GEH-WB37X20226
...
426
COVER WIRE REAR GEH-WB35T10273
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
599
BOARD FAN SENSOR GEH-WB27T11463
...
600
CONDUIT WIRE ASM GEH-WB18T10567
...
600
OPTIONAL 6 FT CONDUIT GEH-WB18T10578
...
605
HARNESS WIRE MAIN GEH-WB18X23566
...
607
HARNESS WIRE COM GEH-WB18X23778
...
608
HARNESS WIRE LATCH COM GEH-WB18X23756
...
752
SCREW GEH-WB01K5200
...
770
SCREW GEH-WB01K5072
...
801
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
805
SCREW ST8-18X.500TRBRNI GEH-WB01K5062
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
880
GROMMET GEH-WB01T10128
...
881
NUT ENCODER GEH-WB01T10099
...
978
HEX NUT GEH-WB01X1259
...
984
SCREW 7-19 1/4HEX 1/2IN GEH-WB01T10130
...
999
PM WI FI INSTRUCTIONS GEH-31-11013
...
999
PM MINI MANUAL GEH-31-17152
...
999
INSTRUCTION INSTALL GEH-31-10882
...
999
LUBRICANT CLEANER GEH-WB02T10303
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM INSTRUCTIONS INSTALL GEH-31-10962
...
999
PM MANUAL USE & CARE GEH-49-80707
...
1002
SCR 8-18 B PNP 3/8 S ZN GEH-WR01X10791

CONVECTION FAN

...
...
43
BLADE FAN CONVECTION GEH-WB02T10598
...
223
INSULATION CONVECT FAN GEH-WB35T10259
...
298
ELEMENT CONVX GEH-WB44X21671
...
511
MOTOR CONVX GEH-WB26X23476
...
514
COVER CONVECTION FAN GEH-WB37T10023
...
515
GASKET CONV FAN GEH-WB04T10071
...
516
DUCT CONVECTION FAN GEH-WB37T10022
...
951
SCREW 8-18 T20 3/8 IN GEH-WB01T10134
...
977
NUT HEX GEH-WB02T10608

DOOR LOCK

...
...
150
LATCH ASM GEH-WB10X23475
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930

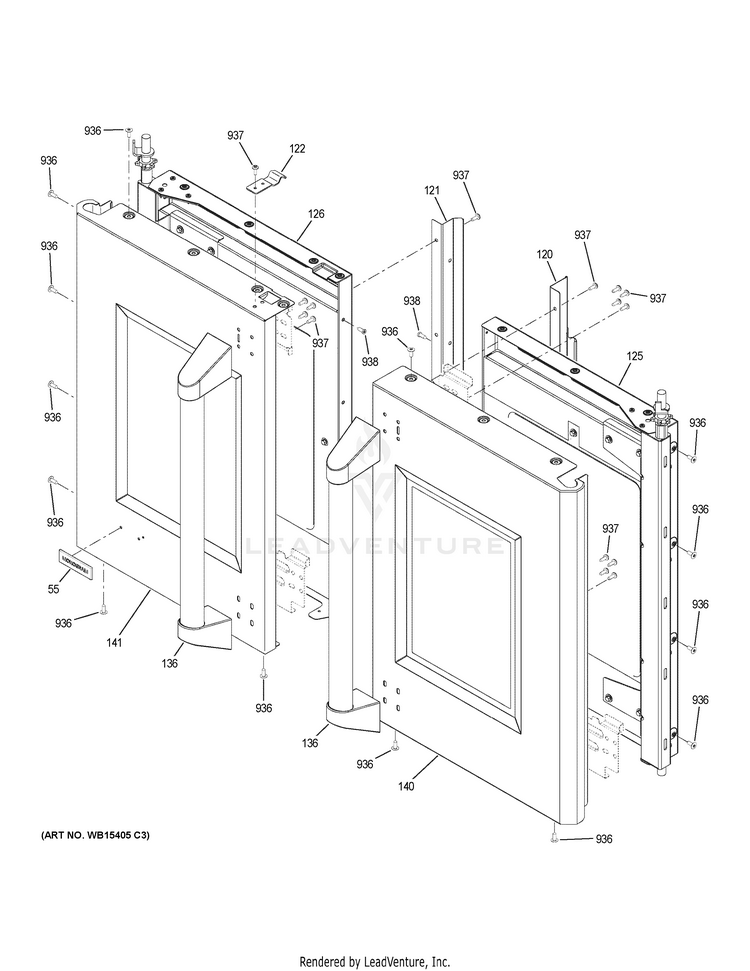

DOORS

...
...
55
BADGE MONOGRAM SMALL NO GEH-WR04X24243
...
120
SEAL CENTER RT GEH-WB35X23767
...
121
SEAL CENTER LT GEH-WB35X23775
...
122
PLATE STRIKE GEH-WB10X23776
...
125
DOOR INR ASM RT GEH-WB56X23765
...
126
DOOR INR ASM LT GEH-WB56X23773
...
136
HANDLE & ENDCAP ASM GEH-WB15X23755
...
140
GLASS AND PANEL ASM RT GEH-WB56X23766
...
141
GLASS AND PANEL ASM LT GEH-WB56X23774
...
936
SCREW GEH-WB01X0537
...
937
SCREW HINGE COVER GEH-WR01X10379
...
938
SCREW 8-18 AB PNT15 1/2 GEH-WB01X23768
