GE ZEK737BA3BB Electric Range

Model: ZEK737BA3BB

Save Part Not Listed?
product name

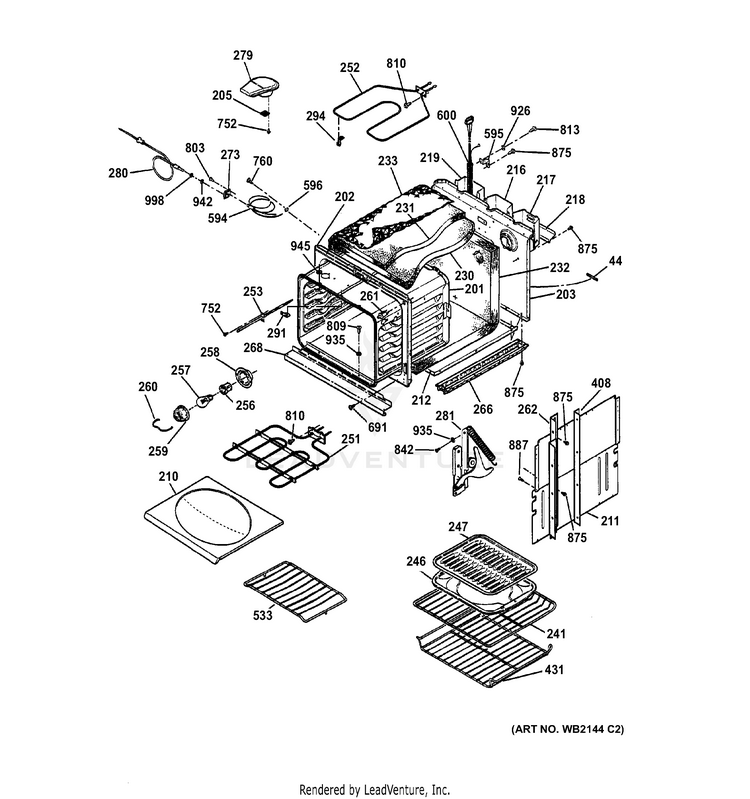

BODY PARTS

...
...
44
GROMMET STRIP (.020) GEH-WB02K5225
...
201
WRAPPER OVEN CAV ASSY GEH-WB63T10040
...
202
FRONT FRAME GEH-WB63T10036
...
203
BACK MAIN GEH-WB63K5167
...
205
SMOKE ELIM SCREEN GEH-WB06K5026
...
210
BOTTOM FALSE ASSY GEH-WB63T10041
...
211
CABINET SIDE GEH-WB63T10043
...
212
CABINET BOTTOM GEH-WB63K5080
...
216
COVER WIRE ELEMENT GEH-WB34K5069
...
217
WIRE COVER GEH-WB34T10006
...
218
WIRE COVER BOTTOM GEH-WB34K5067
...
219
CONDUIT WIRE COVER GEH-WB34K5082
...
230
INSULATION-WRAPPER-INNER GEH-WB35K5048
...
231
INSULATION WRPR OTR GEH-WB35K5068
...
232
INSULATION BACK/BTM UPPE GEH-WB35K5089
...
233
345080 GEH-WB34K5080
...
241
RACK OV (CONVEX FLAT) GEH-WB48K5009
...
246
BROIL PAN (261D656P010) GEH-WB48T10006
...
247
WB48T10001 GEH-WB48T10005
...
251
ELEMENT BAKE GEH-WB44T10013
...
252
BROIL ELEMENT GEH-WB44K5009
...
253
WB21X5301 GEH-WB21X5347
...
256
RECEPTACLE GEH-WB08K5029
...
257
BULB OVEN LI GEH-BUY LOCAL
...
258
OVEN LIGHT CUP GEH-WB02X7693
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
261
JAMB SWITCH GEH-WB24K5061
...
262
VERT SIDE TRIM-RT-BLACK GEH-WB07K5076
...
262
VERT SIDE TRIM-LT-BLACK GEH-WB07K5075
...
262
VENT TRIM-BLK GEH-WB07K5073
...
266
RAIL BASE GEH-WB63K5079
...
268
LOWER FRT FRAME TRIM-BLK GEH-WB07K5074
...
273
PR0BE COVER GEH-WB34K5140
...
279
WB38K5051 GEH-WB38K5028
...
280
PROBE GEH-WB20X5050
...
281
HINGE OVEN DR ASSY GEH-WB10T10009
...
281
HINGE OVEN DR ASSY GEH-WB10T10010
...
291
COVER GEH-WB02X9152
...
294
BROIL ELEMENT SUPPORT GEH-WB02X9719
...
408
BRACKET SIDE TRIM ADJ RT GEH-WB02T10048
...
408
BRACKET SDE TRIM ADJ LT GEH-WB02T10049
...
431
RACK OV (CONVEX OFFSET) GEH-WB48K5010
...
533
ROAST RACK GEH-WB48X5108
...
594
JACK RECEPTACLE GEH-WB08K5054
...
595
CONDUIT CLAMP GEH-WB02K5126
...
596
HOUSING ASM RECEPTACLE GEH-WB08K5013
...
600
CONDUIT WIRE ASSY GEH-WB18K5364
...
691
SCREW GEH-WB01K5162
...
752
SCREW GEH-WB01K5200
...
760
SCREW GEH-WB01K5028
...
803
SCREW-BRIGHT NICKEL GEH-WB01X1149
...
809
SCREW GEH-WB01X1137
...
810
SCREW GEH-WB01X1253
...
813
SCREW GROUND GEH-WB01X1261
...
842
SCREW GEH-WB01X1297
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
887
TRIM SCREW-BLK GEH-WB01K5173
...
926
GROUND WASHER GEH-WB01X1260
...
935
WASHER GEH-WB01K5174
...
942
WASHER GEH-WB01X5573
...
945
LOCKWASHER GEH-WB01K5046
...
998
NUT MEAT PROBE GEH-WB01X5572

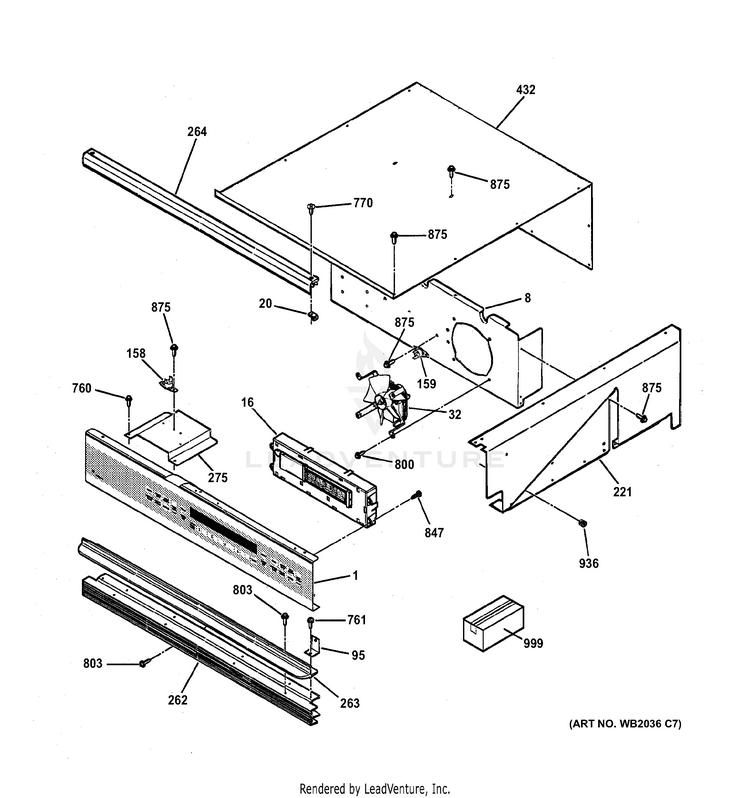

CONTROL PANEL

...
...
1
PANEL CONTROL ASSY W/KEY GEH-WB36T10288
...
8
FAN SUPPORT-UPPER GEH-WB02K5257
...
16
OVEN CONTROL ERC3H GEH-WB27T10213
...
20
TRIM BRACKET GEH-WB02K5146
...
32
FANASSY-UPPER GEH-WB26K5045
...
95
VENT TRIM BRACKET GEH-WB02K5203
...
158
SWITCH LIMIT GEH-WB24K5033
...
159
LIMIT SWITCH-ERC GEH-WB24K5085
...
221
EXTENSION SIDE LT GEH-WB63K5083
...
221
CRYSTAL PANEL-WHITE GEH-WB63K5082
...
262
VERT SIDE TRIM-LT-BLACK GEH-WB07K5075
...
262
VERT SIDE TRIM-RT-BLACK GEH-WB07K5076
...
262
VENT TRIM-BLK GEH-WB07K5073
...
263
I-BROWN TRIM-BLK, UPPER GEH-WB07K5510
...
264
TOP CONTROL PNL TRIM-BLK GEH-WB07K5071
...
275
VENT BOX COVER GEH-WB34K5078
...
432
COVER TOP GEH-WB63K5094
...
760
SCREW GEH-WB01K5028
...
761
SCREW GEH-WB01K5029
...
770
SCREW GEH-WB01K5210
...
770
SCREW 8-18 AB FLT 375 B GEH-WB01T10012
...
800
SCREW GEH-WB01K5138
...
803
SCREW-BRIGHT NICKEL GEH-WB01X1149
...
847
SCREW-BLACK GEH-WB01X1180
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
936
SNAP BUSHING GEH-WB01K5065
...
999
INSTALLATION INSTRUCTION GEH-31-10123
...
999
LOCK MOTOR WIRE HARNESS GEH-WB18K5617
...
999
HARNESS WIRE MAIN GEH-WB18T10047
...
999
MANUAL MINI & WD ASM GEH-31-13784
...
999
44-K006 GEH-49-8443
...
999
049-80059 GEH-49-8907

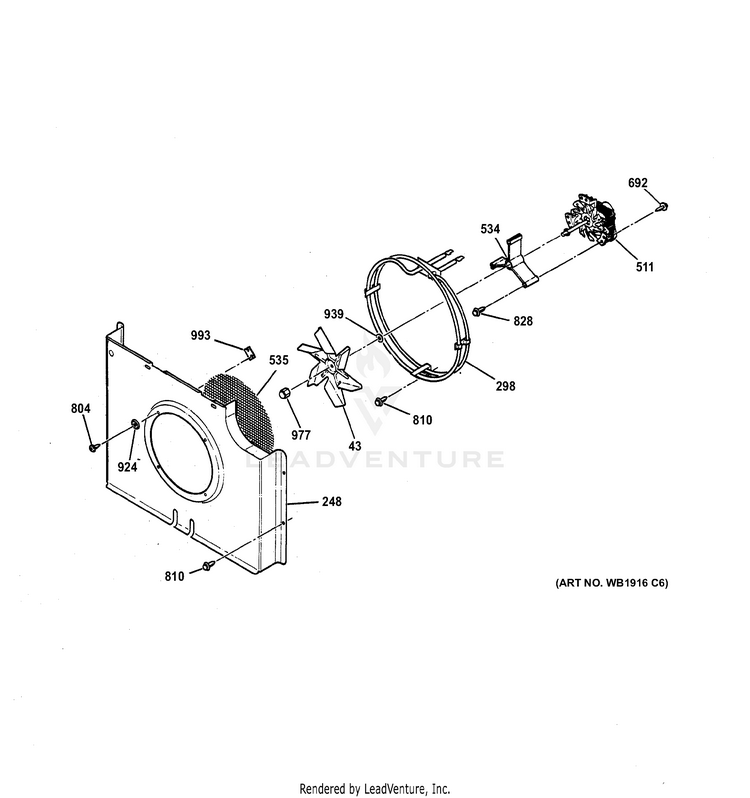

CONVECTION FAN

...
...
43
FAN BLADE GEH-WB02T10018
...
248
PANEL INR OVEN ASSY GEH-WB63T10042
...
298
ELEMENT CONVEX GEH-WB44T10002
...
511
MOTOR FAN GEH-WB26T10006
...
534
OVEN CAVITY SUPPORT GEH-WB26K5050
...
535
SCREEN (SS CONVEX) GEH-WB26K5042
...
692
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416
...
804
SCREW GEH-WB01X1127
...
810
SCREW GEH-WB01X1253
...
828
SCREW GEH-WB01X1141
...
924
WASHER GEH-WB01K5146
...
939
WASHER GEH-WB01T10010
...
977
NUT GEH-WB02T10017
...
993
SPEED NUT-FLAT GEH-WB01K5141

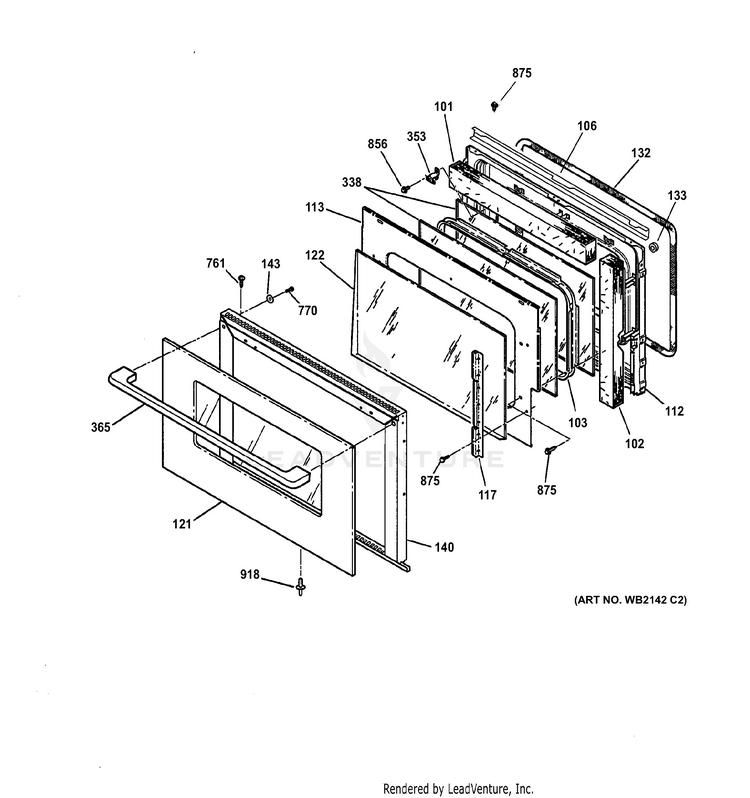

DOOR

...
...
102
INSULATION OVEN DR SD GEH-WB35K5097
...
103
SPACER WINDOW GEH-WB02T10015
...
112
OVEN DR LINING RETAINER GEH-WB55T10058
...
113
OV DR INSLN RETAINER GEH-WB02T10016
...
117
OVEN DOOR GLASS RETAINER GEH-WB02K5310
...
121
GLASS OVEN DR OUT (BLACK GEH-WB57T10104
...
122
GLASS OVEN DR INNER GEH-WB57T10079
...
132
OVEN DR GASKET GEH-WB32T10006
...
133
DOOR BUMPER GEH-WB01T10022
...
140
FRAME OV DR (BLACK) GEH-WB56K5139
...
143
GLASS SPACER GEH-WB02K5147
...
338
WINDOW PACK KIT-LARGE GEH-WB56T10004
...
353
WINDOW CLIP GEH-WB02X8320
...
761
SCREW GEH-WB01K5029
...
770
SCREW GEH-WB01K5210
...
770
SCREW 8-18 AB FLT 375 B GEH-WB01T10012
...
856
SCREW TC10-32X.250HEXNI GEH-WB01X1293
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
918
PLASTIC RIVET GEH-WB01K5071

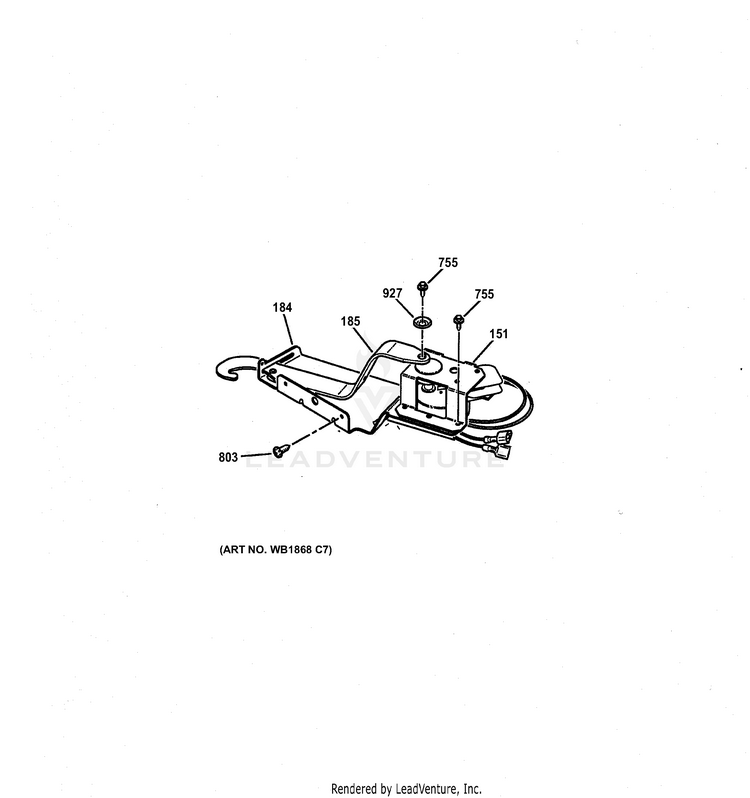

DOOR LOCK

...
...
151
MOTOR LOCK FRANCE (C W ) GEH-WB26K5030
...
184
WB34K5228 GEH-WB34K5079
...
185
LEVER LOCK GEH-WB15K5016
...
755
SCREW GEH-WZ04X0044
...
803
SCREW-BRIGHT NICKEL GEH-WB01X1149
...
927
WASHER GEH-WB01X1254

GE ZEK737BA3BB

...
...
44
Grommet Strip (.020) GEH-WB2K5225
...
201
Wrapper Ovn Cav Assembly GEH-WB63T10040
...
202
Frame Frt GEH-WB63T10036
...
203
Main Back GEH-WB63K5167
...
205
Smoke Elim Screen GEH-WB6K5026
...
210
Bottom False Assembly GEH-WB63T10041
...
211
Cabinet Side GEH-WB63T10043
...
212
Cabinet Bottom GEH-WB63K5080
...
216
Wire Cover-Element GEH-WB34K5069
...
217
Cover Wire GEH-WB34T10006
...
218
Wire Cover Bottom GEH-WB34K5067
...
219
Wire Cover-Conduit GEH-WB34K5082
...
230
Insulation-Inner-Upper GEH-WB35K5048
...
231
Insulation-Outer GEH-WB35K5068
...
232
Insulation Back/Btm GEH-WB35K5089
...
233
Heat Reflector GEH-WB34K5080
...
241
Rack Ov (Convx Flat) GEH-WB48K5009
...
246
Broiler Pan GEH-WB48X10056
...
247
Broiler Pan Grid GEH-WB48X10056
...
251
Element Bake GEH-WB44T10028
...
252
Broil Element GEH-WB44K5009
...
253
Sensor Assembly GEH-WB21X5301
...
256
Receptacle GEH-WB8K5029
...
257
Oven Lamp GEH-Buy Local
...
258
Oven Light Cup GEH-WB02X7693
...
259
Ov Lamp Lens GEH-WB36X192
...
260
Light Lens Bail GEH-WB2X7694
...
261
Jamb Switch GEH-WB24K5061
...
262
Screw GEH-WB7K5075
...
262
Vent Trim- GEH-WB7K5073
...
262
Vert Side Trim-Rt- GEH-WB7K5076
...
266
Base Rail GEH-WB63K5079
...
268
Lower Frt Frame Trim- GEH-WB7K5074
...
273
Pr0Be Cover GEH-WB2X8309
...
279
Vent Box Assembly GEH-WB38K5051
...
280
Probe GEH-WB20X5050
...
281
Hinge Ovn Dr Assembly GEH-WB10T10009
...
281
Hinge Ovn Dr Assembly GEH-WB10T10010
...
291
Cover GEH-WB2X9152
...
294
Broil Element Support GEH-WB2X9719
...
408
Bracket Sde Trm Adj Lt GEH-WB02T10049
...
408
Bracket Sde Trm Adj Rt GEH-WB02T10048
...
431
Rack Ov (Convx Offset) GEH-WB48K5010
...
533
Roast Rack GEH-WB48X5108
...
594
Jack Receptacle GEH-WB8K5054
...
595
Conduit Clamp GEH-WB2K5126
...
596
Housing Assembly Receptacle GEH-WB8K5013
...
600
Conduit Wire Assembly GEH-WB18K5364
...
691
Screw- GEH-WB1K5162
...
752
Screw GEH-WB1K5200
...
760
Screw GEH-WB1X536
...
803
Screw-Ni GEH-WB1X1149
...
809
Screw GEH-WB1X1137
...
810
Screw GEH-WB1X1130
...
813
Screw Ground GEH-WB1X1261
...
842
Screw GEH-WB1X1297
...
875
Screw 8-18 Ab Hxw 3/8 GEH-WH2X930
...
887
Trim Screw- GEH-WB1K5173
...
926
Washer GEH-WB1X1260
...
935
Washer GEH-WB1K5174
...
942
Washer GEH-WB1X5573
...
945
Lockwasher GEH-WB1K5046
...
998
Nut GEH-WB1X5572

GE ZEK737BA3BB

...
...
1
Panel Cntl Assembly W/Keypad GEH-WB36T10288
...
8
Fan Support-Upper GEH-WB02K5257
...
16
Ovn Cntl Erc3H GEH-WB27T10213
...
20
Trim Bracket GEH-WB2K5146
...
32
Fan GEH-WB26K5045
...
95
Vent Trim Bracket GEH-WB2K5203
...
158
Limit Switch GEH-WB24K5033
...
159
Limit Switch GEH-WB24K5085
...
221
Side Extension-Lt-Upper GEH-WB63K5083
...
221
Side Extenstion-Rt-Upper GEH-WB63K5082
...
262
Screw GEH-WB7K5075
...
262
Vent Trim- GEH-WB7K5073
...
262
Vert Side Trim-Rt- GEH-WB7K5076
...
263
I-Brow Trim- GEH-WB7K5510
...
264
Top Control Pnl Trim- GEH-WB07K5071
...
275
Vent Box Cover GEH-WB34K5078
...
432
Top Cover GEH-WB63K5094
...
760
Screw GEH-WB1X536
...
761
Screw- GEH-WB1K5029
...
770
Screw 8-18 Ab Flt .375 B GEH-WB01T10012
...
770
Screw GEH-WB1K5210
...
800
Screw GEH-WB1M1
...
803
Screw-Ni GEH-WB1X1149
...
847
Screw GEH-WB1X1180
...
875
Screw 8-18 Ab Hxw 3/8 GEH-WH2X930
...
936
Snap Bushing GEH-WB1K5065
...
999
Harness Wire Main GEH-WB18T10047
...
999
Installation Instruction GEH-31-10123
...
999
Lock Motor Wire Harness GEH-WB18K5617
...
999
Manual Mini & Wd Assembly GEH-31-13784
...
999
Manual Use & Care GEH-049-80059
...
999
Pm Cookbook GEH-49-8443

GE ZEK737BA3BB

...
...
43
Fan Blade GEH-WB02T10289
...
248
Panel Inr Ovn Assembly GEH-WB63T10042
...
298
Element Convx GEH-WB44T10027
...
511
Motor Fan GEH-WB2X8351
...
534
Oven Cavity Support GEH-WB26K5050
...
535
Screen (S.S. Convx) GEH-WB26K5042
...
692
Screw 8-18 Ab Hxw 3/4 GEH-Wz04X0416
...
804
Screw GEH-WB1X681
...
810
Screw GEH-WB1X1130
...
828
Screw GEH-WB1X1141
...
924
Washer GEH-WB1K5146
...
939
Washer GEH-WB01T10010
...
977
Nut GEH-WB02T10017
...
993
Speed Nut-Flat GEH-WB1K5141

GE ZEK737BA3BB

...
...
102
Insulation Ovn Dr Sd GEH-WB35K5097
...
103
Spacer Window GEH-WB02T10015
...
112
Lining Ovn Dr Assembly GEH-WB55T10058
...
113
Retainer Insln Ovn Dr GEH-WB02T10016
...
117
Oven Door Glass Retainer GEH-WB56T10373
...
121
Glass Ovn Dr Out (Wht) GEH-WB57T10104
...
122
Glass Ovn Dr Inner GEH-WB57T10079
...
132
Gasket Ovn Dr GEH-WB32T10006
...
133
Bumper Door GEH-WB01T10022
...
140
Frame Ov Dr () GEH-WB56K5139
...
143
Glass Spacer GEH-WB2K5147
...
338
Window Pack Kit-Large GEH-WB56T10004
...
353
Window Clip GEH-WB2X8320
...
761
Screw- GEH-WB1K5029
...
770
Screw 8-18 Ab Flt .375 B GEH-WB01T10012
...
770
Screw GEH-WB1K5210
...
856
Screw Tc10-32X.250Hexni GEH-WB1X1293
...
875
Screw 8-18 Ab Hxw 3/8 GEH-WH2X930
...
918
Plastic Rivet GEH-WB1K5071

GE ZEK737BA3BB

...
...
151
Lock Motor GEH-WB49T10020
...
184
Door Lock Plate GEH-WB34K5228
...
185
Lock Lever Assembly GEH-WB15K5016
...
755
Screw GEH-Wz04X0044
...
803
Screw-Ni GEH-WB1X1149
...
927
Washer GEH-WB1X119D
