product name

GE ZDWR240PCBS Refrigerator

Model: ZDWR240PCBS

Save Part Not Listed?
product name

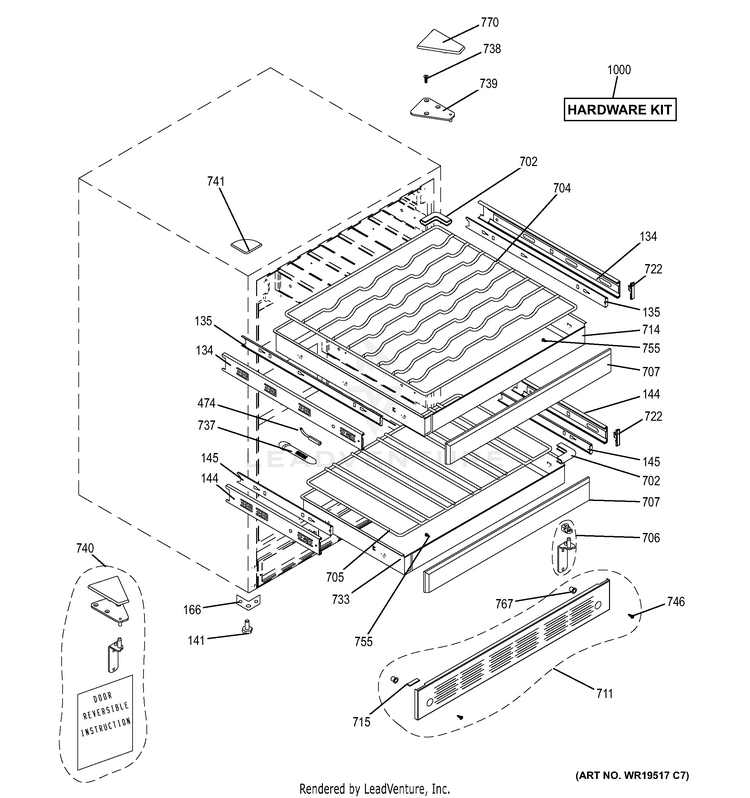

CABINET & SHELVES

...
...
134
INNER-LINER GUIDE GEH-WR17X11393
...
135
FRAME GUIDE GEH-WR72X10122
...
141
LEVELLING LEG GEH-WR01X10456
...
144
INNER-LINER GUIDE SHORT GEH-WR17X11394
...
145
FRAME GUIDE SHORT SLID GEH-WR72X10123
...
166
LEVELLING LEG SUPPORT GEH-WR02X11844
...
474
TEMP SENSOR GEH-WR55X10409
...
702
CORNER PIECE GEH-WR02X11830
...
704
BOTTLE RACK GEH-WR71X10468
...
705
BOTTLE RACK - SHORT GEH-WR71X10469
...
706
HINGE SUPPORT-LOWER GEH-WR13X10279
...
707
FRAME FRONT GEH-WR17X11390
...
711
KICK PLATE KIT - SS GEH-WR79X10032
...
711
KICK PLATE KIT - BLACK GEH-WR74X10190
...
714
WINE BOTTLE SHELF FRAME GEH-WR72X10120
...
715
KICK PLATE FRONT BK GEH-WR02X11414
...
722
GUIDE FRONT GEH-WR02X11412
...
733
BOTTLE SHELF FRAME GEH-WR72X10121
...
737
TEMP.CONTROL BULB COVER GEH-WR02X11845
...
738
UPPER HINGE SCREW GEH-WR01X10349
...
739
UPPER HINGE RIGHT GEH-WR13X10276
...
740
REVERSE DOOR HINGE KIT GEH-WR13X10275
...
741
HINGE COVER GEH-WR13X10278
...
746
KICK PLATE SCREW - BLACK GEH-WR01X10457
...
755
SCREW FRAME FRONT GEH-WR01X10354
...
767
KICK PLATE SPACER GEH-WR02X11485
...
770
COVER HINGE SUPPORT RH GEH-WR02X11486
...
1000
SCREW KIT GEH-WR01X10455

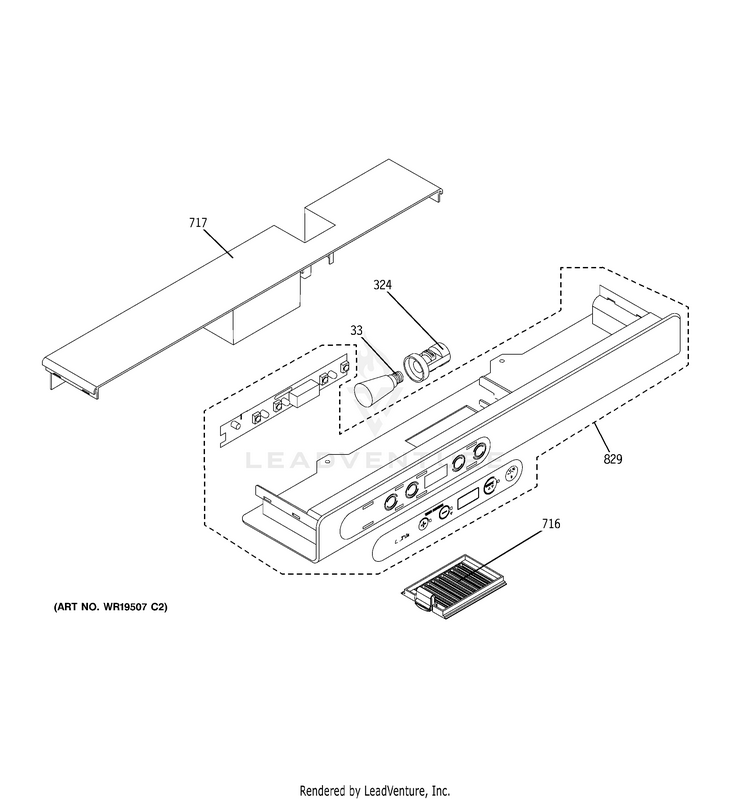

CLIMATE CONTROLS

...
...
33
BULB 120V 15W GEH-WR23X10295
...
324
SOCKET LAMP GEH-WR23X10376
...
716
BULB SHIELD GEH-WR02X11415
...
717
CONTROL HOUSING COVER GEH-WR17X11674
...
829
CONTROL BOARD ASM GEH-WR55X10431

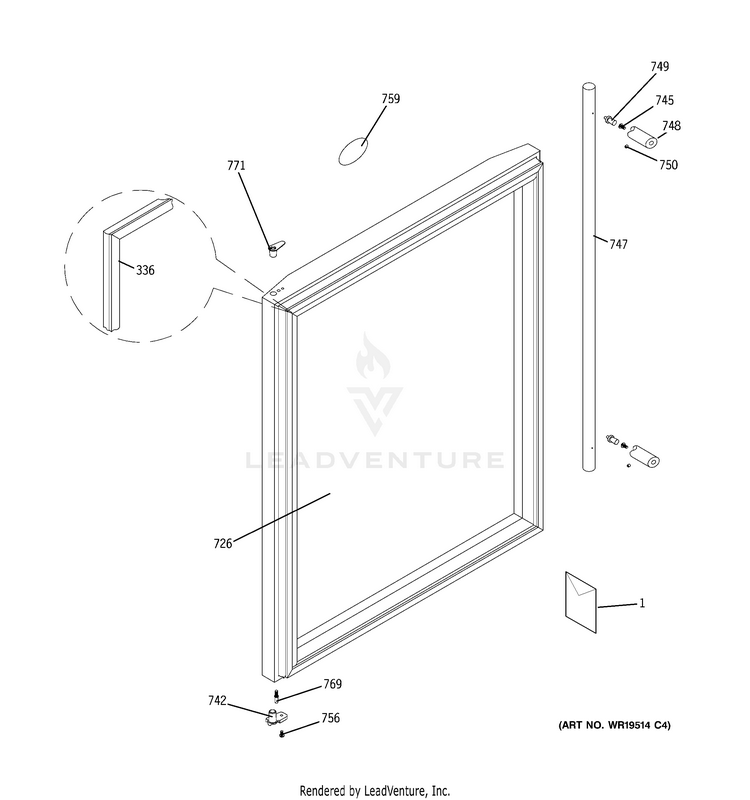

DOOR

...
...
1
MINI-MANUAL GEH-31-51215
...
336
MAGNETIC GASKET GEH-WR24X10161
...
726
GLASS DOOR GEH-WR78X11060
...
742
DOOR HINGE GEH-WR13X10342
...
745
SCREW, HANDLE TO DOOR GEH-WR01X10367
...
747
HANDLE TUBE GEH-WR12X10600
...
748
HANDLE STANDOFF GEH-WR02X11416
...
749
HANDLE STANDOFF SCREW GEH-WR01X10360
...
750
SET SCREW GEH-WR01X10357
...
756
SCREW DOOR HINGE GEH-WR01X10356
...
759
BADGE MONOGRAM SMALL GEH-WB02X10833
...
769
PIN GEH-WR01X10385
...
771
HINGE FILL PLUG GEH-WR02X11411

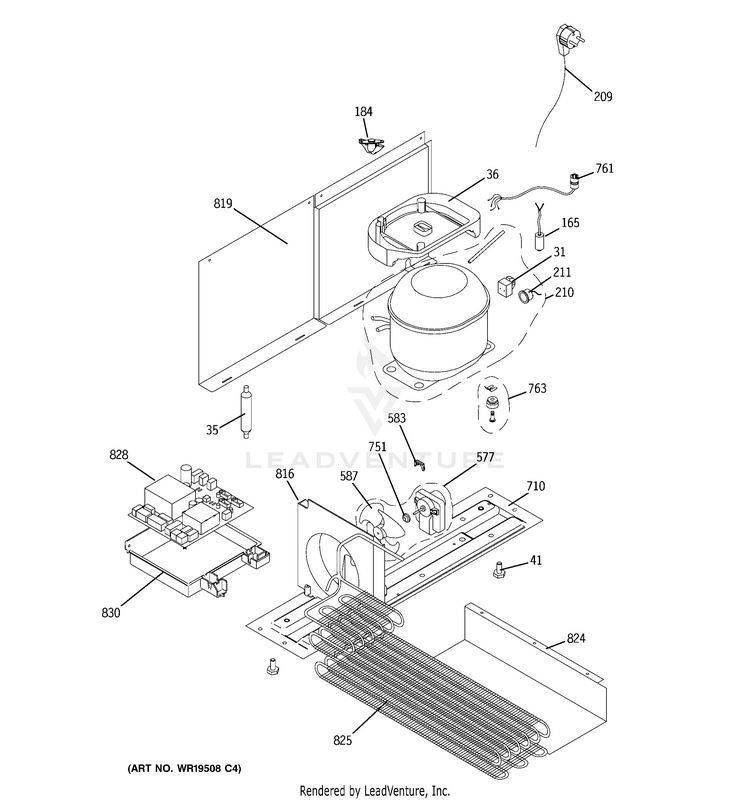

MACHINE COMPARTMENT

...
...
31
RELAY START GEH-WR07X10072
...
35
P/S DRYER KIT R134A GEH-WR86X0096
...
36
DRAIN PAN GEH-WR17X11673
...
41
ADJUSTABLE FOOT GEH-WR01X10451
...
165
CAPACITOR, COMPRESSOR GEH-WR62X10033
...
184
J-TUBE GEH-WR02X12792
...
209
POWER CORD GEH-WR23X10373
...
210
COMPRESSOR REPL. KIT GEH-WR87X10076
...
211
OVERLOAD GEH-WR08X10049
...
577
CONDENSER FAN MOTOR GEH-WR60X10163
...
583
FAN SNAP PIN GEH-WR01X10348
...
587
FAN PROPELLER GEH-WR60X10164
...
710
COMPRESSOR SUPPORT GEH-WR02X11808
...
751
FAN RUBBER GEH-WR01X10350
...
761
HARNESS ASM.COMP GEH-WR23X10374
...
763
COMPRESSOR MOUNTING KIT GEH-WR01X10452
...
816
CONDENSER FAN HOUSING GEH-WR17X11675
...
819
REAR ACCESS COVER GEH-WR82X10096
...
824
CONDENSER CANAL GEH-WR17X11679
...
825
CONDENSER ASM GEH-WR84X10067
...
828
POWER BOARD GEH-WR55X10507
...
830
POWER BOARD HOUSING GEH-WR17X11680
