GE ZDIS15SSHALH ICE CUBE MAKER

Model: ZDIS15SSHALH

Save Part Not Listed?
product name

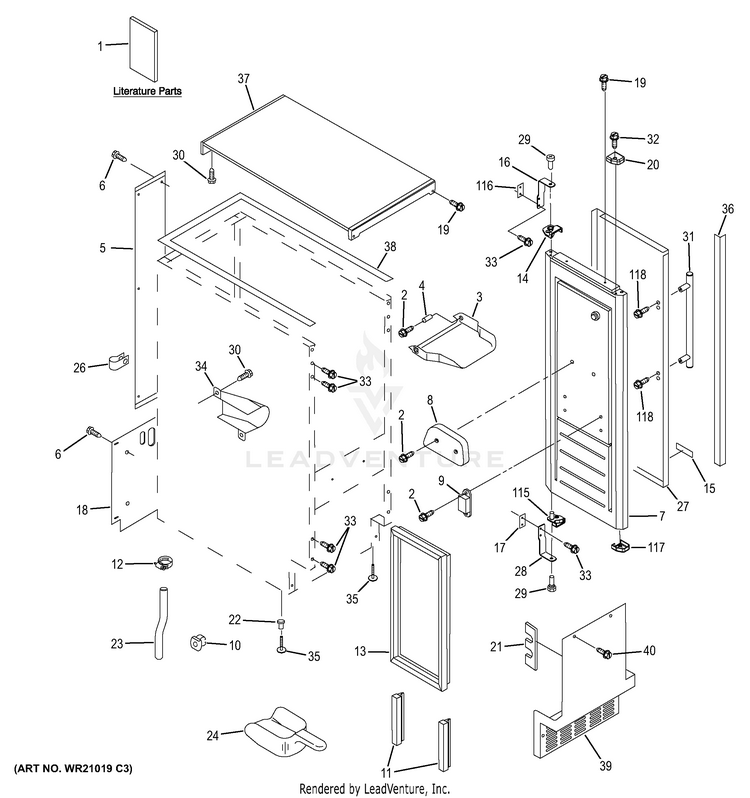

CABINET, LINER & DOOR PARTS

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-49006-2
...
1
PM MINI MANUAL GEH-31-51859
...
1
PM OWNERS MANUAL GEH-49-60727
...
2
SCREW 8-18 X 1 1/4 GEH-WR01X10131
...
3
BIN DOOR GEH-WR02X10371
...
4
SPACER GEH-WR01X10130
...
5
COVER WIRING GEH-WR02X12723
...
6
SCREW GEH-WR01X10819
...
7
BLACK DOOR GEH-WR78X20550
...
8
CAM, DOOR GEH-WR13X20553
...
9
ASSEMBLY, MAGNETIC CATCH GEH-WR13X20546
...
10
NUT, PUSH-IN GEH-WR01X20577
...
11
GASKET BOTTOM STRIP GEH-WR24X10182
...
12
CLAMP GEH-WR01X10808
...
13
GASKET DOOR GEH-WR24X10192
...
14
STOP, TOP DOOR (BLACK) GEH-WR13X20594
...
15
NAME PLATE GEH-WR02X20576
...
16
HINGE, TOP (BLACK) GEH-WR13X20571
...
17
SHIM, BOTTOM HINGE GEH-WR13X20591
...
18
COVER, UNIT GEH-WR02X20564
...
19
SCREW (BLACK) GEH-WR01X20587
...
20
FILLER, TOP ENDCAP (BLAC GEH-WR13X20568
...
21
PAD, FOAM GEH-WR14X20578
...
22
NUT LEG LEVELER GEH-WR01X10800
...
23
TUBE DRAIN GEH-WR17X12379
...
24
SCOOP GEH-WR01X20585
...
26
FILL TUBE CLAMP GEH-WR01X10763
...
27
DOOR WRAP SS LH GEH-WR78X23424
...
28
HINGE, BOTTOM (BLACK) GEH-WR13X20570
...
29
PIN HINGE GEH-WR01X10135
...
30
SCREW GROUND GEH-WR01X10802
...
31
HANDLE, ICEMAKER STAINLE GEH-WR12X23425
...
32
SCREW 6-32 X 3/4 GEH-WR01X10136
...
33
SCREW (BLACK) GEH-WR01X20588
...
34
HOLDER SCOOP GEH-WR02X10388
...
35
LEVELLING LEG GEH-WR02X12144
...
36
GROMMET, EDGE GUARD GEH-WR78X20611
...
37
PANEL, TOP (BLACK) GEH-WR74X20579
...
38
GASKET TOP PANEL GEH-WR24X10181
...
39
GRILLE FRONT BLACK GEH-WR74X10037
...
40
SCREW (BLACK) GEH-WR01X20586
...
115
STOP, BOTTOM DOOR (BLACK GEH-WR13X20593
...
116
SHIM, TOP HINGE GEH-WR13X20592
...
117
FILLER, BOTTOM ENDCAP (B GEH-WR13X20567
...
118
SCREW HANDLE GEH-WR01X10820

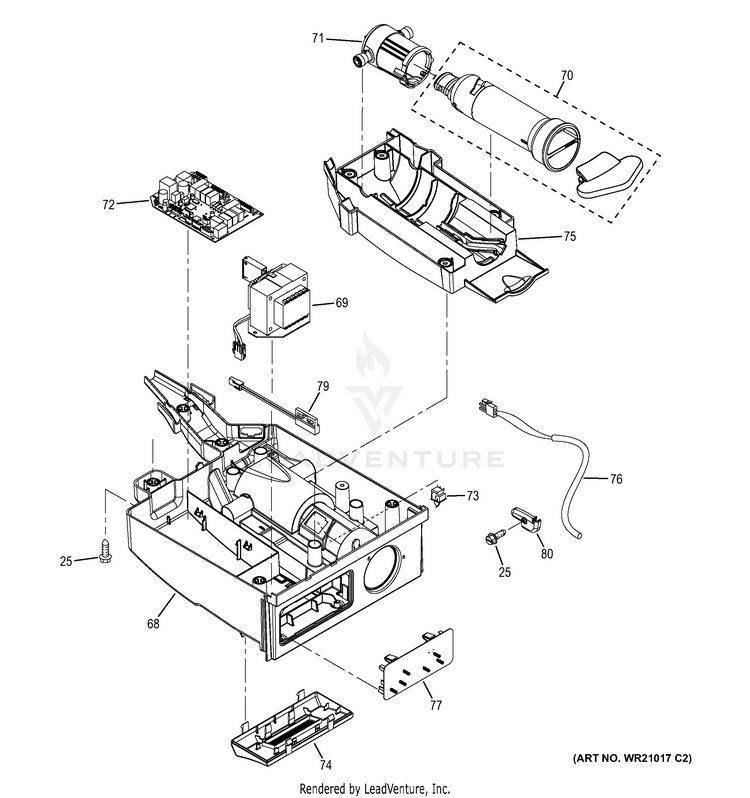

CONTROL PANEL PARTS

...
...
25
SCREW 8-18 X 5/8 GEH-WR01X10134
...
68
HOUSING, CONTROL GEH-WR02X20572
...
69
TRANSFORMER GEH-WR55X20599
...
70
CARTRIDGE, FILTER GEH-IMWF
...
71
ASSEMBLY, WATER FILTER H GEH-WR57X20549
...
72
CONTROL, ELECTRONIC GEH-WR09X20559
...
73
SWITCH, ROCKER GEH-WR09X20596
...
74
ASSEMBLY, DIAMOND LED GEH-WR29X20544
...
75
COVER, FILTER GEH-WR02X20561
...
76
THERMISTOR, BIN GEH-WR09X20598
...
77
ASSEMBLY, CONTROL GEH-WR01X20543
...
79
SWITCH, REED GEH-WR09X20595
...
80
CLAMP, THERMISTOR GEH-WR02X20556

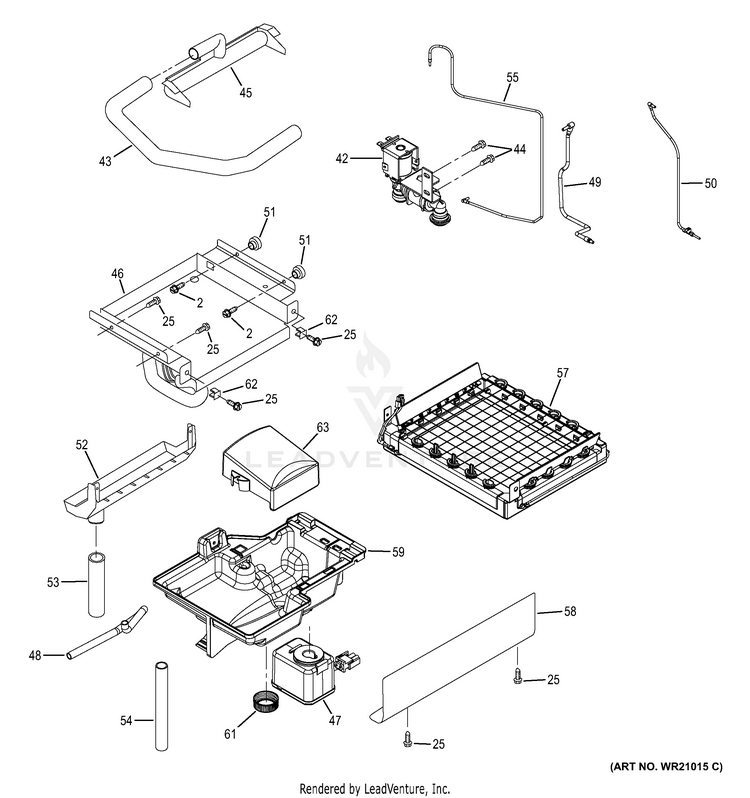

EVAPORATOR, ICE CUTTER GRID & WATER PARTS

...
...
2
SCREW 8-18 X 1 1/4 GEH-WR01X10131
...
25
SCREW 8-18 X 5/8 GEH-WR01X10134
...
42
VALVE, WATER GEH-WR57X20608
...
43
TUBE, PUMP GEH-WR02X20602
...
44
SCREW GEH-WR01X10810
...
45
DISPENSER WATER GEH-WR02X10381
...
46
EVAPORATOR GEH-WR85X20566
...
47
PUMP, RESERVOIR DRAIN GEH-WR57X20582
...
48
TUBE, RESERVOIR DRAIN GEH-WR02X20603
...
49
WATERLINE, RESERVOIR GEH-WR57X20609
...
50
ASSEMBLY, PLUG TUBE GEH-WR02X20547
...
51
SPACER GEH-WR01X10139
...
52
RESERVOIR WATER SLIDE GEH-WR32X10090
...
53
TUBE, WATER SLIDE GEH-WR02X20605
...
54
TUBE, RESERVOIR OVERFLOW GEH-WR02X20604
...
55
WATERLINE, VALVE GEH-WR57X20610
...
57
ASSEMBLY, GRID GEH-WR13X20545
...
58
COVER, GRID GEH-WR02X20562
...
59
RESERVOIR, WATER GEH-WR57X20584
...
61
CAP, DRAIN GEH-WR02X20554
...
62
NUT PUSH-IN GEH-WR01X10801
...
63
COVER, BRACKET GEH-WR02X20560

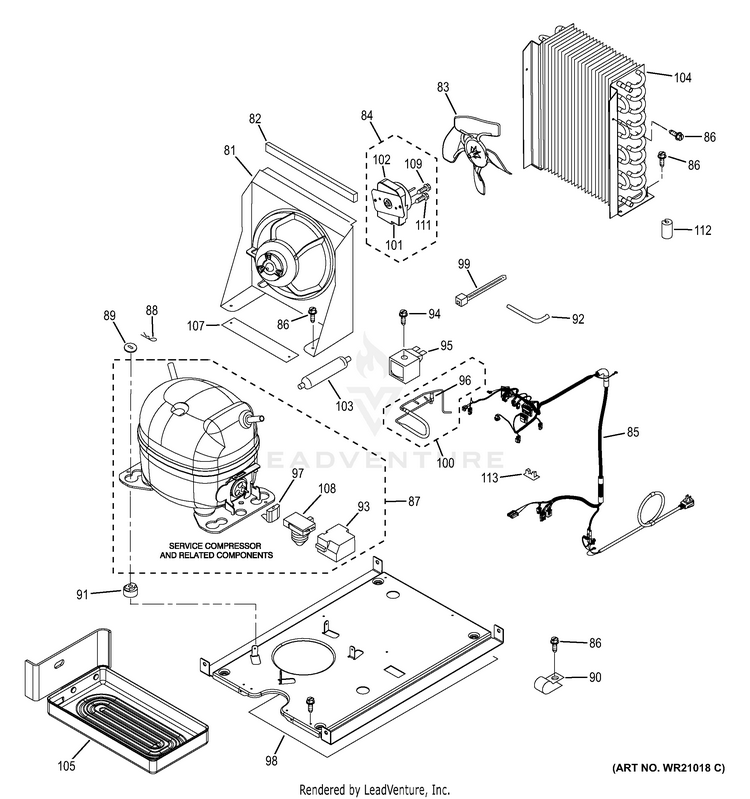

MACHINE COMPARTMENT

...
...
81
BRACKET-FAN MOUNTING GEH-WR02X12268
...
82
PAD FOAM GEH-WR14X10250
...
83
BLADE-COND FAN, PLASTIC GEH-WR60X10218
...
84
MOTOR & MTG PLATE ASSY GEH-WR60X10217
...
85
ASSEMBLY, CAB WIRE GEH-WR55X20542
...
86
SCREW 8-18 X 1/2 GEH-WR01X10814
...
87
COMPRESSOR GEH-WR87X20558
...
88
CLIP MOUNTING GEH-WR01X10815
...
89
SHIM -4 GEH-WR02X12737
...
90
CLAMP (POWER CORD) GEH-WR02X12720
...
91
GROMMET, COMPRESSOR GEH-WR02X20569
...
92
TUBE, PROCESS GEH-WR02X20601
...
93
COVER, TERMINAL GEH-WR02X20563
...
94
SCREW GEH-WR01X10816
...
95
COIL, SOLENOID GEH-WR62X20557
...
96
BODY, SOLENOID VALVE GEH-WR57X20551
...
97
PROTECTOR, OVERLOAD GEH-WR09X20580
...
98
SHIELD, HEAT GEH-WR02X20590
...
99
STRAP GEH-WR02X12739
...
100
VALVE, HOT GAS GEH-WR87X20607
...
101
MOUNTING PLATE, CONDENSE GEH-WR60X20575
...
102
MOTOR, FAN GEH-WR60X20574
...
103
DRIER (PRODUCTION) GEH-WR87X20565
...
104
CONDENSER GEH-WR84X10081
...
105
TRAY, DRIP GEH-WR02X20600
...
107
PAD FOAM -2 GEH-WR14X10251
...
108
RELAY, STARTING GEH-WR09X20583
...
109
SCREW GEH-WR01X10818
...
111
8-32 X .750 HW TT SG GEH-WR01X10636
...
112
GROMMET CONDENSER GEH-WR02X12727
...
113
CLIP-WIRING GEH-WR02X12741

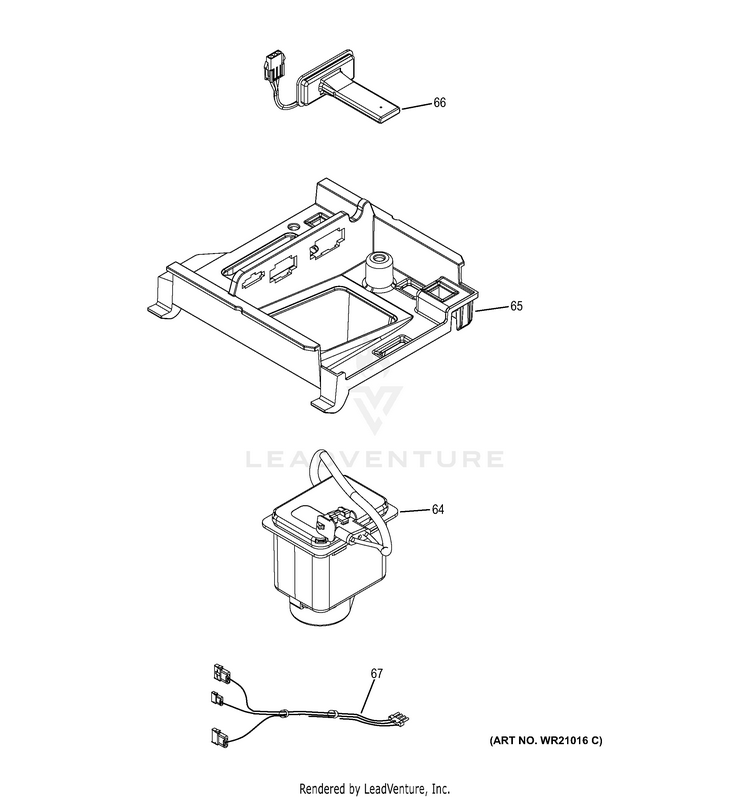

PUMP PARTS

...
...
64
PUMP, RECIRCULATING GEH-WR57X20581
...
65
BRACKET, PUMP GEH-WR02X20552
...
66
SENSOR, WATER GEH-WR02X20589
...
67
ASSEMBLY, PUMP WIRE GEH-WR55X20548
