GE ZDIC150WBBD Refrigerator

Model: ZDIC150WBBD

Save Part Not Listed?
product name

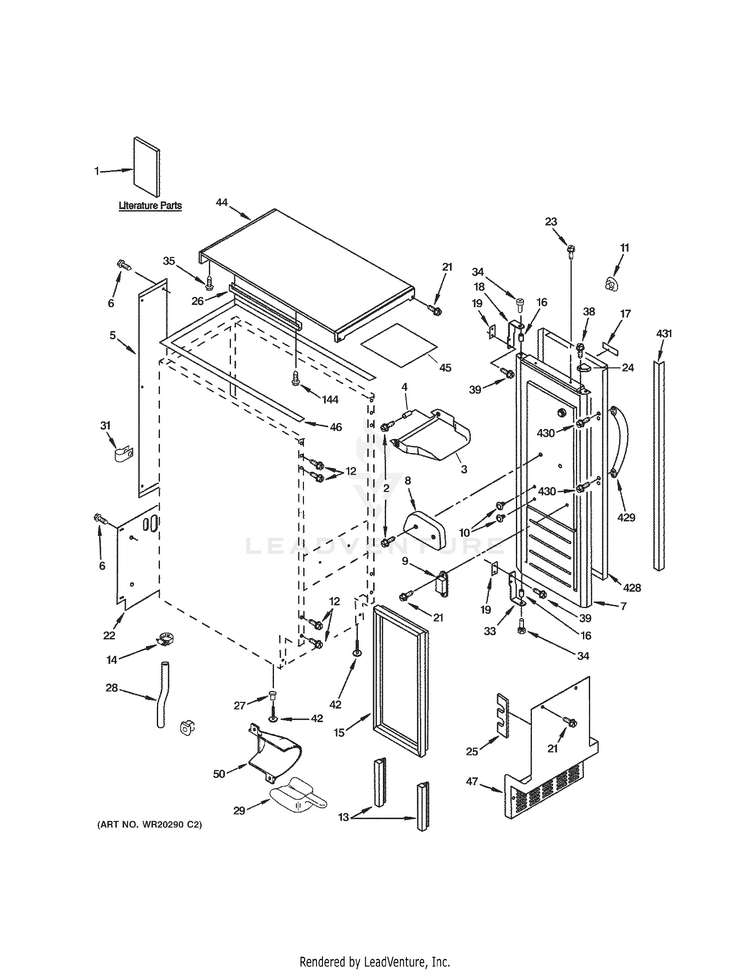

CABINET, LINER & DOOR PARTS

...
...
1
PM OWNERS MANUAL GEH-49-60508
...
1
PM MINI MANUAL GEH-31-46500
...
1
PM INSTALL INST ZDIC150 GEH-31-46199
...
2
SCREW 8-18 X 1 1/4 GEH-WR01X10131
...
3
BIN DOOR GEH-WR02X10371
...
4
SPACER GEH-WR01X10130
...
5
COVER WIRING GEH-WR02X12723
...
6
SCREW GEH-WR01X10819
...
7
DOOR PANEL ASM BK GEH-WR78X11429
...
8
CAM DOOR GEH-WR02X10372
...
10
PLUG BUTTON DOOR GEH-WR02X10373
...
11
HOLE PLUG HANDLE GEH-WR02X12721
...
13
GASKET BOTTOM STRIP GEH-WR24X10182
...
14
CLAMP GEH-WR01X10808
...
15
GASKET DOOR GEH-WR24X10192
...
16
HINGE STOP TOP RH/BTM LH GEH-WR02X10375
...
16
HINGE STOP BTM RH/TOP LH GEH-WR02X10376
...
17
NAMEPLATE GEH-WR04X10167
...
18
HINGE TOP GEH-WR13X10062
...
19
SHIM HINGE GEH-WR13X10567
...
21
SCREW8-18X1 GEH-WR01X10765
...
22
COVER ACCESS GEH-WR82X10068
...
23
SCREW HANDLE BLACK GEH-WR01X10766
...
24
FILLER ENDCAP LH BK GEH-WR02X10389
...
24
FILLER ENDCAP RH BK GEH-WR02X10390
...
25
PAD FOAM GEH-WR14X10034
...
26
CHANNEL WIRING GEH-WR01X10799
...
27
NUT LEG LEVELER GEH-WR01X10800
...
28
TUBE DRAIN GEH-WR17X12379
...
29
SCOOP PLASTIC GEH-WR29X0209
...
31
FILL TUBE CLAMP GEH-WR01X10763
...
33
HINGE BOTTOM GEH-WR13X10063
...
34
PIN HINGE GEH-WR01X10135
...
35
SCREW GROUND GEH-WR01X10802
...
38
SCREW 6-32 X 3/4 GEH-WR01X10136
...
39
SCREW 10-32 X 11/16 GEH-WR01X10137
...
42
LEVELLING LEG GEH-WR02X12144
...
44
TOP BK GEH-WR17X10458
...
45
SHIELD ELECTRICAL GEH-WR02X10380
...
46
GASKET TOP PANEL GEH-WR24X10181
...
47
GRILLE FRONT BLACK GEH-WR74X10037
...
50
HOLDER SCOOP GEH-WR02X10388
...
144
SCREW 8-16 X 5/8 GEH-WR01X10813
...
430
SCREW HANDLE GEH-WR01X10820
...
431
EGDE GUARD GEH-WR14X10252

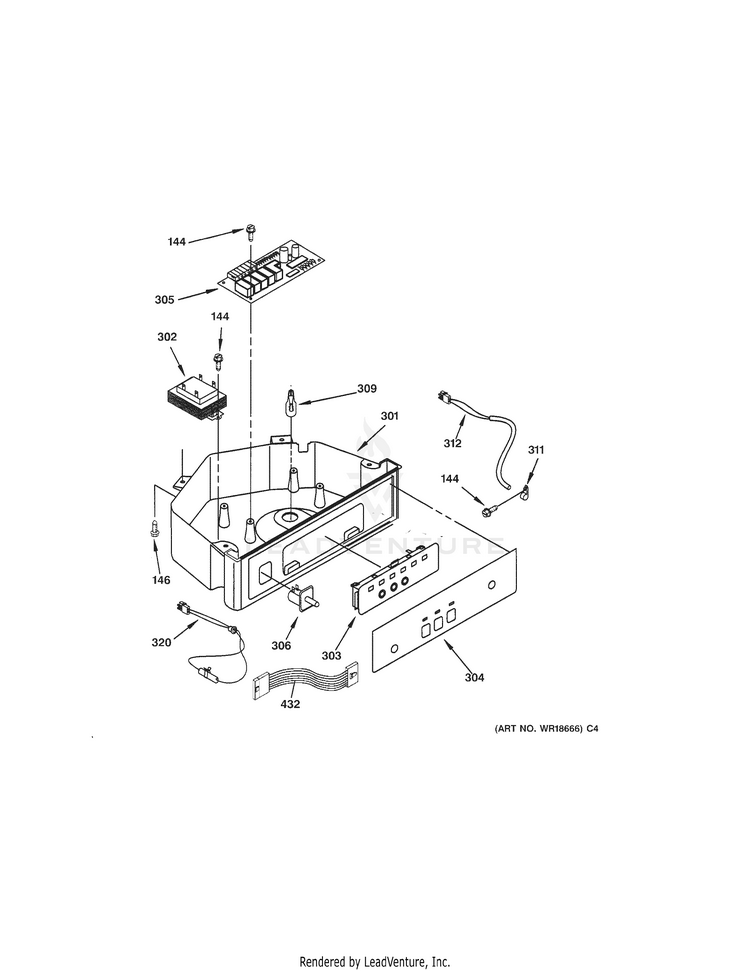

CONTROL PANEL PARTS

...
...
144
SCREW 8-16 X 5/8 GEH-WR01X10813
...
146
SCREW 8-18 X 5/8 GEH-WR01X10134
...
301
BOX CONTROL GEH-WR02X10384
...
302
TRANSFORMER GEH-WR62X10064
...
303
ASSEMBLY SWITCH (ALSO O GEH-WR55X10729
...
304
OVERLAY GEH-WR03X10004
...
305
PC BOARD GEH-WR55X11009
...
306
SWITCH PLUNGER GEH-WR23X10109
...
309
BULB #917 AUTO TYPE GEH-OBTAIN LOCALLY
...
311
CLAMP GEH-WR01X10812
...
312
THERMISTOR BIN GEH-WR55X10545
...
320
THERMISTOR ICE CONTROL GEH-WR55X10544
...
432
WIRE ASS- OVERLAY JUMPER GEH-WR57X10083

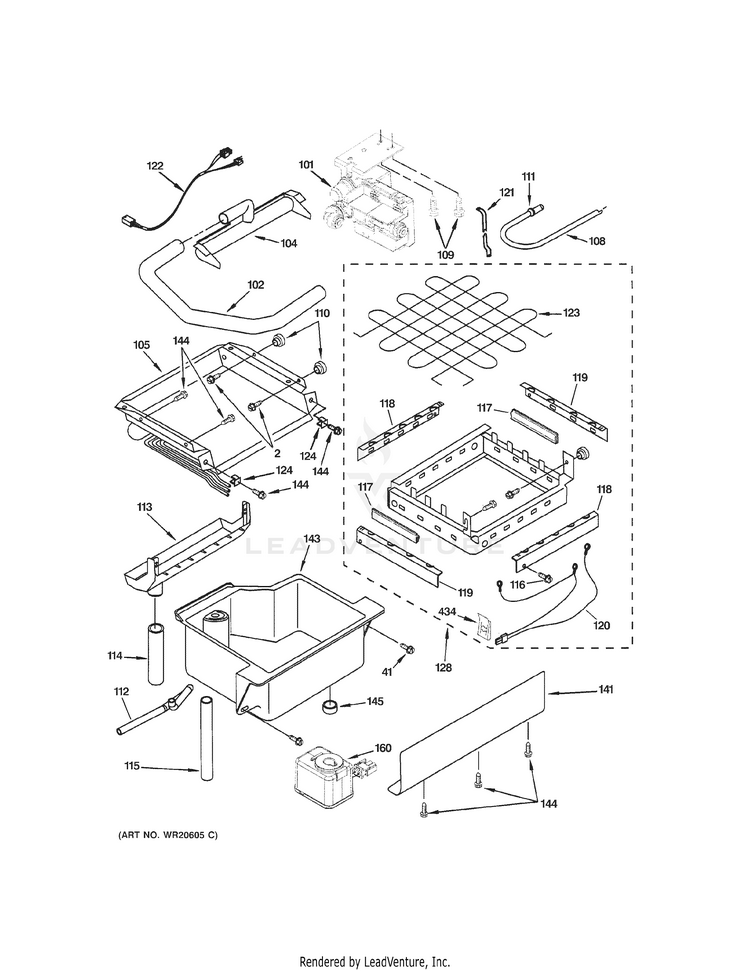

EVAPORATOR, ICE CUTTER GRID & WATER PARTS

...
...
2
SCREW 8-18 X 1 1/4 GEH-WR01X10131
...
41
THUMBSCREW GEH-WR01X10803
...
101
VALVE WATER COMPLETE GEH-WR57X10095
...
102
TUBE PLASTIC GEH-WR02X12892
...
104
DISPENSER WATER GEH-WR02X10381
...
105
EVAPORATOR ASS'Y GEH-WR85X10045
...
108
TUBE WATER FILL GEH-WR02X12719
...
109
SCREW GEH-WR01X10810
...
110
SPACER GEH-WR01X10139
...
111
FASTENER PUSHNUT GEH-WR57X10076
...
112
TUBE-RESERVOIR GEH-WR02X12726
...
113
RESERVOIR WATER SLIDE GEH-WR32X10090
...
114
TUBE GEH-WR17X10456
...
115
HOSE OVERFLOW GEH-WR57X10081
...
116
SCREW GEH-WR01X10811
...
117
GUIDE CUTTER GRID GEH-WR02X12214
...
118
BRACKET FRONT AND REAR GEH-WR02X12734
...
119
BRACKET SIDE LEFT AND R GEH-WR02X12735
...
120
HARNESS GRID GEH-WR02X12736
...
121
TUBE INLET GEH-WR17X13186
...
121
TUBE GEH-WR17X12459
...
122
WIRE ASSEMBLY SMART VALV GEH-WR57X10080
...
123
WIRE GRID CUTTER GEH-WR29X10075
...
124
NUT PUSH-IN GEH-WR01X10801
...
128
GRID ASM GEH-WR29X10073
...
141
COVER GRID GEH-WR02X10382
...
143
RESERVOIR WATER GEH-WR32X10656
...
144
SCREW 8-16 X 5/8 GEH-WR01X10813
...
145
CAP DRAIN GEH-WR01X10140
...
160
RESERVIOR DRAIN PUMP GEH-WR57X10073
...
434
NUT SPEED GEH-WR01X10764

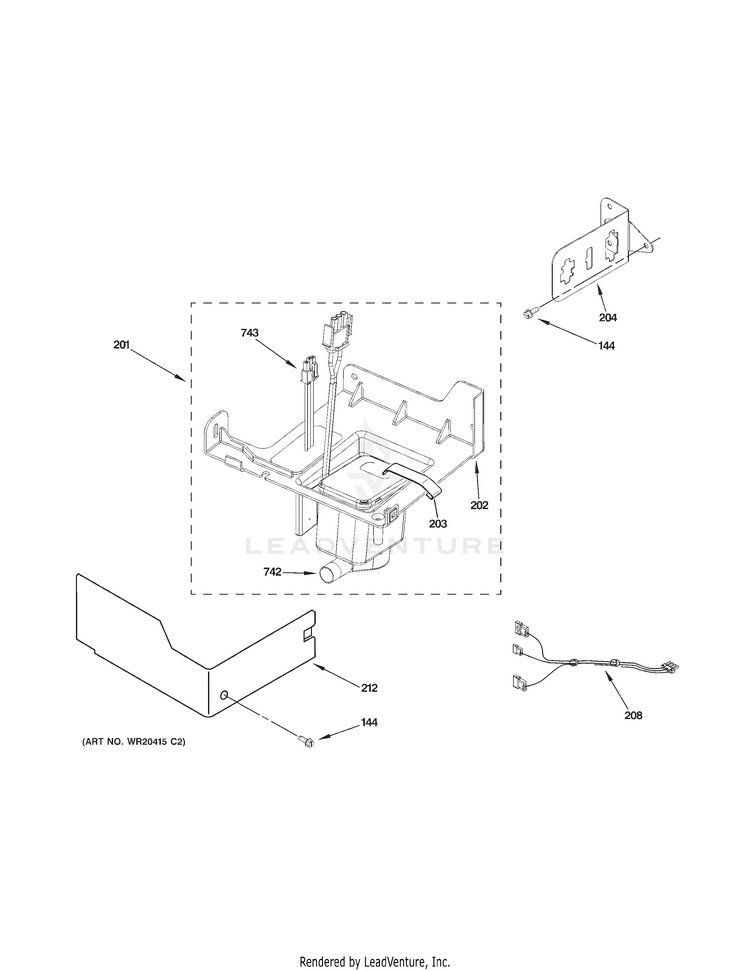

PUMP PARTS

...
...
144
SCREW 8-16 X 5/8 GEH-WR01X10813
...
201
PUMP ASSEMBLY ASSEMBLY GEH-WR57X10077
...
202
BRACKET-PUMP GEH-WR02X12724
...
203
CLIP-RETAINER (3) GEH-WR02X12728
...
204
BRACKET CONNECTOR GEH-WR01X10768
...
208
WIRING HARNESS MAIN TO P GEH-WR23X10575
...
212
COVER PUMP GEH-WR02X10383
...
742
PUMP WATER COMPLETE GEH-WR57X10074
...
743
WATER FILL SENSOR GEH-WR02X12479

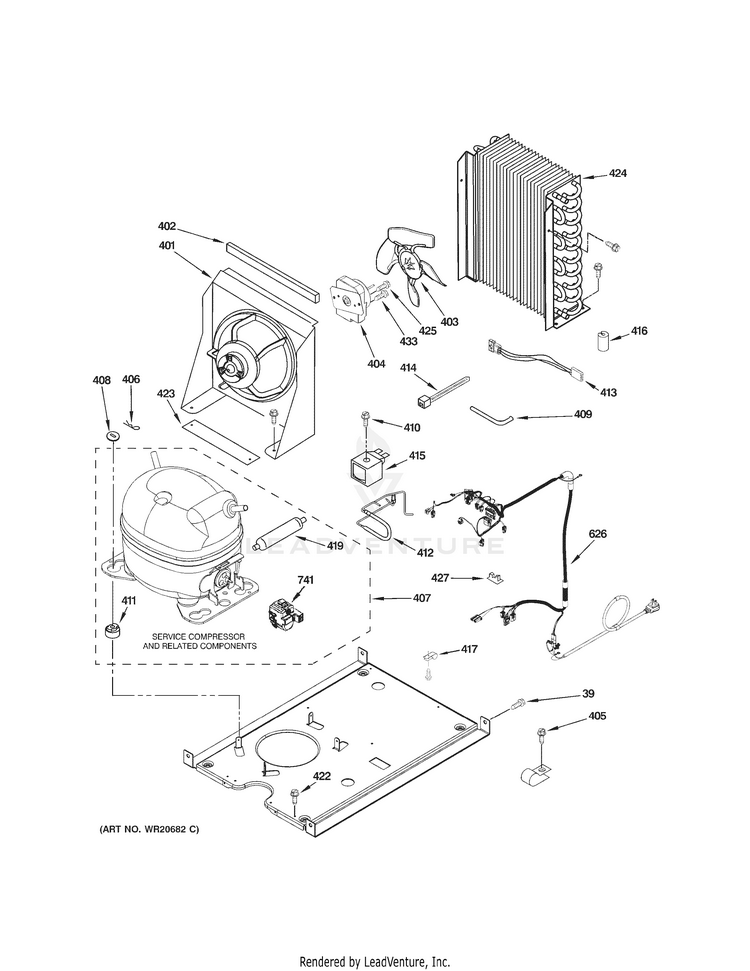

UNIT PARTS

...
...
39
SCREW 10-32 X 11/16 GEH-WR01X10137
...
401
BRACKET FAN MTG GEH-WR02X10386
...
402
PAD FOAM GEH-WR14X10250
...
403
BLADE-COND FAN, PLASTIC GEH-WR60X10218
...
404
MOTOR & MTG PLATE ASSY GEH-WR60X10217
...
405
CLAMP (POWER CORD) GEH-WR02X12720
...
406
CLIP MOUNTING GEH-WR01X10815
...
407
COMPRESSOR (INCLUDES ILL GEH-WR87X10177
...
408
SHIM -4 GEH-WR02X12737
...
409
TUBE PROCESS GEH-WR02X12738
...
410
SCREW GEH-WR01X10816
...
411
GROMMET -4 GEH-WR02X12584
...
412
HOT GAS VALVE GEH-WR02X12725
...
413
WIRING HARNESS CONDENSE GEH-WR23X10609
...
414
STRAP GEH-WR02X12739
...
415
COIL SOLENOID GEH-WR62X10078
...
416
GROMMET CONDENSER GEH-WR02X12727
...
417
CLAMP GEH-WR02X12740
...
419
DRIER SERVICE GEH-WR86X10047
...
422
SCREW GEH-WR01X10817
...
423
PAD FOAM -2 GEH-WR14X10251
...
424
CONDENSER GEH-WR84X10081
...
425
SCREW GEH-WR01X10818
...
427
CLIP-WIRING GEH-WR02X12741
...
433
8-32 X .750 HW TT SG GEH-WR01X10636
...
626
WIRING HARNESS COMPLETE GEH-WR23X10574
...
741
COMBO DEVICE GEH-WR07X10113
