GE XUD27GSSM0WW Washer/Dryer Combo

Model: XUD27GSSM0WW

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

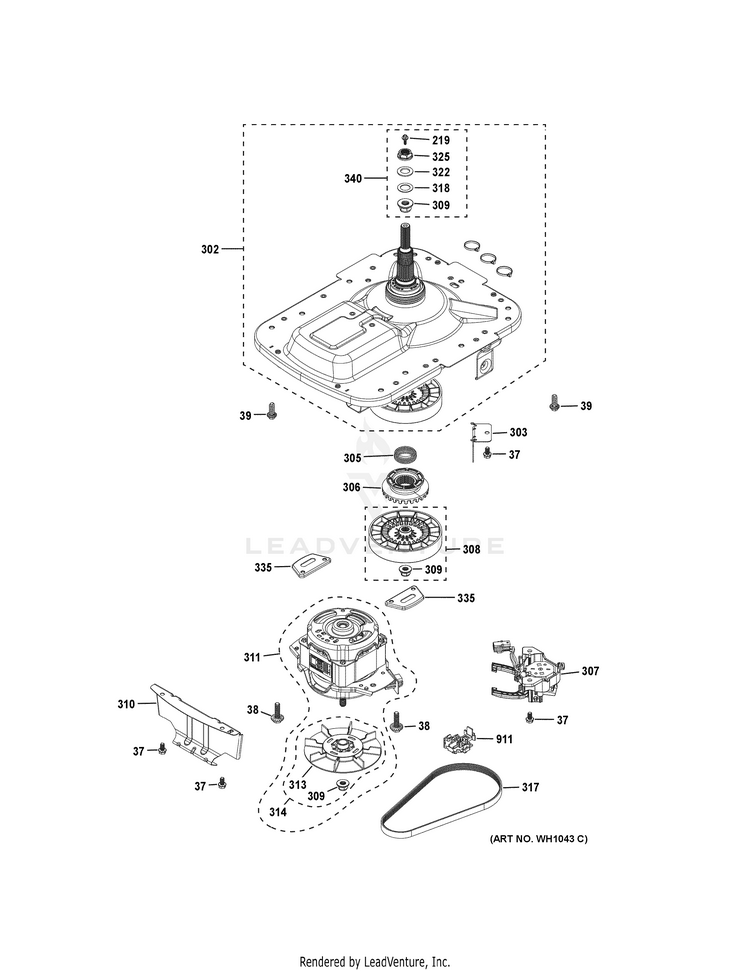

MOTOR & DRIVE ASSEMBLY

...
...
37
1/4-20 TAPTITE HWH GEH-WH01X10612
...
38
HEX SCREW 5/16-18 GEH-WH01X27310
...
39
HEX. PT SCREW K80 X 3.59 GEH-WH01X10616
...
219
SCREW AGITATOR GEH-WH01X27309
...
302
KIT TRANSMISSION PLATFORM ASM & NUT GEH-WH49X27322
...
303
BRACKET CONNECTOR GEH-WH18X27313
...
305
SPRING SHIFTER GEH-WH01X10606
...
306
CLUTCH GEH-WH05X27185
...
307
MODE SHIFTER ASM GEH-WH18X27186
...
308
KIT TRANSMISSION PULLEY, NUT, WASHERS, H GEH-WH49X27323
...
309
NUT PULLEY GEH-WE02X27298
...
310
PLATFORM MOTOR SHIELD GEH-WH16X24155
...
311
KIT WASHER MOTOR AND PULLEY ASM GEH-WH49X27319
...
313
FAN MAGNET ASM GEH-WH01X27247
...
314
KIT MOTOR PULLEY & NUT GEH-WH49X27554
...
317
BELT DRIVE GEH-WE12X27300
...
318
WASHER HUB GEH-WH01X27307
...
322
WASHER CONICAL GEH-WH01X27289
...
325
NUT HUB GEH-WE01X27288
...
335
MOTOR BRACKET GEH-WE01X27311
...
340
KIT HARDWARE GEH-WE49X28115
...
911
SPEED SENSOR GEH-WH12X27187
