GE XUD27GSSM0WW Washer/Dryer Combo

Model: XUD27GSSM0WW

Back To Assemblies

Save Part Not Listed?
product name

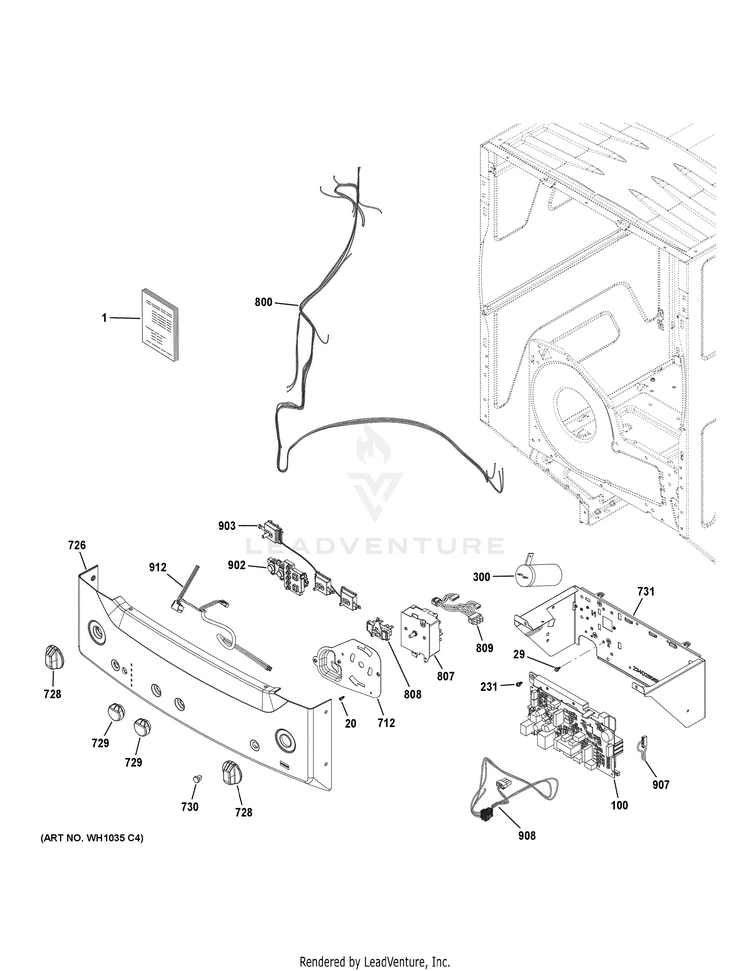

CONTROLS & BACKSPLASH

...
...
1
PUB NUMBER PM INSTALLATION INSTRUCTION GEH-31-16782
...
1
PUB NUMBER PM MINI MANUAL GEH-31-16931
...
1
PUB NUMBER MANUAL USE & CARE GEH-49-90582
...
20
SCREW GEH-WE2M302
...
29
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
100
BOARD & SUPPORT ASSEMBLY GEH-WH16X27251
...
231
SCREW GEH-WE01X25535
...
300
CAPACITOR GEH-WH12X27299
...
712
SUPPORT CONTROLS GEH-WE19M1696
...
726
PANEL CONTROL AND HT ASSEMBLY 27" CROSLE GEH-WE20X28560
...
728
KNOB CONTROL ASM GEH-WE04X23115
...
729
KNOB ROTATORY ASM GEH-WE04X23116
...
730
BUTTON START ASM GEH-WE04X27654
...
731
ENCLOSURE BOARD 27" GEH-WE04X27287
...
800
HARNESS MAIN DRYER NV GAS 27" GEH-WE15X27256
...
807
TIMER GEH-WE04X22654
...
808
SWITCH PTS GEH-WE4M416
...
809
HARNESS UI ASM GEH-WE26M362
...
902
UI BOARD GE ASM GEH-WE04X27284
...
903
SELECTOR ASM (3S) GEH-WH18X27241
...
907
HARNESS JUMPER SOFTWARE 27" GEH-WE15X27302
...
908
HARNESS EXTENSION GEH-WE15X27306
...
912
HARNESS COMUNICATION RJ45 GEH-WE15X27258
