GE XNE25JGKBFBB Refrigerator

Model: XNE25JGKBFBB

Back To Assemblies

Save Part Not Listed?
product name

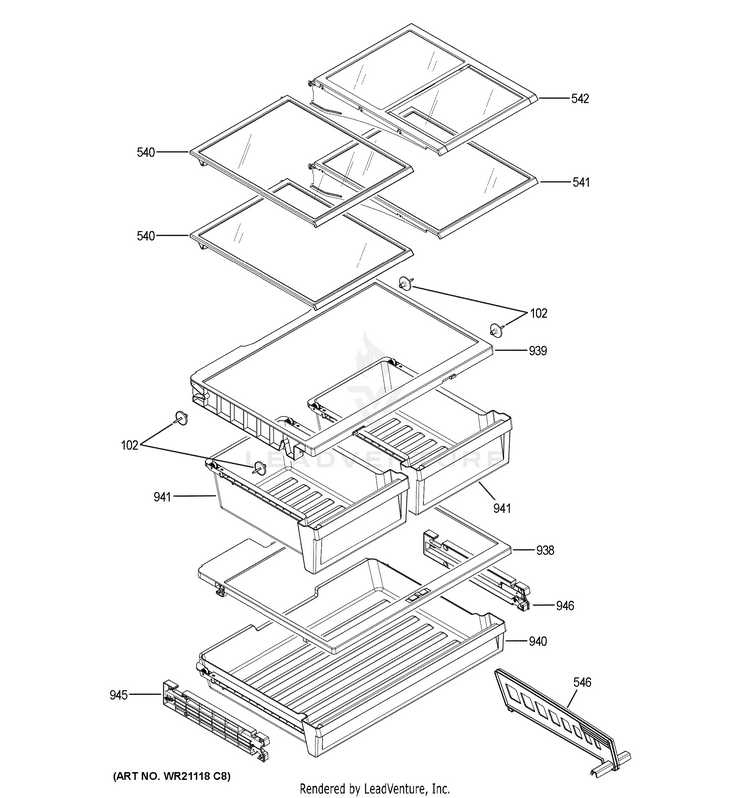

FRESH FOOD SHELVES

...
...
102
SUPPORT VEG PAN ASM GEH-WR02X13504
...
540
SHELF HALF ASM GEH-WR71X24965
...
541
SHELF CANTILEVER ASM GEH-WR71X24966
...
542
SHELF QUICK SPACE ASM GEH-WR71X24967
...
546
DIVIDER PANTRY GEH-WR02X24969
...
938
COVER PANTRY ASM GEH-WR71X25304
...
939
COVER VEG PAN ASM GEH-WR71X25305
...
940
FULL-WIDTH PAN GEH-WR32X24963
...
941
VEG PAN GEH-WR32X24968
...
945
SLIDE PANTRY LH ASM GEH-WR72X25329
...
946
SLIDE PANTRY RH ASM GEH-WR72X25330
