product name

GE XDF400PGN0WW Dishwasher

Model: XDF400PGN0WW

Back To Assemblies

Save Part Not Listed?
product name

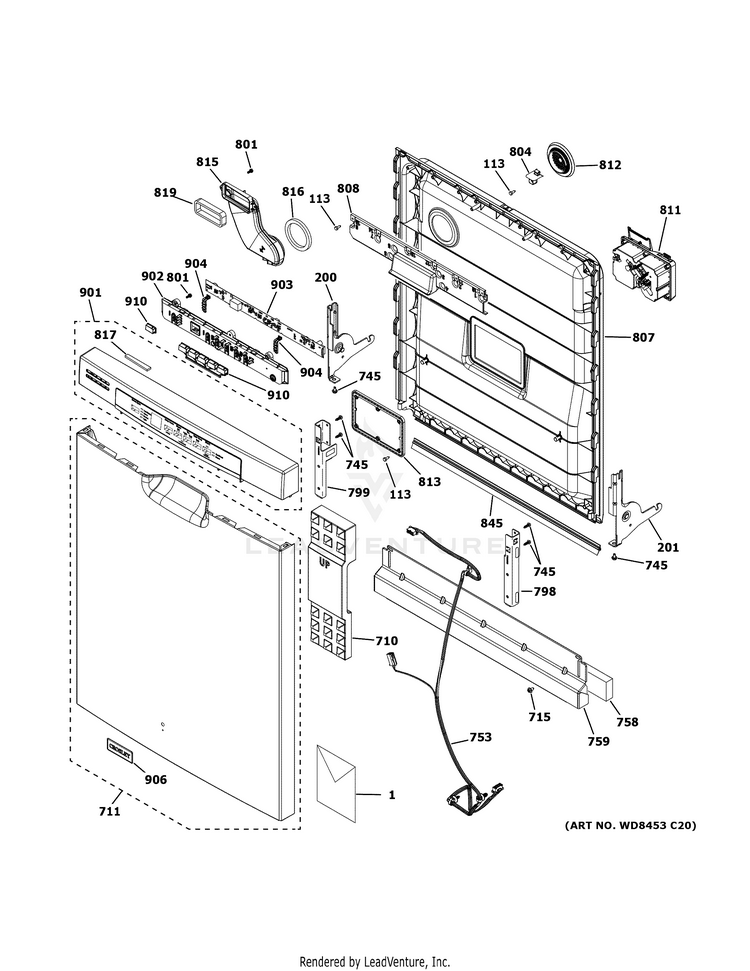

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM QUICK OWNERS MANUAL GEH-49-4000101
...
1
PM MINI MANUAL AND WIRING GEH-31-4000203
...
1
PM OWNERS MANUAL GEH-49-55122
...
1
PM INSTALL INSTRUCTIONS GEH-31-4000103
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM GEH-WD14X20128
...
201
ARM HINGE ASM GEH-WD14X20129
...
710
BLOCK FOAM DOOR GEH-WD01X10578
...
711
WHITE OUTER DOOR ASM GEH-WD27X26659
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
753
HARNESS ASM UI GEH-WD21X26219
...
758
INSULATION TOE KICK GEH-WD27X21334
...
759
WHITE TOE KICK ASM GEH-WD27X26299
...
798
BRACKET SUPPORT HINGE GEH-WD01X22512
...
799
BRACKET SUPPORT HINGE GEH-WD01X22513
...
801
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
804
STRIKER LATCH GEH-WD13X10071
...
807
DOOR INNER ASM GEH-WD31X24432
...
808
POCKET HANDLE GEH-WD12X22787
...
811
DETERGENT DISP NO SENSOR GEH-WD12X24058
...
812
VENT - GREY/ HYBRID GEH-WD12X10471
...
813
PLATE DETERGENT GEH-WD12X10420
...
815
AIR DIVERTER ASM GEH-WD12X26043
...
816
DOOR VENT SEAL GEH-WD08X10092
...
817
FOAM VENT INSERT GEH-WD08X21954
...
819
GASKET VENT GEH-WD08X22476
...
845
GASKET BEACH PLASTIC GEH-WD08X21894
...
901
PANEL CONTROL ASM, WW GEH-WD34X24418
...
902
HOUSING UI BOARD GEH-WD12X24415
...
903
CONFIGURED UI CONTROL GEH-WD21X24821
...
904
SHIELD LIGHT GEH-WD12X24398
...
906
CROSLEY BADGE ASM GEH-WD27X25185
...
910
BUTTON TREE GEH-WD09X24404
Schematic Image Zoomed
