GE WNRD2050G3WC Washer

Model: WNRD2050G3WC

Save Part Not Listed?
product name

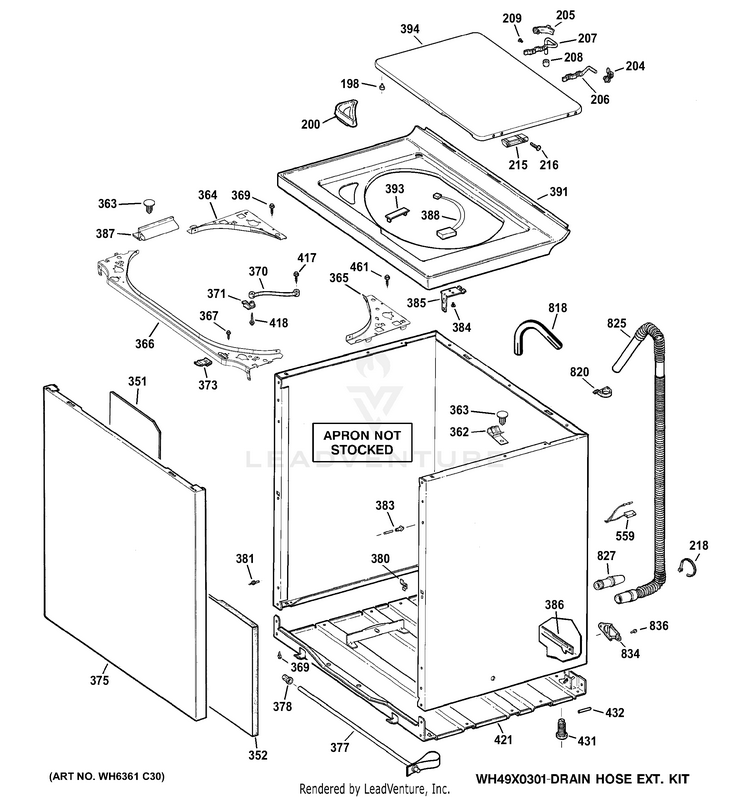

CABINET, COVER & FRONT PANEL

...
...
198
BUMPER LID GEH-WH01X2722
...
200
FUNNEL BLEACH GEH-WH01X10057
...
204
BUSHING HINGE GEH-WH01X2741
...
205
BUSHING HINGE GEH-WH01X10025
...
206
WIREFORM HINGE (SHORT) GEH-WH01X2740
...
207
WIREFORM HINGE GEH-WH01X2743
...
208
BUMPER HINGE GEH-WH01X2742
...
209
SCREW GEH-WH02X1211
...
215
MAGNET HOUSING ASM GEH-WH01X10222
...
216
SCR 8-16 B FLP .625 ZN GEH-WH02X10217
...
218
WIRE TIE/PLUG GEH-WH01X10217
...
351
DAMPER FRONT PANEL GEH-WH46X0353
...
352
INSULATION PACK GEH-WH46X10105
...
362
CHRISTMAS TREE WIRE CLIP GEH-WH02X10263
...
363
PLUG PINETREE GEH-WH02X10258
...
364
BRACKET APRON LEFT GEH-WH16X10101
...
365
BRACKET APRON RIGHT GEH-WH16X10102
...
366
1PC ROD SUPPORT SERVICE GEH-WH49X20925
...
367
SCR 8-18 AB HW 1/2 S GEH-WH02X10350
...
369
SCR 8-18 AB IHW 7/16 SN GEH-WH02X1217
...
370
STRAP DAMPNG GEH-WH1X2727
...
371
RETAINER STRAP GEH-WH01X2726
...
373
CLIP LOCKING GEH-WH02X10279
...
375
PANEL & BRACE ASM WH/EXP GEH-WH46X10110
...
377
SHIPPING BAR ASM GEH-WH46X0344
...
378
BUTTON PLUG GEH-WH01X2745
...
380
CLIP GROUND GEH-WH02X1207
...
381
STUD GROUNDING GEH-WH02X1190
...
383
PIN ALIGNMENT GEH-WH02X1189
...
384
SCR 6-20 B TRT 3/8 S GEH-WH01X10423
...
385
COVER CLIP GEH-WH01X10422
...
386
BAR SELF LEVELING GEH-WH46X10094
...
387
CONDUIT GEH-WH41X10036
...
388
LID SWITCH ASM GEH-WH12X10333
...
391
COVER ASM FINISHED GEH-WH44X10027
...
393
PROTECTOR LID SWITCH GEH-WH44X10144
...
394
LID ASM FINISHED GEH-WH44X10156
...
417
SCR 10-12 A HX 1/2 S GEH-WH02X0694
...
418
SCR 8-18 B IHW 1 S GEH-WH02X10282
...
421
BASE ASM GEH-WH46X10148
...
431
LEG LEVELING GEH-WH02X1187
...
432
PIN ROLL GEH-WH02X1188
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
559
HOUSING TERMINAL GEH-WH12X0538
...
818
NOZZLE DRAIN GEH-WH41X0035
...
820
CLIP ANTI-SIPHON GEH-WH01X2725
...
825
HOSE & SPRING ASSY GEH-WH41X10053
...
827
ADAPTER DRAIN HOSE GEH-WH41X10020
...
834
RETAINER HOSE GEH-WH16X0513
...
836
SCREW 8-18 AB IHWP 7/8 S GEH-WH02X10002

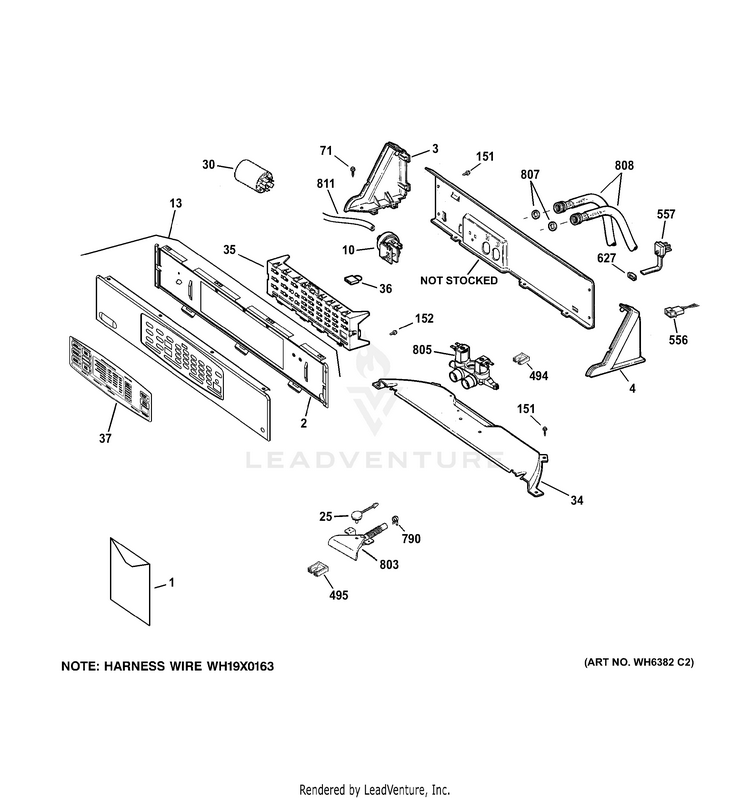

CONTROLS & BACKSPLASH

...
...
1
PM MANUAL USE & CARE GEH-49-90322-1
...
1
PM INSTRUCTION INSTALL GEH-31-16513
...
1
PM SHEET MINI MANUAL GEH-31-15597
...
2
SUPPORT SWITCH GEH-WH46X10055
...
3
END CAP LH BK GEH-WH42X10735
...
4
END CAP RH BK GEH-WH42X10734
...
10
SWITCH PRESSURE GEH-WH12X10139
...
13
CONTROL PANEL ASM GEH-WH42X10742
...
25
PROBE SENSOR ATC GEH-WH12X10251
...
30
FILTER POWER LINE GEH-WH12X10408
...
34
COVER BOTTOM GEH-WH44X10334
...
35
CONTROLS ASM GEH-WH42X10763
...
36
HARNESS GEH-WH12X10111
...
37
OVERLAY ASM GEH-WH42X10743
...
71
SCR 8-18 B 1/2 HXW P GEH-WH02X1205
...
151
SCREW 8-18 B 1HW 1/2 SN GEH-WH02X10126
...
152
SCR 8-18 B HXW 5/16 S GEH-WH01X10424
...
494
HSNG SPECIAL-DRAIN SOLEN GEH-WD21X10356
...
495
HSNG SPECIAL-WATER VALVE GEH-WD21X10355
...
556
HOUSING TERMINAL GEH-WH12X0497
...
557
CORD POWER ASM GEH-WH19X10069
...
627
SELF LOCKING STRAIN RELF GEH-WH12X10208
...
790
CLAMP HOSE GEH-WH01X2036
...
803
FUNNEL SHOWER HEAD GEH-WH41X10171
...
805
VALVE TRIPLE WATER GEH-WH13X10034
...
807
HOSE WASHER GEH-WH02X0042
...
808
2 3 1/2' HOT-COLD RUBBER GEH-WH41X10334
...
811
HOSE PRES SW GEH-WH41X365

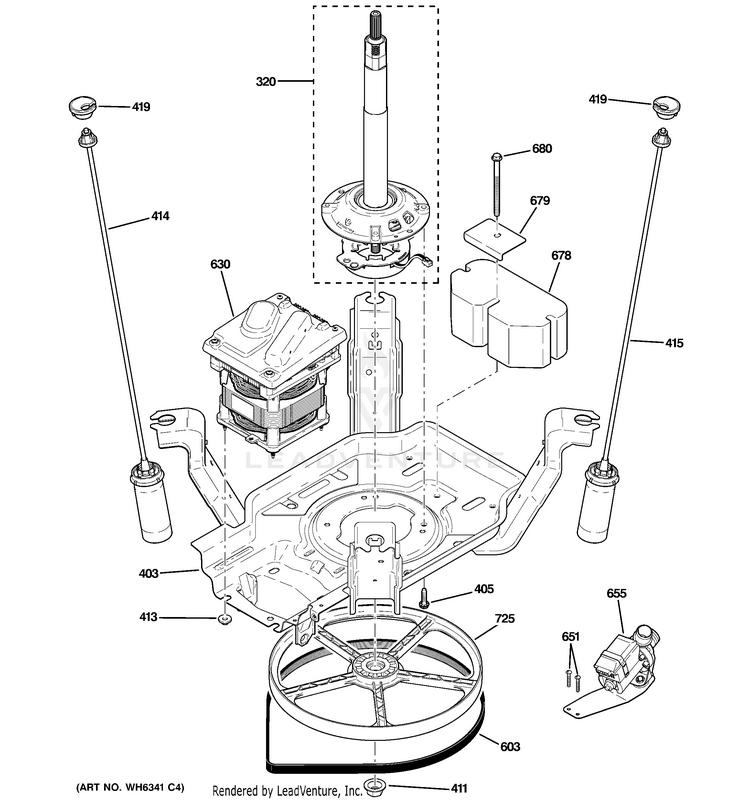

SUSPENSION, PUMP & DRIVE COMPONENTS

...
...
320
PS KIT SHAFT & TUBE ASM GEH-WH38X10017
...
403
LEG AND PLATFORM ASM GEH-WH17X10016
...
405
SCR 1/4-20 B HXW 3/4 SNS GEH-WH02X1201
...
411
NUT PULLEY GEH-WH02X1203
...
413
HEX NUT OVERMOLD ASM GEH-WH02X10233
...
414
ROD & SPRING ASM GEH-WH16X0545
...
415
ROD & SPRING ASSY/GREEN GEH-WH16X10057
...
419
SOCKET ROD SUPPORT GEH-WH01X10001
...
603
BELT - 6 RIB GEH-WH01X10302
...
630
KIT MOTOR & HARNESS GEH-WH20X10055
...
651
SCREW 1/4-20 TPT 1H 1/2 GEH-WH02X10123
...
655
PUMP SERVICE ASM GEH-WH23X10013
...
678
COUNTERWEIGHT GEH-WH01X10303
...
679
BRACKET COUNTERWEIGHT GEH-WH01X10304
...
680
SCR 1/4-20 B HXW 3.9 SNS GEH-WH02X10235
...
725
DRIVE PULLEY GEH-WH07X10019

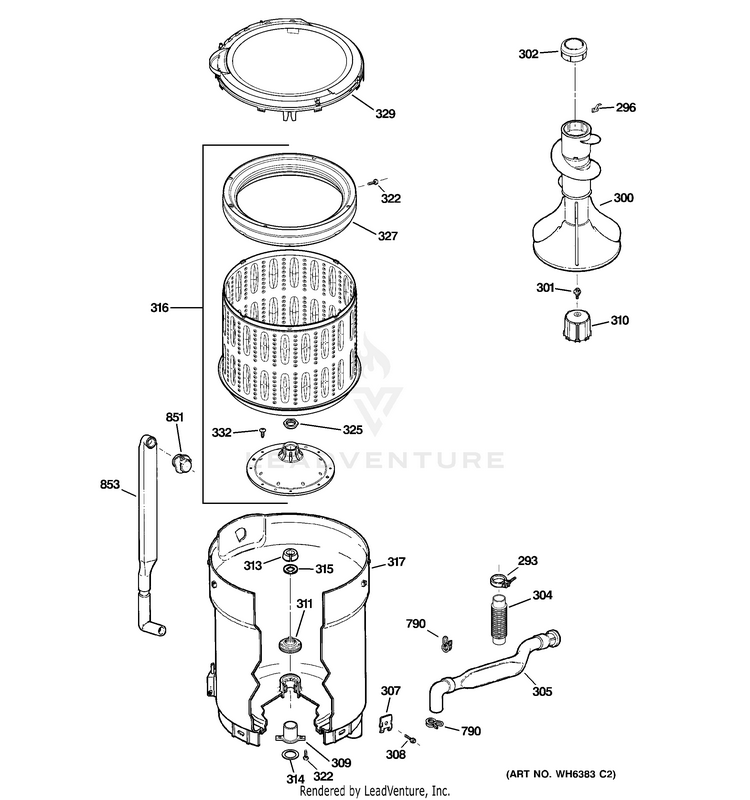

TUB, BASKET & AGITATOR

...
...
293
CLAMP HOSE GEH-WH01X10134
...
296
CLIP AGITATOR CAP GEH-WH01X2784
...
300
AGITATOR ASM MULTI GEH-WH43X10034
...
301
SCR 1/4-20 MCH HXW 5/8 S GEH-WH02X10237
...
302
CAP AGITATOR SHORT GEH-WH43X10005
...
304
HOSE DRAIN INLET GEH-WH41X10163
...
305
HOSE DRAIN ASM GEH-WH41X0374
...
307
CLAMP - TUB GEH-WH01X2730
...
308
SCR 5/16-18 TPT IHW S N GEH-WH02X10267
...
309
BEARING TUB GEH-WH02X1198
...
310
COUPLING AGITATOR GEH-WH43X10032
...
311
SEAL TUB GEH-WH02X10383
...
313
RING SPLIT GEH-WH02X1195
...
314
WASHER TUB BEARING GEH-WH02X1197
...
315
FLAT WASHER GEH-WH02X1199
...
316
BASKET & HUB ASM GEH-WH45X10060
...
317
TUB ASM GEH-WH45X20473
...
322
SCREW GEH-WH02X1194
...
325
NUT HUB GEH-WH02X1193
...
327
BALANCE RING ASM GEH-WH45X0152
...
329
TUB COVER ASM GEH-WH45X0151
...
332
SCR 10-32 B TRT-25 5/8 GEH-WH02X10139
...
790
CLAMP HOSE GEH-WH01X2036
...
851
GASKET FLOOD HEAD GEH-WH01X2729
...
853
HOSE FLOOD GEH-WH41X0369
