GE WCVH4800K3WW Washer

Model: WCVH4800K3WW

Save Part Not Listed?
product name

Popular Parts

Popular Parts

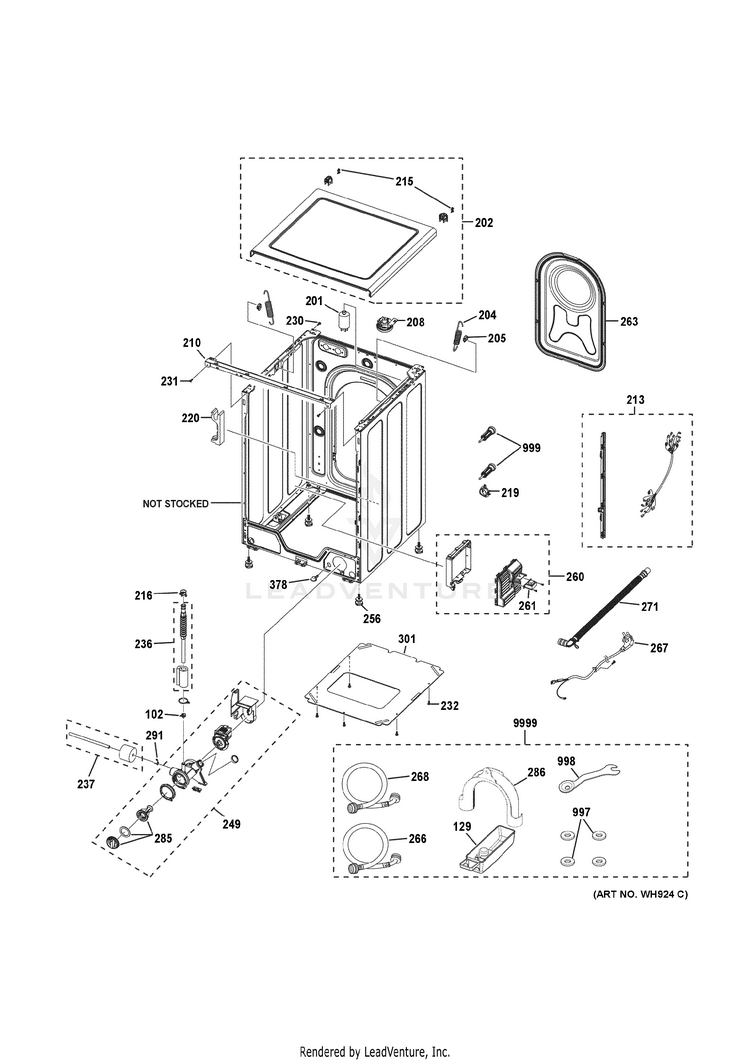

CABINET, COVER & TOP PANEL

...
...
102
CLAMP HOSE (ID-0.55") GEH-WH02X10311
...
129
LIQUID DETERGENT INSERT GEH-WH41X10230
...
201
FILTER-EMI GEH-WH41X10229
...
202
TOP COVER ASM WH GEH-WH44X10225
...
204
SPRING SUSPENSION GEH-WH05X10011
...
205
HANGER SPRING GEH-WH01X10478
...
208
PRESSURE SWITCH GEH-WH12X10449
...
210
BRACE FRONT GEH-WH16X10121
...
213
HARNESS MAIN & GUIDE GEH-WH19X10063
...
215
SCREW-TAPPING GEH-WR01X10463
...
216
CLAMP HOSE (ID-0.69") GEH-WH02X10313
...
219
HOSE GUIDE GEH-WH01X10496
...
220
HOSE GUIDE GEH-WH01X10513
...
230
SCREW-HEX (M5XL10) GEH-WH02X10322
...
231
SCREW-TAPPING (M4XL12) GEH-WH02X10323
...
232
SCREW-TAPPING (M4XL12) GEH-WH02X10324
...
236
ASSY HOSE PUMP GEH-WH41X10291
...
237
HOSE PRESSURE SWITCH GEH-WH41X10241
...
249
WASHER DRAIN PUMP GEH-WH11X28637
...
256
LEG LEVELING ASM GEH-WH46X10231
...
260
INVERTER ASM GEH-WH12X10448
...
261
FILTER COIL(3MH/6A/60HZ) GEH-WH01X10489
...
263
BACK COVER GEH-WH44X10222
...
266
MAIN WATER HOSE (COLD) GEH-WH41X10233
...
267
POWER CORD GEH-WH19X10064
...
268
MAIN WATER HOSE (HOT) GEH-WH41X10232
...
271
HOSE DRAIN PUMP ASM 75" GEH-WH41X10239
...
285
FILTER ASM GEH-WH01X10476
...
286
U-SHAPE DRAIN HOSE HANGER GEH-WH01X10487
...
291
CLAMP HOSE (ID-0.42") GEH-WH02X10321
...
301
NOISE BAFFLE GEH-WH01X10482
...
378
PLUG DRAIN GEH-WH01X10485
...
997
PLUG BUTTON SHIPNG BOLT GEH-WH01X10590
...
998
SPANNER WRENCH (OD-1.4") GEH-WH02X10309
...
999
SHIPPING BOLT GEH-WH49X10091
...
9999
INSTALLATION BAG GEH-WH49X10070

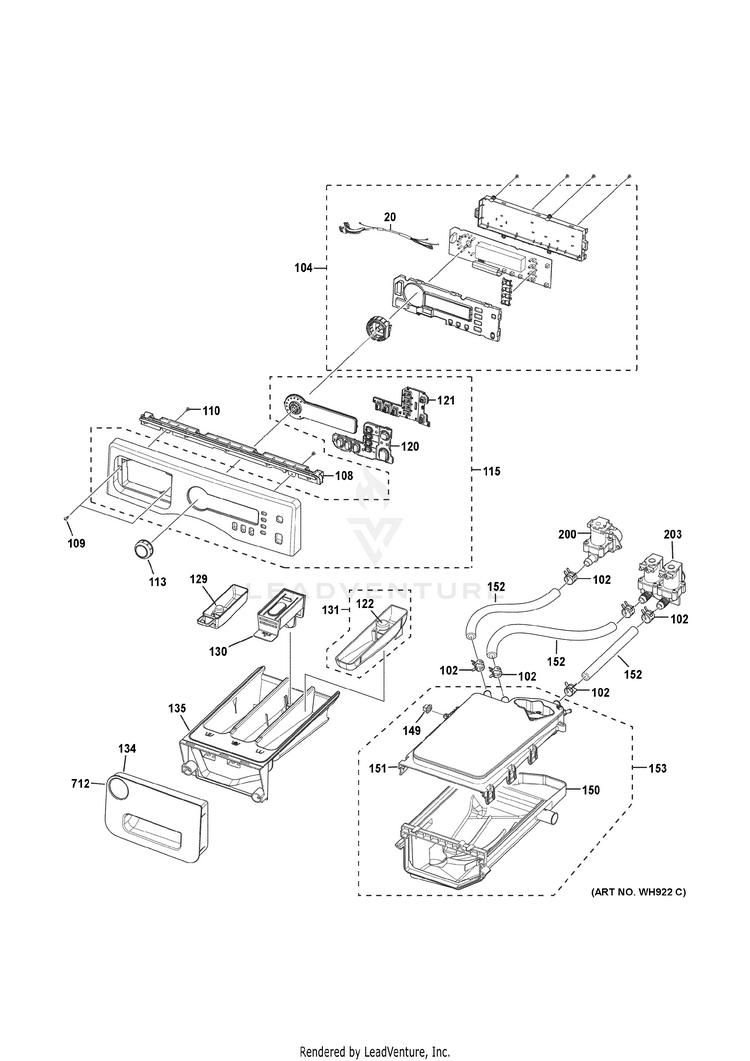

CONTROLS & DISPENSER

...
...
20
HARNESS - CONTROL BOARD GEH-WH19X10065
...
102
CLAMP HOSE (ID-0.55") GEH-WH02X10311
...
104
CONTROL BOARD ASM GEH-WH12X10443
...
108
SUPPORT CONTROL PANEL GEH-WH16X10125
...
109
SCREW-TAPPING GEH-WR02X11865
...
110
SCREW-TAPPING (M4XL12) GEH-WH02X10327
...
113
KNOB ASM GEH-WH11X10057
...
115
CONTROL PANEL ASM WH GEH-WH42X10817
...
120
PUSH BUTTON - PLASTIC GEH-WH12X10526
...
121
PUSH BUTTON - RUBBER GEH-WH12X10451
...
122
CAP GEH-WH01X10495
...
129
LIQUID DETERGENT INSERT GEH-WH41X10230
...
130
STOPPER-DRAWER GEH-WH41X10293
...
131
BLEACH INSERT GEH-WH41X10226
...
134
DRAWER DISPENSER FRNT WH GEH-WH41X10243
...
135
DRAWER DISPENSER WH GEH-WH41X10294
...
149
BUSHING GEH-WH01X10493
...
150
DIVERTER BOX - BOTTOM GEH-WH41X10292
...
151
DIVERTER BOX - TOP GEH-WH41X10228
...
152
HOSE DIVERTER BOX INLET GEH-WH41X10238
...
153
DRAWER DISPENSER ASM GEH-WH41X10242
...
200
VALVE WATER - SINGLE GEH-WH13X10045
...
203
VALVE WATER - DUAL GEH-WH13X10046
...
712
BADGE - GE GEH-WH01X10468

FASTENERS

...
...
362
WIRE TIE GEH-WH01X10498
...
363
WIRE TIE GEH-WH01X10499
...
364
WIRE TIE GEH-WH01X10500
...
365
OUTSIDE DRAIN HOSE CLAMP GEH-WH01X10501
...
366
CLAMP HOSE-FIX GEH-WH01X10502
...
367
WIRE TIE GEH-WH01X10661

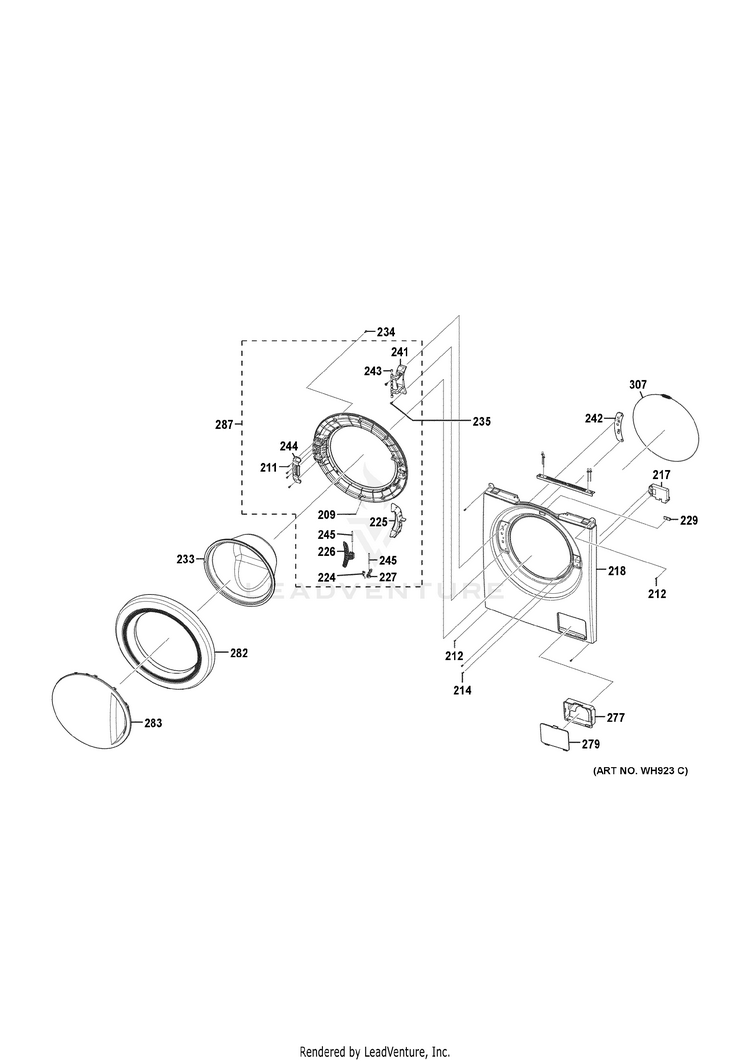

FRONT PANEL & DOOR

...
...
209
DOOR GLASS HOLDER GEH-WH01X10474
...
211
SCR (M4*L14) GEH-WH02X10289
...
212
SCREW WASHER GEH-WB01X10084
...
214
SCR (M4*L12) GEH-WH02X10294
...
217
DOOR LOCK GEH-WH10X10008
...
218
FRONT PANEL WH GEH-WH46X10268
...
224
SPRING ETC-LEVER GEH-WH01X10640
...
225
COVER HANDLE GEH-WH44X10223
...
226
HANDLE DOOR GEH-WH01X10477
...
227
LEVER DOOR GEH-WH01X10481
...
229
DOOR SWITCH GEH-WH12X10444
...
233
DOOR GLASS GEH-WH46X10228
...
234
SCREW-TAPPING (M4XL14) GEH-WH02X10325
...
235
SCREW-HEX GEH-WH02X10351
...
241
HINGE DOOR GEH-WH01X10479
...
242
BRACKET HINGE GEH-WH16X10123
...
243
HINGE GUIDE GEH-WH01X10480
...
244
BRACKET-HOLDER GEH-WH16X10155
...
245
PIN - DOOR GEH-WH01X10483
...
277
PUMP ACCESS SHROUD WH GEH-WH01X10492
...
279
PUMP ACCESS DOOR WH GEH-WH01X10641
...
282
COVER DOOR GEH-WH46X10227
...
283
DOOR WINDOW GEH-WH46X10230
...
287
DOOR GLASS HOLDER ASM GEH-WH46X10229
...
307
GASKET CLAMP FRONT PANEL GEH-WH08X10044

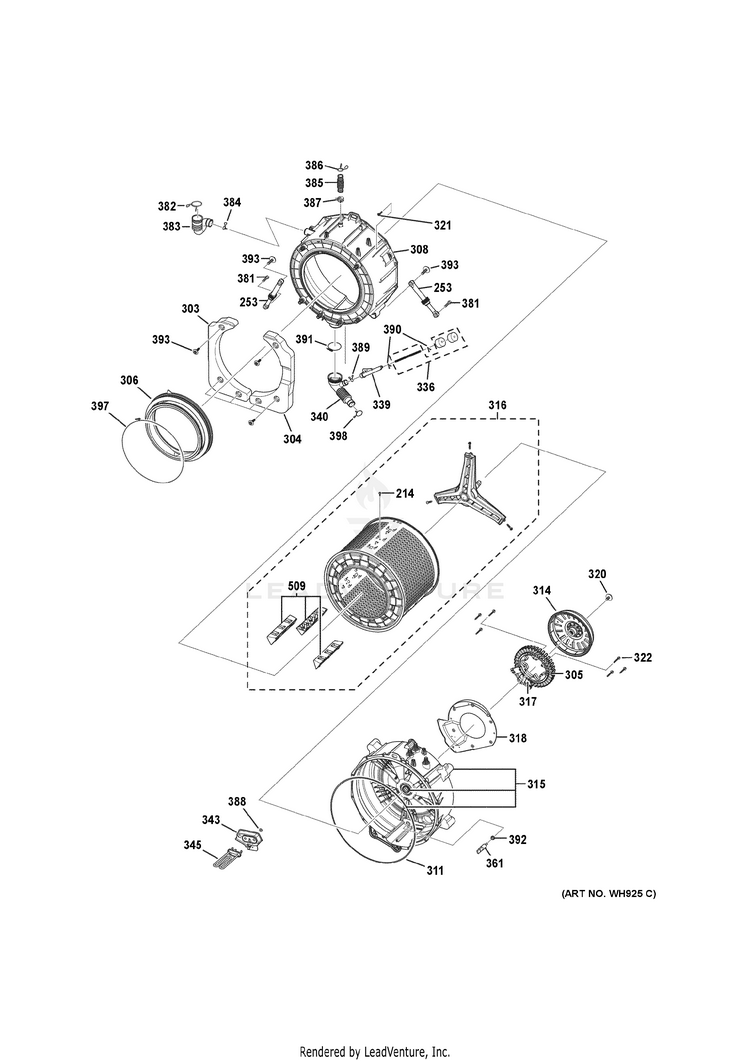

TUB & MOTOR

...
...
214
SCR (M4*L12) GEH-WH02X10294
...
253
DAMPER SHOCK (60N) GEH-WH01X10488
...
303
COUNTER WEIGHT-RIGHT GEH-WH01X10638
...
304
COUNTER WEIGHT-LEFT GEH-WH01X10639
...
305
STATOR & HALL SENSOR ASM GEH-WH39X10008
...
306
GASKET DOOR GEH-WH08X10043
...
308
TUB FRONT GEH-WH45X10091
...
311
TUB SEAL GEH-WH08X10046
...
314
ROTOR ASM GEH-WH39X10007
...
315
TUB REAR ASM GEH-WH45X10092
...
316
BASKET ASM GEH-WH45X10090
...
317
HALL SENSOR MOTOR GEH-WH12X10445
...
318
COVER MOTOR GEH-WH44X10224
...
320
BOLT W/WASHER GEH-WH02X10328
...
321
SCREW (M6.5*L25) GEH-WH02X10299
...
322
BOLT-ETC (M6XL56) GEH-WH02X10329
...
336
HOSE WATER ASM GEH-WH41X10225
...
339
AIR CHAMBER GEH-WH41X10224
...
340
DRAIN HOSE GEH-WH41X10234
...
343
COVER-HEATER GEH-WH16X10154
...
345
HEATER GEH-WH12X10446
...
361
HEATER THERMISTOR GEH-WH12X10447
...
381
BOLT HEX (M10XL40) GEH-WH02X10307
...
382
CLAMP (ID-2") GEH-WH02X10317
...
383
HOSE-DRAWER TUB GEH-WH41X10290
...
384
CLAMP HOSE ID 1.46" GEH-WH02X10352
...
385
HOSE AIR GEH-WH41X10235
...
386
CLAMP (ID-0.9") GEH-WH02X10315
...
387
CLAMP HOSE (ID-0.9") GEH-WH02X10310
...
388
WASHER-PLAIN (ID-0.28") GEH-WH02X10308
...
389
CLAMP GEH-WH02X10316
...
390
SPRING CLIP GEH-WH02X10305
...
391
CLAMP HOSE (ID-2.9") GEH-WH02X10312
...
392
PACKING THERMISTOR GEH-WH01X10490
...
393
M8 BOLT & WASHER ASM GEH-WH02X10319
...
397
GASKET CLAMP FRONT PANEL GEH-WH02X10353
...
398
CLAMP (ID-1.38") GEH-WH02X10318
...
509
BAFFLE DRUM GEH-WH01X10475
