GE WBSE2090A0WW Washer

Model: WBSE2090A0WW

Save
 Part Not Listed?Part Not Listed?
product name

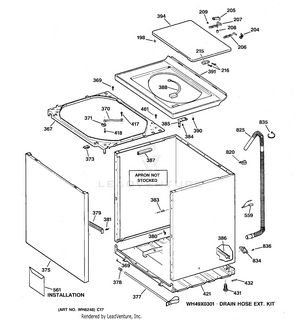

CABINET, COVER & FRONT PANEL

...
...
198
BUMPER LID GEH-WH01X2722
...
204
BUSHING HINGE GEH-WH01X2741
...
205
BUSHING HINGE GEH-WH01X10025
...
206
WIREFORM HINGE (SHORT) GEH-WH01X2740
...
207
WIREFORM HINGE GEH-WH01X2743
...
208
BUMPER HINGE GEH-WH01X2742
...
209
SCREW GEH-WH02X1211
...
215
MAGNET ASM GEH-WH12X10092
...
216
SCREW 8-16 B FLP 625 ZN GEH-WH02X10063
...
367
NO ITEM DESCRIPTION GEH-WH46X0364
...
369
SCR 8-18 AB IHW 7/16 SN GEH-WH02X1217
...
370
WH1X2727 GEH-WH01X10046
...
371
RETAINER STRAP GEH-WH01X2726
...
373
CLIP LOCKING GEH-WH02X10058
...
375
WH46X10051 GEH-WH46X10042
...
375
PANEL FRONT WH GEH-WH46X0345
...
375
PANEL FRONT WHITE GEH-WH46X10051
...
377
SHIPPING BAR ASM GEH-WH46X0344
...
378
BUTTON PLUG GEH-WH01X2745
...
379
BRACE GEH-WH16X0514
...
380
CLIP GROUND GEH-WH02X1207
...
381
STUD GROUNDING GEH-WH02X1190
...
383
PIN ALIGNMENT GEH-WH02X1189
...
384
SCR 6-20 B TRT 3/8 S GEH-WH02X1212
...
384
SCREW 8-15 A 3/4 SP HXW GEH-WH01X10109
...
385
COVER CLIP GEH-WH01X2723
...
386
BAR SELF LEVELING GEH-WH46X0342
...
387
CONDUIT GEH-WH41X10036
...
388
LID SWITCH ASSY GEH-WH12X10141
...
388
WH12X10141 GEH-WH12X10091
...
390
ISOLATOR GEH-WH01X2724
...
391
COVER ASM FINISHED GEH-WH44X10034
...
394
LID ASM FINISHED-SERV GEH-WH44X20021
...
417
SCR 10-12 A HX 1/2 S GEH-WH02X0694
...
418
SCREW 8-18 B IHW 1 S GEH-WH02X10003
...
421
BASE ASM GEH-WH46X10024
...
431
LEG LEVELING GEH-WH02X1187
...
432
PIN ROLL GEH-WH02X1188
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
559
HOUSING TERMINAL GEH-WH12X0538
...
561
PK PACK ASSY INSTALLATIO GEH-WH49X10017
...
820
CLIP ANTI-SIPHON GEH-WH01X2725
...
825
HOSE DRAIN EXTERNAL GEH-WH41X0367
...
834
RETAINER HOSE GEH-WH16X0513
...
835
STRAP GEH-WH01X2594
...
836
SCREW 8-18 AB IHWP 7/8 S GEH-WH02X10002

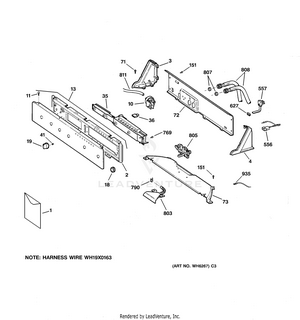

CONTROLS & BACKSPLASH

...
...
1
PM INSTRUCTION INSTALL GEH-31-15441
...
1
PM MANUAL USE & CARE GEH-49-30081
...
1
PM MANUAL USE & CARE GEH-49-90030
...
1
31-1748-2 GEH-31-1748
...
1
MINI MANUAL GEH-31-15412
...
2
SUPPORT SWITCH GEH-WH46X10048
...
3
END CAP GEH-WH42X2397
...
4
END CAP RH WHITE GEH-WH42X2398
...
10
WH12X10173 GEH-WH12X10107
...
10
SWITCH PRESSURE GEH-WH12X10173
...
11
SCR 8-18 ABFLT 5/8 SN WH GEH-WH02X1206
...
11
SCREW 8-18 AB FLT 9/16 S GEH-WH02X10089
...
13
CONTROL PANEL ASSY GEH-WH42X10211
...
18
BUTTON SWITCH GEH-WH01X10032
...
18
BUTTON SWITCH GEH-WH01X10088
...
19
KNOB & CLIP ASM WH GEH-WH01X2721
...
35
CONTROL ASM GEH-WH12X10176
...
35
WH12X10176 GEH-WH12X10106
...
36
CONNECTOR MODEL SELECT GEH-WH12X10095
...
41
U CLIP GEH-WE01X0980
...
71
SCR 8-18 B 1/2 HXW P GEH-WH02X1205
...
72
WH46X337 GEH-WH46X10035
...
73
COVER BOTTOM GEH-WH46X10047
...
151
SCR 8-18 B IHW 1/2 S N GEH-WH02X1210
...
556
HOUSING TERMINAL GEH-WH12X0497
...
557
CORDSET ASM GEH-WH19X0311
...
627
STRAIN RELIEF GEH-WH12X10025
...
769
SCR 8-18 B HXW 1/4 S GEH-WB01X0500
...
790
CLAMP HOSE GEH-WH01X2036
...
803
HOSE & WATER INLET GEH-WH41X10037
...
805
VALVE TRIPLE WATER GEH-WH13X0086
...
807
HOSE WASHER GEH-WH02X0042
...
808
INLET HOSE GEH-WH41X0058
...
811
HOSE PRESSURE GEH-WH41X0365
...
935
TERMINAL SPECIAL GEH-WD01X1434

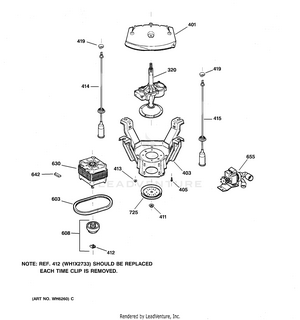

SUSPENSION, PUMP & DRIVE COMPONENTS

...
...
320
TRANSMISSION & BRAKE ASS GEH-WH38X10002
...
401
SHIELD TUB GEH-WH45X10025
...
403
WH17X0101 GEH-WH17X10003
...
405
SCR 1/4-20 B HXW 3/4 SNS GEH-WH02X1201
...
411
NUT PULLEY GEH-WH02X1203
...
412
CLIP CLUTCH SPRING GEH-WH01X2733
...
413
NUT MOTOR HEX GEH-WH02X1204
...
414
ROD & SPRING ASM GEH-WH16X0544
...
415
ROD & SPRING ASM GEH-WH16X0543
...
419
SOCKET ROD SUPPORT GEH-WH01X10001
...
603
BELT GEH-WH01X2026
...
608
CLUTCH ASM GEH-WH05X0253
...
630
WH20X10006 GEH-WH20X10009
...
642
HOUSING SPECIAL GEH-WH12X1059
...
655
PUMP AND LABEL ASM GEH-WH23X10015
...
725
NO ITEM DESCRIPTION GEH-WH07X0126

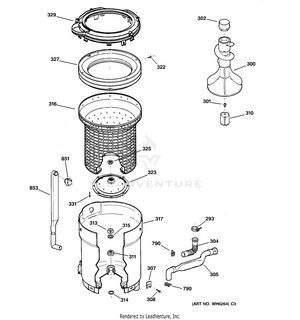

TUB, BASKET & AGITATOR

...
...
293
CLAMP TUB OUTLET GEH-WH01X2753
...
293
CLAMP HOSE GEH-WH01X10134
...
300
AGITATOR ASM MULTI GEH-WH43X0142
...
301
SCREW 1/4-20 MCH 5/8 S GEH-WH02X10037
...
302
CAP AGITATOR SHORT GEH-WH43X10005
...
304
HOSE DRAIN INLET (TUB TO GEH-WH41X0371
...
305
HOSE DRAIN ASM GEH-WH41X0374
...
307
CLAMP - TUB GEH-WH01X2730
...
308
SCR 5/16-18 X 7/8 HWH S GEH-WH02X1209
...
310
COUPLING AGITATOR GEH-WH43X10009
...
311
SEAL TUB GEH-WH02X1196
...
313
RING SPLIT GEH-WH02X1195
...
314
WASHER TUB BEARING GEH-WH02X1197
...
315
FLAT WASHER GEH-WH02X1199
...
316
BASKET EXTRA LARGE GEH-WH45X10014
...
317
TUB ASSY X-LARGE GEH-WH45X10024
...
322
SCREW GEH-WH02X1194
...
323
HUB GEH-WH45X10027
...
325
NUT HUB GEH-WH02X1193
...
327
BALANCE RING ASM GEH-WH45X0152
...
329
COVER TUB GEH-WH45X10022
...
331
SCREW 14-10 A TRT 7/8 S GEH-WH02X10001
...
790
CLAMP HOSE GEH-WH01X2036
...
851
GASKET FLOOD HEAD GEH-WH01X2729
...
853
HOSE FLOOD GEH-WH41X0369
...
...
...
