GE SCB1000MBB001 Microwave Or Advantium

Model: SCB1000MBB001

Save Part Not Listed?
product name

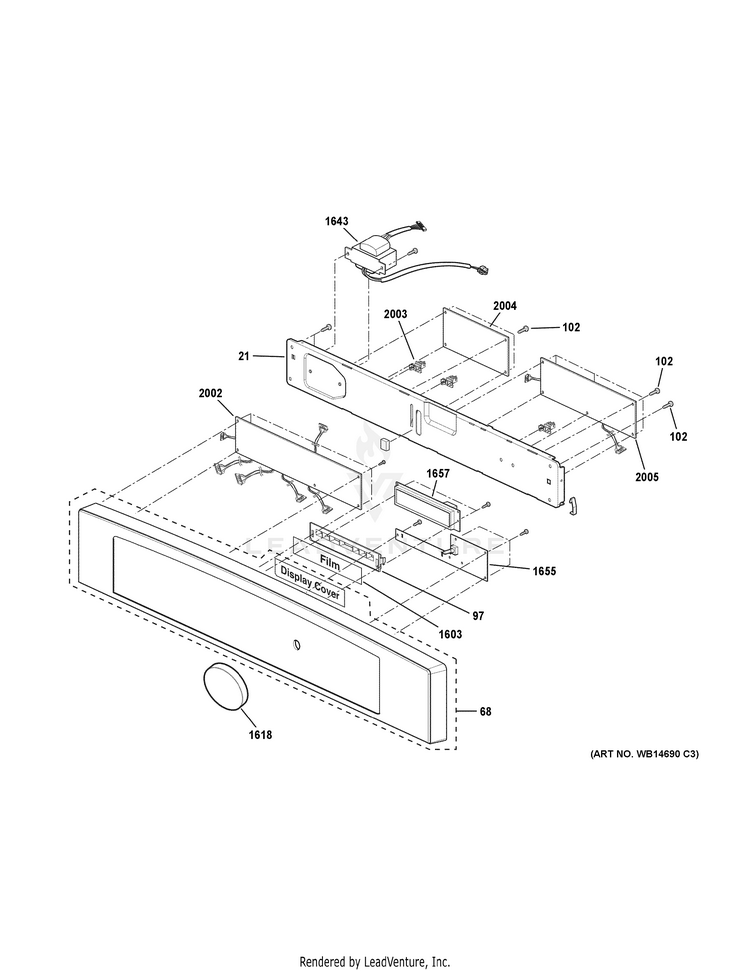

CONTROL PARTS

...
...
21
BRACKET,CONTROL PANEL GEH-WB02X11320
...
68
CONTROLLER ASM, BB GEH-WB07X11262
...
97
HOLDER DISPLAY GEH-WB02X11227
...
102
SCREW TAPPING GEH-WB01X1514
...
1603
INDICATOR GEH-WB27X11059
...
1618
KNOB BLACK GEH-WB03X10131
...
1643
TRANSFORMER POWER GEH-WB20X10021
...
1643
TRANSFORMER POWER GEH-WB17X10021
...
1655
SELECTOR BOARD GEH-WB27X10860
...
1657
DIGITRON GEH-WB27X10856
...
2002
CONTROL BOARD GEH-WB27X10858
...
2003
SUPPORTER,BOARD GEH-WB02X11322
...
2004
POWER BOARD GEH-WB27X10861
...
2005
RELAY BOARD GEH-WB27X10859

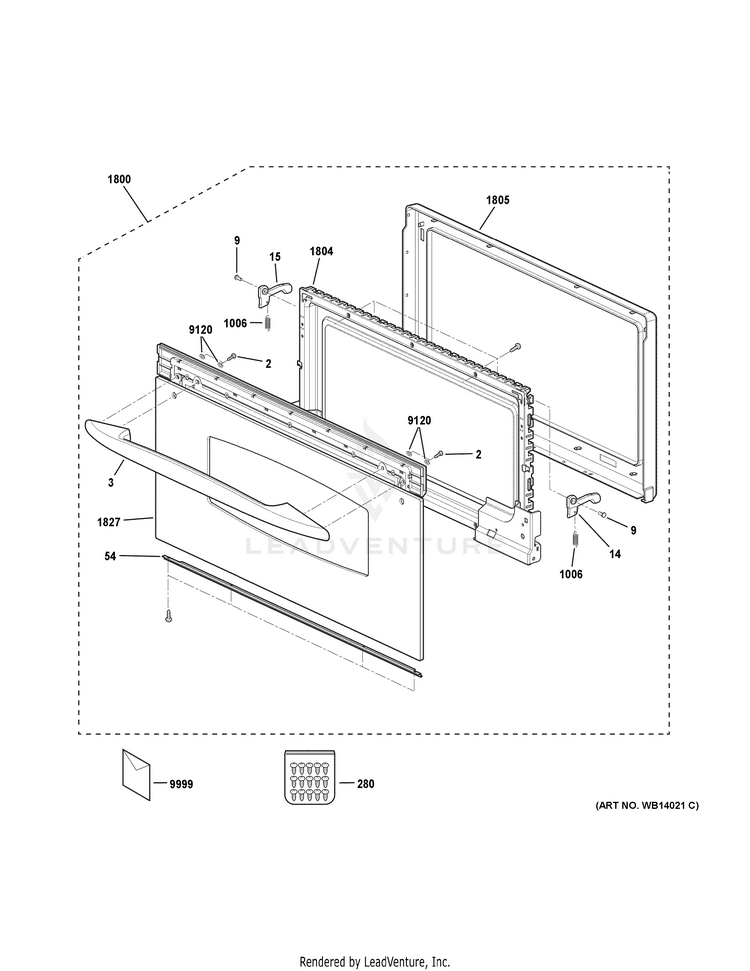

DOOR PARTS

...
...
2
SCREW, HILO, 8/5" GEH-WB01X10205
...
3
HANDLE ASM BK GEH-WB15X10184
...
9
PIN HINGE GEH-WB06X10637
...
14
LATCH RT GEH-WB02X11213
...
15
LATCH LT GEH-WB02X11212
...
54
MOUNT GEH-WB06X10648
...
280
ADV HARDWARE ASM BAG GEH-WB01X10304
...
1006
SPRING GEH-WB09X10028
...
1800
DOOR ASM BK GEH-WB55X10888
...
1804
DOOR FRAME ASM GEH-WB55X10782
...
1805
CHOKE COVER GEH-WB55X10784
...
1827
GLASS ASM GEH-WB36X10338
...
9120
WASHER- PLAIN GEH-WB01X1521
...
9999
MINI - MANUAL GEH-31-40461-1
...
9999
INSTALLATION INSTRUCTION GEH-49-40556
...
9999
DVD/VHS GEH-49-40185
...
9999
DOOR REMOVAL TOOL GEH-WB01X10318
...
9999
USE & CARE GEH-49-40555

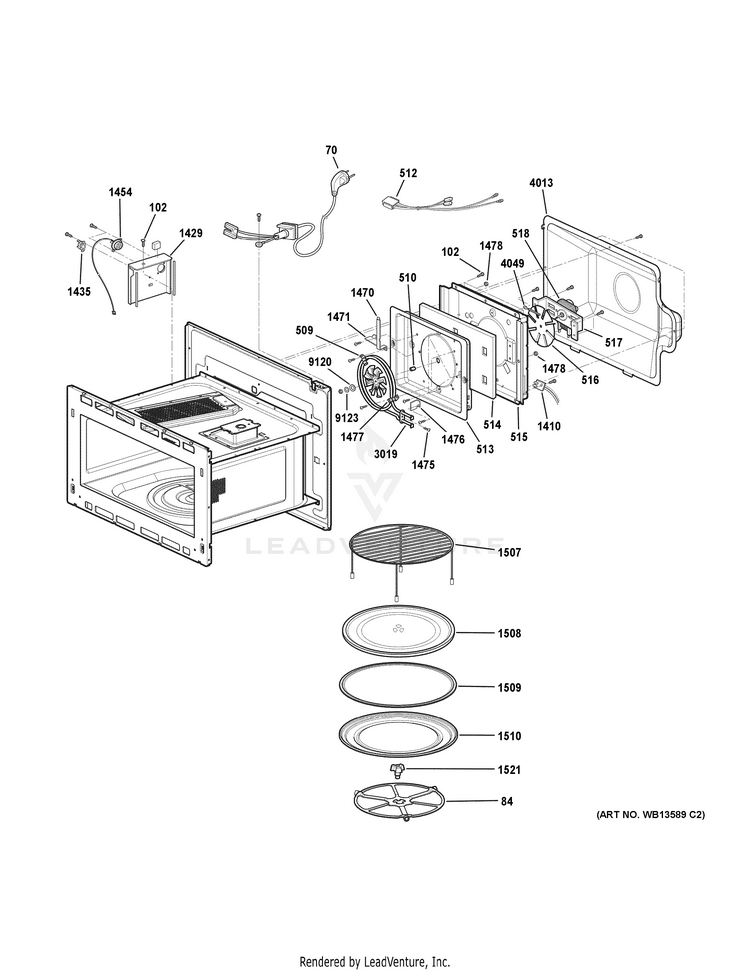

INTERIOR PARTS (1)

...
...
70
POWER CORD ASM GEH-WB18X10344
...
84
ROTATING RING ASM GEH-WB06X10651
...
102
SCREW TAPPING GEH-WB01X1514
...
509
FAN - STIRRER GEH-WB06X10266
...
510
SPACER GEH-WB01X1518
...
512
LEAD WIRE ASSY GEH-WB18X10127
...
513
CHAMBER GEH-WB06X10641
...
514
GLASS WOOL GEH-WB06X10650
...
515
CHAMBER GEH-WB06X10642
...
516
FAN BLADE GEH-WB06X0475
...
517
BRACKET - MTR CIRCU GEH-WB02X10542
...
518
CONVECTION FAN MOTOR GEH-WB26X10084
...
1410
THERMISTOR NTC GEH-WB18X10287
...
1429
AIR TUNNEL GEH-WB02X11232
...
1435
THERMOSTAT GEH-WB21X10149
...
1454
SENSOR ASM GEH-WB27X10857
...
1470
BRACKET HEATER GEH-WB02X11218
...
1471
BRACKET HEATER GEH-WB02X11219
...
1475
SCREW - HEATER SHEATH GEH-WB01X1504
...
1476
BRACKET HEATER GEH-WB02X11220
...
1477
HOLDER - HEATER GEH-WB06X10264
...
1478
NUT COMMON GEH-WB01X1520
...
1507
RACK GEH-WB49X10213
...
1508
TRAY GLASS GEH-WB49X10166
...
1509
TRAY,METAL GEH-WB49X10187
...
1510
SPEEDCOOK TRAY FOR THE A GEH-WB49X10167
...
1521
SHAFT ASM GEH-WB06X10693
...
3019
HEATER SHEATH GEH-WB44X10050
...
4013
COVER BACK GEH-WB56X10637
...
4049
HOLDER WIRE GEH-WB02X11233
...
9120
WASHER- PLAIN GEH-WB01X1521
...
9123
WASHER COMMON GEH-WB01X1522

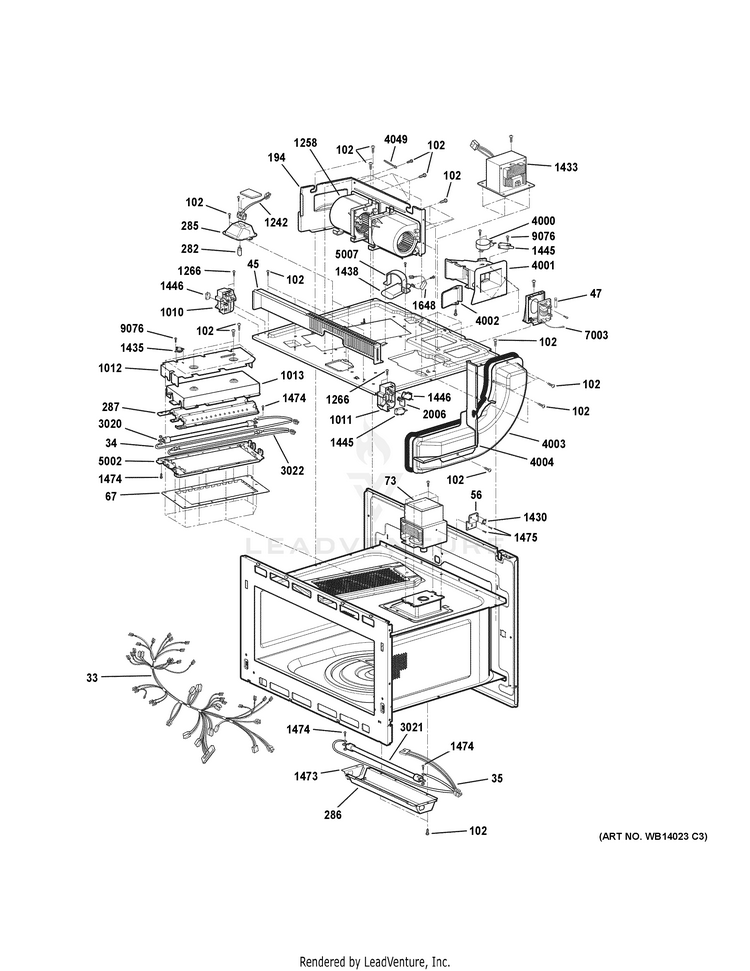

INTERIOR PARTS (2)

...
...
33
HARNESS GEH-WB18X10345
...
34
HARNESS GEH-WB18X10290
...
35
HARNESS,SINGLE GEH-WB18X10387
...
45
PROTECTOR (MECH) GEH-WB06X10645
...
47
FUSE GEH-WB27X10388
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
67
BRACKET GEH-WB02X11222
...
73
MAGNETRON GEH-WB27X10305
...
102
SCREW TAPPING GEH-WB01X1514
...
194
MOUNT GEH-WB06X10647
...
282
LAMP 12V 20W GEH-WB36X10176
...
285
COVER,LAMP GEH-WB02X11319
...
286
REFLECTOR GEH-WB02X11318
...
287
REFLECTOR GEH-WB02X11210
...
1010
BOARD LATCH LT GEH-WB06X10639
...
1011
BOARD LATCH RT GEH-WB06X10640
...
1012
COVER HEATER GEH-WB06X10643
...
1013
COVER HEATER GEH-WB06X10644
...
1242
HOLDER ASSEMBLY GEH-WB06X10726
...
1258
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
1266
SCREW GEH-WB01X10121
...
1430
THERMOSTAT GEH-WB21X10148
...
1433
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
1435
THERMOSTAT GEH-WB21X10149
...
1438
CAPACITOR, H.V GEH-WB27X10701
...
1445
SWITCH MICRO GEH-WB24X0817
...
1446
SWITCH MICRO GEH-WB24X0815
...
1473
BRACKET HEATER GEH-WB02X11223
...
1474
SCREW -LEAD WIRE ASSY GEH-WB02X10726
...
1475
SCREW - HEATER SHEATH GEH-WB01X1504
...
1648
CABLE ASM GEH-WB18X10286
...
2006
LEVER GEH-WB02X11214
...
3020
HEATER MIRACLON GEH-WB21X10143
...
3021
HEATER MIRACLON GEH-WB21X10141
...
3022
HEATER HALOGEN GEH-WB21X10142
...
4000
MOTOR GEH-WB26X10083
...
4001
DUCT GEH-WB02X11231
...
4002
BRACKET DAMPER GEH-WB02X11217
...
4003
DUCT GEH-WB02X11230
...
4004
BARRIER GEH-WB02X11215
...
4049
HOLDER WIRE GEH-WB02X11233
...
5002
SUPPORTER GEH-WB02X11461
...
5007
BRACKET CAPACITOR GEH-WB02X11226
...
7003
FILTER ASSY NOISE GEH-WB27X10519
...
9076
SCREW -SWITCH MICRO GEH-WB01X1509

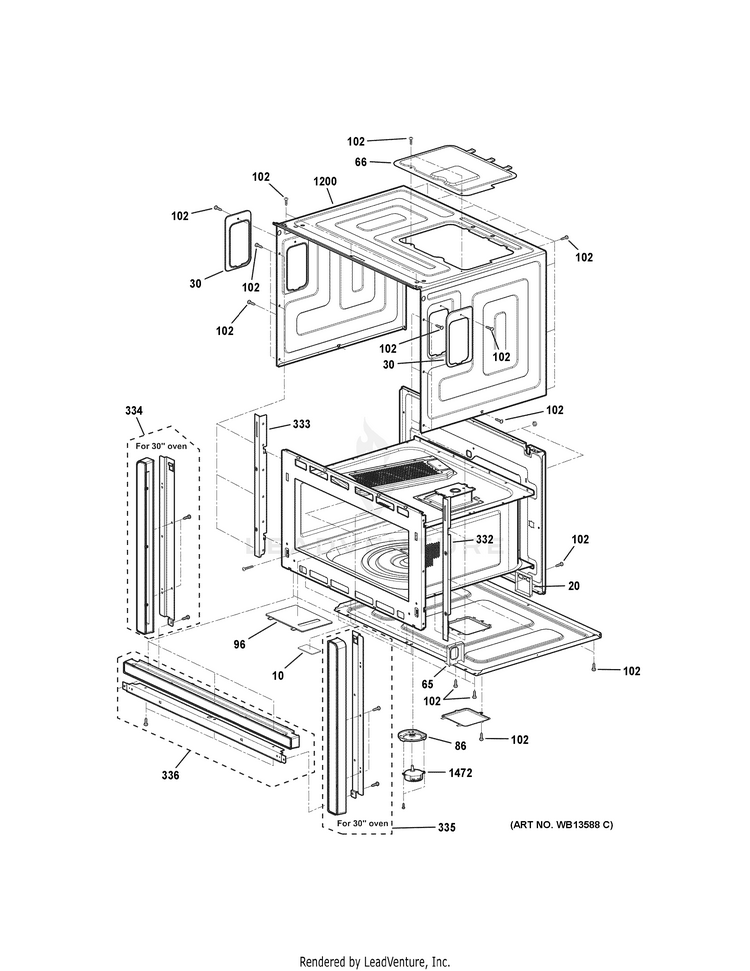

OVEN CAVITY PARTS

...
...
10
SEAL TAPE GEH-WB55X10802
...
20
BRACKET GEH-WB02X11225
...
30
DOOR SWITCH ACCESS CVR GEH-WB02X10684
...
65
BRACKET GEH-WB02X11224
...
66
BRACKET GEH-WB02X11221
...
86
MOUNT GEH-WB06X10649
...
96
CANOPY MICA GEH-WB06X10638
...
102
SCREW TAPPING GEH-WB01X1514
...
332
TRIM RT GEH-WB07X10916
...
333
TRIM LT GEH-WB07X10917
...
334
KIT ASM LT GEH-WB64X10007
...
335
KIT ASM RT GEH-WB64X10008
...
336
KIT ASM BT GEH-WB64X10009
...
1200
CASE,FLAT GEH-WB56X10868
...
1472
MOTOR TURNTABLE GEH-WB26X10193

GE SCB1000MBB001

...
...
21
Bracket,Control Panel GEH-Wb02X11320
...
68
Controller Asm, Bb GEH-Wb07X11262
...
68
Controller Asm, Cc GEH-Wb07X11266
...
68
Controller Asm, Ww GEH-Wb07X11263
...
97
Holder Display GEH-Wb02X11227
...
102
Screw,Truss Head Tapping GEH-Wb01X1514
...
1603
Indicator GEH-Wb27X11059
...
1618
Knob Bk GEH-Wb03X10131
...
1618
Knob Bq GEH-Wb03X10278
...
1618
Knob Wh GEH-Wb03X10129
...
1643
Transformer Power GEH-Wb17X10021
...
1643
Transformer, Power GEH-Wb20X10021
...
1655
Pwb(Pcb) Assembly Sub GEH-Wb27X10860
...
1657
Digitron GEH-Wb27X10856
...
2002
Pwb(Pcb) Assembly Sub GEH-Wb27X10858
...
2003
Supporter,Board GEH-Wb02X11322
...
2004
Pwb(Pcb) Assembly Sub GEH-Wb27X10861
...
2005
Pwb(Pcb) Assembly Sub GEH-Wb27X10859

GE SCB1000MBB001

...
...
2
Screw, Hilo, 8/5" GEH-Wb01X10205
...
3
Handle Assembly Bk GEH-Wb15X10184
...
3
Handle Assembly Bq GEH-Wb15X10186
...
3
Handle Assembly Wh GEH-Wb15X10185
...
9
Pin Hinge GEH-Wb06X10637
...
14
Latch Rt GEH-Wb02X11213
...
15
Latch Lt GEH-Wb02X11212
...
54
Mount GEH-Wb06X10648
...
54
Mount GEH-Wb06X10652
...
54
Mount GEH-Wb06X10653
...
280
Adv Hardware Assembly Bag GEH-Wb01X10304
...
1006
Spring GEH-Wb09X10028
...
1800
Door Assembly Bk GEH-Wb55X10888
...
1800
Door Assembly Cc GEH-Wb55X10889
...
1800
Door Assembly Wh GEH-Wb55X10890
...
1804
Door Frame Assembly GEH-Wb55X10782
...
1805
Choke Cover GEH-Wb55X10784
...
1827
Glass Assembly GEH-Wb36X10338
...
1827
Glass Assembly GEH-Wb36X10339
...
1827
Glass Assembly GEH-Wb36X10340
...
9120
Washer, Plain GEH-Wb01X1521
...
9999
Cd-Rom GEH-49-40185
...
9999
Door Removal Tool GEH-Wb01X10318
...
9999
Installation Instruction GEH-49-40556
...
9999
Mini - Manual GEH-31-40461-1
...
9999
Use & Care Manual GEH-49-40555

GE SCB1000MBB001

...
...
70
Power Cord Assembly GEH-Wb18X10344
...
84
Rotating Ring Assembly GEH-Wb06X10651
...
102
Screw,Truss Head Tapping GEH-Wb01X1514
...
509
Fan - Stirrer GEH-Wb06X10266
...
510
Ring, Shaft GEH-Wb01X1518
...
512
Lead Wire Assembly GEH-Wb18X10127
...
513
Chamber GEH-Wb06X10641
...
514
Glass Wool GEH-Wb06X10650
...
515
Chamber GEH-Wb06X10642
...
516
Blade, Motor Cooling Fan GEH-Wb06X0475
...
517
Motor Bracket GEH-Wb02X10542
...
518
Motor - Circulation GEH-Wb26X10084
...
1410
Thermistor Ntc GEH-Wb18X10287
...
1429
Air Tunnel GEH-Wb02X11232
...
1435
Thermostat GEH-Wb21X10149
...
1454
Sensor Assembly GEH-Wb27X10857
...
1470
Bracket Heater GEH-Wb02X11218
...
1471
Bracket Heater GEH-Wb02X11219
...
1475
Screw, Truss Head M GEH-Wb01X1504
...
1476
Bracket Heater GEH-Wb02X11220
...
1477
Holder - Heater GEH-Wb06X10264
...
1478
Nut,Hexagon GEH-Wb01X1520
...
1507
Shelf GEH-Wb49X10213
...
1508
Tray Glass GEH-Wb49X10166
...
1509
Tray,Metal GEH-Wb49X10187
...
1510
Tray Metal GEH-Wb49X10167
...
1521
Shaft Assembly GEH-Wb06X10693
...
3019
Heater Sheath GEH-Wb44X10050
...
4013
Cover Back GEH-Wb56X10637
...
4049
Holder Wire GEH-Wb02X11233
...
9120
Washer, Plain GEH-Wb01X1521
...
9123
Washer, Spring Lock GEH-Wb01X1522

GE SCB1000MBB001

...
...
33
Harness GEH-Wb18X10345
...
34
Harness GEH-Wb18X10290
...
35
Harness,Single GEH-Wb18X10387
...
45
Protector (Mech) GEH-Wb06X10645
...
47
Fuse GEH-Wb27X10388
...
56
Bracket- Magnetron GEH-Wb02X10721
...
67
Bracket GEH-Wb02X11222
...
73
Magnetron GEH-Wb27X10305
...
102
Screw,Truss Head Tapping GEH-Wb01X1514
...
194
Mount GEH-Wb06X10647
...
282
Lamp 12V 20W GEH-Wb36X10176
...
285
Cover,Lamp GEH-Wb02X11319
...
286
Reflector GEH-Wb02X11318
...
287
Reflector GEH-Wb02X11210
...
1010
Board Latch Lt GEH-Wb06X10639
...
1011
Board Latch Rt GEH-Wb06X10640
...
1012
Cover Heater GEH-Wb06X10643
...
1013
Cover Heater GEH-Wb06X10644
...
1242
Holder Assembly GEH-Wb06X10726
...
1258
Motor(Circ) Circulation GEH-Wb26X10182
...
1266
Screw GEH-Wb01X10121
...
1430
Thermostat GEH-Wb21X10148
...
1433
Transformer,High Voltage GEH-Wb17X10030
...
1435
Thermostat GEH-Wb21X10149
...
1438
Capacitor H.V GEH-Wb27X10701
...
1445
Switch Monitor Interlock GEH-Wb24X0817
...
1446
Switch, Primary GEH-Wb24X0815
...
1473
Bracket Heater GEH-Wb02X11223
...
1474
Screw -Lead Wire Assembly GEH-Wb02X10726
...
1475
Screw, Truss Head M GEH-Wb01X1504
...
1643
Transformer Power GEH-Wb17X10021
...
1643
Transformer, Power GEH-Wb20X10021
...
1648
Cable Assembly GEH-Wb18X10286
...
2006
Lever GEH-Wb02X11214
...
3020
Heater Miraclon GEH-Wb21X10143
...
3021
Heater Miraclon GEH-Wb21X10141
...
3022
Heater Halogen GEH-Wb21X10142
...
4000
Motor GEH-Wb26X10083
...
4001
Duct GEH-Wb02X11231
...
4002
Bracket Damper GEH-Wb02X11217
...
4003
Duct GEH-Wb02X11230
...
4004
Barrier GEH-Wb02X11215
...
4049
Holder Wire GEH-Wb02X11233
...
5002
Supporter GEH-Wb02X11461
...
5007
Bracket Capacitor GEH-Wb02X11226
...
7003
Filter Assembly Noise GEH-Wb27X10519
...
9076
Screw, Pan Head Tapping GEH-Wb01X1509

GE SCB1000MBB001

...
...
10
Seal Tape GEH-Wb55X10802
...
20
Bracket GEH-Wb02X11225
...
30
Door Switch Access Cvr GEH-Wb02X10684
...
65
Bracket GEH-Wb02X11224
...
66
Bracket GEH-Wb02X11221
...
86
Mount GEH-Wb06X10649
...
96
Canopy Mica GEH-Wb06X10638
...
102
Screw,Truss Head Tapping GEH-Wb01X1514
...
332
Trim Rt GEH-Wb07X10916
...
332
Trim Rt GEH-Wb07X10921
...
332
Trim Rt GEH-Wb07X10925
...
333
Trim Lt GEH-Wb07X10917
...
333
Trim Lt GEH-Wb07X10922
...
333
Trim Lt GEH-Wb07X10926
...
334
Kit Assembly Lt GEH-Wb64X10007
...
334
Kit Assembly Lt GEH-Wb64X10010
...
334
Kit Assembly Lt GEH-Wb64X10013
...
335
Kit Assembly Rt GEH-Wb64X10008
...
335
Kit Assembly Rt GEH-Wb64X10011
...
335
Kit Assembly Rt GEH-Wb64X10014
...
336
Kit Assembly Bt GEH-Wb64X10009
...
336
Kit Assembly Bt GEH-Wb64X10012
...
336
Kit Assembly Bt GEH-Wb64X10015
...
1200
Outer Case U-Bending GEH-Wb56X10868
...
1472
Motor Turntable GEH-Wb26X10193
