GE SCA1000HWW03 Microwave

Model: SCA1000HWW03

Save Part Not Listed?
product name

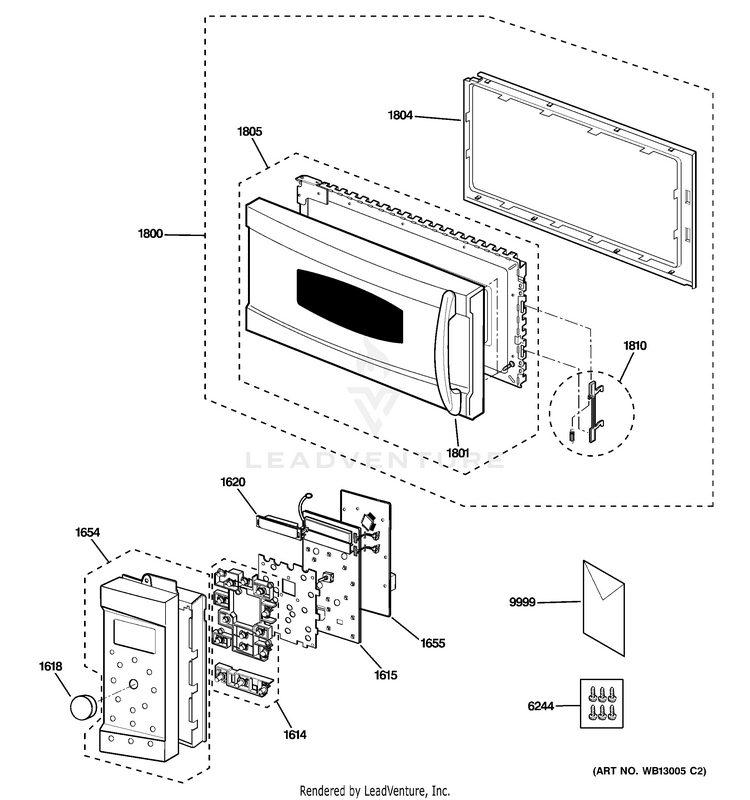

CONTROL PANEL & DOOR PARTS

...
...
1614
BUTTON ASSY WHT GEH-WB03X10217
...
1615
KEY PCB ASM GEH-WB27X10775
...
1618
KNOB WHITE GEH-WB03X10129
...
1620
LED HOLDER ASSY GEH-WB06X10321
...
1654
CONTROL PANEL ASM WHT GEH-WB07X10777
...
1655
SMART BOARD GEH-WB27X10776
...
1800
DOOR ASM WHT GEH-WB56X10496
...
1801
DOOR HANDLE WHT GEH-WB15X10143
...
1804
CHOKE COVER GEH-WB55X10428
...
1805
DOOR GROSS SUB ASM WHT GEH-WB55X10708
...
1810
LATCH PAWL GEH-WB10X10021
...
6244
ADV HARDWARE ASM BAG GEH-WB01X10304
...
9999
MINI MANUAL GEH-31-40419
...
9999
TEMPLATE REAR GEH-49-40177-1
...
9999
MANUAL,OWNERS GEH-49-40401-1
...
9999
TEMPLATE TOP GEH-49-40176-1
...
9999
COOKBOOK GEH-49-40167
...
9999
INSTALLATION INSTRUCTION GEH-49-40157-2

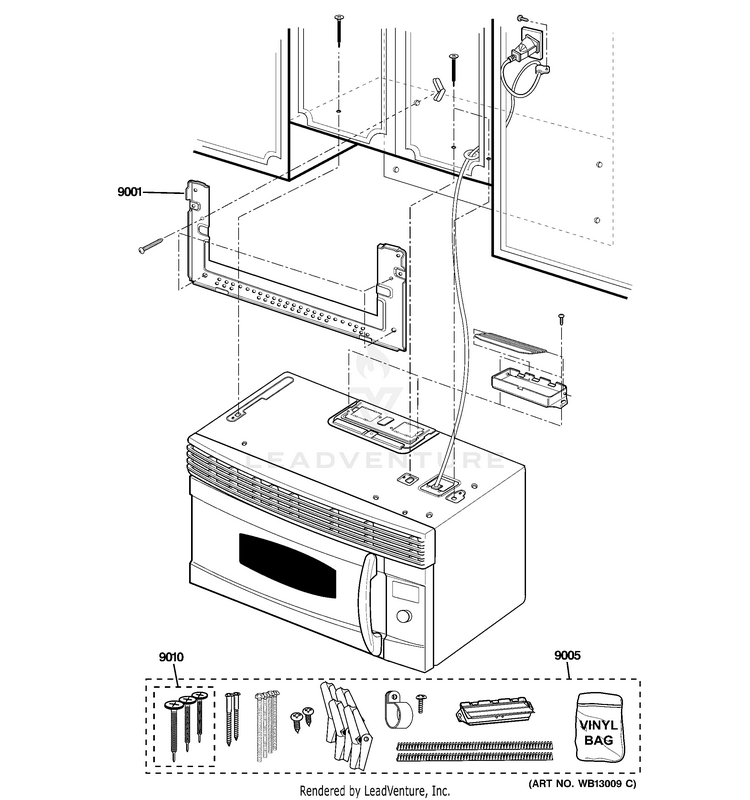

INSTALLATION PARTS

...
...
9001
MOUNTING PLATE ASSY GEH-WB56X10204
...
9005
INSTALLATION KIT ASSY GEH-WB64X10003
...
9010
MOUNTING BOLTS GEH-WB01X10125

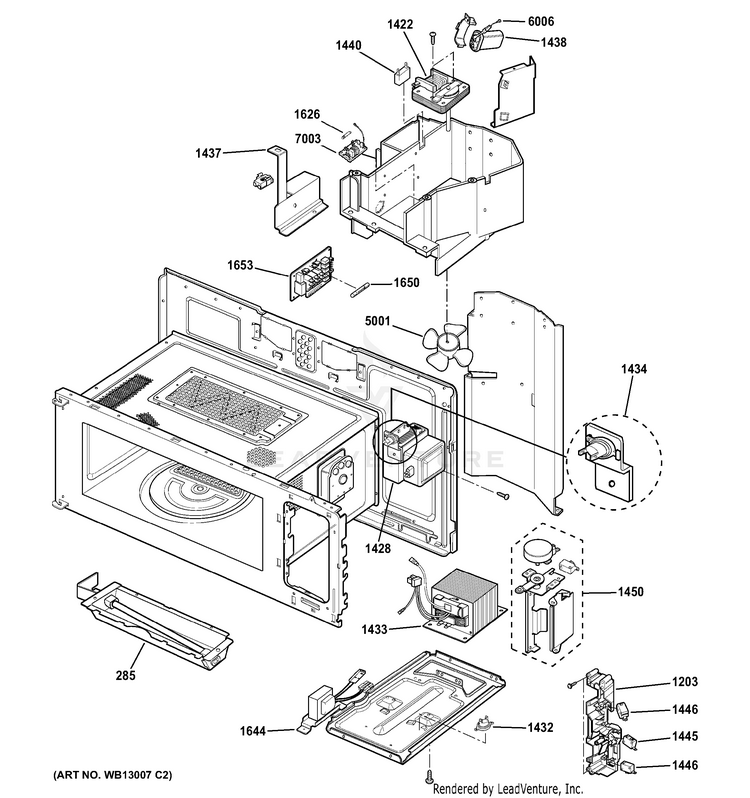

INTERIOR PARTS (1)

...
...
285
REFLECTOR ASSY GEH-WB36X10180
...
1203
LATCH BRACKET GEH-WB06X10216
...
1422
MOTOR FAN GEH-WB26X10189
...
1428
MAGNETRON ASM GEH-WB26X26221
...
1432
TCO BASE HOOD GEH-WB21X10045
...
1433
TRANSFORMER,H.V. GEH-WB27X10774
...
1434
MGT THERMO ASSY GEH-WB21X10054
...
1437
BRACKET MOUNT GEH-WB06X10316
...
1438
CAPACITOR HIGH VOLT GEH-WB27X10233
...
1440
CAPACITOR GEH-WB27X10808
...
1445
SWITCH,MICRO GEH-WB24X10112
...
1446
SWITCH,MICRO GEH-WB24X10113
...
1450
DAMPER INLET ASM GEH-WB06X10668
...
1626
FUSE GEH-WB27X10388
...
1644
TRANSFORMER POWER GEH-WB20X10023
...
1650
FUSE,12A GEH-WB27X10471
...
1653
RELAY PCB GEH-WB27X10777
...
5001
FAN BLADE GEH-WB38X10024
...
6006
CABLE ASM GEH-WB18X10286
...
7003
FILTER ASSY NOISE GEH-WB27X10519

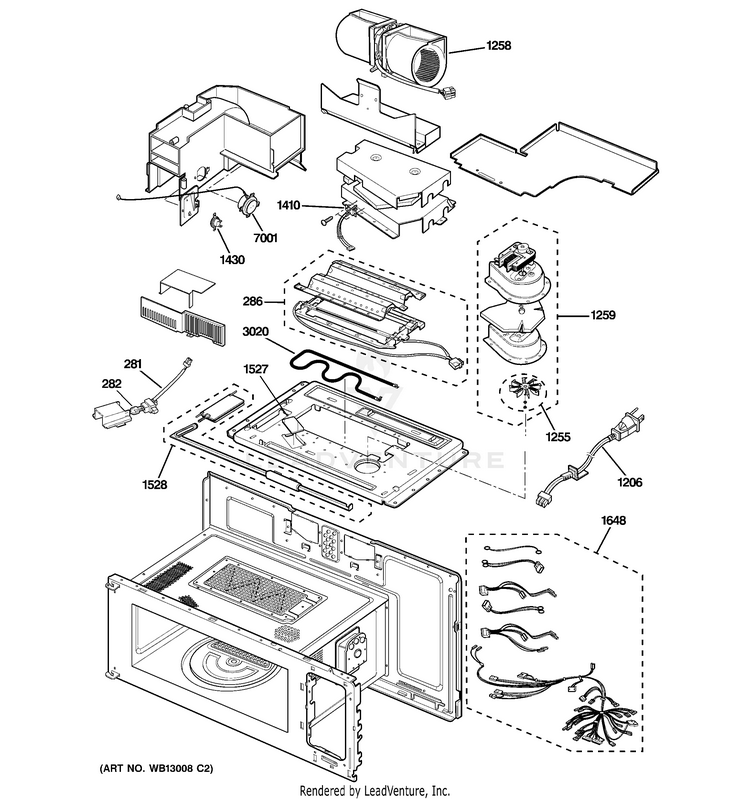

INTERIOR PARTS (2)

...
...
281
LAMP REFLECTOR ASM GEH-WB36X10253
...
282
LAMP HALOGEN GEH-WB08X10050
...
286
REFLECTOR ASSY GEH-WB36X10182
...
1206
POWER CORD ASM GEH-WB18X10311
...
1255
FAN BLADE ASSY GEH-WB38X10055
...
1258
MOTOR VENT GEH-WB26X10100
...
1259
BLOWER ASSY GEH-WB38X10054
...
1410
THERMISTOR GEH-WB27X10468
...
1430
THERMOSTAT-UPPER HEATER GEH-WB21X10046
...
1527
GLASS OVEN LAMP GEH-WB06X10317
...
1528
DAMPER OUTLET ASSY GEH-WB06X10318
...
1648
LEAD WIRE TOTAL ASM GEH-WB18X10310
...
3020
HEATER GEH-WB21X10128
...
7001
SENSOR ASSY GEH-WB24X10044

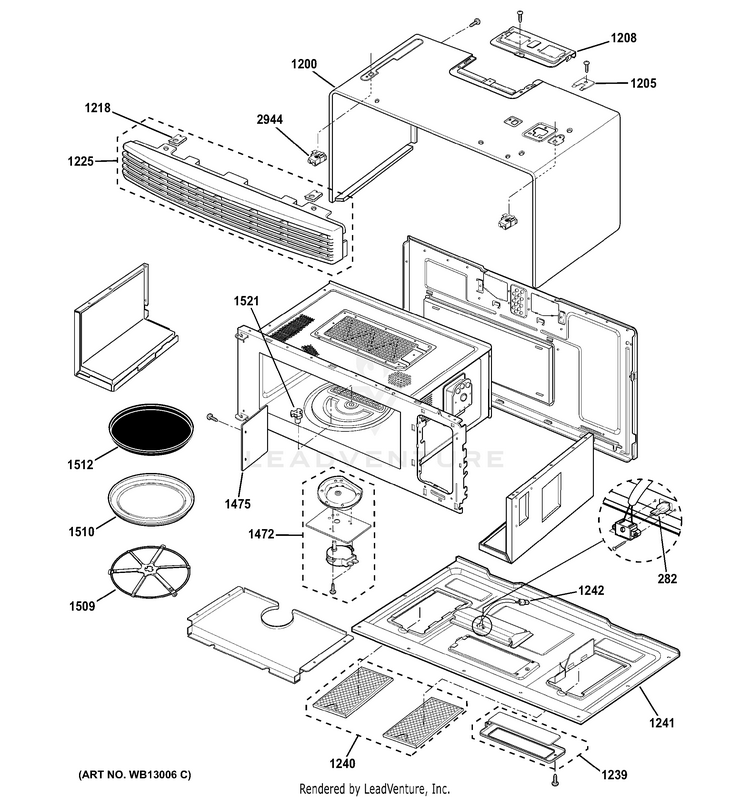

OVEN CAVITY PARTS

...
...
282
LAMP HALOGEN GEH-WB08X10050
...
1200
OUTER CASE WHITE GEH-WB56X10207
...
1205
COVER POWER CORD GEH-WB06X10308
...
1208
MOUNT VENT MOTOR COVER GEH-WB06X10313
...
1218
GRILLE CLIPS GEH-WB06X10320
...
1225
GRILLE ASSEMBLY WHT GEH-WB07X10776
...
1239
COOKTOP GLASS ASSY GEH-WB36X10178
...
1240
GREASE FILTER ASSY GEH-WB06X10309
...
1241
BASE PLATE ASM GEH-WB56X10420
...
1242
HOLDER ASSEMBLY GEH-WB06X10554
...
1472
MOTOR TURNTABLE ASM GEH-WB26X10188
...
1475
WAVE GUIDE - MICA COVER GEH-WB06X10311
...
1509
ROTATING RING ASM GEH-WB06X10667
...
1510
GLASS TRAY GEH-WB49X10074
...
1512
SPEEDCOOKTRAY-ADV 120-24 GEH-WB49X10053
...
1521
SHAFT ASSY GEH-WB06X10312
...
2944
NUT ASSY GEH-WB01X10124
