GE RE2H50R6-1NCWW WATER HEATER

Model: RE2H50R6-1NCWW

Back To Assemblies

Save Part Not Listed?
product name

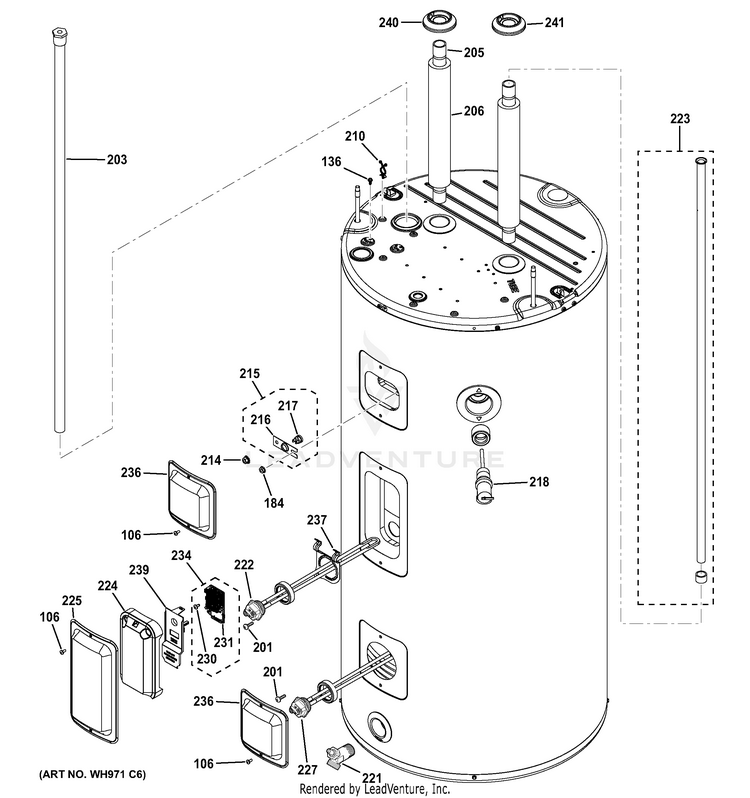

BODY PARTS

...
...
106
SCR 8-18 B PNT7/16 S RED GEH-WS02X10083
...
136
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
184
NUT KEPS 10-32 SPECIAL GEH-WH02X10300
...
201
SCR 10-32 PNUP 13/32 S GEH-WS02X10077
...
203
ROD ANODE ISOLATED GEH-WS02X20943
...
205
WATER EXTENSION PIPE GEH-WS07X20401
...
206
TUBE INSULATION, PIPE GEH-WS07X10031
...
210
WIRE TIE BALL GEH-WS02X10073
...
214
1/4-20 HEX NUT - LOCKING GEH-WS02X10075
...
215
T2 TANK THERMISTOR ASM GEH-WS17X10013
...
216
BRACKET THERMISTOR T2 GEH-WS28X10074
...
217
TANK THERMISTOR T2 GEH-WS17X10006
...
218
VALVE, TEMP/PRESSURE REL GEH-WS06X10014
...
221
VALVE DRAIN STRAIGHT GEH-WS06X20402
...
222
ELEMENT HEATING W GASKET GEH-WS51X10002
...
223
DIPTUBE ASM GEH-WS08X20361
...
224
COVER ELMNT (UPPER) EPS GEH-WS82X10006
...
225
COVER ELMNT METAL U. RED GEH-WS31X10055
...
227
ELEMENT HEATING W GASKET GEH-WS51X20161
...
230
SCR 10-32 PNUP 3/8 S GEH-WS02X10076
...
231
TCO (THERMAL CUT OUT) GEH-WS17X10009
...
234
TCO DLB AND SCREWS GEH-WS17X10012
...
236
COVER ELMNT METAL L. RED GEH-WS31X10056
...
237
CLIP SPRING TCO GEH-WS03X10074
...
239
BARRIER DIELECTRIC GEH-WS34X10026
...
240
GROMMET OUTLET, RED GEH-WS01X10050
...
241
GROMMET INLET, BLUE GEH-WS01X10051
