GE Profile PTD9000BN1TS Electric Range

Model: PTD9000BN1TS

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

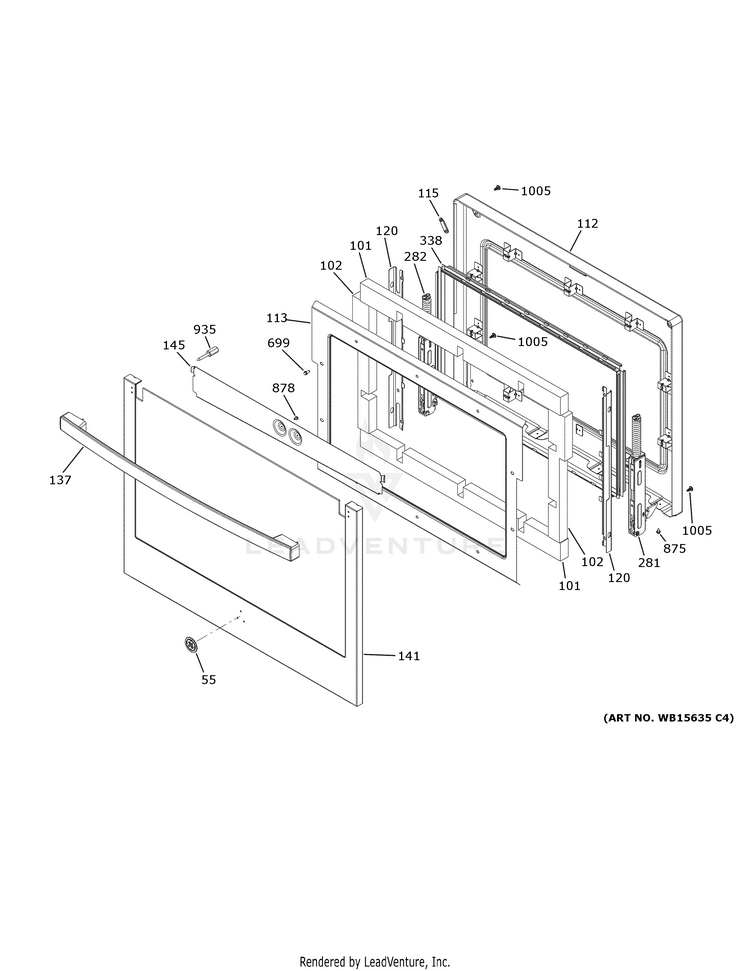

LOWER DOOR

...
...
55
BADGE ASM GEH-WB02X29637
...
101
INSULATION DR TOP GEH-WB35X21737
...
102
DOOR SIDE INSULATION GEH-WB35X31513
...
112
OVEN DOOR LINER ASM GEH-WB63X32569
...
113
DOOR INSULATION RETAINER GEH-WB34X31516
...
115
DOOR LINER PLUG GEH-WB02X32816
...
120
LINER SUPPORT GEH-WB34X28482
...
137
BLACK STAINLESS HANDLE AND ENDCAP GEH-WB15X32882
...
141
BLACK STAINLESS OUTER DOOR ASM GEH-WB56X32883
...
145
DEFLECTOR OVEN DOOR GEH-WB34X35586
...
281
SOFT CLOSE HINGE RIGHT DOOR GEH-WB10X33854
...
282
SOFT CLOSE HINGE LEFT DOOR GEH-WB10X33910
...
338
WINDOW PACK ASM GEH-WB56X27662
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
878
SCREW GEH-WB01X1178
...
935
REINFORCEMENT SPACER ASM GEH-WB02X32826
...
1005
SCREW 10-32 TR T GEH-WB01T10008
