GE Profile PTD9000BN1TS Electric Range

Model: PTD9000BN1TS

Back To Assemblies

Save Part Not Listed?
product name

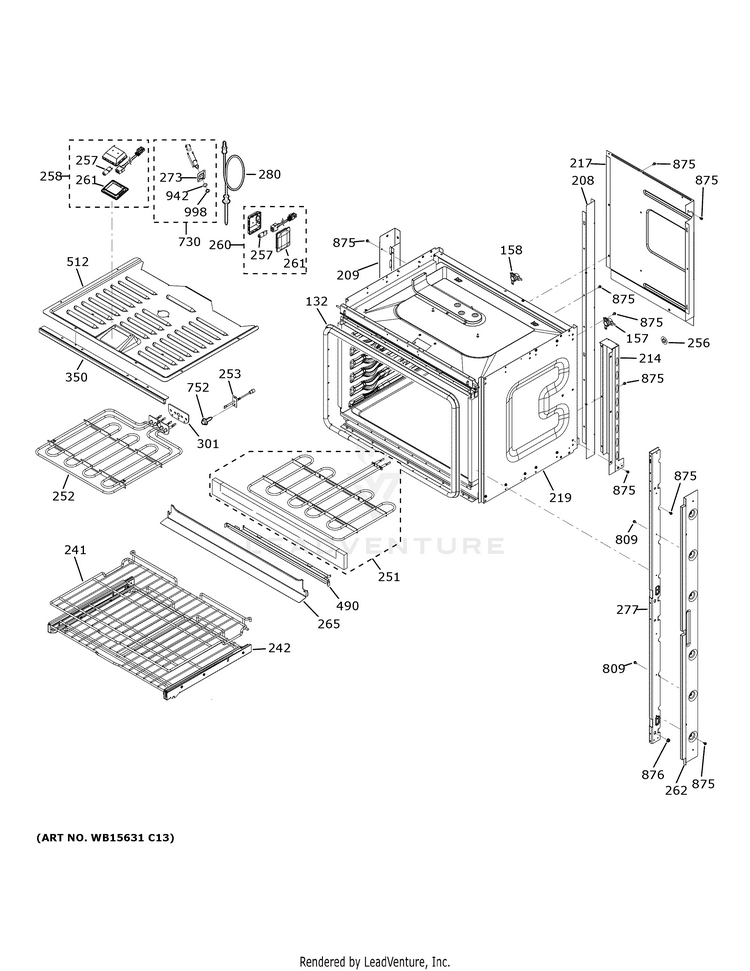

UPPER OVEN

...
...
132
OVEN DOOR GASKET GEH-WB35X32825
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
158
SWITCH LIMIT GEH-WB24X35587
...
208
DIVIDER AIR DOUBLE OVEN GEH-WB34T10140
...
209
CHANNEL REAR GEH-WB34X35265
...
214
CHANNEL REAR GEH-WB55X10971
...
217
COVER - UPPER REAR DUCT GEH-WB34T10136
...
219
RETAINER INSLN SDE GEH-WB34X21913
...
241
OVEN RACK GEH-WB48X31582
...
242
SLIDING OVEN RACK ASM GEH-WB48X32924
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21667
...
252
ELEMENT BROIL ASM GEH-WB44X23640
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN BULB G9 GEH-WB25T10102
...
258
HALOGEN LAMP ASM GEH-WB25X31221
...
260
HALOGEN LAMP ASM GEH-WB25X31222
...
261
OVEN LIGHT LENS GEH-WB34X31317
...
262
TRIM VERTICAL SIDE SS GEH-WB07T10792
...
265
TRIM VENT LWR GEH-WB07X21783
...
273
PR0BE COVER GEH-WB34K5140
...
277
VERTICAL BRACE ASM (LT) GEH-WB07X35285
...
277
VERTICAL BRACE ASM RH GEH-WB07X30797
...
280
MEAT PROBE GEH-WB20T10024
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
350
TRIM BROIL ELEMENT (BK) GEH-WB07T10787
...
490
COVER HIDDEN BAKE GEH-WB55T10197
...
512
PLATE - TOP OVEN GEH-WB37T10024
...
730
MEAT PROBE AND HARNESS GEH-WB18X23585
...
752
SCREW GEH-WB01X21742
...
809
SCREW ST 8-18X.750 (NI) GEH-WB01T10120
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
876
LOCK NUT GEH-WB01T10127
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572
