GE Profile PTD9000BN1TS Electric Range

Model: PTD9000BN1TS

Back To Assemblies

Save Part Not Listed?
product name

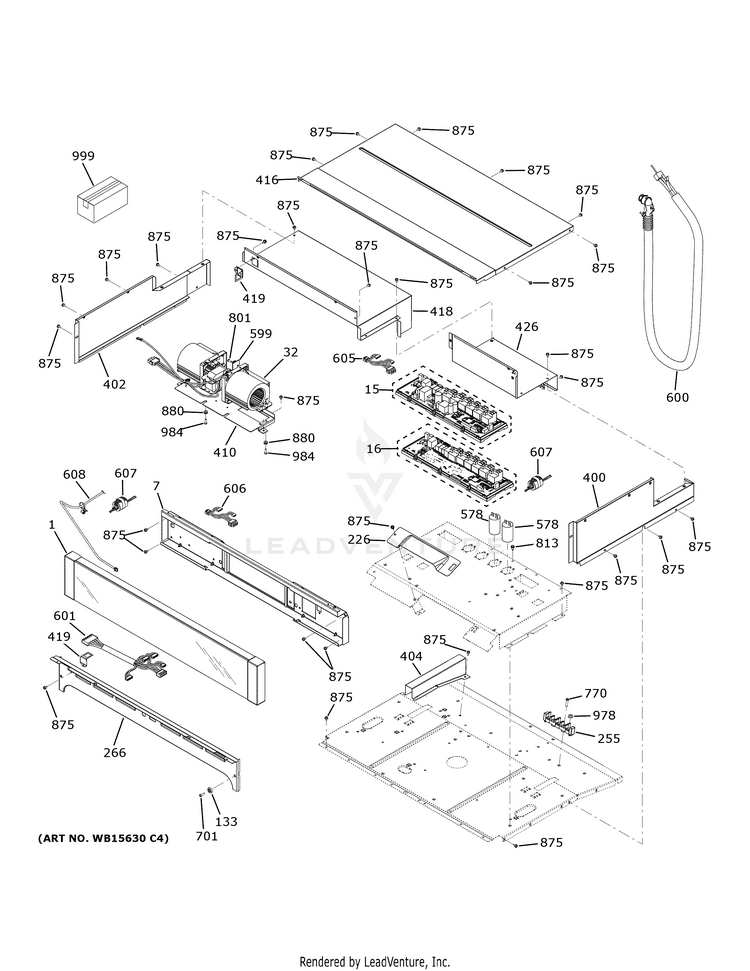

CONTROL PANEL

...
...
1
BLACK STAINLESS CONTROL PANEL GEH-WB56X40086
...
7
CONTROL PANEL MOUNTING BRACKET GEH-WB07X32471
...
15
BOARD MACHINE CONTROL RC17 GEH-WB27X33863
...
16
BOARD MACHINE CONTROL RC17 GEH-WB27X33841
...
32
FAN BLOWER GEH-WB26X31060
...
133
BUMPER DOOR GEH-WB03T10341
...
226
COVER LATCH ACCESS GEH-WB34X33875
...
255
BLOCK TERMINAL GEH-WB17T10024
...
266
UPPER VENT TRIM GEH-WB07X32831
...
400
COVER TOP RIGHT EDGE GEH-WB34T10164
...
402
COVER TOP LEFT EDGE GEH-WB44T10126
...
404
CHANNEL UPPER AIR VENT GEH-WB34T10150
...
410
BRACKET UPPER FAN MOUNT GEH-WB37T10026
...
416
COVER HOUSING FRT GEH-WB34X28390
...
418
COVER TOP REAR GEH-WB24X32772
...
419
RJ45 BRACKET GEH-WB24X33028
...
426
COVER WIRE REAR GEH-WB35T10273
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
599
BOARD FAN SENSOR GEH-WB27T11463
...
600
OPTIONAL 6 FT CONDUIT GEH-WB18T10580
...
600
CONDUIT WIRE ASM GEH-WB18X33486
...
601
UI COM AND RJ45 HARNESS GEH-WB18X33150
...
605
HARNESS MAIN GEH-WB18X34656
...
606
LATCH COM HARNESS WIRE GEH-WB18X32872
...
607
LATCH COM HARNESS WIRE GEH-WB18X32872
...
608
HARNESS WIRE CAMERA - UI TO DOOR GEH-WB18X35000
...
701
SCR 8-18 AB TRT20NBS 5/8 GEH-WB01X21650
...
770
SCREW GEH-WB01K5072
...
801
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
813
SCREW GROUND GEH-WB01X1261
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
880
GROMMET GEH-WB01T10128
...
978
HEX NUT GEH-WB01X1259
...
984
SCREW 7-19 1/4HEX 1/2IN GEH-WB01T10130
...
999
PM INSERT INSTRUCTIONS GEH-49-2000689
...
999
LUBRICANT CLEANER GEH-WB02T10303
...
999
INSTRUCTION INSTALL GEH-31-10882
...
999
PM QUICK OWNERS MANUAL GEH-49-2000691
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM INSTALL INSTRUCTIONS GEH-31-10957
...
999
PM MINI MANUAL AND WIRING GEH-31-2000264
