GE Profile PGS930SEL3SS Gas Range Or Dual Fuel

Model: PGS930SEL3SS

Back To Assemblies

Save Part Not Listed?
product name

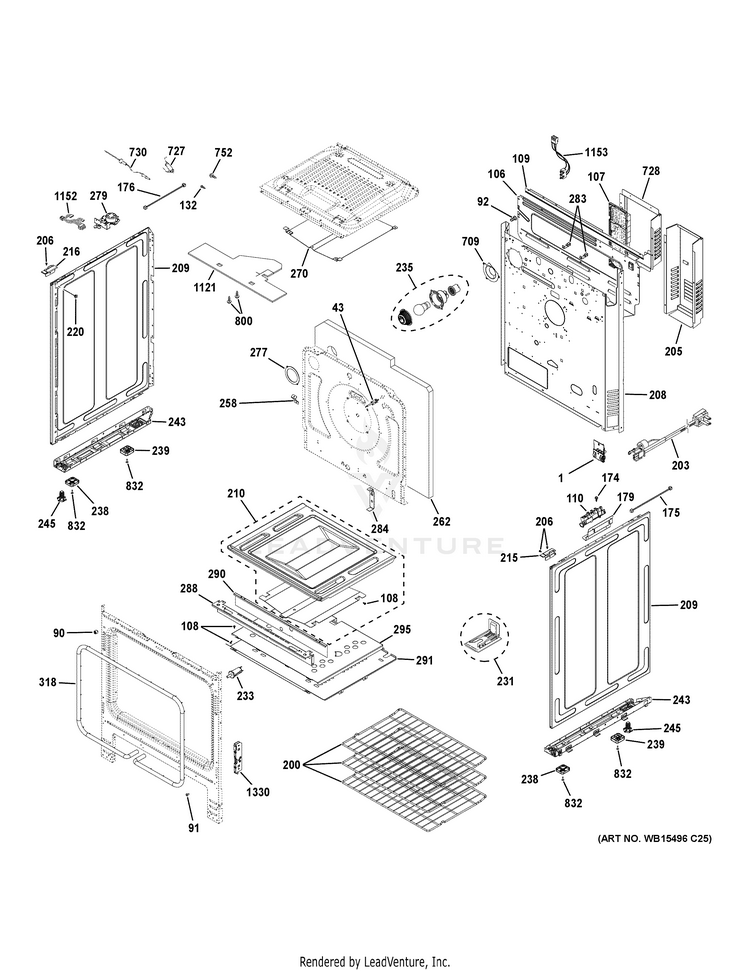

BODY PARTS

...
...
1
LP CONVERSION KIT GEH-WB28X39129
...
1
KIT NG HIGH ALTITUDE ASM GEH-WB28X29254
...
1
KIT LP HIGH ALTITUDE ASM GEH-WB28X29255
...
1
LABEL WIRE DIAGRAM GEH-295D2744P002
...
43
SENSOR ASM GEH-WB24X25557
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
92
SCREW GROUND GEH-WB01X1261
...
106
COVER BACK GEH-WB34X28955
...
107
MACHINE BOARD WITH FRAME (SERVICE) GEH-WB27X29497
...
108
SCREW (BLK) GEH-WB01K0042
...
109
BACKGUARD COMPLEMENT GEH-WB34X28912
...
110
IGNITION MODULE GEH-WB13X24741
...
132
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
174
SCREW #8-18 GEH-WB01X31119
...
175
HARNESS GROUND GEH-WB18X27594
...
176
HARNESS GROUND GEH-WB18X25597
...
179
BRACKET SPARK MODULE GEH-WB34X33924
...
200
OVEN RACK GEH-WB48X21508
...
203
LINE CORD GEH-WB18X28855
...
205
COVER MOTOR GEH-WB34K10097
...
206
SCREW GEH-WB01K10091
...
208
RANGE BACK GEH-WB63X28974
...
209
PANEL SIDE GEH-WB56X28847
...
210
BOTTOM OVEN AND DEFLECTOR ASM GEH-WB35X37968
...
215
FRONT SUPPORT RH GEH-WB34X28747
...
216
FRONT SUPPORT LH GEH-WB34X28749
...
220
GROMMET GEH-WB02K0008
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH GEH-WB24X27550
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
238
SPACER BASE FRONT GEH-WB16X20448
...
239
SPACER BASE REAR GEH-WB16X20449
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
258
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
262
INSULATION OVEN BACK GEH-WB35X28786
...
270
DEFLECTOR GEH-WB34X28689
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
279
LATCH AUTOMATIC GEH-WB10X28793
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
288
BRACE BOTTOM GEH-WB63K0015
...
290
SHIELD RADIATION GEH-WB34K0012
...
291
GUARD BOTTOM GEH-WB63K0016
...
295
BOTTOM INNER GUARD GEH-WB63K10187
...
318
GASKET OVEN ASM GEH-WB32X29539
...
709
COVER LAMP GEH-WB08K10018
...
727
PROBE RECEPTACLE & HARNE GEH-WB34K10121
...
728
CONTROL COVER GEH-WB34X28674
...
730
PROBE THERMISTOR GEH-WB20X5064
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
832
SCREW GEH-WB1K21
...
1121
INSULATION LATCH GEH-WB35X28986
...
1152
HARNESS LATCH GEH-WB18X28892
...
1153
DC HARNESS GEH-WB18X28690
...
1330
RECEIVER HINGE GEH-WB10X28563
