GE Profile PB911SJ9SS Electric Range

Model: PB911SJ9SS

Save Part Not Listed?
product name

BODY PARTS

...
...
20
BRACKET CAPACITOR GEH-WB02T10194
...
66
RANGETOP ENCLOSURE GEH-WB34X26630
...
68
PLATE COVER (BK) GEH-WB02X21423
...
83
CLIP SEAM OVEN BODY GEH-WB02T10118
...
94
CHASSIS BRACE RADIANT RH GEH-WB34X30703
...
94
CHASSIS BRACE RADIANT LH GEH-WB34X30702
...
203
MAIN BACK COVER GEH-WB34X31190
...
217
WIRE COVER BACK GEH-WB34X29563
...
221
SIDE PANEL DG GEH-WB63X28679
...
222
DRAWER PANEL SS GEH-WB56X28584
...
223
DRAWER BODY ASM GEH-WB63X29070
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
OVEN CAVITY INSULATION GEH-WB35X29572
...
232
OVEN BACK INSULATION GEH-WB35X29571
...
233
OVEN BOTTOM INSULATION GEH-WB35X29075
...
241
RACK OVEN GEH-WB48T10083
...
242
DRAWER WEDGE GEH-WB02X29072
...
251
UNIT ASM GEH-WB44T10104
...
252
BROIL UNIT ASM GEH-WB44X30616
...
253
SENSOR ASM GEH-WB21X22134
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
257
40WATT 15AMP GEH-40A15
...
258
HALOGEN LAMP ASM GEH-WB25X33021
...
259
OV LAMP LENS GEH-WB36X0389
...
264
TRIM FRT FRM (BK) GEH-WB07T10516
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
TERMINAL BLOCK MOUNT GEH-WB34X29565
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
273
COVER GEH-WB02K5365
...
277
HINGE RECEIVER GEH-WB10X29566
...
282
VENT TUBE ASSY GEH-WB38T10012
...
283
VENT TUBE GEH-WB34X29573
...
292
REAR SUPPORT GEH-WB02X33180
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
472
SIDE REFLECTOR GEH-WB49T10007
...
489
REFLECTOR PANE BAKE ELEM GEH-WB02T10509
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
606
TEMPERATURE SENSOR HARNESS WIRE GEH-WB18X29581
...
606
HARNESS WIRE HB GEH-WB18X30074
...
752
SCREW GEH-WB01K5200
...
755
SCREW GROUND GEH-WB01X1261
...
761
SCREW MTG GEH-WB1X5364
...
871
SCREW GEH-WB01M10002
...
875
WZ4X245D GEH-WB01T10046
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1003
SCREW 10-32 TR T GEH-WB01T10008
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941

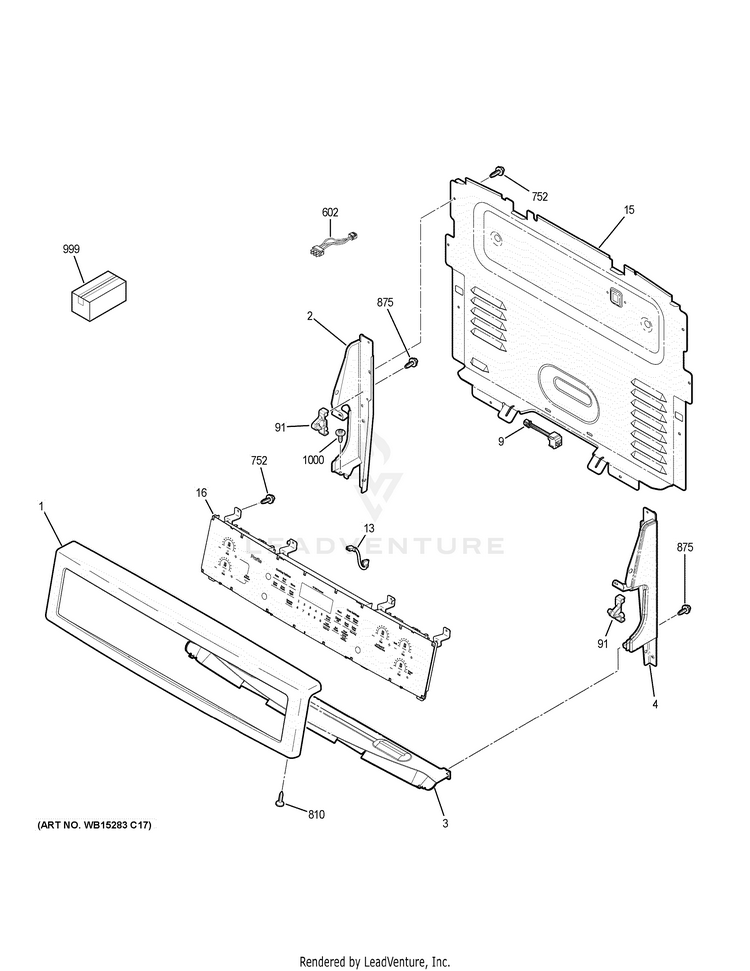

CONTROL PANEL

...
...
1
TRIM AND CAP ASM GEH-WB07X28610
...
1
LABEL WIRE DIAGRAM GEH-229C6395P006
...
2
END PLATE LH DG GEH-WB07X29534
...
3
BACKGUARD SHIELD HEAT GEH-WB34X28565
...
4
END PLATE RH DG GEH-WB07X29535
...
9
RJ45 CONNECTOR AND HARNESS GEH-WB27X30706
...
13
JUMPER GEH-WB18X30704
...
15
CONTROL PANEL BACK COVER GEH-WB34X29576
...
16
OVEN CONTROL AND OVERLAY ASM GEH-WB27X33134
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
602
HARNESS WIRE COM GEH-WB18X32668
...
752
SCREW GEH-WB01K5200
...
810
SCR 8-18 AB #60RH 1/2 NI GEH-WB01X26365
...
875
WZ4X245D GEH-WB01T10046
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM QUICK GUIDE GEH-49-80770
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM INSTRUCTIONS INSTALL GEH-31-11105
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM MANUAL MINI & WD ASM GEH-31-17339
...
1000
SCR 8-18 AB HXW 1/2 S GEH-WB01T10126

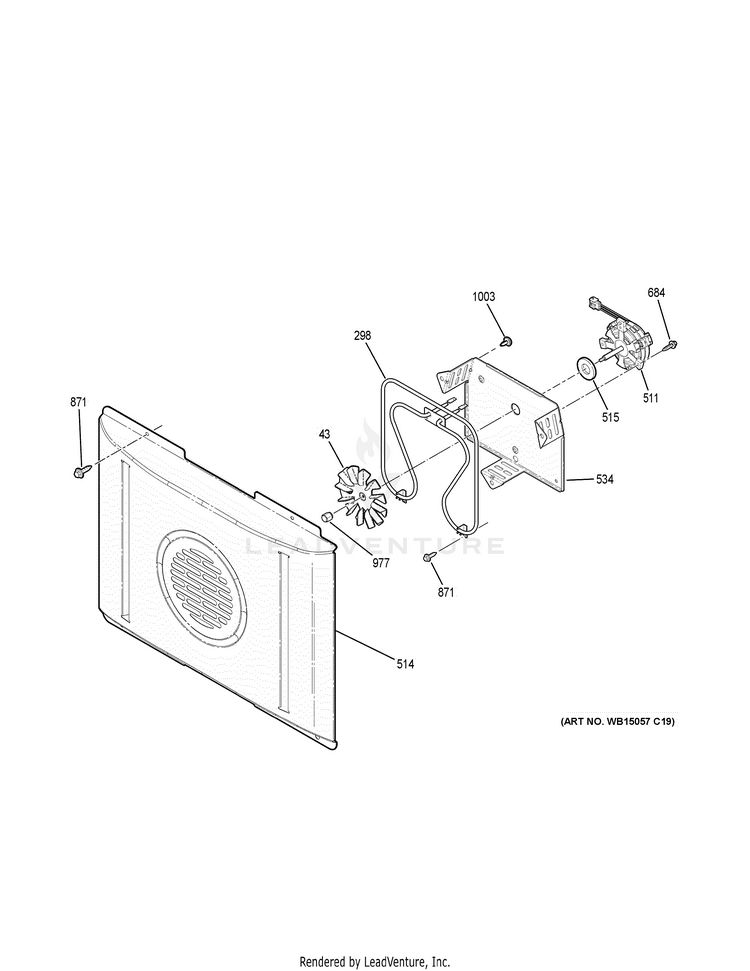

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02X26501
...
298
CONVECTION HEATING ELEMENT GEH-WB44X31764
...
511
CONVECTION MOTOR GEH-WB26X29157
...
514
BLACK CONVECTION FAN COVER GEH-WB34X31766
...
515
GASKET CONV FAN GEH-WB04T10080
...
534
CONVECTION MOTOR BRACKET GEH-WB02X29181
...
684
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416
...
871
SCREW GEH-WB01M10002
...
977
NUT HEX GEH-WB02T10608
...
1003
SCREW 10-32 TR T GEH-WB01T10008

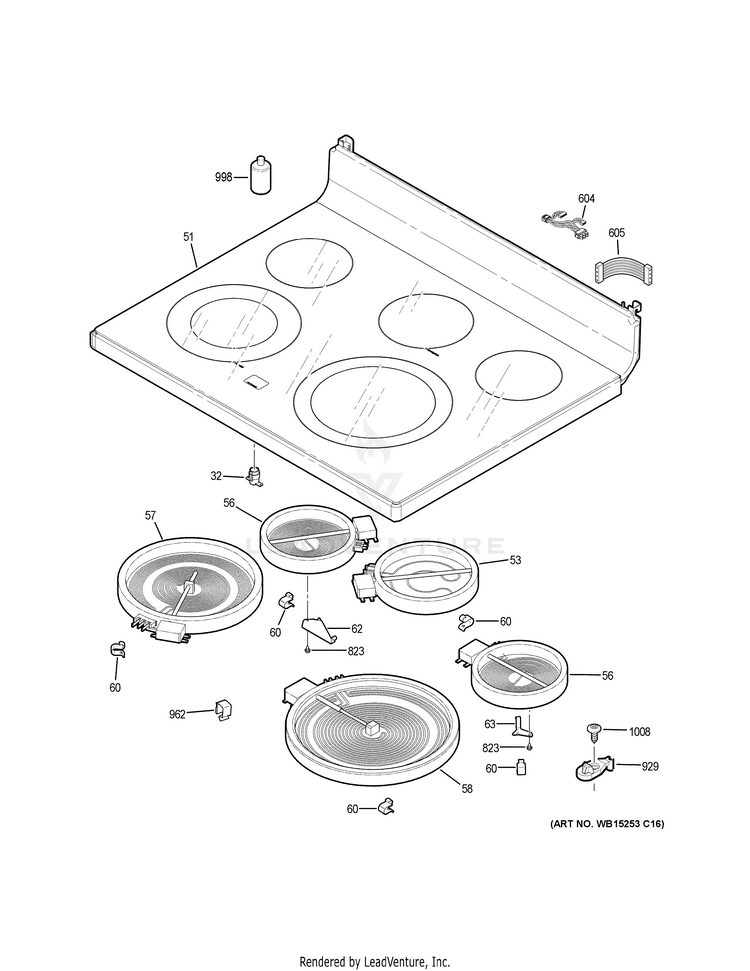

COOKTOP

...
...
32
LIGHT INDICATOR GEH-WB27T10668
...
51
RANGETOP GLASS ASM GEH-WB62X26626
...
53
ELEMENT RADIANT 6 WARMER GEH-WB30X20871
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT RADIANT 9" DUAL GEH-WB30X24111
...
58
ELEMENT HALIANT 12 IN GEH-WB30T10130
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
62
BRACKET RADIANT ELEMENT GEH-WB02X25089
...
63
BRACKET RADIANT ELEMENT GEH-WB02X20902
...
604
LEAD WIRE 14 GA GN GEH-WB18X30717
...
605
MAINTOP HARNESS GEH-WB18X32667
...
823
SCR 10-16 AB IHW .625 NI GEH-WB01T10072
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02X25982
...
998
GLASS CLEANER GEH-WB64X0093
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

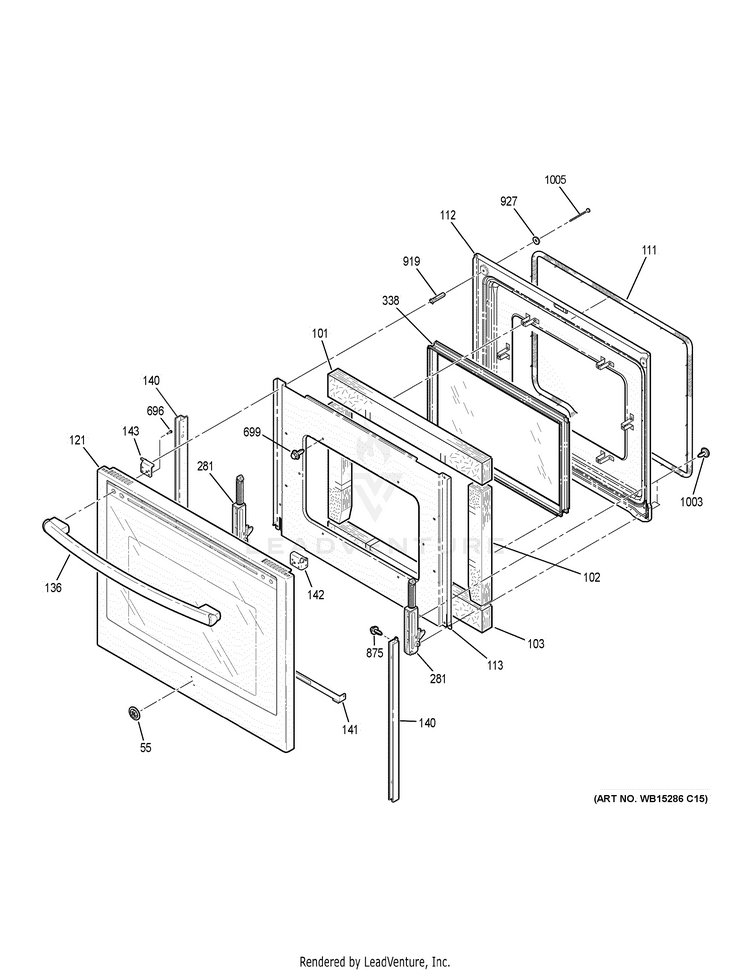

DOOR

...
...
55
BADGE ASM GEH-WB02X29479
...
101
INSULATION DOOR GEH-WB35T10077
...
102
INSULATION DOOR GEH-WB35T10114
...
103
INSULATION DOOR GEH-WB35T10255
...
111
GASKET OVEN GEH-WB04T10086
...
112
LINER OVEN DOOR ASM (BK) GEH-WB55T10203
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
121
OUTER DOOR PANEL ASM GEH-WB56X28603
...
136
HANDLE AND END CAP ASM GEH-WB15X29386
...
140
FRAME DOOR SIDE (BK) GEH-WB56T10287
...
141
DOOR GLASS BRACKET GEH-WB02X28578
...
142
BRACKET OVN HDL VNT TRM GEH-WB34X25221
...
143
BRACKET OVN HDL VNT TRM GEH-WB34X25220
...
281
HINGE DOOR GEH-WB10T10071
...
338
WINDOW PACK ASM GEH-WB56X22160
...
696
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
WZ4X245D GEH-WB01T10046
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCREW 10-32 TR T GEH-WB01T10008
...
1005
SCR 10-32 CA TRT15 3.06 GEH-WB02X24268

DOOR LOCK

...
...
150
LATCH ASM GEH-WB10X25007
